Detailed Description

A scene node is the base type for all nodes which are used by the scene manager; it is an integral part of You.i Engine and is used extensively by various parts of the framework.

The scene node is the base class for all visual elements in the framework; CYISceneView derives from this class and serves as the base class for all pre-built user interface components.

The CYISceneNode class exposes all the necessary functionality for handling input, signals, animation, and timeline updates. It also provides functions for obtaining information about scene position and size in in both local and world coordinates.

This class is the basis for constructing a scene tree. Given the nature of a node in tree based systems, nodes can be detached and placed anywhere in the scene tree. However, some nodes may have logical or visual dependencies on other nodes in the tree, and care must be taken when placing these nodes in other locations.

Masks and visual effects can be created manually or imported from After Effects; these types can be added to a scene node for use during rendering.

A scene node can also be rendered into a different render target for the purposes of off-screen rendering.

The tree structure describes a transformation stack, properties of parents are inherited into their children. Additionally a drawing order is specified that is usually equivalent to the transformation stack. CYISceneNode::DrawInFrontOfChildren, CYISceneNode::DrawBehindChildren, CYISceneNode::DrawInFront, and CYISceneNode::DrawBehind are used to modify the draw structure. Modifying this structure may be necessary in cases where a node must have its transforms relative to another node, but must not change the order in which it draws to the screen, such as when making use of the parenting feature in After Effects.

A draw list is then created based on this draw structure to represent the order in which the nodes will be drawn. For further information see the documentation provided for the above functions.

The scene tree employs a dirty flag mechanism for tracking changes to nodes during and across frames. However, users can call any getters on the node and rely on the data being correct even if the node is marked as dirty. This is because getters do just-in-time evaluation of properties if they have not already been calculated.

In circumstances where a node must be deleted in response to signals or events, it is advisable to use CYISceneNode::RequestDeletion to ensure that the node is deleted only at the end of the frame when all potential processing on it has completed.

CYISceneNode::RequestDeletion can also be used to delete nodes from another thread, but in general scene tree modifications should be done on the main thread as operations to the scene tree are not generally thread-safe.

Scene Node Specification

Type	Labels	Property	Description
Comment	interactive	Optional	Setting to 'off' prevents the capturing of events on layers
Comment	placeholder	Optional	Setting to 'true' prevents export by the You.i Engine After Effects Plug-in.

#include <scenetree/YiSceneNode.h>

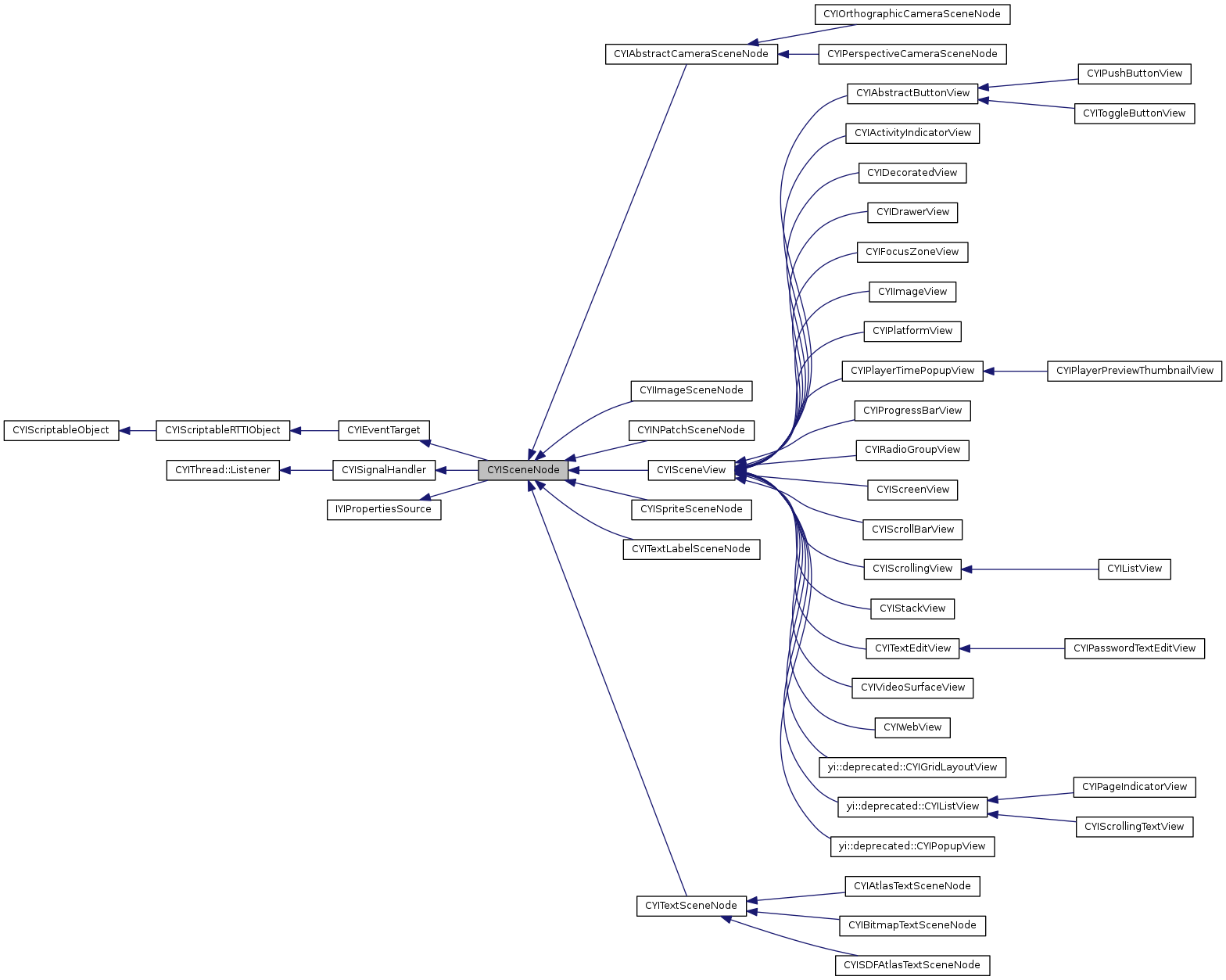

Inheritance diagram for CYISceneNode:

[legend]

Classes
class	Iterator

class	MeasureSpec

class	PropertyAnimation
	Class representing a node property animation. More...

Public Types
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYISceneNode ()

virtual	~CYISceneNode ()

virtual bool	Init ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &drawList, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr)

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual bool	GetProperty (const CYIString &rPropertyName, CYIString *pValue) const override

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec)

virtual void	ApplyMeasurements ()

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Static Public Member Functions
static void	RegisterAllSceneNodes ()

Public Attributes
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Static Public Attributes
static const float	OPACITY_NOT_VISIBLE_EPSILON

Protected Member Functions
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	WorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	WorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	ChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	ChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	SizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	ChildNeedsLayout ()

virtual void	LayoutDirtied ()

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

virtual void	ChildVisibilityChanged (CYISceneNode *pChild)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Friends
class	CYISceneManager

Member Typedef Documentation

typedef std::reverse_iterator<Iterator> CYISceneNode::ReverseIterator

Member Enumeration Documentation

enum CYISceneNode::DirtyFlag

Enumerator
DirtyClean
DirtySceneGraph	Indicates that the scene graph is dirty and requires an update pass. Setting this flag recurses automatically through all ancestors.
DirtyVisibility	Indicates that the visibility of the node changed, and that the absolute visibility of the node needs to be re-calculated. Setting this flag recurses automatically through all children and will emit a DirtySceneGraph recursively to all ancestors
DirtyOpacity	Indicates that the opacity of the node changed, and that the composite opacity of the node needs to be re-calculated. Setting this flag recurses automatically through all children and will emit a DirtySceneGraph recursively to all ancestors
DirtyLocalTransform	Indicates that the local transform of the node needs to be recalculated. This dirty flag will also automatically emit DirtyWorldTransform to all children, DirtyWorldBoundingBox to all children and ancestors, DirtySceneGraph to all ancestors, and DirtyLocalBoundingBox to all ancestors.
DirtyWorldTransform	Indicates that the world transform needs to be re-calculated. This flag is normally emitted automatically when using DirtyLocalTransform, and should normally not be called directly. This will automatically recurse to all children and ancestors, and will also recursively set DirtyWorldBoundingBox to all children and ancestors, and DirtySceneGraph to all the ancestors.
DirtyUniform	Indicates that a uniform buffer needs to be re-uploaded to the GPU. This flag is non-recursive, but will recursively emit DirtySceneGraph to all ancestors.
DirtyWorldBoundingBox	Indicates that the world bounding box needs to be re-calculated. Like DirtySceneGraph, this flag automatically recurses through all ancestors. Will also emit DirtySceneGraph through all ancestors.
DirtyMesh	Indiates that a new mesh was set on the node. Will automatically emit DirtyUniform on the node and DirtyWorldBoundingBox recursively to all ancestors. Will also emit DirtySceneGraph through all ancestors. DirtyLocalBoundingBox will also be set on the node and all ancestors. This is a placeholder flag that only represents its side effects. It will never be directly reflected in the dirty flags.
DirtyWorldSurfaceScale	Indicates that the scale of the node or its parent or its nearest render target's scaling factor changed, and that the world surface scaling factor of the node needs to be re-calculated. Setting this flag recurses automatically through all children and will emit DirtyWorldSurfaceScale recursively to all ancestors.
DirtyWorldScale	Indicates that the scale of the node or its parent changed, and that the world scaling factor of the node needs to be re-calculated. Setting this flag recurses automatically through all children and will emit DirtyWorldScale recursively to all ancestors.
DirtyLocalBoundingBox	Indicates that the local bounding box needs to be re-calculated. This flag automatically recurses through all ancestors. DirtyWorldBoundingBox will also be set on the node and all ancestors, and DirtySceneGraph will be set on all ancestors.
DirtyEverything	Dirties everything except DirtyMesh. DirtyMesh is a placeholder flag that only represents its side effects. This is the flag used by ForceDirty().

enum CYISceneNode::FETCH_TYPE

Used in CYISceneNode::FindNode or CYISceneView::FindTimeline to specify whether the search target is mandatory (meaning an error will be logged if it is not found), or optional.

Enumerator
FETCH_OPTIONAL	This node or timeline is optional, no logging occurs if it is not found.
FETCH_MANDATORY	The node or timeline is mandatory, an error will be logged if it is not found.

enum CYISceneNode::LayoutConfigFetchMode

Enumerator
LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE	Indicates that a CYILayoutConfig object instance should not automatically be created if one does not exist already.
LAYOUT_CONFIG_LAZY_INSTANTIATE	Indicates that a CYILayoutConfig object instance should automatically be created and assigned if one does not exist already.

enum CYISceneNode::LayoutDirtyFlag

Enumerator
LayoutClean	Indicates that this node (and all of its children) do not require a re-layout.
LayoutChildDirty	Indicates that this node does not require a re-layout, but one or more of its children does.
LayoutDirty	Indicates that this node requires a re-layout.

enum CYISceneNode::MeasureMode

Enumerator
MEASURE_UNSPECIFIED	Indicates that the measure size is unspecified (and thus the size can be anything)
MEASURE_UP_TO	Indicates that the size can be up to the provided measure size.
MEASURE_EXACTLY	Indicates that the size should be exactly the provided measure size (if possible).

Constructor & Destructor Documentation

CYISceneNode::CYISceneNode ( )

virtual CYISceneNode::~CYISceneNode ( )

virtual

Member Function Documentation

bool CYISceneNode::AddChild ( std::unique_ptr< CYISceneNode > pSceneNode )

Adds a child to this node.

By default the child will be pushed at the end of the child list meaning that it will be drawn over top of its siblings.

The function will return false if the pSceneNode already has a parent or if pSceneNode is this node.

bool CYISceneNode::AddChild	(	std::unique_ptr< CYISceneNode >	,
		int32_t	nIndex
	)

Adds a child to this node.

The child will be added at nIndex into the child list.

The function will return false if the pSceneNode already has a parent or if pSceneNode is this node.

void CYISceneNode::AddEffect ( const std::shared_ptr< CYIEffect > & pEffect )

Adds an effect to this node. If pEffect is null it will be ignored. Effects are processed during the construction of the draw list.

void CYISceneNode::AddMask ( std::unique_ptr< CYIMask > pMask )

Adds a mask to this node. If pMask is null it will be ignored. Masks are processed during the construction of the draw list.

Note: This node takes ownership of pMask.

virtual void CYISceneNode::ApplyMeasurements ( )

virtual

Applies the measured sizes of this node's children.

Note: Typically, if ApplyMeasurements is overridden then Measure must also be overridden.; Measurements should be applied before calculating position for layout.

Warning: Subclasses that override this function must ensure that the ApplyMeasurements function of ALL children of this scene node is called.

Note: Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented in CYIScrollingView, CYISceneView, CYITextSceneNode, CYIImageView, and CYIListView.

Iterator CYISceneNode::begin ( Iterator::ITERATION_MODE eMode = Iterator::IMMEDIATE_CHILDREN ) const

Returns the iterator to the first node in the iteration sequence.

virtual bool CYISceneNode::BroadcastEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

virtual

Recursively broadcasts an event to the node's children, then offers it to the node itself.

Reimplemented in CYIScrollingView.

virtual void CYISceneNode::BuildDrawList	(	std::vector< IYIRenderer::Command > &	drawList,
		CYIAbstractCameraSceneNode *	pCameraToDrawWith = `nullptr`
	)

virtual

Interal use only, this function will construct the list of render actions required to render the data contained in the subtree rooted at this node. Specify the camera used to draw with pCameraToDrawWith. The camera must be a draw-child of the node and be visible.

Warning: Override at your own risk; no guarantee of consistent behaviour.

Reimplemented in CYIScrollingView, and CYISceneView.

virtual void CYISceneNode::CalculateLocalTransform ( glm::mat4 * pTransform ) const

protectedvirtual

template<typename T >

bool CYISceneNode::CanCastTo ( ) const

Returns true if this object's type is T or a subtype of T.

Note: This is equivalent to using GetRuntimeTypeInfo().CanCastTo<T>(), but is optimized to run faster with certain built-in types such as scene views and cameras.

bool CYISceneNode::ChangeParent ( CYISceneNode * pParent )

Changes the pParent of this node and updates the former parent, to remove this node as a child. By default this node will be pushed at the end of the child list of the new parent meaning that it will be drawn over top of its new siblings. Returns true if the node's parent has been changed.

Note: If this node does not currently have a parent, this function has no effect and false is returned.

virtual void CYISceneNode::ChildAdded ( CYISceneNode * pChild )

protectedvirtual

Called when a scene node is added to this node's children list.

Warning: Overrides must call the base class implementation.

See also: OnChildAdded()

Reimplemented in CYIScrollingView, and CYISceneView.

virtual void CYISceneNode::ChildNeedsLayout ( )

protectedvirtual

Called when a child in this scene node's children hierarchy needs to be laid out.

Warning: Overrides must call the base class implementation.

Reimplemented in CYISceneView.

virtual void CYISceneNode::ChildRemoved ( CYISceneNode * pChild )

protectedvirtual

Called when a scene node is removed from this node's children list.

Note: The scene node might be deleted immediately after this function is called (e.g. if a user called CYISceneNode::DestroyChildren )

Warning: Overrides must call the base class implementation.

See also: OnChildRemoved()

Reimplemented in CYIScrollingView, and CYISceneView.

virtual void CYISceneNode::ChildVisibilityChanged ( CYISceneNode * pChild )

protectedvirtual

Called when the visibility of a child of this scene node has been modified.

Warning: Overrides must call the base class implementation.

See also: OnChildVisibilityChanged()

Reimplemented in CYISceneView.

void CYISceneNode::ClearDirtyFlag ( )

Clears the dirty flags applied to this node and its children.

Warning: This function is recursive.

virtual void CYISceneNode::CompositeOpacityUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the composite opacity has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetCompositeOpacity

Warning: Overrides must call the base class implementation.

See also: Update(); OnCompositeOpacityUpdated()

void CYISceneNode::ConnectEffectsToTimelines ( const CYITimelineTrack * pTrack )

The provided pTrack will be used to drive the node's effects.

Note: This node does not take ownership of pTrack.

virtual bool CYISceneNode::ContainsFocusableDescendant ( const CYIFocusSearchOptions & options = CYIFocusSearchOptions() ) const

virtual

Returns true if this node contains any descendants which can receive focus.

The default implementation returns true if CYISceneManager::CanBeFocused() returns true for any descendant and if those descendants are valid candidates according to options.

Reimplemented in CYIScrollingView, and yi::deprecated::CYIListView.

void CYISceneNode::DestroyChildren ( )

Recursively destroys the children of this node. Note that data will be deleted, this is not the same as remove.

virtual void CYISceneNode::DirtyFlagChanged ( )

protectedvirtual

This hook provides subclasses a means to react to dirty state changes. When a node has its dirty flag changed, the callback will be triggered immediately on that node. If any upward or downward recursion is required as a result of the dirty flag change, the callbacks on those nodes will be triggered outward from this node, first in the parent direction then in the child direction.

Considering the following lineage:

A -> B -> C -> D -> E

When C's dirty flag is changed, the sequence of OnDirtyFlagChanged() calls (assuming all flags change) will be

C -> B -> A -> D -> E

Note: This hook is called when the 'live' dirty flag is changed, not when the 'frame' dirty flag is changed. However, whenever the 'frame' dirty flag is changed the 'live' dirty flag is typically also changed.; This hook is not called when a dirty flag is 'cleared'.

Warning: Using SetDirtyFlag() within this function may cause another invocation of this function

See also: SetDirtyFlag(DirtyFlag)

Warning: Overrides must call the base class implementation.

See also: OnDirtyFlagChanged()

bool CYISceneNode::DrawBehind ( CYISceneNode * pSceneNode )

This node is inserted into pSceneNode's parent's draw order behind pSceneNode.

Returns false if pSceneNode doesn't exist, if pSceneNode is this node, or if pSceneNode doesn't have a draw parent.

bool CYISceneNode::DrawBehindChildren ( CYISceneNode * pSceneNode )

This node is inserted into the draw order behind the other children of pSceneNode.

Returns false if pSceneNode doesn't exist, or if pSceneNode is this node.

bool CYISceneNode::DrawInFront ( CYISceneNode * pSceneNode )

This node is inserted into pSceneNode's parent's draw order in front of pSceneNode.

Returns false if pSceneNode doesn't exist, if pSceneNode is this node, or if pSceneNode doesn't have a draw parent.

bool CYISceneNode::DrawInFrontOfChildren ( CYISceneNode * pSceneNode )

This node is inserted into the draw order above the other children of pSceneNode.

Returns false if pSceneNode doesn't exist, or if pSceneNode is this node.

void CYISceneNode::DumpTree ( ) const

Dumps an xml-formatted representation of this subtree to the console.

The log tag used is "CYISceneNode::DumpTree" at YI_LOG_DEBUG level. To see these logs in your application, ensure that debug level logs for this tag are enabled.

See also: CYILogger; CYIPreferences

void CYISceneNode::DumpTree ( int32_t nIndentLevel ) const

protected

nIndentLevel specifies the number of tabs (4 spaces) for this output level. This is a recursive call and nIndentLevel will be incremented automatically at each level so the output looks like a tree.

Iterator CYISceneNode::end ( Iterator::ITERATION_MODE eMode = Iterator::IMMEDIATE_CHILDREN ) const

Returns the position after the last node in the iteration sequence.

CYIAbstractCameraSceneNode* CYISceneNode::FindActiveCamera ( ) const

The active camera is the last encountered visible child of this node which is also a camera node. The order the children are encountered in is defined by the draw order.

template<class YI_SCENE_NODE_SUBCLASS >

bool CYISceneNode::FindNode	(	YI_SCENE_NODE_SUBCLASS *&	pNode,
		const CYIString &	nodeName,
		FETCH_TYPE	eType,
		const CYIString &	tag
	)

The node's descendants will be searched to locate a pNode with nodeName matching YI_SCENE_NODE_SUBCLASS.

Returns false if the node is not found or if it is not of type YI_SCENE_NODE_SUBCLASS.

Logs an error if eType is CYISceneNode::FETCH_MANDATORY and the node is not found. The provided tag will be used when logging.

See also: GetNode()

virtual void CYISceneNode::FocusChangedInDescendants ( )

virtual

Note: The base implementation must be called.

See also: OnFocusChangedInDescendants()

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, and CYIFocusZoneView.

virtual void CYISceneNode::FocusGainedInDescendants ( )

virtual

Note: The base implementation must be called.

See also: OnFocusGainedInDescendants()

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, and CYIFocusZoneView.

virtual void CYISceneNode::FocusLostInDescendants ( )

virtual

Note: The base implementation must be called.

See also: OnFocusLostInDescendants

void CYISceneNode::ForceDirty ( )

Fully dirties the node, triggering an update of its internal state.

All of the node's direct ancestors and descendants will be dirtied also.

Warning: This function is recursive.

const glm::vec3& CYISceneNode::GetAnchorPoint ( ) const

Get the anchor point for this node in its parent's space.

CYISceneNode* CYISceneNode::GetChild ( uint32_t nIndex ) const

Returns the child of this node at nIndex, or null if the index is invalid.

Note: This node retains ownership of the returned node.

CYISceneNode* CYISceneNode::GetChild ( const CYIString & sName ) const

Returns the first encountered child named sName or null if no such child exists.

Note: This node retains ownership of the returned node.

template<class YI_SCENE_NODE_SUBCLASS >

YI_SCENE_NODE_SUBCLASS* CYISceneNode::GetChild ( uint32_t uTargetMatchedNodeCount = 1 ) const

If the node contains no children of type YI_SCENE_NODE_SUBCLASS, returns null.

If the node contains at least uTargetMatchedNodeCount children of type YI_SCENE_NODE_SUBCLASS, returns the child of that type who, in order of being encountered, matches uTargetMatchedNodeCount.

If the node contains fewer than uTargetMatchedNodeCount children of type YI_SCENE_NODE_SUBCLASS, returns the last encountered child.

Note: This node retains ownership of the returned node.

uint32_t CYISceneNode::GetChildCount ( ) const

Returns the number of children.

uint32_t CYISceneNode::GetChildCountRecursive ( ) const

Returns the total number of descendants of this node, including itself.

template<class YI_SCENE_NODE_SUBCLASS >

std::list<YI_SCENE_NODE_SUBCLASS*> CYISceneNode::GetChildren ( ) const

Returns a list of all children of type YI_SCENE_NODE_SUBCLASS.

Note: This node retains ownership of the returned nodes.

bool CYISceneNode::GetClipping ( ) const

Returns true if the node has clipping enabled, false otherwise.

const CYIAABB& CYISceneNode::GetClippingBox ( ) const

Returns the clipping volume for this node. The volume is specified in 3-dimensional world space but the clipping will be done in screen-space.

float CYISceneNode::GetCompositeOpacity ( ) const

Returns the effective opacity for this node. A value of 0.0 means not visible, and a value of 1.0 means fully visible. This may differ from the value set by SetOpacity() if a parent of this node has transparency.

LayoutDirtyFlag CYISceneNode::GetCurrentLayoutDirtyFlag ( ) const

protected

Returns the (current) layout dirty flag for this scene node.

See also: GetLayoutDirtyFlag()

DirtyFlag CYISceneNode::GetDirtyFlag ( ) const

Returns the current dirty state of the node. Will return CYIScenNode::DirtyClean if the node is clean. This is the 'frame dirty' state, which is cleared only during the node's Update call.

CYISceneNode* CYISceneNode::GetDrawChild ( uint32_t uIndex ) const

Returns the child, in the draw order, at index uIndex.

Note: The caller does not obtain ownership of the returned node.

CYISceneNode* CYISceneNode::GetDrawChildByID ( int32_t nID ) const

Returns the first child node in the draw order with the specified id, or null if no such child exists.

Note: The caller does not obtain ownership of the returned node.

uint32_t CYISceneNode::GetDrawChildCount ( ) const

Returns the total number of draw children of this node. Draw children are nodes, possibly parented to nodes other than this one, which are drawn when this node is drawn.

CYISceneNode* CYISceneNode::GetDrawParent ( ) const

Returns the parent of this node, in the draw order. Returns null if this node is a draw root.

Note: The caller does not obtain ownership of the returned node.

virtual CYIString CYISceneNode::GetDumpTreeString ( ) const

protectedvirtual

Returns a string containing useful information about this node, displayed by DumpTree

Subclasses can implement this method to specify different or additional information. Appending to the default string is recommended.

See also: DumpTree()

Reimplemented in CYITextSceneNode, CYIAbstractCameraSceneNode, CYIPerspectiveCameraSceneNode, and CYIOrthographicCameraSceneNode.

std::shared_ptr<CYIEffect> CYISceneNode::GetEffect ( uint32_t uIndex ) const

Returns the effect at uIndex.

uint32_t CYISceneNode::GetEffectCount ( ) const

Returns the number of effects applied to this node.

const glm::mat4& CYISceneNode::GetEffectTransform ( ) const

Returns a matrix representing this node's effect transform.

int32_t CYISceneNode::GetID ( ) const

Returns the ID of this node.

IDs are more likely than names to uniquely identify nodes as they are configured during import. Names can be duplicated within a single view template, but IDs are uniquely assigned from the template.

It is always best practice to do scene tree search operations like GetNode from the most immediate ancestor of your likely candidate pool.

Warning: This ID is not globally unique to this node. For a globally unique ID, use GetUniqueID().

See also: GetUniqueID()

int32_t CYISceneNode::GetIndexOfChild ( const CYISceneNode * pSceneNode ) const

Returns the index of pSceneNode if it is a child of this node, otherwise returns -1.

const glm::vec3& CYISceneNode::GetInitialSize ( ) const

Returns the size that this node had at initialization.

const CYILayoutConfig* CYISceneNode::GetLayoutConfig ( LayoutConfigFetchMode eFetchMode = LAYOUT_CONFIG_LAZY_INSTANTIATE ) const

Returns the layout config object assigned to this node. May be null.

Note: If eFetchMode is LAYOUT_CONFIG_LAZY_INSTANTIATE and no layout config object is currently assigned to this scene node, a new instance of CYILayoutConfig will be created, assigned to this object, and returned.; This node retains ownership of the returned layout config.

CYILayoutConfig* CYISceneNode::GetLayoutConfig ( LayoutConfigFetchMode eFetchMode = LAYOUT_CONFIG_LAZY_INSTANTIATE )

Returns the layout config object assigned to this node. May be null.

Note: If eFetchMode is LAYOUT_CONFIG_LAZY_INSTANTIATE and no layout config object is currently assigned to this scene node, a new instance of CYILayoutConfig will be created, assigned to this object, and returned.; This node retains ownership of the returned layout config.

LayoutDirtyFlag CYISceneNode::GetLayoutDirtyFlag ( ) const

Returns the (future) layout dirty flag for this scene node.

Note: Dirtying the layout affects the next layout pass. If this function is called during a layout pass, the dirty state is only updated for the following layout pass.

See also: GetCurrentLayoutDirtyFlag()

const CYILayoutState* CYISceneNode::GetLayoutState ( ) const

Returns the layout state object assigned to this node. May be null.

Note: This node retains ownership of the returned layout config.

CYILayoutState* CYISceneNode::GetLayoutState ( )

Returns the layout state object assigned to this node. May be null.

Note: This node retains ownership of the returned layout config.

const CYIAABB& CYISceneNode::GetLocalAABB ( ) const

Returns the local axis-aligned bounding box for this node, encapsulating all of its children.

float CYISceneNode::GetLocalOpacity ( ) const

Returns the local opacity for this node. A value of 0.0 means not visible, and a value of 1.0 means fully visible.

Note that the effective opacity will be influenced by any ancestors of this node, this setting is for the local opacity of the node.

See also: GetCompositeOpacity()

const glm::mat4& CYISceneNode::GetLocalTransform ( ) const

Returns a matrix representing this node's local transform.

const CYIMask* CYISceneNode::GetMask ( uint32_t uIndex ) const

Returns the mask at uIndex.

CYIMask* CYISceneNode::GetMask ( uint32_t uIndex )

Returns a mutable mask effect.

uint32_t CYISceneNode::GetMaskCount ( ) const

Returns the number of masks on this node.

const std::shared_ptr<CYIMaterial> CYISceneNode::GetMaterial ( uint32_t nIndex = 0 ) const

Returns the material of this node at nIndex.

uint32_t CYISceneNode::GetMaterialCount ( ) const

Returns the number of materials on this node.

const glm::vec3& CYISceneNode::GetMeasuredSize ( ) const

Returns the measured size of this node. The measured size of a scene node is calculated and stored by the Measure function. It is then used by the ApplyMeasurements function to set the size of the scene node. This is part of the layout system.

const std::shared_ptr<CYIMesh>& CYISceneNode::GetMesh ( ) const

Returns the node's mesh.

const CYIString& CYISceneNode::GetName ( ) const

Returns the name of this node.

See also: SetName

CYISceneNode* CYISceneNode::GetNode ( const CYIString & name )

Recursively searches this subtree to find the first node matching the provided name. Does not include 'this.' When running in debug mode, the search continues after a match is found in order to log duplicate names.

Returns null if none found.

Note: The caller does not obtain ownership of the returned node.

CYISceneNode* CYISceneNode::GetNode	(	const CYIString &	name,
		const CYIRuntimeTypeInfo &	enforceClassType
	)

Recursively searches this subtree to find the first node matching the provided name and enforces the provided enforceClassType. Does not include 'this.'

Returns null if none found.

Note: The caller does not obtain ownership of the returned node.

CYISceneNode* CYISceneNode::GetNode ( const CYIRuntimeTypeInfo & enforceClassType )

Recursively searches this subtree to find the first node matching the class type provided. Does not include 'this.' CYIRuntimeTypeInfo Returns null if none found.

Note: The caller does not obtain ownership of the returned node.

template<class YI_SCENE_NODE_SUBCLASS >

YI_SCENE_NODE_SUBCLASS* CYISceneNode::GetNode ( const CYIString & name )

Recursively searches this subtree to find the first encountered node of name matching YI_SCENE_NODE_SUBCLASS. Does not include 'this.'

If the node contains no descendants of type YI_SCENE_NODE_SUBCLASS, returns null.

If the node contains no descendants with name name, returns null.

Note: The caller does not obtain ownership of the returned node.

CYISceneNode* CYISceneNode::GetNode ( const int32_t nID )

Recursively searches this subtree to find the first encountered node with the provided nID. Does not include 'this.'

Returns null if none found.

Note: The caller does not obtain ownership of the returned node.

CYISceneNode* CYISceneNode::GetNode	(	const int32_t	nID,
		const CYIRuntimeTypeInfo &	enforceClassType
	)

Recursively searches this subtree to find the first encountered node with the provided nID. Does not include 'this.'

Returns null if the node does not match the provided enforceClassType, or is not present in this subtree.

Note: The caller does not obtain ownership of the returned node.

template<class YI_SCENE_NODE_SUBCLASS >

const YI_SCENE_NODE_SUBCLASS* CYISceneNode::GetNode ( uint32_t uTargetMatchedNodeCount = 1 ) const

Recursively searches this subtree, not including 'this.'

If the node contains no descendants of type YI_SCENE_NODE_SUBCLASS, returns null.

If the node contains at least uTargetMatchedNodeCount descendants of type YI_SCENE_NODE_SUBCLASS, returns the descendant of that type who, in order of being encountered, matches uTargetMatchedNodeCount.

If the node contains fewer than uTargetMatchedNodeCount descendants of type YI_SCENE_NODE_SUBCLASS, returns null.

Note: The caller does not obtain ownership of the returned node.

template<class YI_SCENE_NODE_SUBCLASS >

YI_SCENE_NODE_SUBCLASS* CYISceneNode::GetNode ( uint32_t uTargetMatchedNodeCount = 1 )

CYISceneNode* CYISceneNode::GetNodeAfterTarget	(	const CYIRuntimeTypeInfo &	enforceClassType,
		CYISceneNode *	pStartAfterTarget
	)

Recursively searches this subtree to find the first node matching the class type provided.

Returns null if none found.

Note: The caller does not obtain ownership of the returned node.

virtual CYISceneNode* CYISceneNode::GetNodeFromChildren ( const CYIString & name )

protectedvirtual

Finds and returns the node with the provided name, searching the children of this node using a modified pre-order depth-first algorithm. All children are searched before their own children are searched. This node isn't checked.

virtual CYISceneNode* CYISceneNode::GetNodeFromChildren ( const int32_t nID )

protectedvirtual

Finds and returns the node with the provided ID, searching the children of this node using a modified pre-order depth-first algorithm. All children are searched before their own children are searched. This node isn't checked.

virtual CYISceneNode* CYISceneNode::GetNodeFromChildren ( const CYIRuntimeTypeInfo & enforceClassType )

protectedvirtual

Finds and returns the node with the provided class type, searching the children of this node using a modified pre-order depth-first algorithm. All children are searched before their own children are searched. This node isn't checked.

CYISceneNode* CYISceneNode::GetNodeFromChildrenAfterTarget	(	const CYIRuntimeTypeInfo &	enforceClassType,
		bool *	pbTargetReached,
		CYISceneNode *	pStartAfterTarget
	)

protected

Finds and returns the node with the provided class type, searching the children of this node using a modified pre-order depth-first algorithm. All children are searched before their own children are searched. This node isn't checked. The node returned will be the first node encountered after pStartAfterTarget, or null if no candidates exist after the target.

std::list<CYISceneNode*> CYISceneNode::GetNodes ( const CYIString & name )

Recursively searches this subtree to return a list of nodes matching the provided name. Does not include 'this.'

Returns an empty list if none found.

Note: The caller does not obtain ownership of the returned nodes.

std::list<CYISceneNode *> CYISceneNode::GetNodes ( int32_t nID )

Recursively searches this subtree to return a list of nodes matching the provided nID. Does not include 'this.'

Returns an empty list if none found.

Note: The caller does not obtain ownership of the returned nodes.

std::list<CYISceneNode*> CYISceneNode::GetNodes ( const CYIRuntimeTypeInfo & enforceClassType )

Recursively searches this subtree to return a list of nodes matching the provided enforceClassType. Does not include 'this.'

Returns an empty list if none found.

Note: The caller does not obtain ownership of the returned nodes.

const glm::quat& CYISceneNode::GetOrientation ( ) const

Get the orientation for this node, represented as a quaternion, in its parent's space.

CYISceneNode* CYISceneNode::GetParent ( ) const

Returns the parent of this node, or null if this node is a root.

Note: The caller does not obtain ownership of the returned node.

const glm::vec3& CYISceneNode::GetPosition ( ) const

Returns the position of the node in its parent's space.

DirtyFlag CYISceneNode::GetPreviousDirtyFlag ( ) const

Returns the previous dirty state of the node before update is called.

At the start of an update, the current dirty flag will be reset in order to record new dirty information from any user callback.

See also: CYISceneNode::Update(bool bForceDirty)

virtual const std::map<CYIString, CYIString>& CYISceneNode::GetProperties ( ) const

overridevirtual

Returns the map of all available properties.

Implements IYIPropertiesSource.

virtual bool CYISceneNode::GetProperty	(	const CYIString &	propertyName,
		CYIString *	pValue
	)		const

overridevirtual

Stores the value of a property specified by propertyName into pValue. Returns false if the property cannot be found.

Implements IYIPropertiesSource.

Reimplemented in CYISceneView.

const std::shared_ptr<CYIRenderTarget> CYISceneNode::GetRenderTarget ( ) const

Returns the render target for this node.

const glm::vec3& CYISceneNode::GetRotation ( ) const

Returns the rotation of the node in its parent's space in degrees.

const glm::vec3& CYISceneNode::GetScale ( ) const

Get the scale of the node in its parent's space.

CYISceneManager* CYISceneNode::GetSceneManager ( ) const

Returns the scene manager associated with this node.

const std::shared_ptr<CYISceneNodeProxy>& CYISceneNode::GetSceneNodeProxy ( ) const

Returns the scene node's proxy tracking object. If the scene node is deleted, the proxy will turn into a no-op to prevent a segmentation fault.

const std::shared_ptr<IYIUniformBufferObject>& CYISceneNode::GetShaderUniforms ( ) const

Returns the shader uniforms that will be used for rendering this node.

const glm::vec3& CYISceneNode::GetSize ( ) const

Returns the size of this node.

uint64_t CYISceneNode::GetUniqueID ( ) const

Returns the unique ID of this node.

This ID is globally unique but won't persist over multiple sessions.

CYIString CYISceneNode::GetUniqueName ( ) const

Returns a globally unique name for this node. This is a concatenation of the node's name and unique ID ('<name>-<unique id>').

See also: GetName; GetUniqueID

const CYIAABB& CYISceneNode::GetWorldAABB ( ) const

Returns the world axis-aligned bounding box for this node, encapsulating all of its children.

const glm::vec3& CYISceneNode::GetWorldScale ( ) const

Returns the world scale of the node. This is the combined scales of this node and all of its ancestors.

const glm::vec3& CYISceneNode::GetWorldSurfaceScale ( ) const

Returns the world surface scale of the node. This is the node's world scale multiplied by the render target's pixel ratios.

const glm::mat4& CYISceneNode::GetWorldTransform ( ) const

Returns a matrix representing this node's world transform. The world transform is a concatenation of the node's local transform with the local transforms of all of its ancestors.

void CYISceneNode::Hide ( )

Hides the node.

Note: Does not affect the local or composite opacity of the node.

See also: IsVisible(); SetVisibility(bool)

virtual bool CYISceneNode::Init ( )

virtual

Initializes the scene node. Children of the scene node are also recursively initialized.

Subclasses must call CYISceneNode::Init.

Note: A CYISceneManager must be set on the node using SetSceneManager before the node can be initialized.

See also: SetSceneManager

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYIImageView, CYISceneView, CYIDrawerView, CYIPasswordTextEditView, CYIImageSceneNode, CYIScrollBarView, CYIAbstractButtonView, CYIToggleButtonView, CYITextEditView, yi::deprecated::CYIGridLayoutView, yi::deprecated::CYIPopupView, CYIDecoratedView, CYIScrollingTextView, CYIVideoSurfaceView, CYIWebView, CYIPushButtonView, CYIPlayerPreviewThumbnailView, CYIActivityIndicatorView, CYIPlatformView, CYIListView, CYIPageIndicatorView, CYIPlayerTimePopupView, CYIProgressBarView, CYINPatchSceneNode, CYIStackView, and CYIRadioGroupView.

bool CYISceneNode::InsertChildAfter	(	CYISceneNode *	pRefNode,
		std::unique_ptr< CYISceneNode >	pSceneNode
	)

Adds a child to this node. The pSceneNode will be added after pRefNode, if pRefNode is a child of this node.

The function will return false if the pSceneNode already has a parent, if pSceneNode is this node, or if pRefNode isn't a child of this node. If pRefNode isn't a child of this node, pSceneNode will be deleted.

bool CYISceneNode::Intersects ( const CYISceneNode * pNode ) const

Returns true if this node's bounding box intersects the bounding box of the provided pNode. The bounding box comparisons are done in world space. If the provided pNode is not a member of the same scene as this node then the comparison is undefined.

bool CYISceneNode::IsAncestorOf ( const CYISceneNode * pNode ) const

Returns whether this node is an ancestor of the specified node.

bool CYISceneNode::IsBoundingBoxHit ( const CYIRay & rWorldSpaceRay ) const

Checks whether the ray, specified in world space, will collide with our bounding box

Will also return false if the node is invisible due to opacity or visibility settings

bool CYISceneNode::IsFocusRoot ( ) const

Returns true if this node is a focus root.

When focus enters a focus root, focus will be constrained to its descendants until: it is deleted, becomes hidden, is detached from the main tree, or if there are no focus candidates among its descendents.

When focus leaves a focus root focus returns to the last view that had focus in the parent focus root. If that view is no longer focusable another view in the parent focus root will be given focus. If no views in the parent focus root are focusable focus will leave that focus root. If there are no focusable views focus will be cleared.

By default the root of the scene tree is a focus root.

Warning: Configuring a node to be a focus root when one of its descendants already has focus may have undesirable effects. To avoid this focus roots should be configured at initialization with SetIsFocusRoot().

bool CYISceneNode::IsMeshHit ( const CYIRay & rWorldSpaceRay ) const

Checks whether the ray, specified in world space, will collide with our mesh

Will also return false if the node is invisible due to opacity or visibility settings

See also: CYIMesh

bool CYISceneNode::IsTrulyVisible ( ) const

Returns whether this node is truly visible, meaning that all of its ancestors and the node itself are visible.

Note: This does not consider the local or composite opacity of the node.

See also: IsVisible()

bool CYISceneNode::IsVisible ( ) const

Returns true if this node is set to be visible. The node may return true but still be effectively invisible if one of its ancestors is hidden.

Note: This does not consider the local or composite opacity of the node.

See also: IsTrulyVisible()

virtual void CYISceneNode::LayoutDirtied ( )

protectedvirtual

Called when the layout dirty flag of this scene node has been set to LayoutDirty.

Warning: Overrides must call the base class implementation.

Reimplemented in CYISceneView.

virtual void CYISceneNode::LocalBoundingBoxUpdated ( )

protectedvirtual

Called by Update() when the local bounding box update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnLocalBoundingBoxUpdated()

virtual void CYISceneNode::Measure	(	const MeasureSpec &	widthSpec,
		const MeasureSpec &	heightSpec,
		const MeasureSpec &	depthSpec
	)

virtual

Measures this scene node, considering the layout configuration constraints (if available) and the provided measure specifications. The Measure function is used by the layout system to determine the 'desired' size of elements in a container. The result of calls to this function can be accessed through the GetMeasuredSize() function.

Note: The Measure function may be called multiple times on a single scene node during a layout pass.; The measure specs passed in must take in consideration the node's scale. For example, if a node is calling the Measure function on one of its children and that child has a scale of glm::vec3(1, 3, 1), then the fSize of heightSpec must be divided by 3.; The measured values may exceed the provided measure specifications if the specifications cannot be met given the constraints placed on this scene node. In other words, the constraints placed on this node have a higher priority than the provided measure specifications.

Warning: Subclasses that override this function must ensure that the Measure function of ALL children of this scene node is called at least once, even if those children are hidden.

Note: Typically, if Measure is overridden then ApplyMeasurements must also be overridden.; Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented in CYIScrollingView, CYISceneView, CYITextSceneNode, CYIImageView, and CYIImageSceneNode.

virtual void CYISceneNode::OnChildAdded ( CYISceneNode * pChild )

protectedvirtual

Called when a scene node is added to this node's children list.

virtual void CYISceneNode::OnChildRemoved ( CYISceneNode * pChild )

protectedvirtual

Called when a scene node is removed from this node's children list.

Note: The scene node might be deleted immediately after this function is called (e.g. if a user called CYISceneNode::DestroyChildren )

virtual void CYISceneNode::OnChildVisibilityChanged ( CYISceneNode * pChild )

protectedvirtual

Called when the visibility of a child of this scene node has been modified.

virtual void CYISceneNode::OnCompositeOpacityUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the composite opacity has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetCompositeOpacity

virtual void CYISceneNode::OnDirtyFlagChanged ( )

protectedvirtual

This hook provides subclasses a means to react to dirty state changes. When a node has its dirty flag changed, the callback will be triggered immediately on that node. If any upward or downward recursion is required as a result of the dirty flag change, the callbacks on those nodes will be triggered outward from this node, first in the parent direction then in the child direction.

Considering the following lineage:

A -> B -> C -> D -> E

When C's dirty flag is changed, the sequence of OnDirtyFlagChanged() calls (assuming all flags change) will be

C -> B -> A -> D -> E

Note: This hook is called when the 'live' dirty flag is changed, not when the 'frame' dirty flag is changed. However, whenever the 'frame' dirty flag is changed the 'live' dirty flag is typically also changed.; This hook is not called when a dirty flag is 'cleared'.

Warning: Using SetDirtyFlag() within this function may cause another invocation of this function

See also: SetDirtyFlag(DirtyFlag)

virtual void CYISceneNode::OnFocusChangedInDescendants ( )

virtual

Called when focus has changed within this tree.

virtual void CYISceneNode::OnFocusGainedInDescendants ( )

virtual

Called when focus has entered this tree.

See also: DescendantGainedFocus

virtual void CYISceneNode::OnFocusLostInDescendants ( )

virtual

Called when focus has left this tree.

See also: DescendantLostFocus

virtual void CYISceneNode::OnLocalBoundingBoxUpdated ( )

protectedvirtual

Called by Update() when the local bounding box update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnSizeChanged ( )

protectedvirtual

Called when the size of this scene node has been changed.

virtual void CYISceneNode::OnTransformUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnUpdateBegin ( )

protectedvirtual

This hook provides subclasses a means to do operations prior to update.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnUpdateEnd ( )

protectedvirtual

This hook provides subclasses a means to do operations subsequent to update. This hook is called after all children of the current node have been updated.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnVisibilityUpdated ( )

protectedvirtual

Called by Update() when the composite visibility of a class has been calculated. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnWorldBoundingBoxUpdated ( )

protectedvirtual

Called by Update() when the world bounding box update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

virtual void CYISceneNode::OnWorldScaleUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the world scale has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetWorldScale

virtual void CYISceneNode::OnWorldSurfaceScaleUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the world surface scale has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetWorldSurfaceScale

virtual bool CYISceneNode::ProcessEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overrideprotectedvirtual

Notifies this event target of an incoming event. Calls all the relevant listeners based on event type and phase. Returns true if any of the listeners' handleEvent() function returned true.

Reimplemented from CYIEventTarget.

Reimplemented in CYISceneView.

ReverseIterator CYISceneNode::rbegin ( Iterator::ITERATION_MODE eMode = Iterator::IMMEDIATE_CHILDREN ) const

Returns the reverse iterator to the last node in the iteration sequence.

static void CYISceneNode::RegisterAllSceneNodes ( )

static

Called once by the framework to register all RTTI classes with the linker.

Should not be called.

std::unique_ptr<CYISceneNode> CYISceneNode::RemoveChild ( CYISceneNode * pSceneNode )

Removes the child from this node.

Will return null if the node is not a child of this node.

void CYISceneNode::RemoveEffect ( const std::shared_ptr< CYIEffect > & pEffect )

Removes an effect from this node.

std::unique_ptr<CYIMask> CYISceneNode::RemoveMask ( const CYIMask * pMask )

Remove a mask from this node.

ReverseIterator CYISceneNode::rend ( Iterator::ITERATION_MODE eMode = Iterator::IMMEDIATE_CHILDREN ) const

Returns the reverse iterator to the position before the first node in the iteration sequence.

bool CYISceneNode::ReorderChild	(	uint32_t	uFromIndex,
		uint32_t	uToIndex
	)

Moves the child present at index uFromIndex to index uToIndex.

Note: The uToIndex parameter must represent an index within a children list where the item at index uFromIndex has been removed. For example, given the children list 'A, B, C, D', if 'ReorderChid(0, 1) is called then the new children list would be 'B, A, C, D'.

Will return false if uFromIndex or uToIndex are not valid indices.

void CYISceneNode::RequestLayout ( )

Marks this scene node as needing to be laid out. This is a convenience function equivalent to SetLayoutDirtyFlag(CYISceneNode::LayoutDirty).

void CYISceneNode::SetAnchorPoint ( const glm::vec3 & ref )

Sets the anchor point for this node. The anchor point is the point around which transformations will take place. The default anchor point is (0, 0, 0).

void CYISceneNode::SetAnchorPoint	(	float	fX,
		float	fY,
		float	fZ
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void CYISceneNode::SetAnchorPointX ( float fX )

Sets the x-coordinate value for the anchor point.

void CYISceneNode::SetAnchorPointY ( float fY )

Sets the y-coordinate value for the anchor point.

void CYISceneNode::SetAnchorPointZ ( float fZ )

Sets the z-coordinate value for the anchor point.

void CYISceneNode::SetClippingBox ( const CYIAABB & rWorldBox )

Sets the clipping volume for this node. The volume is specified in 3-dimensional world space but the clipping will be done in screen-space.

void CYISceneNode::SetClippingOff ( )

Disables 2D clipping for this node. Clipping is calculated based on the screen-space axis-aligned bounding box of this node.

void CYISceneNode::SetClippingOn ( )

Enables 2D clipping for this node. Clipping is calculated based on the screen-space axis-aligned bounding box of this node.

virtual void CYISceneNode::SetCustomTimelineValue	(	uint32_t	nTrackID,
		const CYIVariant &	value
	)

virtual

This function can be overridden to provide access for custom values when a timeline track is desired for controlling features other than internal existing functions in a scene node.

virtual void CYISceneNode::SetCustomUniforms ( )

protectedvirtual

Called by You.i Engine to prompt the scene node to configure any custom uniforms that a user would like to configure for their custom rendering pipeline. This should be overloaded in subclasses which wish to make use of custom shaders.

void CYISceneNode::SetDirtyFlag ( DirtyFlag eDirtyFlag )

This node's dirty flag will be set to eDirtyFlag, and depending on the eDirtyFlag the node's ancestors or descendants may also be dirtied.

Warning: This function can be recursive.

void CYISceneNode::SetID ( int32_t nID )

Sets the ID of this node.

See also: GetID(int32_t)

void CYISceneNode::SetInternalCustomTimelineValue	(	uint32_t	nTrackID,
		const CYIVariant &	value
	)

Allows custom values for effects or other internal expansions when a timeline track is desired for controlling features other than internal existing functions in a scene node.

void CYISceneNode::SetIsFocusRoot ( bool bIsFocusRoot )

See also: IsFocusRoot()

void CYISceneNode::SetLayoutConfig ( std::unique_ptr< CYILayoutConfig > pLayoutConfig )

Sets the layout config of this scene node to pLayoutConfig.

If a layout config object had already been assigned, it will be deleted.

Note: Call with nullptr to remove an already-assigned layout config object.

virtual void CYISceneNode::SetLayoutDirtyFlag ( LayoutDirtyFlag eFlag )

virtual

Sets the (future) layout dirty flag of this scene node to eFlag.

The 'layout dirty' flag may propagate up to the parent of this scene node. If eFlag is LayoutClean, only this node's flag is set. If eFlag is LayoutChildDirty, the layout dirty flag of the parent node will be set to LayoutChildDirty if it was previously LayoutClean. If eFlag is LayoutDirty, the OnChildNeedsLayout function of the parent will be called (which itself may change the layout dirty flag of the parent)

The purpose of this relatively complex process is to implement this behaviour: if a node is being set as 'layout dirty', then its parent should also be 'layout dirty' if a layout is assigned to the parent. Otherwise, the parent should just be 'layout child dirty'.

Note: This function sets the layout dirty flag for the next layout pass. If this function is called during a layout pass, the layout dirty flag is set for the following layout pass.

void CYISceneNode::SetLayoutState ( std::unique_ptr< CYILayoutState > pLayoutState )

Sets the layout state of this scene node to pLayoutState.

If a layout state object had already been assigned, it will be deleted.

Note: Call with nullptr to remove an already-assigned layout state object.

void CYISceneNode::SetMaterial	(	const std::shared_ptr< CYIMaterial > &	pMaterial,
		uint32_t	nIndex = `0`
	)

Assigns a material to this node.

void CYISceneNode::SetMeasuredSize ( const glm::vec3 & vMeasuredSize )

Sets the measured size to vMeasuredSize. The measured size is used by the ApplyMeasurements function to set the size of a scene node. This is part of the layout system.

void CYISceneNode::SetMesh ( const std::shared_ptr< CYIMesh > & pMesh )

Assigns a mesh to this node.

void CYISceneNode::SetMeshTransform ( const glm::mat4 & rTransform )

Equivalent to GetMesh()->SetTransform().

void CYISceneNode::SetName ( const CYIString & name )

Sets the name of this node. Nodes can be unnamed, and names can be re-used, so IDs should be used for situations in which confidence and control are required.

See also: GetID()

template<class T >

void CYISceneNode::SetNodeType ( )

protected

Used to set the runtime type of this object to T.

Note: This function is for internal use only and will assert if called in user code.

void CYISceneNode::SetOpacity ( float fOpacity )

Sets the opacity for this node. A value of 0.0 means not visible, and a value of 1.0 means fully visible.

Note that the effective opacity will be influenced by any ancestors of this node, this setting is for the local opacity of the node.

See also: GetCompositeOpacity(); GetLocalOpacity()

void CYISceneNode::SetOrientation	(	float	fPitchDegrees,
		float	fYawDegrees,
		float	fRollDegrees
	)

Sets the orientation for this node as a set of euler angles (pitch, yaw, roll) in degrees.

void CYISceneNode::SetOrientation ( const glm::quat & orient )

Sets the orientation for this node as a quaternion.

void CYISceneNode::SetPosition ( const glm::vec3 & ref )

Sets the position for this node. This position is relative to its parent.

void CYISceneNode::SetPosition	(	float	fX,
		float	fY,
		float	fZ
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void CYISceneNode::SetPositionX ( float fX )

Sets the X position for this node. This position is relative to its parent.

void CYISceneNode::SetPositionY ( float fY )

Sets the Y position for this node. This position is relative to its parent.

void CYISceneNode::SetPositionZ ( float fZ )

Sets the Z position for this node. This position is relative to its parent.

void CYISceneNode::SetProperty	(	const CYIString &	rPropertyName,
		const CYIString &	rPropertyValue
	)

Sets a property value, given a name. If the property does not exist, it is added. If it exists, the value is replaced.

void CYISceneNode::SetRenderTarget ( const std::shared_ptr< CYIRenderTarget > & pRenderTarget )

Sets the render target for this node. This is the destination to which the node and all of its descendants will be rendered.

void CYISceneNode::SetRotation ( const glm::vec3 & fEulerDegrees )

Sets the rotation for this node. The three components of the vector correspond to pitch, yaw, and roll, or rotations about the x, y and z axes in degrees. Rotations are expressed clockwise.

void CYISceneNode::SetRotation	(	float	fPitchDegrees,
		float	fYawDegrees,
		float	fRollDegrees
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void CYISceneNode::SetRotationX ( float fPitchDegrees )

Sets the pitch for this node, in degrees.

void CYISceneNode::SetRotationY ( float fYawDegrees )

Sets the yaw for this node, in degrees.

void CYISceneNode::SetRotationZ ( float fRollDegrees )

Sets the roll for this node, in degrees.

void CYISceneNode::SetScale ( const glm::vec3 & fScaleFactors )

Sets the scaling factor on all three axes.

void CYISceneNode::SetScale	(	float	fFactorX,
		float	fFactorY,
		float	fFactorZ
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void CYISceneNode::SetScaleX ( float fFactor )

Sets the scaling factor on the x axis.

void CYISceneNode::SetScaleY ( float fFactor )

Sets the scaling factor on the y axis.

void CYISceneNode::SetScaleZ ( float fFactor )

Sets the scaling factor on the z axis.

void CYISceneNode::SetSceneManager ( CYISceneManager * pSceneManager )

Sets the node's scene manager.

Note: This node does not take ownership of pSceneManager.

Warning: This must be set before Init is called.

void CYISceneNode::SetShaderUniforms ( )

protected

Called by You.i Engine to prompt the scene node to configure its shader uniforms.

virtual void CYISceneNode::SetSize	(	const glm::vec3 &	vSize,
		bool	bDirtyLayout = `true`
	)

virtual

Sets the size of this node to vSize.

Note: Changing the size of a node may affect other properties of the node (such as the mesh size or the node's scale); Subclasses that override this function must call the OnSizeChanged function if the size changed. Subclasses that override this function should dirty the layout if the size changed and bDirtyLayout is true.

Reimplemented in CYITextSceneNode, yi::deprecated::CYIListView, CYIImageSceneNode, CYINPatchSceneNode, and CYIBitmapTextSceneNode.

void CYISceneNode::SetUseLocalTransformAndAlpha ( bool bUse )

If enabled, this node will use its local transform and local opacity when rendering. This is used for certain effects.

void CYISceneNode::SetVisibility ( bool bVisible )

Sets the node's visibility to bVisible.

Note: Does not affect the local or composite opacity of the node.

See also: IsVisible(); Show(); Hide()

void CYISceneNode::Show ( )

Shows the node.

Note: Does not affect the local or composite opacity of the node.

See also: IsVisible(); SetVisibility(bool)

void CYISceneNode::ShowPointerDebugNode ( CYIActionEvent * pActionEvent )

Displays a visual representation of the location of this pActionEvent under this node. Useful for debugging.

virtual void CYISceneNode::SizeChanged ( )

protectedvirtual

Called when the size of this scene node has been changed.

Warning: Overrides must call the base class implementation.

See also: OnSizeChanged()

Reimplemented in CYIScrollingView, and CYISceneView.

void CYISceneNode::StartCaptureKeyboardEvents ( )

Starts capturing keyboard events. All incoming keyboard events will subsequently be sent to this node

void CYISceneNode::StartCapturePointerEvents ( uint8_t uPointerID )

Starts capturing pointer events. All incoming pointer events will subsequently be sent to this node, regardless of their location.

void CYISceneNode::StartCaptureTrackpadEvents ( )

Starts capturing trackpad events. All incoming trackpad events will subsequently be sent to this node.

void CYISceneNode::StartPropertyAnimation	(	YI_NODE_PROPERTY_TYPE	ePropType,
		float	fFrom,
		float	fTo,
		uint32_t	nDurMs,
		CYITimeInterpolator *	pTimeInterpolator = `nullptr`,
		bool	bDirtyLayout = `true`
	)

Starts a property animation on this node.

See also: CYISceneNode::PropertyAnimation

void CYISceneNode::StopCaptureKeyboardEvents ( )

Stops capturing keyboard events.

void CYISceneNode::StopCapturePointerEvents ( uint8_t uPointerID )

Stops capturing pointer events.

void CYISceneNode::StopCaptureTrackpadEvents ( )

Stops capturing trackpad events.

void CYISceneNode::StopPropertyAnimation ( YI_NODE_PROPERTY_TYPE ePropType )

Stops the property animation for property ePropType on this node.

See also: CYISceneNode::PropertyAnimation

virtual void CYISceneNode::TransformUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnTransformUpdated()

Reimplemented in CYITextSceneNode, and CYIPerspectiveCameraSceneNode.

void CYISceneNode::Update ( bool bForceDirty = false )

protected

Recursively updates the node and its children.

This function is typically invoked by the scene manager on each frame, if and only if the scene graph is dirty.

The bForceDirty flag will overwrite the local dirty flag if it is set to true.

See also: GetDirtyFlag(); GetPreviousDirtyFlag(); ForceDirty();; SetDirtyFlag(DirtyFlag eDirtyFlag);

virtual void CYISceneNode::UpdateBegin ( )

protectedvirtual

This hook provides subclasses a means to do operations prior to update.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnUpdateBegin()

Reimplemented in CYIVideoSurfaceView, and CYIPlatformView.

virtual void CYISceneNode::UpdateEnd ( )

protectedvirtual

This hook provides subclasses a means to do operations subsequent to update. This hook is called after all children of the current node have been updated.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnUpdateEnd()

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYITextSceneNode, CYITextEditView, CYIAbstractCameraSceneNode, CYIScrollBarView, CYIVideoSurfaceView, and CYIPlatformView.

void CYISceneNode::UpdateEventForLocalSpace	(	CYIActionEvent *	pActionEvent,
		glm::vec3 &	rayOrigin,
		glm::vec3 &	rayNonOriginPoint
	)		const

Update the event's ray for the local space of this node. This transforms the provided event such that its ray is in the local space of this scene node, taking the node's world transform and cameras into consideration.

void CYISceneNode::UpdateLocalSpaceCollision ( CYIActionEvent * pActionEvent )

The provided pActionEvent is used to update the node's internal local space collision.

virtual void CYISceneNode::VisibilityUpdated ( )

protectedvirtual

Called by Update() when the composite visibility of a class has been calculated. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnVisibilityUpdated()

virtual void CYISceneNode::WorldBoundingBoxUpdated ( )

protectedvirtual

Called by Update() when the world bounding box update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnWorldBoundingBoxUpdated()

Reimplemented in CYIScrollingView, CYISceneView, and CYIListView.

virtual void CYISceneNode::WorldScaleUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the world scale has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetWorldScale

Warning: Overrides must call the base class implementation.

See also: Update(); OnWorldScaleUpdated()

Reimplemented in CYISceneView.

virtual void CYISceneNode::WorldSurfaceScaleUpdated ( )

protectedvirtual

Called by Update() when the transform update process is complete and only when the world surface scale has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetWorldSurfaceScale

Warning: Overrides must call the base class implementation.

See also: Update(); OnWorldSurfaceScaleUpdated()

Reimplemented in CYITextSceneNode, CYITextEditView, CYINPatchSceneNode, and CYISDFAtlasTextSceneNode.

Friends And Related Function Documentation

friend class CYISceneManager

friend

Member Data Documentation

CYISignal CYISceneNode::DescendantGainedFocus

Emitted when focus has entered this tree.

CYISignal CYISceneNode::DescendantLostFocus

Emitted when focus has left this tree.

CYISignal CYISceneNode::DescendantsChangedFocus

Emitted when focus has changed within this tree.

glm::vec3 CYISceneNode::m_AnchorPoint

protected

Node anchor point. The anchor point is the origin of all transforms.

bool CYISceneNode::m_bClip

protected

Clip enable flag

bool CYISceneNode::m_bIsOriented

protected

Helper optimization flag to see if we can perform fast matrix math

bool CYISceneNode::m_bIsRotated

protected

Helper optimization flag to see if we can perform fast matrix math

bool CYISceneNode::m_bLocalVisibility

protected

The local node visibility flag

std::vector<std::unique_ptr<CYISceneNode> > CYISceneNode::m_children

protected

std::vector<CYISceneNode *> CYISceneNode::m_drawChildren

protected

std::vector<std::shared_ptr<CYIEffect> > CYISceneNode::m_Effects

protected

The node's list of active effects

glm::mat4 CYISceneNode::m_EffectTransform

protected

float CYISceneNode::m_fLocalOpacity

protected

The local opacity for this node

std::vector<std::unique_ptr<CYIMask> > CYISceneNode::m_Masks

protected

CYIString CYISceneNode::m_name

protected

int32_t CYISceneNode::m_nID

protected

The id of this node

glm::quat CYISceneNode::m_Orientation

protected

Quaternion representation of the node orientation

CYISceneNode* CYISceneNode::m_pDrawParent

protected

std::vector<std::shared_ptr<CYIMaterial> > CYISceneNode::m_pMaterials

protected

The node's materials, if any

std::shared_ptr<CYIMesh> CYISceneNode::m_pMesh

protected

The node's mesh, if any

glm::vec3 CYISceneNode::m_Position

protected

Node position

CYISceneNode* CYISceneNode::m_pParent

protected

std::shared_ptr<CYIRenderTarget> CYISceneNode::m_pRenderTarget

protected

Destination render target

std::map<CYIString, CYIString> CYISceneNode::m_Properties

protected

std::vector<PropertyAnimation*> CYISceneNode::m_propertyAnimations

protected

The node property animations for this node

CYISceneManager* CYISceneNode::m_pSceneManager

protected

std::shared_ptr<IYIUniformBufferObject> CYISceneNode::m_pShaderUniforms

mutableprotected

The node's shader uniform configuration

glm::vec3 CYISceneNode::m_Rotate

protected

Euler angle representation of the node rotation

glm::vec3 CYISceneNode::m_Scale

protected

Scaling factor of this node on all three axes

uint64_t CYISceneNode::m_uGUID

protected

The unique id of this node

glm::vec3 CYISceneNode::m_vInitialSize

protected

The size of this node at initialization

glm::vec3 CYISceneNode::m_vlsLastCollision

protected

The node's list of active mask effects

glm::vec3 CYISceneNode::m_vMeasuredSize

protected

The measured size of this node (used by the layout system)

glm::vec3 CYISceneNode::m_vSize

protected

The size of this node

CYIAABB CYISceneNode::m_WSClipBox

protected

The world-space axis-aligned clipping box for this node

const float CYISceneNode::OPACITY_NOT_VISIBLE_EPSILON

static

CYISignal<CYISceneNode *, YI_NODE_PROPERTY_TYPE> CYISceneNode::PropertyAnimationComplete

Emitted when a node property animation is completed.

The documentation for this class was generated from the following file:

scenetree/YiSceneNode.h

Detailed Description

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Protected Member Functions

Protected Attributes

Friends

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
