Detailed Description

Provides an implementation of a button which maintains a state based on user interaction.

This toggle button can be used to accept user interaction and trigger an event based on signals emitted by this class at various stages of interaction. Once pressed the toggle button will remain in the toggled on state until the user presses the button again to toggle the button into the toggled off state.

The class maintains the various state timelines and plays them at the various stages of interaction, see below for supported timelines:

View Template Specification

Type	Labels	Property	Description
Marker	Press	Optional	The timeline to play when pressed down in the unchecked state. Releasing will cause the state of the toggle button to go from unchecked to checked, and the 'Toggle-On' marker to be played.
Marker	Press-Checked	Optional	The timeline to play when pressed down in the checked state. Releasing will cause the state of the toggle button to go from checked to unchecked, and the 'Toggle-Off' marker to be played.
Marker	Toggle-On	Optional	The timeline to play when going from the unchecked to checked state. The reverse will be played if 'Toggle-Off' marker is not provided.
Marker	Toggle-Off	Optional	The timeline to play when going from the checked to unchecked state. The reverse will be played if 'Toggle-On' marker is not provided.
Marker	Disable	Optional	The timeline to play when disabled in the unchecked state. The reverse will be played when going from disabled to enabled state.
Marker	Disable-Checked	Optional	The timeline to play when disabled in the checked state. The reverse will be played when going from disabled to enabled state.
Marker	Up-Over	Optional	The timeline to play when a cursor enters the button area in the unchecked state. If this marker is not provided, the reverse of 'Over-Up' marker will be played.
Marker	Up-Over-Checked	Optional	The timeline to play when a cursor enters the button area in the checked state. If this marker is not provided, the reverse of 'Over-Up-Checked' marker will be played.
Marker	Over-Up	Optional	The timeline to play when a cursor leaves the button area in the unchecked state. If this marker is not provided, the reverse of 'Up-Over' marker will be played.
Marker	Over-Up-Checked	Optional	The timeline to play when a cursor leaves the button area in the checked state. If this marker is not provided, the reverse of 'Up-Over-Checked' marker will be played.
Marker	Down-Up	Optional	The timeline to play when a cursor leaves the button area while being pressed in the unchecked state. If this marker is not provided, the reverse of 'Press' will be played. The state of the toggle button will not change.
Marker	Down-Up-Checked	Optional	The timeline to play when a cursor leaves the button area while being pressed in the checked state. If this marker is not provided, the reverse of 'Press-Checked' will be played. The state of the toggle button will not change.
Marker	FocusIn-Checked	Optional	An alternative to CYISceneView's 'FocusIn' timeline, that will be played when the button gains focus in the checked state. If this marker is not provided, 'FocusIn' will be played instead.
Marker	FocusOut-Checked	Optional	An alternative to CYISceneView's 'FocusOut' timeline, that will be played when the button loses focus in the checked state. If this marker is not provided, 'FocusOut' will be played instead. If 'FocusOut' is not provided either, the next fallback is 'FocusIn-Checked' played in reverse, and failing that, 'FocusIn' played in reverse.
Marker	FocusIn-Toggle-Transition	Optional	A transition animation for focus states. Meant to provide a way to make the change from FocusIn to FocusIn-Checked look visually correct. Automatically played when a button toggles on and it has focus.
Marker	FocusIn-Checked-Toggle-Transition	Optional	A transition animation for focus states. Meant to provide a way to make the change from FocusIn-Checked to FocusIn look visually correct. Automatically played when a button toggles off and it has focus.
Node	Text OR Placeholder-Text	Optional	Text displayed on the button, which can be set using SetText().
Node	TextPressed OR Placeholder-TextPressed	Optional	Text displayed on the button when pressed, which can be set using SetText(). This is useful if you want a different font or color when pressed.
Comment	text	Optional	Corresponds to: SetText(). Contains a quoted string, which will be set as the text of this button, assuming the correct text nodes are present.

Toggle buttons are automatically marked focusable when the 'FocusIn' timeline (specified in CYISceneView) is present. The enter or select keys are used to activate a focused button.

#include <view/YiToggleButtonView.h>

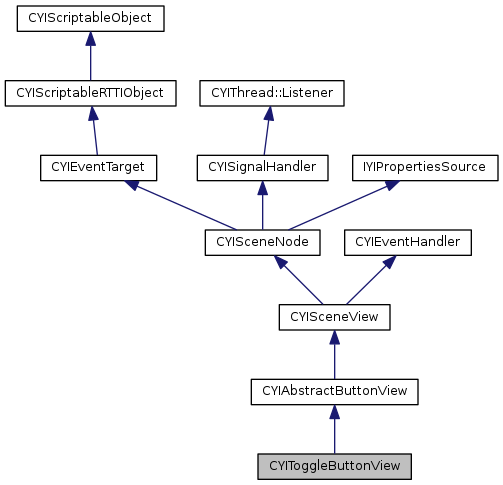

Inheritance diagram for CYIToggleButtonView:

[legend]

Public Types
enum	TOGGLE_STATE { TOGGLED_OFF = 0, TOGGLED_ON }

Public Types inherited from CYIAbstractButtonView
enum	ENABLE_STATE { DISABLED = 0, ENABLED }

enum	PRESS_STATE { RELEASED = 0, PRESSED }

enum	OVER_STATE { AWAY = 0, OVER }

Public Types inherited from CYISceneView
enum	ASSET_REQUIREMENT_TYPE { REQUIRES_NODE, REQUIRES_TIMELINE }

enum	TIMELINE_GET_MODE { GET_DEFAULT, GET_TIMELINE, GET_TIMELINE_GROUP, GET_COMPONENT_OF_TIMELINE_GROUP }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYIToggleButtonView ()

virtual	~CYIToggleButtonView ()

virtual bool	Init () override

void	SetToggled (bool bIsToggled)

void	ToggleOn ()

void	ToggleOff ()

bool	IsToggledOn () const

void	SetState (CYIAbstractButtonView::ENABLE_STATE eEnabledState, TOGGLE_STATE eToggleState)

Public Member Functions inherited from CYIAbstractButtonView
	CYIAbstractButtonView ()

virtual	~CYIAbstractButtonView ()

void	Enable ()

void	Disable ()

void	SetEnabled (bool bEnabled)

bool	IsEnabled () const

bool	IsPressed () const

bool	IsOver () const

void	SetText (const CYIString &text)

void	SetButtonID (int32_t nButtonID)

int32_t	GetButtonID () const

Public Member Functions inherited from CYISceneView
	CYISceneView ()

virtual	~CYISceneView ()

bool	BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

bool	IsInitialized () const

void	SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool	GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void	EnableDefaultHitZone ()

bool	IsResponsiveLayoutEnabled () const

void	EnableResponsiveLayout ()

void	DisableResponsiveLayout ()

void	AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA	GetAnchor (YI_ANCHOR_TYPE anchorType) const

virtual const CYISceneView::AssetRequirement *	GetAssetRequirements (uint32_t *pRequirementCount)

CYIAbstractTimeline *	GetInTimeline () const

CYIAbstractTimeline *	GetOutTimeline () const

CYIAbstractTimeline *	GetFocusInTimeline () const

CYIAbstractTimeline *	GetFocusOutTimeline () const

virtual bool	HandlesFocusInDescendants () const

virtual bool	RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions())

bool	HasFocus () const

void	SetFocusable (bool bFocusable)

bool	IsFocusable () const

bool	CanBeFocused () const

void	SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView *	GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void	SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView *	GetInitiallyFocusedView () const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

virtual CYISceneView *	FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode *	GetFocusRoot () const

CYISceneView *	GetFocusHandler () const

virtual void	OnFocusGained ()

virtual void	FocusGained ()

virtual void	OnFocusLost ()

virtual void	FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > &	GetViewTemplate () const

const std::vector< CYIString > &	GetChildTemplateNames ()

virtual CYIAbstractTimeline *	GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline *	GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * >	GetTimelines () const

bool	FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup *	GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup >	BuildTimelineGroup (const CYIString &markerName)

void	BuildAnchorList ()

virtual void	Reset ()

void	SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout *	GetLayout () const

CYILayout *	GetLayout ()

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void	ApplyMeasurements () override

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Public Member Functions inherited from CYIEventHandler
	CYIEventHandler ()

	CYIEventHandler (const CYIEventHandler &)

virtual	~CYIEventHandler ()

CYIEventHandler &	operator= (const CYIEventHandler &)

bool	RegisterEventFilter (CYIEventFilter *pFilter)

bool	UnregisterEventFilter (CYIEventFilter *pFilter)

bool	PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	AreEventsEnabled () const

void	EnableEvents (bool bEnable)

Public Attributes
CYISignal< bool, int32_t >	ButtonPressing

CYISignal< int32_t >	ButtonPressingOn

CYISignal< int32_t >	ButtonPressingOff

CYISignal< bool, int32_t >	ButtonPressed

CYISignal< int32_t >	ButtonPressedOn

CYISignal< int32_t >	ButtonPressedOff

CYISignal< bool, int32_t >	ButtonToggled

CYISignal< int32_t >	ButtonToggledOn

CYISignal< int32_t >	ButtonToggledOff

CYISignal< bool, int32_t >	ButtonReleasing

CYISignal< int32_t >	ButtonReleasingOn

CYISignal< int32_t >	ButtonReleasingOff

CYISignal< bool, int32_t >	ButtonReleased

CYISignal< int32_t >	ButtonReleasedOn

CYISignal< int32_t >	ButtonReleasedOff

Public Attributes inherited from CYISceneView
CYISignal< CYISceneView * >	GainedFocus
	Emitted when focus has entered this view. More...

CYISignal< CYISceneView * >	LostFocus
	Emitted when focus has left this view. More...

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Protected Types
enum	EMIT_SIGNALS { WITH_SIGNALS, NO_SIGNALS }

Protected Member Functions
virtual void	OnEnable () override

virtual void	OnDisable () override

virtual void	OnPress () override

virtual void	OnRelease () override

virtual void	OnEnter () override

virtual void	OnLeave () override

virtual void	OnCancel () override

virtual void	OnToggleOn (EMIT_SIGNALS eSignals)

virtual void	OnToggleOff (EMIT_SIGNALS eSignals)

virtual void	FinishAllPlayingTimelines () override

virtual void	FinishAllPlayingFocusTimelines ()

void	ToggleOn (EMIT_SIGNALS eSignals)

void	ToggleOff (EMIT_SIGNALS eSignals)

void	OnPressOnCompleted ()

void	OnPressOffCompleted ()

void	OnReleaseOnCompleted ()

void	OnReleaseOffCompleted ()

virtual bool	HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

Protected Member Functions inherited from CYIAbstractButtonView
void	StartTimelineForward (CYIAbstractTimeline pTimeline, const char pFunctionName=nullptr, const char *pTimelineName=nullptr)

void	StartTimelineReverse (CYIAbstractTimeline pTimeline, const char pFunctionName=nullptr, const char *pTimelineName=nullptr)

Protected Member Functions inherited from CYISceneView
void	UpdateClipping ()

virtual void	WorldScaleUpdated () override

virtual void	WorldBoundingBoxUpdated () override

virtual void	OnViewReflowed (const glm::vec3 &worldScale)

virtual void	ViewReflowed (const glm::vec3 &worldScale)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void	UpdateResponsiveLayoutAnchors ()

virtual void	SizeChanged () override

virtual void	ChildNeedsLayout () override

virtual void	LayoutDirtied () override

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	OnViewIsInAnimatedPosition ()

void	OnViewIsGoingOutOfAnimatedPosition ()

void	SetInTimeline (CYIAbstractTimeline *pTimeline)

void	SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void	OnInit ()

bool	TryRequestFocusOnInitiallyFocusedView ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
TOGGLE_STATE	m_eToggleState

CYIAbstractTimeline *	m_pPressAnim

CYIAbstractTimeline *	m_pPressCheckedAnim

CYIAbstractTimeline *	m_pToggleOnAnim

CYIAbstractTimeline *	m_pToggleOffAnim

CYIAbstractTimeline *	m_pDisableAnim

CYIAbstractTimeline *	m_pDisableCheckedAnim

CYIAbstractTimeline *	m_pUpOverAnim

CYIAbstractTimeline *	m_pUpOverCheckedAnim

CYIAbstractTimeline *	m_pOverUpAnim

CYIAbstractTimeline *	m_pOverUpCheckedAnim

CYIAbstractTimeline *	m_pDownUpAnim

CYIAbstractTimeline *	m_pDownUpCheckedAnim

CYIAbstractTimeline *	m_pFocusInCheckedAnim

CYIAbstractTimeline *	m_pFocusOutCheckedAnim

CYIAbstractTimeline *	m_pFocusInToggleTransitionAnim

CYIAbstractTimeline *	m_pFocusInCheckedToggleTransitionAnim

Protected Attributes inherited from CYIAbstractButtonView
ENABLE_STATE	m_eEnableState

PRESS_STATE	m_ePressState

OVER_STATE	m_eOverState

int32_t	m_nButtonID

CYITextSceneNode *	m_pButtonTextNode

CYITextSceneNode *	m_pButtonTextNodePress

Protected Attributes inherited from CYISceneView
bool	m_bStopEventPropagation

bool	m_bResponsiveLayoutEnabled

bool	m_bSceneTreeBuilt

bool	m_bInAnimatedPosition

CYISceneNode *	m_pClippingNode

CYIAbstractTimeline *	m_pFocusInTimeline

CYIAbstractTimeline *	m_pFocusOutTimeline

std::unique_ptr< CYILayout >	m_pLayout

std::shared_ptr< CYIAssetViewTemplate >	m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy >	m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA >	m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > >	m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > >	m_timelineGroups

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Protected Attributes inherited from CYIEventHandler
bool	m_bEnableEvents

Additional Inherited Members
Static Public Member Functions inherited from CYISceneView
static void	RegisterAllViews ()

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Member Enumeration Documentation

enum CYIToggleButtonView::EMIT_SIGNALS

protected

An enumeration representing whether or not a toggle event will emit signals. This can be used to differentiate programatic state changes which should emit signals to those which should not.

Enumerator
WITH_SIGNALS	The toggle state change will emit signals in the order ButtonToggled, ButtonReleasing and ButtonReleased.
NO_SIGNALS	No signals will be emitted.

enum CYIToggleButtonView::TOGGLE_STATE

Enumeration representing the possible toggles states for the toggle button.

Enumerator
TOGGLED_OFF	State indicating that the button view is toggled off.
TOGGLED_ON	State indicating that the button view is toggled on.

Constructor & Destructor Documentation

CYIToggleButtonView::CYIToggleButtonView ( )

virtual CYIToggleButtonView::~CYIToggleButtonView ( )

virtual

Member Function Documentation

virtual void CYIToggleButtonView::FinishAllPlayingFocusTimelines ( )

protectedvirtual

Finish playing all focus timelines which the toggle button view manages.

virtual void CYIToggleButtonView::FinishAllPlayingTimelines ( )

overrideprotectedvirtual

Implement to finish playing all timelines which the button view manages.

Reimplemented from CYIAbstractButtonView.

virtual bool CYIToggleButtonView::HandleEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overrideprotectedvirtual

Handle events from You.i Engine's event system. This is where input events are translated to button view events and button view states are changed.

Reimplemented from CYIAbstractButtonView.

virtual bool CYIToggleButtonView::Init ( )

overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note: This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from CYIAbstractButtonView.

bool CYIToggleButtonView::IsToggledOn ( ) const

Returns true if the toggle button is currently in the CYIToggleButtonView::TOGGLED_ON state.

virtual void CYIToggleButtonView::OnCancel ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::AWAY state while the button was pressed. Subclasses can update the view to represent an idle state where the user hovered and pressed down on the view and then left the view without releasing.

Reimplemented from CYIAbstractButtonView.

virtual void CYIToggleButtonView::OnDisable ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::DISABLED state. Subclasses can update the view to represent a disabled state here.

Reimplemented from CYIAbstractButtonView.

virtual void CYIToggleButtonView::OnEnable ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::ENABLED state. Subclasses can update the view to represent an enabled state here.

Reimplemented from CYIAbstractButtonView.

virtual void CYIToggleButtonView::OnEnter ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::OVER state. Subclasses can update the view to represent a hover state here.

Reimplemented from CYIAbstractButtonView.

virtual void CYIToggleButtonView::OnLeave ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::AWAY state if the button was not pressed. Subclasses can update the view to represent an idle state where the user hovered over the button but did not interact with it.

Reimplemented from CYIAbstractButtonView.

virtual void CYIToggleButtonView::OnPress ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::PRESSED state. Subclasses can update the view to represent a pressed state here.

Reimplemented from CYIAbstractButtonView.

void CYIToggleButtonView::OnPressOffCompleted ( )

protected

void CYIToggleButtonView::OnPressOnCompleted ( )

protected

virtual void CYIToggleButtonView::OnRelease ( )

overrideprotectedvirtual

Callback occuring when the button view transitions into the CYIAbstractButtonView::RELEASED state. Subclasses can update the view to represent an idle state here.

Reimplemented from CYIAbstractButtonView.

void CYIToggleButtonView::OnReleaseOffCompleted ( )

protected

void CYIToggleButtonView::OnReleaseOnCompleted ( )

protected

virtual void CYIToggleButtonView::OnToggleOff ( EMIT_SIGNALS eSignals )

protectedvirtual

Callback occurring when the toggle button view transitions into the CYIToggleButtonView::TOGGLED_OFF state. The view is updated to represent a toggled off state here.

Note: Once the button has toggled off, it will switch its focus animations automatically from FocusIn-Checked to FocusIn. This is done using the "FocusIn-Checked-Toggle-Transition" animation. If the animation is not present, the reverse of "FocusIn-Toggle-Transition" will be applied. If both the transition animations are not present the FocusIn animation will be fast-forwarded to its end state and the FocusIn-Checked will be rewinded to the beginning to give the button its correct visual state as a fallback behaviour. This fallback behaviour will only occur if the FocusIn-Checked animation is present.

virtual void CYIToggleButtonView::OnToggleOn ( EMIT_SIGNALS eSignals )

protectedvirtual

Callback occurring when the toggle button view transitions into the CYIToggleButtonView::TOGGLED_ON state. The view is updated to represent a toggled on state here.

Note: Once the button has toggled on, it will switch its focus animations automatically from FocusIn to FocusIn-Checked if it is available. This is done by using the "FocusIn-Toggle-Transition" animation. If the transition animation is not present the FocusIn-Checked animation will be fast forwarded to the end and the FocusIn animation will be rewinded to the beginning to give the button its correct visual state as a fallback behaviour. This fallback behaviour will only occur if the FocusIn-Checked animation is present.

void CYIToggleButtonView::SetState	(	CYIAbstractButtonView::ENABLE_STATE	eEnabledState,
		TOGGLE_STATE	eToggleState
	)

Sets the current eEnabledState and eToggleState for the toggle button.

Note: Toggling the button using this method will not emit a signal.

void CYIToggleButtonView::SetToggled ( bool bIsToggled )

Toggles the button state given bIsToggled.

Note: Toggling the button using this method will not emit a signal.

void CYIToggleButtonView::ToggleOff ( )

Toggles the button into the CYIToggleButtonView::TOGGLED_OFF state.

Note: Toggling the button using this method will not emit a signal.

void CYIToggleButtonView::ToggleOff ( EMIT_SIGNALS eSignals )

protected

Transitions the toggle button into the CYIToggleButtonView::TOGGLED_OFF state, eSignals specifies if appropriate signals will be emitted. This method will have no effect if the button is already in the CYIToggleButtonView::TOGGLED_OFF state.

void CYIToggleButtonView::ToggleOn ( )

Toggles the button into the CYIToggleButtonView::TOGGLED_ON state.

Note: Toggling the button using this method will not emit a signal.

void CYIToggleButtonView::ToggleOn ( EMIT_SIGNALS eSignals )

protected

Transitions the toggle button into the CYIToggleButtonView::TOGGLED_ON state, eSignals specifies if appropriate signals will be emitted. This method will have no effect if the button is already in the CYIToggleButtonView::TOGGLED_ON state.

Member Data Documentation

CYISignal<bool, int32_t> CYIToggleButtonView::ButtonPressed

Emitted when the press timeline completes, or immediately after CYIToggleButtonView::ButtonPressing if no eligible timeline exists. The first parameter indicates toggle state. The second parameter is the Button ID set using SetButtonID().

CYISignal<int32_t> CYIToggleButtonView::ButtonPressedOff

CYIToggleButtonView::ButtonPressed when the button is in the CYIToggleButtonView::TOGGLED_OFF state.

CYISignal<int32_t> CYIToggleButtonView::ButtonPressedOn

CYIToggleButtonView::ButtonPressed when the button is in the CYIToggleButtonView::TOGGLED_ON state.

CYISignal<bool, int32_t> CYIToggleButtonView::ButtonPressing

Emitted on action down event. The first parameter indicates toggle state. The second parameter is the Button ID set using SetButtonID().

CYISignal<int32_t> CYIToggleButtonView::ButtonPressingOff

CYIToggleButtonView::ButtonPresssing when the button is in the CYIToggleButtonView::TOGGLED_OFF state.

CYISignal<int32_t> CYIToggleButtonView::ButtonPressingOn

CYIToggleButtonView::ButtonPresssing when the button is in the CYIToggleButtonView::TOGGLED_ON state.

CYISignal<bool, int32_t> CYIToggleButtonView::ButtonReleased

Emitted when the release timeline completes, or immediately after CYIToggleButtonView::ButtonReleasing if no eligible timeline exists state. The first parameter indicates toggle state. The second parameter is the Button ID set using SetButtonID().

CYISignal<int32_t> CYIToggleButtonView::ButtonReleasedOff

CYIToggleButtonView::ButtonReleased when the button is in the CYIToggleButtonView::TOGGLED_OFF state.

CYISignal<int32_t> CYIToggleButtonView::ButtonReleasedOn

CYIToggleButtonView::ButtonReleased when the button is in the CYIToggleButtonView::TOGGLED_ON state.

CYISignal<bool, int32_t> CYIToggleButtonView::ButtonReleasing

Emitted immediately after ButtonToggled. The first parameter indicates toggle state. The second parameter is the Button ID set using SetButtonID().

CYISignal<int32_t> CYIToggleButtonView::ButtonReleasingOff

CYIToggleButtonView::ButtonReleasing when the button is in the CYIToggleButtonView::TOGGLED_OFF state.

CYISignal<int32_t> CYIToggleButtonView::ButtonReleasingOn

CYIToggleButtonView::ButtonReleasing when the button is in the CYIToggleButtonView::TOGGLED_ON state.

CYISignal<bool, int32_t> CYIToggleButtonView::ButtonToggled

Emitted when the button is toggled (on action release event). The first parameter indicates toggle state. The second parameter is the Button ID set using SetButtonID().

CYISignal<int32_t> CYIToggleButtonView::ButtonToggledOff

CYIToggleButtonView::ButtonToggled when the button is in the CYIToggleButtonView::TOGGLED_OFF state.

CYISignal<int32_t> CYIToggleButtonView::ButtonToggledOn

CYIToggleButtonView::ButtonToggled when the button is in the CYIToggleButtonView::TOGGLED_ON state.

TOGGLE_STATE CYIToggleButtonView::m_eToggleState

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pDisableAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pDisableCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pDownUpAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pDownUpCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pFocusInCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pFocusInCheckedToggleTransitionAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pFocusInToggleTransitionAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pFocusOutCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pOverUpAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pOverUpCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pPressAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pPressCheckedAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pToggleOffAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pToggleOnAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pUpOverAnim

protected

CYIAbstractTimeline* CYIToggleButtonView::m_pUpOverCheckedAnim

protected

The documentation for this class was generated from the following file:

view/YiToggleButtonView.h

Detailed Description

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
