Detailed Description

The base class for types of timeline groups.

This class provides a common interface for any timeline group. Basic operations including adding, removing, and updating offsets. Groups can be nested to create the desired effect.

Groups do NOT take ownership of their children. Children may be added to multiple groups without a problem. As expected, if the same properties of a CYISceneNode are modified simultaneously the modifiers will compete. This is true whether the modifiers are the same timeline or different timelines.

This class cannot be instantiated.

#include <animation/YiTimelineGroup.h>

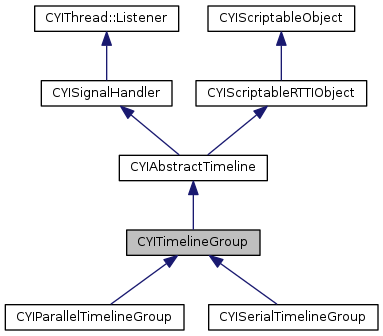

Inheritance diagram for CYITimelineGroup:

[legend]

Public Member Functions
virtual	~CYITimelineGroup ()

void	AddTimeline (CYIAbstractTimeline *pTimeline)

void	AddTimelineWithOffset (CYIAbstractTimeline *pTimeline, uint64_t uMillis)

uint32_t	GetTimelineCount () const

std::vector< CYIAbstractTimeline * >	GetTimelines () const

std::vector< std::pair< CYIAbstractTimeline *, uint64_t > >	GetTimelinesWithOffsets (CYIAbstractTimeline::DIRECTION eDirection=CYIAbstractTimeline::FORWARD) const

uint64_t	GetTimelineOffset (CYIAbstractTimeline *pTimeline, CYIAbstractTimeline::DIRECTION eDirection=CYIAbstractTimeline::FORWARD) const

void	RemoveTimeline (CYIAbstractTimeline *pTimeline)

void	RemoveAllTimelines ()

void	RemoveTimelinesIf (const std::function< bool(CYIAbstractTimeline *)> &predicate)

void	UpdateOffsetOfTimeline (const CYIAbstractTimeline *pTimeline, uint64_t uMillis)

Public Member Functions inherited from CYIAbstractTimeline
virtual	~CYIAbstractTimeline ()

void	Start ()

void	Finish ()

void	Pause ()

void	Continue ()

void	SetDirection (DIRECTION direction)

DIRECTION	GetDirection () const

STATUS	GetStatus () const

uint64_t	GetStartTime () const

uint64_t	GetCurrentTime () const

float	GetTimeAsPercentage () const

uint64_t	GetTotalTime () const

void	SeekToPercentage (float fPercentage)

void	SeekToTime (uint64_t uMillis)

void	Abort ()

void	SetDisablesInput (bool bDisablesInput)

void	Track ()

void	Untrack ()

void	StartForward ()

void	StartReverse ()

void	ContinueForward ()

void	ContinueReverse ()

void	SetDirectionForward ()

void	SetDirectionReverse ()

void	SetFrameModes (YI_FRAME_MODE eStartFrameMode, YI_FRAME_MODE eEndFrameMode)

bool	SetSourcePositions (CYISceneNode *pNode, const glm::vec3 &vPosition)

bool	ClearSourcePositions (CYISceneNode *pNode)

bool	SetTargetPositions (CYISceneNode *pNode, const glm::vec3 &vPosition)

bool	ClearTargetPositions (CYISceneNode *pNode)

const std::shared_ptr< CYITimelineProxy > &	GetProxy () const

void	SetRootNode (CYISceneNode *pRootNode)

const std::shared_ptr< CYISceneNodeProxy > &	GetRootNode () const

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Attributes
CYISignal< CYIAbstractTimeline * >	ChildTimelineCompleted
	called whenever execution of one of the contained timelines completes normally More...

Public Attributes inherited from CYIAbstractTimeline
CYISignal	Playing
	called whenever the timeline starts playing (from any position) More...

CYISignal	Paused
	called whenever the timeline stops playing, including if the timeline execution completes normally More...

CYISignal	Aborted
	called when the timeline execution is aborted by the Abort() function More...

CYISignal	Started
	called when playback of the timeline is initiated by one of the Start() functions More...

CYISignal	Completed
	called when playback of the timeline completes normally (or when the Finish() function is called) More...

CYISignal	PlayingForward
	same as Playing, but triggered only when direction is forward More...

CYISignal	PlayingReverse
	same as Playing, but triggered only when direction is reverse More...

CYISignal	PausedForward
	same as Paused, but triggered only when direction is forward More...

CYISignal	PausedReverse
	same as Paused, but triggered only when direction is reverse More...

CYISignal	StartedForward
	same as Started, but triggered only when direction is forward More...

CYISignal	StartedReverse
	same as Started, but triggered only when direction is reverse More...

CYISignal	CompletedForward
	same as Completed, but triggered only when direction is forward More...

CYISignal	CompletedReverse
	same as Completed, but triggered only when direction is reverse More...

Protected Member Functions
	CYITimelineGroup (CYITimelineGroupPriv *pPriv)

Protected Member Functions inherited from CYIAbstractTimeline
	CYIAbstractTimeline (CYIAbstractTimelinePriv *pPriv)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYIAbstractTimeline
enum	YI_FRAME_MODE { YI_ABSOLUTE, YI_RELATIVE }

enum	STATUS { STOPPED, PLAYING }

enum	DIRECTION { FORWARD, REVERSE }

Protected Attributes inherited from CYIAbstractTimeline
CYIAbstractTimelinePriv *	m_pPriv

Constructor & Destructor Documentation

virtual CYITimelineGroup::~CYITimelineGroup ( )

virtual

CYITimelineGroup::CYITimelineGroup ( CYITimelineGroupPriv * pPriv )

protected

Member Function Documentation

void CYITimelineGroup::AddTimeline ( CYIAbstractTimeline * pTimeline )

Adds pTimeline to the group in the default way. For CYISerialTimelineGroup, this has the same effect as calling CYISerialTimelineGroup::AddTimelineToEnd. For CYIParallelTimelineGroup, this adds pTimeline with no offset.

void CYITimelineGroup::AddTimelineWithOffset	(	CYIAbstractTimeline *	pTimeline,
		uint64_t	uMillis
	)

Adds pTimeline to the group with an offset in the default way. For CYISerialTimelineGroup, this has the same effect as calling CYISerialTimelineGroup::AddTimelineToEndWithOffset. For CYIParallelTimelineGroup, this adds a timeline with an offset of uMillis.

uint32_t CYITimelineGroup::GetTimelineCount ( ) const

Returns the number of immediate children.

uint64_t CYITimelineGroup::GetTimelineOffset	(	CYIAbstractTimeline *	pTimeline,
		CYIAbstractTimeline::DIRECTION	eDirection = `CYIAbstractTimeline::FORWARD`
	)		const

Returns the offset of child timeline pTimeline. If pTimeline is not a child of this timeline group, 0 is returned. Specify eDirection as CYIAbstractTimeline::REVERSE to obtain the offset from the end this offset is used when the group is playing in reverse.

Note: The offset for the reverse direction is a calculated offset, it is the difference between the group end time and pTimeline's total time plus offset.; This function runs in O(n) time.

std::vector<CYIAbstractTimeline*> CYITimelineGroup::GetTimelines ( ) const

Returns the immediate children of this timeline group.

std::vector<std::pair<CYIAbstractTimeline *, uint64_t> > CYITimelineGroup::GetTimelinesWithOffsets ( CYIAbstractTimeline::DIRECTION eDirection = CYIAbstractTimeline::FORWARD ) const

Returns the immediate children of this timeline group, along with the offsets for each timeline.

See also: GetTimelineOffset

void CYITimelineGroup::RemoveAllTimelines ( )

void CYITimelineGroup::RemoveTimeline ( CYIAbstractTimeline * pTimeline )

Finds pTimeline among the children of this group and removes it.

void CYITimelineGroup::RemoveTimelinesIf ( const std::function< bool(CYIAbstractTimeline *)> & predicate )

Removes from this group all timelines for which predicate returns true.

void CYITimelineGroup::UpdateOffsetOfTimeline	(	const CYIAbstractTimeline *	pTimeline,
		uint64_t	uMillis
	)

Finds pTimeline among the children of this group and changes the offset of pTimeline to uMillis. If pTimeline is not found, there is no effect.

Member Data Documentation

CYISignal<CYIAbstractTimeline*> CYITimelineGroup::ChildTimelineCompleted

called whenever execution of one of the contained timelines completes normally

The documentation for this class was generated from the following file:

animation/YiTimelineGroup.h
