Detailed Description

The base class for all view types. Views are containers of renderable elements that often define interaction behaviours through APIs and user-driven events.

Extends the CYISceneNode to add layouts, focus, and timelines. Subclasses of CYISceneView differentiate themselves by defining behaviours or interaction models. Views usually contain timelines which animate the properties of their children, the view will play these timelines as part of its visual presentation. Focus may enter or leave a view, or the view may explicitly receive focus, in response to the user-driven navigation events: CYIKeyEvent::YI_KEY_ARROW_UP, CYIKeyEvent::YI_KEY_ARROW_DOWN, CYIKeyEvent::YI_KEY_ARROW_LEFT, CYIKeyEvent::YI_KEY_ARROW_RIGHT, or CYIKeyEvent::YI_KEY_TAB. A CYISceneView may have a CYILayout added to it in order to dictate how its children will move and resize in response to the view changing position and size.

View Template Specification

Type	Labels	Property	Description
Marker	FocusIn	Optional	The animation played when a view receives focus.
Marker	FocusOut	Optional	The animation played when a view loses focus. If not defined, the reverse of FocusIn is used.
Marker	In	Optional	Multi-purpose: 1) the animation played when a view is a list item that is inserted in the list. 2) the animation played when a view is part of a CYIStackView, and the view is brought to front.
Marker	Out	Optional	Multi-purpose: 1) the animation played when a view is a list item that is removed from the list. 2) the animation played when a view is part of a CYIStackView, and the view is removed from the front.
Comment	clip	Optional	If present and set to 'true', the view will be clipped to its size.
Marker Comment	recursive	Optional	If present and set to 'true' on a marker, indicates that timelines created from this marker should be recursive. Such timelines are timeline groups that contains all other timelines of the same name. Defaults to 'false'.
Marker Comment	stop-recursion	Optional	If present and set to 'true' on a marker, indicates that timeline groups of parent views should not include this view's timelines. Defaults to 'false'.
Marker Comment	tracks	Optional	If present, this marker indicates how timelines should be created for a given marker. Can be 'keyframes', which indicates that only tracks with keyframes are used, or 'all', which indicates that all tracks should be used. Defaults to 'keyframes'.

#include <view/YiSceneView.h>

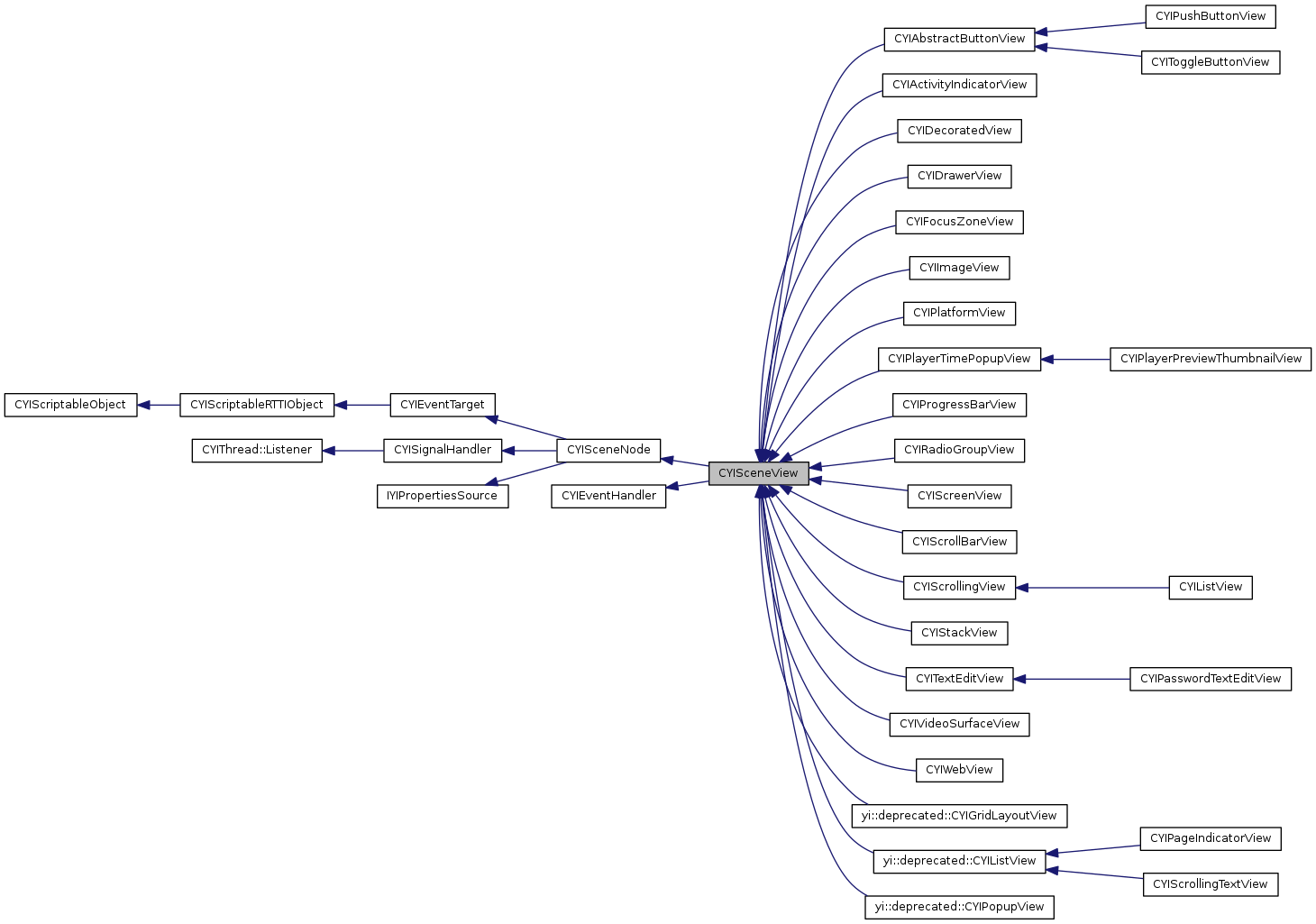

Inheritance diagram for CYISceneView:

[legend]

Classes
struct	AssetRequirement

struct	YI_ANCHOR_DATA
	Anchors are used to apply scaling rules. More...

Public Types
enum	ASSET_REQUIREMENT_TYPE { REQUIRES_NODE, REQUIRES_TIMELINE }

enum	TIMELINE_GET_MODE { GET_DEFAULT, GET_TIMELINE, GET_TIMELINE_GROUP, GET_COMPONENT_OF_TIMELINE_GROUP }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYISceneView ()

virtual	~CYISceneView ()

bool	BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

virtual bool	Init () override

bool	IsInitialized () const

void	SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool	GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void	EnableDefaultHitZone ()

bool	IsResponsiveLayoutEnabled () const

void	EnableResponsiveLayout ()

void	DisableResponsiveLayout ()

void	AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA	GetAnchor (YI_ANCHOR_TYPE anchorType) const

virtual const CYISceneView::AssetRequirement *	GetAssetRequirements (uint32_t *pRequirementCount)

CYIAbstractTimeline *	GetInTimeline () const

CYIAbstractTimeline *	GetOutTimeline () const

CYIAbstractTimeline *	GetFocusInTimeline () const

CYIAbstractTimeline *	GetFocusOutTimeline () const

virtual bool	HandlesFocusInDescendants () const

virtual bool	RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions())

bool	HasFocus () const

void	SetFocusable (bool bFocusable)

bool	IsFocusable () const

bool	CanBeFocused () const

void	SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView *	GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void	SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView *	GetInitiallyFocusedView () const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

virtual CYISceneView *	FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode *	GetFocusRoot () const

CYISceneView *	GetFocusHandler () const

virtual void	OnFocusGained ()

virtual void	FocusGained ()

virtual void	OnFocusLost ()

virtual void	FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > &	GetViewTemplate () const

const std::vector< CYIString > &	GetChildTemplateNames ()

virtual CYIAbstractTimeline *	GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline *	GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * >	GetTimelines () const

bool	FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup *	GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup >	BuildTimelineGroup (const CYIString &markerName)

void	BuildAnchorList ()

virtual void	Reset ()

void	SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout *	GetLayout () const

CYILayout *	GetLayout ()

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void	ApplyMeasurements () override

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Public Member Functions inherited from CYIEventHandler
	CYIEventHandler ()

	CYIEventHandler (const CYIEventHandler &)

virtual	~CYIEventHandler ()

CYIEventHandler &	operator= (const CYIEventHandler &)

bool	RegisterEventFilter (CYIEventFilter *pFilter)

bool	UnregisterEventFilter (CYIEventFilter *pFilter)

bool	PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	AreEventsEnabled () const

void	EnableEvents (bool bEnable)

Static Public Member Functions
static void	RegisterAllViews ()

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Public Attributes
CYISignal< CYISceneView * >	GainedFocus
	Emitted when focus has entered this view. More...

CYISignal< CYISceneView * >	LostFocus
	Emitted when focus has left this view. More...

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Protected Member Functions
void	UpdateClipping ()

virtual void	WorldScaleUpdated () override

virtual void	WorldBoundingBoxUpdated () override

virtual void	OnViewReflowed (const glm::vec3 &worldScale)

virtual void	ViewReflowed (const glm::vec3 &worldScale)

virtual bool	HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void	UpdateResponsiveLayoutAnchors ()

virtual void	SizeChanged () override

virtual void	ChildNeedsLayout () override

virtual void	LayoutDirtied () override

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	OnViewIsInAnimatedPosition ()

void	OnViewIsGoingOutOfAnimatedPosition ()

void	SetInTimeline (CYIAbstractTimeline *pTimeline)

void	SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void	OnInit ()

bool	TryRequestFocusOnInitiallyFocusedView ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
bool	m_bStopEventPropagation

bool	m_bResponsiveLayoutEnabled

bool	m_bSceneTreeBuilt

bool	m_bInAnimatedPosition

CYISceneNode *	m_pClippingNode

CYIAbstractTimeline *	m_pFocusInTimeline

CYIAbstractTimeline *	m_pFocusOutTimeline

std::unique_ptr< CYILayout >	m_pLayout

std::shared_ptr< CYIAssetViewTemplate >	m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy >	m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA >	m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > >	m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > >	m_timelineGroups

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Protected Attributes inherited from CYIEventHandler
bool	m_bEnableEvents

Friends
class	CYISceneViewPriv

Additional Inherited Members
Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Member Enumeration Documentation

enum CYISceneView::ASSET_REQUIREMENT_TYPE

Used internally to declare the requirements for a view template, for use with the You.i Engine After Effects Plug-in. A view may require nodes or timelines to be present in the template for it to be functional. The absence of these results in a failure to initialize in Init().

Enumerator
REQUIRES_NODE	Marks that the requirement is for a node.
REQUIRES_TIMELINE	Marks that the requirement is for a timeline.

enum CYISceneView::TIMELINE_GET_MODE

The various modes with which timelines can be obtained from CYISceneView.

Enumerator
GET_DEFAULT	Automatically picks between the other modes depending on how the given timeline marker is configured.
GET_TIMELINE	Always returns a CYITimeline instance (e.g. never returns a timeline group). Returns null if the given timeline marker does not exist.
GET_TIMELINE_GROUP	Always returns a timeline group (which will recursively be created). Never returns null.
GET_COMPONENT_OF_TIMELINE_GROUP	Returns a timeline group component. This is used internally when generating timeline groups. Returns null if the given timeline marker is configured as 'stop recursing'.

Constructor & Destructor Documentation

CYISceneView::CYISceneView ( )

virtual CYISceneView::~CYISceneView ( )

virtual

Member Function Documentation

void CYISceneView::AddAnchor ( YI_ANCHOR_TYPE anchorType )

Adds the anchorType responsive layout anchor to the view.

virtual void CYISceneView::ApplyMeasurements ( )

overridevirtual

Applies the measured sizes of this node's children.

Note: Typically, if ApplyMeasurements is overridden then Measure must also be overridden.; Measurements should be applied before calculating position for layout.

Warning: Subclasses that override this function must ensure that the ApplyMeasurements function of ALL children of this scene node is called.

Note: Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView, CYIImageView, and CYIListView.

void CYISceneView::BuildAnchorList ( )

Used during view construction to initialize the list of responsive layout anchors present in this view.

virtual void CYISceneView::BuildDrawList	(	std::vector< IYIRenderer::Command > &	drawList,
		CYIAbstractCameraSceneNode *	pCameraToDrawWith = `nullptr`
	)

overridevirtual

Interal use only, this function will construct the list of render actions required to render the data contained in the subtree rooted at this node. Specify the camera used to draw with pCameraToDrawWith. The camera must be a draw-child of the node and be visible.

Warning: Override at your own risk; no guarantee of consistent behaviour.

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView.

bool CYISceneView::BuildFromTemplate	(	CYISceneManager *	pSceneManager,
		const std::shared_ptr< CYIAssetViewTemplate > &	pAssetViewTemplate,
		CYISceneManager::MISSING_CLASS_HANDLING_MODE	eMissingHandlingMode = `CYISceneManager::ABORT`
	)

Builds the view using pAssetViewTemplate. This must be called prior to CYISceneView::Init().

Note: This method will assert if called twice.

std::unique_ptr<CYITimelineGroup> CYISceneView::BuildTimelineGroup ( const CYIString & markerName )

Deprecated:: This function has been deprecated and may be removed in a future release. GetTimelineGroup(const CYIString&) should be used instead.

Constructs a timeline group from this view and all of the views within it which contain a timeline called markerName. Returns null if this view does not contain markerName even if subviews contain the marker name.

Note: The returned timeline is owned by the caller. It must not be used if this view or any views whose timelines are in the group are deleted.

Warning: Unlike the GetTimelineGroup(const CYIString&) function, the timeline group returned by this function is not automatically updated as descendant views are added or removed.

See also: GetTimeline; GetTimelineGroup(const CYIString&)

bool CYISceneView::CanBeFocused ( ) const

See also: CYISceneManager::CanBeFocused

virtual void CYISceneView::ChildAdded ( CYISceneNode * pChild )

overrideprotectedvirtual

Called when a scene node is added to this node's children list.

Warning: Overrides must call the base class implementation.

See also: OnChildAdded()

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView.

virtual void CYISceneView::ChildNeedsLayout ( )

overrideprotectedvirtual

Called when a child in this scene node's children hierarchy needs to be laid out.

Warning: Overrides must call the base class implementation.

Reimplemented from CYISceneNode.

virtual void CYISceneView::ChildRemoved ( CYISceneNode * pChild )

overrideprotectedvirtual

Called when a scene node is removed from this node's children list.

Note: The scene node might be deleted immediately after this function is called (e.g. if a user called CYISceneNode::DestroyChildren )

Warning: Overrides must call the base class implementation.

See also: OnChildRemoved()

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView.

virtual void CYISceneView::ChildVisibilityChanged ( CYISceneNode * pChild )

overrideprotectedvirtual

Called when the visibility of a child of this scene node has been modified.

Warning: Overrides must call the base class implementation.

See also: OnChildVisibilityChanged()

Reimplemented from CYISceneNode.

void CYISceneView::DisableResponsiveLayout ( )

Disables responsive layout on this view. Responsive layout is enabled by default.

See also: IsResponsiveLayoutEnabled

void CYISceneView::EnableDefaultHitZone ( )

Creates and assigns a CYIMesh to this view which is the same size as the view. This mesh is necessary for the view to become a target for events of type CYIActionEvent. A view may still receive events during the YI_EVENT_PHASE_CAPTURE and YI_EVENT_PHASE_BUBBLE phases if it has no mesh, but for it to be the target of an event, corresponding to YI_EVENT_PHASE_AT_TARGET, it must have a mesh.

See also: GetSize(); YI_EVENT_PHASE

void CYISceneView::EnableResponsiveLayout ( )

Enables responsive layout on this view. Responsive layout is enabled by default.

See also: IsResponsiveLayoutEnabled

CYISceneView* CYISceneView::FindNextFocus	(	CYIFocus::FOCUS_DIRECTION	eDirection,
		const CYIFocusSearchOptions &	options = `CYIFocusSearchOptions()`
	)		const

Returns the next focusable view in the requested direction.

If GetNextFocus() returns this view, null will be returned, indicating focus cannot change in eDirection.

If GetNextFocus() returns a view that is not this view, that will be returned.

Otherwise returns the closest view in eDirection that can take focus, using this view as a starting point.

Will return null if no possible focus candidate is found.

options can be used to further restrict the set of valid focus candidates.

See also: SetNextFocus

CYISceneView* CYISceneView::FindNextFocus	(	CYIFocus::FOCUS_DIRECTION	eDirection,
		CYIAABB &	screenSpaceFocusRegion,
		const CYIFocusSearchOptions &	options = `CYIFocusSearchOptions()`
	)		const

Returns the next focusable view in the requested direction within the specfied screen space region. screenSpaceFocusRegion is an in and out parameter. It will usually correspond to CYIFocus::GetScreenSpaceFocusRegion(pCurrentFocusView) but implementations may modify screenSpaceFocusRegion in order to hint that future focus searches should be performed with that modified bounding box.

See also: FindNextFocus

virtual CYISceneView* CYISceneView::FindNextFocusInDescendants	(	const CYISceneView *	pCurrentFocusView,
		CYIFocus::FOCUS_DIRECTION	eDirection,
		CYIAABB &	screenSpaceFocusRegion,
		const CYIFocusSearchOptions &	options = `CYIFocusSearchOptions()`
	)		const

virtual

Focus handlers must override this function to perform focus searches in their descendants. Returns the next view to recieve focus or null if there are none in eDirection. screenSpaceFocusRegion will usually correspond to CYIFocus::GetScreenSpaceFocusRegion(pCurrentFocusView) but implementations may modify screenSpaceBoundingBox in order to hint that future focus searches should be performed with that modified bounding box.

options can be used to further restrict the set of valid focus candidates.

See also: HandlesFocusInDescendants

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, and CYIFocusZoneView.

bool CYISceneView::FindTimeline	(	CYIAbstractTimeline *&	pTimeline,
		const CYIString &	markerName,
		FETCH_TYPE	eType,
		const CYIString &	tag = `""`,
		TIMELINE_GET_MODE	eMode = `GET_DEFAULT`
	)

If a timeline with markerName exists in this view, pTimeline will point to that timeline. The view will retain ownership of the timeline, it must not be deleted or cached by the user. If eType is CYISceneNode::FETCH_MANDATORY, an error message using the optional tag will be logged if markerName is not found.

Returns false if markerName is not found.

Note: If unsuccessful the value of pTimeline is set to nullptr.

virtual void CYISceneView::FocusGained ( )

virtual

See also: OnFocusGained

Note: The base implementation must be called.

virtual void CYISceneView::FocusLost ( )

virtual

See also: OnFocusLost

Note: The base implementation must be called.

Reimplemented in CYIScrollBarView.

YI_ANCHOR_DATA CYISceneView::GetAnchor ( YI_ANCHOR_TYPE anchorType ) const

Returns the YI_ANCHOR_DATA for the anchorType on this view, or a default YI_ANCHOR_DATA object if the anchor was not present in the view's template and has not been added using AddAnchor().

virtual const CYISceneView::AssetRequirement* CYISceneView::GetAssetRequirements ( uint32_t * pRequirementCount )

virtual

Returns the asset requirements for the view; implemented in each subclass to return the nodes and timelines which must be present in the view. Used internally by the You.i Engine After Effects Plug-in.

Reimplemented in CYITextEditView, CYIScrollBarView, and CYIProgressBarView.

const std::vector<CYIString>& CYISceneView::GetChildTemplateNames ( )

See also: CYIViewTemplate::GetChildTemplateNames

CYISceneView* CYISceneView::GetFocusHandler ( ) const

Returns the focus handler for this view. The view's focus handler is the closest ancestor which is a focus handler.

See also: HandlesFocusInDescendants

CYIAbstractTimeline* CYISceneView::GetFocusInTimeline ( ) const

Returns the 'FocusIn' CYIAbstractTimeline, or null if the view does not supply one. The view's 'FocusIn' CYIAbstractTimeline is set in Init().

CYIAbstractTimeline* CYISceneView::GetFocusOutTimeline ( ) const

Returns the 'FocusOut' CYIAbstractTimeline, or null if the view does not supply one. The view's 'FocusOut' CYIAbstractTimeline is set in Init().

const CYISceneNode* CYISceneView::GetFocusRoot ( ) const

Returns the focus root for this view. The view's focus root is the closest ancestor which is a focus root.

See also: CYISceneNode::IsFocusRoot

CYISceneView* CYISceneView::GetInitiallyFocusedView ( ) const

Returns the view that will receive initial focus when focus enters this containing view. Will return nullptr if the initially focused view has been deleted.

See also: SetInitiallyFocusedView; TryRequestFocusOnInitiallyFocusedView

CYIAbstractTimeline* CYISceneView::GetInTimeline ( ) const

Returns the 'In' CYIAbstractTimeline, or null if the view does not supply one. The view's 'In' CYIAbstractTimeline is set in Init(). Subclasses can overwrite this timeline using SetInTimeline().

const CYILayout* CYISceneView::GetLayout ( ) const

Returns the layout currently assigned to this view, or null if there is no layout.

CYILayout* CYISceneView::GetLayout ( )

Returns the layout currently assigned to this view, or null if there is no layout.

CYISceneView* CYISceneView::GetNextFocus ( CYIFocus::FOCUS_DIRECTION eDirection ) const

Returns the next view in the specified direction if it has been set by SetNextFocus. Otherwise, null is returned.

If the view is not a focus candidate returns null.

See also: SetNextFocus; SetFocusable

CYIAbstractTimeline* CYISceneView::GetOutTimeline ( ) const

Returns the 'Out' CYIAbstractTimeline, or null if the view does not supply one. The view's 'Out' CYIAbstractTimeline is set in Init(). Subclasses can overwrite this timeline using SetOutTimeline().

virtual bool CYISceneView::GetProperty	(	const CYIString &	propertyName,
		CYIString *	pValue
	)		const

overridevirtual

Returns pValue of a property given propertyName. If no such property exists, the property is fetched from the view's view template instead. Returns false if the property cannot be found in either of the two locations.

See also: IYIPropertiesSource::GetProperty

Reimplemented from CYISceneNode.

virtual CYIAbstractTimeline* CYISceneView::GetTimeline	(	const CYIString &	rMarkerName,
		TIMELINE_GET_MODE	eMode = `GET_DEFAULT`
	)

virtual

Returns the timeline with rMarkerName. If no such timeline exists, null is returned. The view will retain ownership of the returned timeline, it must not be deleted or cached by the user.

The eMode parameter can be used to control the type of timeline being returned. If set to GET_TIMELINE_GROUP, a CYIParallelTimelineGroup is returned (built recursively throughout the children of this view). If set to GET_TIMELINE, a CYITimeline is returned. If set to GET_DEFAULT, the type of timeline returned depends on the configuration of the marker from which the timeline is being created.

CYIAbstractTimeline* CYISceneView::GetTimeline	(	CYIMarkerData::MARKER_ID	eID,
		TIMELINE_GET_MODE	eMode = `GET_DEFAULT`
	)

Returns the timeline defined by eID. If no such timeline exists, null is returned. The view will retain ownership of the returned timeline, it must not be deleted or cached by the user.

The eMode parameter can be used to control the type of timeline being returned. If set to GET_TIMELINE_GROUP, a CYIParallelTimelineGroup is returned (built recursively throughout the children of this view). If set to GET_TIMELINE, a CYITimeline is returned. If set to GET_DEFAULT, the type of timeline returned depends on the configuration of the marker from which the timeline is being created.

CYITimelineGroup* CYISceneView::GetTimelineGroup ( const CYIString & markerName )

Returns a timeline group constructed from this view and all descendant views which contain a timeline called markerName.

Note: This function never returns null. If this scene view doesn't contain a marker matching markerName, the returned group may be empty or may contain timelines from descendant views.; If a descendant view's markerName marker is configured as 'stop recursion', its timelines will not be included in the returned timeline group.; The returned group is updated automatically if descendant views are added or removed.; This view retains ownership of the returned timeline group.

See also: GetTimeline

std::map<CYIString, CYITimeline *> CYISceneView::GetTimelines ( ) const

Returns a map of all currently-instantiated non-group timelines held by this scene view. The key of the map is the timeline's marker name, and the value is the timeline itself.

Note: A timeline for a given marker name is added to the returned map only when GetTimeline() is called for that particular marker name.; The returned map does not contain timeline groups managed by this CYISceneView.

const std::shared_ptr<CYIAssetViewTemplate>& CYISceneView::GetViewTemplate ( ) const

Returns the view template asset for this view.

See also: BuildFromTemplate; GetTimeline; GetTimelineGroup

virtual bool CYISceneView::HandleEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overrideprotectedvirtual

Pure virtual for the child to implement according to how they wish the events to be handled.

The method is to return true if the event was processed and false otherwise.

Implements CYIEventHandler.

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYITextEditView, CYIToggleButtonView, CYIAbstractButtonView, CYIScrollBarView, CYIPasswordTextEditView, CYIDrawerView, and CYIScrollingTextView.

virtual bool CYISceneView::HandlesFocusInDescendants ( ) const

virtual

By default a CYISceneView is not a focus handler, but they can become one if an initial focus view is set. Override this to return true if this view handles focus in its descendants, meaning it will receive focus requests instead of its contents and must choose which view will receive focus in response to RequestFocus().

If this is overridden to return true, RequestFocus() and FindNextFocusInDescendants() must also be overridden. Overriding views may also want to override CYISceneNode::ContainsFocusableDescendant(const CYIFocusSearchOptions&).

See also: RequestFocus; FindNextFocusInDescendants; CYISceneNode::ContainsFocusableDescendant(const CYIFocusSearchOptions&); SetInitiallyFocusedView

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYIScrollingTextView, and CYIFocusZoneView.

bool CYISceneView::HasFocus ( ) const

Returns true if this view currently has focus.

virtual bool CYISceneView::Init ( )

overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note: This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYIImageView, CYIDrawerView, CYIPasswordTextEditView, CYIScrollBarView, CYIAbstractButtonView, CYIToggleButtonView, CYITextEditView, yi::deprecated::CYIGridLayoutView, yi::deprecated::CYIPopupView, CYIDecoratedView, CYIScrollingTextView, CYIVideoSurfaceView, CYIWebView, CYIPushButtonView, CYIPlayerPreviewThumbnailView, CYIActivityIndicatorView, CYIPlatformView, CYIListView, CYIPageIndicatorView, CYIPlayerTimePopupView, CYIProgressBarView, CYIStackView, and CYIRadioGroupView.

bool CYISceneView::IsFocusable ( ) const

Returns true if this view can receive focus.

See also: SetFocusable

bool CYISceneView::IsInitialized ( ) const

Returns true if BuildFromTemplate() has been called.

bool CYISceneView::IsResponsiveLayoutEnabled ( ) const

Returns true if responsive layout is enabled on the view. CYISceneView has responsive layout enabled by default, but responsive layout does not take effect unless the view also has anchors.

See also: CYISceneManager::LoadScene; AddAnchor

Note: Unless explicitly disabled by DisableResponsiveLayout(), responsive layout is enabled, even if passing scaling rules other than CYISceneManager::SCALE_RESPONSIVE_LAYOUT to CYISceneManager::LoadScene

virtual void CYISceneView::LayoutDirtied ( )

overrideprotectedvirtual

Called when the layout dirty flag of this scene node has been set to LayoutDirty.

Warning: Overrides must call the base class implementation.

Reimplemented from CYISceneNode.

virtual void CYISceneView::Measure	(	const MeasureSpec &	widthSpec,
		const MeasureSpec &	heightSpec,
		const MeasureSpec &	depthSpec
	)

overridevirtual

Measures this scene node, considering the layout configuration constraints (if available) and the provided measure specifications. The Measure function is used by the layout system to determine the 'desired' size of elements in a container. The result of calls to this function can be accessed through the GetMeasuredSize() function.

Note: The Measure function may be called multiple times on a single scene node during a layout pass.; The measure specs passed in must take in consideration the node's scale. For example, if a node is calling the Measure function on one of its children and that child has a scale of glm::vec3(1, 3, 1), then the fSize of heightSpec must be divided by 3.; The measured values may exceed the provided measure specifications if the specifications cannot be met given the constraints placed on this scene node. In other words, the constraints placed on this node have a higher priority than the provided measure specifications.

Warning: Subclasses that override this function must ensure that the Measure function of ALL children of this scene node is called at least once, even if those children are hidden.

Note: Typically, if Measure is overridden then ApplyMeasurements must also be overridden.; Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView, and CYIImageView.

virtual void CYISceneView::OnFocusGained ( )

virtual

Called when focus has entered this view.

See also: GainedFocus

virtual void CYISceneView::OnFocusLost ( )

virtual

Called when focus has left this view.

See also: LostFocus

virtual void CYISceneView::OnInit ( )

protectedvirtual

This function is deprecated and no longer called. Override Init() to achieve the same functionality.

void CYISceneView::OnViewIsGoingOutOfAnimatedPosition ( )

protected

void CYISceneView::OnViewIsInAnimatedPosition ( )

protected

Called when a view is in its animated position. Used with CYIAnimatingLayout when animating views that are in layouts. When a view is in its animated position its position may be modified directly. When it is animating to its animated position, its destination must be modified instead.

virtual void CYISceneView::OnViewReflowed ( const glm::vec3 & worldScale )

protectedvirtual

Called when the view has been reflowed by responsive layout.

virtual bool CYISceneView::ProcessEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overrideprotectedvirtual

Notifies this event target of an incoming event. Calls all the relevant listeners based on event type and phase. Returns true if any of the listeners' handleEvent() function returned true.

Reimplemented from CYISceneNode.

static void CYISceneView::RegisterAllViews ( )

static

Registers the You.i Engine views with the linker to prevent symbols for views which are used in the You.i Engine After Effects Plug-in, but might not be referenced explicitly in code, from being removed during linking.

virtual bool CYISceneView::RequestFocus	(	CYIFocus::FOCUS_DIRECTION	eDirection = `CYIFocus::FOCUS_FORWARD`,
		CYIFocus::FOCUS_ROOT_RULE	eFocusRootRule = `CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT`,
		const CYIAABB &	previousFocusRect = `CYIAABB()`,
		const CYIFocusSearchOptions &	options = `CYIFocusSearchOptions()`
	)

virtual

By default, assigns focus to this view if it is focusable. If it is not focusable, performs a focus search within this view.

eFocusRootRule dictates whether the focus system will allow the focus request to a view outside of the current focus root.

This function can be overridden to change focus traversal. A custom search may be performed as long as the function returns true if a view has been found, and RequestFocus() has been called on the found view. options can be used to further restrict the set of valid focus candidates. When overriding this function make sure to call TryRequestFocusOnInitiallyFocusedView() to preserve the SetInitiallyFocusedView() functionality.

See also: CYISceneManager::StageScene; HandlesFocusInDescendants; TryRequestFocusOnInitiallyFocusedView; SetFocusable()

Reimplemented in CYIScrollingView, yi::deprecated::CYIListView, CYIScrollingTextView, and CYIFocusZoneView.

virtual void CYISceneView::Reset ( )

inlinevirtual

Called from CYIViewPool::ReleaseView to reset the view to an initial state. Default implementation does nothing. Subclasses must implement this function if used in conjunction with CYIViewPool to restore their views to the initial state defined by the template.

See also: CYIViewPool

Reimplemented in CYIImageView.

void CYISceneView::SetClippingAreaNode ( CYISceneNode * pClippingNode )

Defines the clipping area of this view using pClippingNode. Any contents of this view which fall outside of the clipping area will not be visible. The clipping area is based on the mesh of pClippingNode.

void CYISceneView::SetFocusable ( bool bFocusable )

Sets whether this view can receive focus.

Note: For a view to be a focus candidate it must meet the following requirements: it is visible, is part of a staged scene, is focusable, and does not already have focus.

void CYISceneView::SetInitiallyFocusedView ( CYISceneView * pView )

Sets view that will receive initial focus when focus enters this containing view. Setting an initial focus view causes this view to become a focus handler.

See also: GetInitiallyFocusedView

void CYISceneView::SetInTimeline ( CYIAbstractTimeline * pTimeline )

protected

Sets the In timeline for this view to pTimeline. This view will not take ownership of pTimeline – the user is responsible for deleting pTimeline when the view is deleted.

See also: GetInTimeline

void CYISceneView::SetLayout ( std::unique_ptr< CYILayout > pLayout )

Assigns layout pLayout to this view. If a layout already existed for this view, it will be deleted. This view will take ownership of pLayout. Call with null to remove the currently assigned layout without assigning a new one.

If assigning a non-null layout, the layout will be configured with this view. This involves extracting configuration parameters from this view's properties, and creating layout config and layout state objects as needed in this view's children.

void CYISceneView::SetNextFocus	(	CYISceneView *	pView,
		CYIFocus::FOCUS_DIRECTION	eDirection
	)

Sets the next focus in eDirection to be pView, overriding the default focus search algorithm.

A value of null indicates that focus changes in eDirection should use the default search algorithm.

Setting pView to be this view prevents focus changes in eDirection.

If set on a focus handler, this override will be used when focus should leave the handler, with the same rules as above.

If eDirection is one of the relative focus directions: CYISceneView::FOCUS_FORWARD and CYISceneView::FOCUS_REVERSE, the reverse focus link will also be set up, as long as pView does not point to this view.

Warning: Preventing focus changes in a relative direction breaks the tab-order focus ring and is not recommended.

void CYISceneView::SetOutTimeline ( CYIAbstractTimeline * pTimeline )

protected

Sets the Out timeline for this view to pTimeline. This view will not take ownership of pTimeline – the user is responsible for deleting pTimeline when the view is deleted.

See also: GetOutTimeline

virtual void CYISceneView::SizeChanged ( )

overrideprotectedvirtual

Called when the size of this scene node has been changed.

Warning: Overrides must call the base class implementation.

See also: OnSizeChanged()

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView.

bool CYISceneView::TryRequestFocusOnInitiallyFocusedView ( )

protected

Attempts to focus the initial focus view. Returns true if the initial focus view is successfully focused.

If RequestFocus() is overridden, this function should be called in order to respect the initially focused view setting.

See also: RequestFocus; SetInitiallyFocusedView

void CYISceneView::UpdateClipping ( )

protected

Updates the clipping box which is computed form this view's clipping node, or if it has none, the view's mesh.

void CYISceneView::UpdateResponsiveLayoutAnchors ( )

protected

Updates the position of the responsive layout anchors of this view. This will be called when the size of the view has changed.

See also: SizeChanged

virtual void CYISceneView::ViewReflowed ( const glm::vec3 & worldScale )

protectedvirtual

Called when the view has been reflowed by responsive layout.

Warning: Overrides must call the base class implementation.

Reimplemented in yi::deprecated::CYIListView.

virtual void CYISceneView::WorldBoundingBoxUpdated ( )

overrideprotectedvirtual

Called by Update() when the world bounding box update process is complete. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnWorldBoundingBoxUpdated()

Reimplemented from CYISceneNode.

Reimplemented in CYIScrollingView, and CYIListView.

virtual void CYISceneView::WorldScaleUpdated ( )

overrideprotectedvirtual

Called by Update() when the transform update process is complete and only when the world scale has changed. Subclasses may overload this function to do post-processing.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().

See also: GetWorldScale

Warning: Overrides must call the base class implementation.

See also: Update(); OnWorldScaleUpdated()

Reimplemented from CYISceneNode.

Friends And Related Function Documentation

friend class CYISceneViewPriv

friend

Member Data Documentation

CYISignal<CYISceneView *> CYISceneView::GainedFocus

Emitted when focus has entered this view.

See also: CYISceneNode::DescendantGainedFocus

CYISignal<CYISceneView *> CYISceneView::LostFocus

Emitted when focus has left this view.

See also: CYISceneNode::DescendantLostFocus

std::multimap<YI_ANCHOR_TYPE, YI_ANCHOR_DATA> CYISceneView::m_anchors

protected

bool CYISceneView::m_bInAnimatedPosition

protected

bool CYISceneView::m_bResponsiveLayoutEnabled

protected

bool CYISceneView::m_bSceneTreeBuilt

protected

bool CYISceneView::m_bStopEventPropagation

protected

std::shared_ptr<CYIAssetViewTemplate> CYISceneView::m_pAssetViewTemplate

protected

CYISceneNode* CYISceneView::m_pClippingNode

protected

CYIAbstractTimeline* CYISceneView::m_pFocusInTimeline

protected

CYIAbstractTimeline* CYISceneView::m_pFocusOutTimeline

protected

std::shared_ptr<CYISceneNodeProxy> CYISceneView::m_pInitiallyFocusedView

protected

std::unique_ptr<CYILayout> CYISceneView::m_pLayout

protected

std::map<CYIString, std::unique_ptr<CYIParallelTimelineGroup> > CYISceneView::m_timelineGroups

protected

std::map<CYIString, std::unique_ptr<CYITimeline> > CYISceneView::m_timelines

protected

The documentation for this class was generated from the following file:

view/YiSceneView.h

Detailed Description

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
