Detailed Description

Displays text to the user and allows them to edit it.

This view will display editable text as well as a blinking caret. The caret is a vertical line which indicates the current editing position.

A CYITextEditView can receive focus but must be activated in order to receive inputs. The CYITextEditView is activated by selecting it once it has focus. When CYITextEditView is clicked, it receives focus and is activated.

The clear button cannot be interacted with using focus navigation.

View Template Specification

Type	Labels	Property	Description
Marker	Blink	Optional	An optional timeline that will be looped while the text edit is active. If not provided, the caret will blink on and off using a timer. The visibility track must not be used to animate the blink, as the caret is shown and hidden in normal operation of the view.
Node	Text	Required	Layer name for the text field. It must be a text layer which uses point type and left justified.
Node	InputProperties	Required	Solid Color to mark the end of the text edit field, and also to set the color of the text that will be typed by the user. Please note that the InputProperties's parent field needs to be set to the Text layer in After Effects.
Node	Caret	Optional	Layer name for the caret. If no 'Caret' layer exists, a default black and rectangular caret will be created. Change the color of the caret using the caret-color comment or the SetCaretColor function. The caret's anchor point will be positioned at the baseline of the text. Note that this layer must not be layer-parented to another layer.
Node	Clear	Optional	Layer name for the button that clears the text field. Layer must be a CYIPushButtonView. This button will be made non-focusable at initialization time, even if it contains focus timelines.
Comment	default-text	Optional	Corresponds to: SetDefaultText. Contains a quoted string.
Comment	input-type	Optional	Corresponds to: GetInputType. Default: text, Possible Values: text, phone, number, email, uri, password. Can be set on the composition & the layer.
Comment	caret-color	Optional	Corresponds to: SetCaretColor. Colors the caret with a provided string in hexadecimal #RRGGBB or #RRGGBBAA format.

Notes:

"Text" must be point type and left justified
"InputProperties" must be parented under "Text".
Comment properties may be set at the composition level or the layer level.

#include <view/YiTextEditView.h>

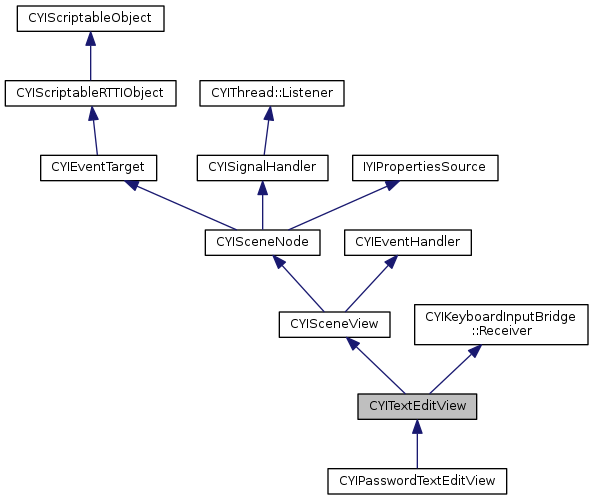

Inheritance diagram for CYITextEditView:

[legend]

Public Member Functions
	CYITextEditView ()

virtual	~CYITextEditView ()

virtual bool	Init () override

virtual void	Clear ()

virtual void	SetValue (CYIString text)

virtual CYIString	GetValue () const

void	SetDefaultText (const CYIString &defaultText)

const CYIString &	GetDefaultText () const

void	SetDefaultTextColor (const CYIColor &defaultTextColor)

const CYIColor &	GetDefaultTextColor () const

void	SetTextColor (const CYIColor &textColor)

const CYIColor &	GetTextColor () const

void	SetCaretColor (const CYIColor &clrCaret)

const CYIColor &	GetCaretColor () const

void	DeactivateCaret ()

void	ActivateCaret ()

void	SetMaximumCharacterCount (uint32_t uMaximumCharacterCount)

void	Activate ()

void	Deactivate ()

bool	IsActivated () const

uint32_t	GetMaximumCharacterCount () const

bool	SetTextEntryBoxWidth (float fBoxWidth)

float	GetTextEntryBoxWidth () const

float	GetInitialTextEntryBoxWidth () const

virtual bool	OnTextEntered (const CYIString &pText, int32_t nCaret) override

virtual bool	OnTextDeleted (int32_t nBeforeCaret, int32_t nAfterCaret) override

virtual void	OnTextReplaced (const CYIString &text, int32_t nCursor) override

virtual void	OnCursorPositionChanged (int32_t nCursor) override

virtual bool	OnKeyboardHidden () override

virtual void	OnSynchronizeKeyboard (Receiver::Description &receiverDescription) override

virtual void	SetInputType (CYIKeyboardInputBridge::INPUT_TYPE eInputType)

virtual CYIKeyboardInputBridge::INPUT_TYPE	GetInputType () const override

virtual bool	OnSetComposingText (const CYIString &pText, int32_t nCaret) override

virtual bool	OnFinishComposingText () override

virtual bool	OnSetComposingRegion (int32_t nStart, int32_t nEnd) override

virtual bool	OnTextPasted (const CYIString &pText) override

virtual const CYISceneView::AssetRequirement *	GetAssetRequirements (uint32_t *pRequirementCount) override

virtual bool	HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

Public Member Functions inherited from CYISceneView
	CYISceneView ()

virtual	~CYISceneView ()

bool	BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

bool	IsInitialized () const

void	SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool	GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void	EnableDefaultHitZone ()

bool	IsResponsiveLayoutEnabled () const

void	EnableResponsiveLayout ()

void	DisableResponsiveLayout ()

void	AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA	GetAnchor (YI_ANCHOR_TYPE anchorType) const

CYIAbstractTimeline *	GetInTimeline () const

CYIAbstractTimeline *	GetOutTimeline () const

CYIAbstractTimeline *	GetFocusInTimeline () const

CYIAbstractTimeline *	GetFocusOutTimeline () const

virtual bool	HandlesFocusInDescendants () const

virtual bool	RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions())

bool	HasFocus () const

void	SetFocusable (bool bFocusable)

bool	IsFocusable () const

bool	CanBeFocused () const

void	SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView *	GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void	SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView *	GetInitiallyFocusedView () const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

virtual CYISceneView *	FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode *	GetFocusRoot () const

CYISceneView *	GetFocusHandler () const

virtual void	OnFocusGained ()

virtual void	FocusGained ()

virtual void	OnFocusLost ()

virtual void	FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > &	GetViewTemplate () const

const std::vector< CYIString > &	GetChildTemplateNames ()

virtual CYIAbstractTimeline *	GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline *	GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * >	GetTimelines () const

bool	FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup *	GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup >	BuildTimelineGroup (const CYIString &markerName)

void	BuildAnchorList ()

virtual void	Reset ()

void	SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout *	GetLayout () const

CYILayout *	GetLayout ()

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void	ApplyMeasurements () override

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Public Member Functions inherited from CYIEventHandler
	CYIEventHandler ()

	CYIEventHandler (const CYIEventHandler &)

virtual	~CYIEventHandler ()

CYIEventHandler &	operator= (const CYIEventHandler &)

bool	RegisterEventFilter (CYIEventFilter *pFilter)

bool	UnregisterEventFilter (CYIEventFilter *pFilter)

bool	PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	AreEventsEnabled () const

void	EnableEvents (bool bEnable)

Public Member Functions inherited from CYIKeyboardInputBridge::Receiver
virtual	~Receiver ()

virtual void	OnSynchronizeKeyboard (Description &receiverKeyboardInfo)

RETURN_KEY_TYPE	GetReturnKeyType () const

void	SetReturnKeyType (RETURN_KEY_TYPE eKeyType)

Public Attributes
CYISignal< const CYIString &, const CYIString & >	TextChanged

CYISignal< CYITextEditView * >	Activated

CYISignal< CYITextEditView * >	Deactivated

Public Attributes inherited from CYISceneView
CYISignal< CYISceneView * >	GainedFocus
	Emitted when focus has entered this view. More...

CYISignal< CYISceneView * >	LostFocus
	Emitted when focus has left this view. More...

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Public Attributes inherited from CYIKeyboardInputBridge::Receiver
CYISignal< CYIKeyboardInputBridge::Receiver * >	ReturnKeyPressed

Protected Member Functions
virtual void	UpdateTextView ()

void	UpdateTextView (const CYIString &currentText)

bool	OnKeyDownWhenActive (CYIKeyEvent *pEvent)

bool	OnKeyInputWhenActive (CYIKeyEvent *pEvent)

virtual bool	OnCharWhenActive (CYIKeyEvent *pEvent)

void	OnCaretBlink ()

void	OnActivated ()

void	OnDeactivated ()

void	ShowKeyboard ()

void	OnTextChanged (bool bNotifyKeyboard)

void	UpdateCaretNodePositionAndTextOffset ()

void	ResetCaretBlinkTimer ()

void	SetCaretPositionInString (float fLocalSpaceX, float fLocalSpaceY, int8_t nCaretOffset=0)

void	RemoveComposingText (bool bEmitChangedSignal=true)

bool	HasComposingText ()

void	OnClearButtonClicked ()

void	UpdateClearButton ()

bool	InitInputType ()

bool	InitDefaultTextFromProperty ()

float	GetTextWidth (uint32_t nPosition)

void	OnScrollTimerEvent ()

void	StartScrolling ()

void	StopScrolling ()

void	DoScrollingForTimerEvent ()

void	DoScrollingForMouseEvent ()

virtual void	WorldSurfaceScaleUpdated () override

virtual void	UpdateEnd () override

Protected Member Functions inherited from CYISceneView
void	UpdateClipping ()

virtual void	WorldScaleUpdated () override

virtual void	WorldBoundingBoxUpdated () override

virtual void	OnViewReflowed (const glm::vec3 &worldScale)

virtual void	ViewReflowed (const glm::vec3 &worldScale)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void	UpdateResponsiveLayoutAnchors ()

virtual void	SizeChanged () override

virtual void	ChildNeedsLayout () override

virtual void	LayoutDirtied () override

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	OnViewIsInAnimatedPosition ()

void	OnViewIsGoingOutOfAnimatedPosition ()

void	SetInTimeline (CYIAbstractTimeline *pTimeline)

void	SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void	OnInit ()

bool	TryRequestFocusOnInitiallyFocusedView ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Member Functions inherited from CYIKeyboardInputBridge::Receiver
	Receiver ()

Protected Attributes
CYITimer	m_CaretTimer

CYITimelineLoop *	m_pCaretBlinkTimelineLoop

CYISceneNode *	m_pCaretNode

CYITextSceneNode *	m_pTextNode

CYIPushButtonView *	m_pClearBtn

CYITimer *	m_pScrollTimer

CYIString	m_CurrentText

CYIString	m_PreviousText

CYIString	m_DefaultText

CYIColor	m_DefaultTextColor

CYIColor	m_TextColor

CYIColor	m_CaretColor

bool	m_bUpdateText

bool	m_bActivated

bool	m_bCaretActive

bool	m_bPlaceholderTextMode

int32_t	m_nLengthOfValueString

int32_t	m_nPosInString

uint32_t	m_uMaximumCharacterCount

int32_t	m_nComposingStartPos

int32_t	m_nComposingEndPos

CYIKeyboardInputBridge::INPUT_TYPE	m_eInputType

glm::vec2	m_vScrollMouseLocationDown

glm::vec3	m_vScrollMouseLocalSpaceLocation

float	m_fCaretMaxX

float	m_fInitialCaretMaxX

std::shared_ptr< CYIAssetTexture >	m_DefaultCaretTexture

Protected Attributes inherited from CYISceneView
bool	m_bStopEventPropagation

bool	m_bResponsiveLayoutEnabled

bool	m_bSceneTreeBuilt

bool	m_bInAnimatedPosition

CYISceneNode *	m_pClippingNode

CYIAbstractTimeline *	m_pFocusInTimeline

CYIAbstractTimeline *	m_pFocusOutTimeline

std::unique_ptr< CYILayout >	m_pLayout

std::shared_ptr< CYIAssetViewTemplate >	m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy >	m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA >	m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > >	m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > >	m_timelineGroups

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Protected Attributes inherited from CYIEventHandler
bool	m_bEnableEvents

Protected Attributes inherited from CYIKeyboardInputBridge::Receiver
RETURN_KEY_TYPE	m_keyType

Additional Inherited Members
Public Types inherited from CYISceneView
enum	ASSET_REQUIREMENT_TYPE { REQUIRES_NODE, REQUIRES_TIMELINE }

enum	TIMELINE_GET_MODE { GET_DEFAULT, GET_TIMELINE, GET_TIMELINE_GROUP, GET_COMPONENT_OF_TIMELINE_GROUP }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Static Public Member Functions inherited from CYISceneView
static void	RegisterAllViews ()

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Constructor & Destructor Documentation

CYITextEditView::CYITextEditView ( )

virtual CYITextEditView::~CYITextEditView ( )

virtual

Member Function Documentation

void CYITextEditView::Activate ( )

Focuses and activates the text view. This will show the virtual keyboard if applicable.

See also: Deactivate; IsActivated; Activated

void CYITextEditView::ActivateCaret ( )

Turns on displaying of the caret. It is on by default.

virtual void CYITextEditView::Clear ( )

virtual

Clears the text and hides any keyboard selection menus such as copy and paste dialogs.

void CYITextEditView::Deactivate ( )

Deactivates the text view. Focus is retained on the text view after deactivation. This will hide any selection menus from virtual keyboards.

See also: Activate; IsActivated; Deactivated

void CYITextEditView::DeactivateCaret ( )

Turns off displaying of the caret.

void CYITextEditView::DoScrollingForMouseEvent ( )

protected

Handles scrolling when triggered by mouse movement within the view.

void CYITextEditView::DoScrollingForTimerEvent ( )

protected

Handles scrolling when triggered by m_pScrollTimer.

virtual const CYISceneView::AssetRequirement* CYITextEditView::GetAssetRequirements ( uint32_t * pRequirementCount )

overridevirtual

Returns the asset requirements for the view; implemented in each subclass to return the nodes and timelines which must be present in the view. Used internally by the You.i Engine After Effects Plug-in.

Reimplemented from CYISceneView.

const CYIColor& CYITextEditView::GetCaretColor ( ) const

Returns the color of the caret.

See also: SetCaretColor

const CYIString& CYITextEditView::GetDefaultText ( ) const

Returns the current default text.

See also: SetDefaultText

const CYIColor& CYITextEditView::GetDefaultTextColor ( ) const

Returns the color of the default text.

See also: SetDefaultTextColor

float CYITextEditView::GetInitialTextEntryBoxWidth ( ) const

Returns the maximum width of the text entry's display area as set by the position of the input properties specified in the view template.

virtual CYIKeyboardInputBridge::INPUT_TYPE CYITextEditView::GetInputType ( ) const

overridevirtual

Returns CYIKeyboardInputBridge::INPUT_TEXT by default.

See also: INPUT_TYPE

Reimplemented from CYIKeyboardInputBridge::Receiver.

uint32_t CYITextEditView::GetMaximumCharacterCount ( ) const

See also: SetMaximumCharacterCount

const CYIColor& CYITextEditView::GetTextColor ( ) const

Returns the color of the text node.

See also: SetTextColor

float CYITextEditView::GetTextEntryBoxWidth ( ) const

Returns the maximum width of the text entry's display area.

By default this value is based on the position of the input properties specified in the view template.

float CYITextEditView::GetTextWidth ( uint32_t nPosition )

protected

Returns the width of the text entered up to and including character at position 'n'.

virtual CYIString CYITextEditView::GetValue ( ) const

virtual

See also: SetValue

virtual bool CYITextEditView::HandleEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overridevirtual

This function intercepts key input to add characters to the text. It also handles various other events for interacting with the caret.

Reimplemented from CYISceneView.

Reimplemented in CYIPasswordTextEditView.

bool CYITextEditView::HasComposingText ( )

protected

Returns true if there is any composing text.

virtual bool CYITextEditView::Init ( )

overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note: This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from CYISceneView.

Reimplemented in CYIPasswordTextEditView.

bool CYITextEditView::InitDefaultTextFromProperty ( )

protected

Initializes the default text based on the 'default-text' property specified in AE.

See also: SetDefaultText

bool CYITextEditView::InitInputType ( )

protected

Initialises the input type from the 'input-type' property specified in AE.

See also: SetInputType

bool CYITextEditView::IsActivated ( ) const

Returns true if this view is currently activated.

See also: Activate; Deactivate

void CYITextEditView::OnActivated ( )

protected

Called when the view is focused. This will activate the caret.

Note: This will only activate the caret, to bring up the keyboard ShowKeyboard() must be called.

void CYITextEditView::OnCaretBlink ( )

protected

Connected to m_pCaretTimer.TimedOut. This handles showing and hiding the caret at a timed interval.

virtual bool CYITextEditView::OnCharWhenActive ( CYIKeyEvent * pEvent )

protectedvirtual

Handles character input from OnKeyInputWhenActive().

void CYITextEditView::OnClearButtonClicked ( )

protected

Called when the optional clear button is clicked. This will clear the text and reset the virtual keyboard.

virtual void CYITextEditView::OnCursorPositionChanged ( int32_t nCursor )

overridevirtual

Called by the keyboard when the cursor position has changed. nCursor indicates the new cursor position in the existing text.

Implements CYIKeyboardInputBridge::Receiver.

Reimplemented in CYIPasswordTextEditView.

void CYITextEditView::OnDeactivated ( )

protected

Called when the view loses focus. This will hide any selection menus from virtual keyboards.

virtual bool CYITextEditView::OnFinishComposingText ( )

overridevirtual

Called by the keyboard when text is finished composing. Any composing text will be removed.

Implements CYIKeyboardInputBridge::Receiver.

virtual bool CYITextEditView::OnKeyboardHidden ( )

overridevirtual

Clears focus when the OS keyboard is hidden.

Implements CYIKeyboardInputBridge::Receiver.

bool CYITextEditView::OnKeyDownWhenActive ( CYIKeyEvent * pEvent )

protected

Handles YI_KEY_DOWN events from HandleEventWhenActive().

bool CYITextEditView::OnKeyInputWhenActive ( CYIKeyEvent * pEvent )

protected

Handles YI_KEY_INPUT events from HandleEventWhenActive().

void CYITextEditView::OnScrollTimerEvent ( )

protected

Connected to m_pScrollTimer.TimedOut. This handles scrolling when dragging the mouse outside the range of the view.

virtual bool CYITextEditView::OnSetComposingRegion	(	int32_t	nStart,
		int32_t	nEnd
	)

overridevirtual

Called by the keyboard to mark a certain region of text as the composing text.

Implements CYIKeyboardInputBridge::Receiver.

virtual bool CYITextEditView::OnSetComposingText	(	const CYIString &	text,
		int32_t	nCursor
	)

overridevirtual

Called by the keyboard when text is being composed. text contains the new composing text which replaces any previous composition text. nCursor is the new position of the cursor around the text. A value of 1 advances the cursor to the position after the new text. If >0 it is relative to the end of the text-1, if <= 0 it is relative to the start of the text.

Implements CYIKeyboardInputBridge::Receiver.

virtual void CYITextEditView::OnSynchronizeKeyboard ( Receiver::Description & receiverDescription )

overridevirtual

Synchronizes the state of our view with the state of the OS keyboard.

void CYITextEditView::OnTextChanged ( bool bNotifyKeyboard )

protected

Called when text is changed in the view. The TextChanged signal is emitted here.

The value of bNotifyKeyboard indicates if CYIKeyboardInputMethod::OnTextChanged should be called or not. This should be true if the text is changing as a result of being set or cleared, and not as a result of user input.

virtual bool CYITextEditView::OnTextDeleted	(	int32_t	nBeforeCursor,
		int32_t	nAfterCursor
	)

overridevirtual

Called by the keyboard when text is deleted. The parameters indicate the number of characters before and after the current cursor position were deleted.

Implements CYIKeyboardInputBridge::Receiver.

Reimplemented in CYIPasswordTextEditView.

virtual bool CYITextEditView::OnTextEntered	(	const CYIString &	text,
		int32_t	nCursor
	)

overridevirtual

Called by the keyboard when text is entered. text contains the new text, and nCursor is the new position of the cursor around the text. A value of 1 advances the cursor to the position after the new text. If >0 it is relative to the end of the text-1, if <= 0 it is relative to the start of the text.

Implements CYIKeyboardInputBridge::Receiver.

virtual bool CYITextEditView::OnTextPasted ( const CYIString & text )

overridevirtual

Called by the keyboard when text is pasted. text contains the new text which should be inserted where the cursor is, and the cursor should be moved to the end of the pasted text.

Implements CYIKeyboardInputBridge::Receiver.

Reimplemented in CYIPasswordTextEditView.

virtual void CYITextEditView::OnTextReplaced	(	const CYIString &	text,
		int32_t	nCursor
	)

overridevirtual

Called by the keyboard when the text is replaced. text contains the new text which replaces any existing text, and nCursor indicates the cursor position in the new text.

Implements CYIKeyboardInputBridge::Receiver.

Reimplemented in CYIPasswordTextEditView.

void CYITextEditView::RemoveComposingText ( bool bEmitChangedSignal = true )

protected

Remove composing text from the view. If the bEmitChangedSignal flag is set, then a signal will be emitted when the contents of the view are removed, otherwise a value of true will prevent the signal from firing.

void CYITextEditView::ResetCaretBlinkTimer ( )

protected

Resets the caret blink timer.

void CYITextEditView::SetCaretColor ( const CYIColor & clrCaret )

Sets color of the caret.

By default the caret color corresponds to the color of the caret node's material which is CYIColor::Named().Black if no 'Caret' node is specified in the view template.

See also: CYIMaterial::GetColor

void CYITextEditView::SetCaretPositionInString	(	float	fLocalSpaceX,
		float	fLocalSpaceY,
		int8_t	nCaretOffset = `0`
	)

protected

Sets the position of the caret using spatial coordinates fLocalSpaceX and fLocalSpaceY. nCarretOffset allows specifying an offset to position the caret relative to fLocalSpaceX and fLocalSpaceY.

void CYITextEditView::SetDefaultText ( const CYIString & defaultText )

Sets the text that will be displayed when no text has been input (or set using SetValue()). defaultText will be modified to max length and remove newlines.

void CYITextEditView::SetDefaultTextColor ( const CYIColor & defaultTextColor )

Sets color of the default text.

By default the color will be the font color of the text node created in AE.

virtual void CYITextEditView::SetInputType ( CYIKeyboardInputBridge::INPUT_TYPE eInputType )

virtual

Sets the input type. By default this is set to CYIKeyboardInputMethod::INPUT_TEXT. This can also be set by specifying the 'input-type' property on the view in AE.

void CYITextEditView::SetMaximumCharacterCount ( uint32_t uMaximumCharacterCount )

Set the maximum character count. This will apply to both text and default text. The default count is 200.

void CYITextEditView::SetTextColor ( const CYIColor & textColor )

Sets the color of the text node.

By default the color will be the color of the input properties specified in the view template.

bool CYITextEditView::SetTextEntryBoxWidth ( float fBoxWidth )

Sets the maximum width of the text entry's display area. Text whose width extends beyond fBoxWidth will be clipped.

See also: GetTextEntryBoxWidth

virtual void CYITextEditView::SetValue ( CYIString text )

virtual

Sets the current text held in the control to the provided value. If the length of the provided text is longer than the maximum character count (as returned by GetMaximumCharacterCount() ), the text will be cropped to the limit prior to setting.

Reimplemented in CYIPasswordTextEditView.

void CYITextEditView::ShowKeyboard ( )

protected

Request that the system software keyboard be displayed.

void CYITextEditView::StartScrolling ( )

protected

Starts m_pScrollTimer for handling scrolling with the mouse. This is called when the mouse moves outside the view with the mouse button held down.

void CYITextEditView::StopScrolling ( )

protected

Stops m_pScrollTimer. This is called when the mouse button is released or the view loses focus.

void CYITextEditView::UpdateCaretNodePositionAndTextOffset ( )

protected

Updates the position of the caret and the offset of the text.

void CYITextEditView::UpdateClearButton ( )

protected

Updates the visibility of the clear button based on whether the view contains any text. If there is no text, the clear button is hidden.

virtual void CYITextEditView::UpdateEnd ( )

overrideprotectedvirtual

This hook provides subclasses a means to do operations subsequent to update. This hook is called after all children of the current node have been updated.

Warning: The dirty flag will be cleared prior to calling this function to allow new dirty state to be recorded from this function. If querying information about the dirty state of the node, use GetPreviousDirtyFlag().; Overrides must call the base class implementation.

See also: Update(); OnUpdateEnd()

Reimplemented from CYISceneNode.

virtual void CYITextEditView::UpdateTextView ( )

protectedvirtual

Updates the state of all of the visual components of the CYITextEditView. Uses UpdateTextView(const CYIString &currentText) to update the view with the current text (CYITextEditView::m_text).

Reimplemented in CYIPasswordTextEditView.

void CYITextEditView::UpdateTextView ( const CYIString & currentText )

protected

Updates the state of all of the visual components of the CYITextEditView. The view will be updated with the text of currentText.

virtual void CYITextEditView::WorldSurfaceScaleUpdated ( )

overrideprotectedvirtual

This will update the visible area and caret position.

Reimplemented from CYISceneNode.

Member Data Documentation

CYISignal<CYITextEditView *> CYITextEditView::Activated

Emitted when the text view becomes activated.

CYISignal<CYITextEditView *> CYITextEditView::Deactivated

Emitted when the text view becomes deactivated;

bool CYITextEditView::m_bActivated

protected

bool CYITextEditView::m_bCaretActive

protected

bool CYITextEditView::m_bPlaceholderTextMode

protected

bool CYITextEditView::m_bUpdateText

protected

CYIColor CYITextEditView::m_CaretColor

protected

CYITimer CYITextEditView::m_CaretTimer

protected

CYIString CYITextEditView::m_CurrentText

protected

std::shared_ptr<CYIAssetTexture> CYITextEditView::m_DefaultCaretTexture

protected

CYIString CYITextEditView::m_DefaultText

protected

CYIColor CYITextEditView::m_DefaultTextColor

protected

CYIKeyboardInputBridge::INPUT_TYPE CYITextEditView::m_eInputType

protected

float CYITextEditView::m_fCaretMaxX

protected

float CYITextEditView::m_fInitialCaretMaxX

protected

int32_t CYITextEditView::m_nComposingEndPos

protected

int32_t CYITextEditView::m_nComposingStartPos

protected

int32_t CYITextEditView::m_nLengthOfValueString

protected

int32_t CYITextEditView::m_nPosInString

protected

CYITimelineLoop* CYITextEditView::m_pCaretBlinkTimelineLoop

protected

CYISceneNode* CYITextEditView::m_pCaretNode

protected

CYIPushButtonView* CYITextEditView::m_pClearBtn

protected

CYIString CYITextEditView::m_PreviousText

protected

CYITimer* CYITextEditView::m_pScrollTimer

protected

CYITextSceneNode* CYITextEditView::m_pTextNode

protected

CYIColor CYITextEditView::m_TextColor

protected

uint32_t CYITextEditView::m_uMaximumCharacterCount

protected

glm::vec3 CYITextEditView::m_vScrollMouseLocalSpaceLocation

protected

glm::vec2 CYITextEditView::m_vScrollMouseLocationDown

protected

CYISignal<const CYIString & , const CYIString & > CYITextEditView::TextChanged

Emitted when the text changes. The first signal parameter is the text currently in the text view. The second signal parameter is the text which was previously in the text view before the text changed.

The documentation for this class was generated from the following file:

view/YiTextEditView.h

Detailed Description

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
