Detailed Description

A texture asset representing an image which will be loaded into the GPU.

This texture asset contains a CYIBitmap image and is used by You.i Engine's asset management system when loading assets.

See also: CYIAssetManager

#include <asset/YiAssetTexture.h>

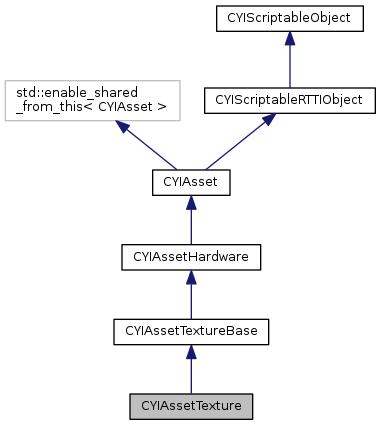

Inheritance diagram for CYIAssetTexture:

[legend]

Public Member Functions
	CYIAssetTexture (USAGE usage=USAGE_STATIC)

	CYIAssetTexture (const CYIString &path, PATH_TYPE ePathType=PATH_RELATIVE, USAGE usage=USAGE_STATIC)

virtual	~CYIAssetTexture ()

virtual int32_t	GetWidth () const override

virtual int32_t	GetHeight () const override

const std::shared_ptr< CYIBitmap > &	GetBitmap ()

void	SetBitmap (const std::shared_ptr< CYIBitmap > &pBitmap)

void	SetBitmap (std::unique_ptr< CYIBitmap > pBitmap)

virtual std::pair< uint32_t, uint32_t >	GetApproximateSize () const override

Public Member Functions inherited from CYIAssetTextureBase
	CYIAssetTextureBase (USAGE usage=USAGE_STATIC)

virtual	~CYIAssetTextureBase ()

void	AddDirtyRegion (const YI_RECT_REL &dirtyRectangle)

void	ClearDirtyRegions ()

const std::vector< YI_RECT_REL > &	GetDirtyRegions () const

const YI_TEXTURE_CONFIG &	GetConfiguration () const

IYIMaterialFactory::YI_COLORSPACE	GetColorSpace () const

void	SetConfiguration (const YI_TEXTURE_CONFIG &config)

void	SetMinificationFilter (YI_MIN_MAG_FILTER minFilter=YI_LINEAR, YI_MIN_MAG_FILTER magFilter=YI_LINEAR)

void	SetMipmappingEnabled (bool bEnable)

bool	IsMipmappingEnabled () const

void	SetTextureWrap (YI_TEXTURE_WRAP wrapS=YI_CLAMP_TO_EDGE, YI_TEXTURE_WRAP wrapT=YI_CLAMP_TO_EDGE)

virtual bool	HasExtendedDimensions () const

USAGE	GetUsage () const

Public Member Functions inherited from CYIAssetHardware
	CYIAssetHardware ()

virtual	~CYIAssetHardware ()

virtual bool	RequestHardwareLoad ()

virtual bool	RequestHardwareUnload ()

virtual bool	RequestInvalidate ()

virtual bool	RequestRestore ()

virtual bool	Prepare () override

std::shared_ptr< IYIGPUObject >	GetGPUObject () const

bool	IsLoadedOnGPU () const

RETENTION_POLICY	GetRetentionPolicy () const

void	SetRetentionPolicy (RETENTION_POLICY ePolicy)

Public Member Functions inherited from CYIAsset
virtual	~CYIAsset ()

const CYIString &	GetPath () const

CYIAssetLoadParams *	GetLoadParameters () const

bool	SetName (const CYIString &name)

const CYIString &	GetName () const

bool	Load ()

void	Unload ()

bool	IsLoaded () const

bool	Equals (const std::shared_ptr< CYIAsset > &pAsset)

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual std::shared_ptr< IYIGPUObject >	CreateGPUObject () const override

virtual void	OnUnload () override

Protected Member Functions inherited from CYIAssetTextureBase
virtual void	DirtyEntireTexture ()

void	SetWidth (int32_t nWidth)

void	SetHeight (int32_t nHeight)

void	SetColorSpace (IYIMaterialFactory::YI_COLORSPACE eColorSpace)

virtual void	ApplyRetainmentPolicy () override

Protected Member Functions inherited from CYIAssetHardware
virtual void	OnLoad () override

Protected Member Functions inherited from CYIAsset
	CYIAsset ()

ssize_t	GetID () const

void	SetPath (const CYIString &path, PATH_TYPE ePathType)

void	SetApproximateSize (uint32_t nSize)

void	SetLoaded (bool bAssetLoaded)

void	SetLoadParameters (std::unique_ptr< CYIAssetLoadParams > pParams)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYIAssetTextureBase
enum	YI_MIN_MAG_FILTER { YI_LINEAR, YI_NEAREST }

enum	YI_TEXTURE_WRAP { YI_CLAMP_TO_EDGE, YI_MIRROR, YI_REPEAT }

enum	USAGE { USAGE_STATIC, USAGE_DYNAMIC, USAGE_RENDER_TARGET }

Public Types inherited from CYIAssetHardware
enum	RETENTION_POLICY { RETAIN = 0, UNLOAD }
	The YI_HW_ASSET_RETENTION_POLICY enum specifies the retention policy of static hardware assets from the CPU memory once they are loaded onto the GPU. It is globally configurable, where new CYIAssetHardware will be making use of it and the can also change directly per assets. Be aware that on some platform, it is best to leave the assets retained on the CPU side when the platform lifecycle has the ability to destroy the graphic context while the app still runs, giving You.i Engine the ability to re-load every assets back onto GPU memory really fast. A good example of such platform would be Android. More...

Public Types inherited from CYIAsset
enum	PATH_TYPE { PATH_ABSOLUTE = 0, PATH_RELATIVE }

Protected Attributes inherited from CYIAssetHardware
bool	m_bHardwareLoadRequested

std::shared_ptr< IYIGPUObject >	m_pGPUObject

RETENTION_POLICY	m_eRetentionPolicy

Static Protected Attributes inherited from CYIAsset
static ssize_t	INVALID_ID

Constructor & Destructor Documentation

CYIAssetTexture::CYIAssetTexture ( USAGE usage = USAGE_STATIC )

CYIAssetTexture::CYIAssetTexture	(	const CYIString &	path,
		PATH_TYPE	ePathType = `PATH_RELATIVE`,
		USAGE	usage = `USAGE_STATIC`
	)

virtual CYIAssetTexture::~CYIAssetTexture ( )

virtual

Member Function Documentation

virtual std::shared_ptr<IYIGPUObject> CYIAssetTexture::CreateGPUObject ( ) const

overrideprotectedvirtual

Each sub-type must implement this function and returns an IYIGPUObject representing the hardware type.

Implements CYIAssetTextureBase.

virtual std::pair<uint32_t, uint32_t> CYIAssetTexture::GetApproximateSize ( ) const

overridevirtual

Calculates and returns the approximate number of bytes currently used by this asset. The first item of the returned pair object represents the memory currently taken in the CPU main memory, and the second item of the returned pair object represents the memory currently taken in the GPU memory.

Note: This function only returns an approximate memory consumption as the exact memory consumption changes depending on the used C++ libraries and on the specific GPU infrastructure and drivers used by the system.

Reimplemented from CYIAsset.

const std::shared_ptr<CYIBitmap>& CYIAssetTexture::GetBitmap ( )

Returns the underlying bitmap associated with this texture asset. If the asset will be loaded if it is not currently loaded.

See also: CYIAsset::IsLoaded; CYIAsset::Load

virtual int32_t CYIAssetTexture::GetHeight ( ) const

overridevirtual

Returns the height of the underlying bitmap, in pixels. If the bitmap has not been set the height of the CYIAssetTextureBase will be returned, this is the cached height of the last bitmpa set on this texture asset.

See also: CYIBitmap::GetHeight

Reimplemented from CYIAssetTextureBase.

virtual int32_t CYIAssetTexture::GetWidth ( ) const

overridevirtual

Returns the width of the underlying bitmap, in pixels. If the bitmap is not available the width of the base CYIAssetTextureBase will be returned, this is the cached width of the last bitmap set on this texture asset.

See also: CYIBitmap::GetWidth

Reimplemented from CYIAssetTextureBase.

virtual void CYIAssetTexture::OnUnload ( )

overrideprotectedvirtual

Implements CYIAssetTextureBase.

void CYIAssetTexture::SetBitmap ( const std::shared_ptr< CYIBitmap > & pBitmap )

Sets a new bitmap on this texture asset using a shared pointer, pBitmap.

void CYIAssetTexture::SetBitmap ( std::unique_ptr< CYIBitmap > pBitmap )

Sets a new bitmap on this texture asset using a raw pointer, pBitmap.

The documentation for this class was generated from the following file:

asset/YiAssetTexture.h
