Detailed Description

An interface for managing GPU-bound objects such as shaders and textures.

#include <renderer/YiGPUObject.h>

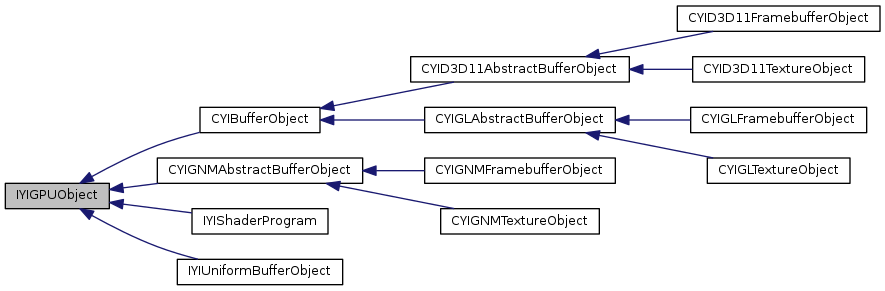

Inheritance diagram for IYIGPUObject:

[legend]

Public Types
enum	YI_GPU_OBJECT_STATUS { INVALID, UNLOADED, LOADED_FRESH, LOADED_STALE }

Public Member Functions
	IYIGPUObject ()

virtual	~IYIGPUObject ()

virtual void	Load (const std::shared_ptr< CYIAssetHardware > &pHWAsset)=0

virtual void	Unload ()=0

YI_GPU_OBJECT_STATUS	GetStatus () const

virtual void	Use () const =0

virtual void	Generate ()=0

virtual void	Free ()=0

virtual void	InvalidateHandle ()=0

Protected Attributes
YI_GPU_OBJECT_STATUS	m_status

Member Enumeration Documentation

enum IYIGPUObject::YI_GPU_OBJECT_STATUS

Enumerator
INVALID	Handle is not valid, Generate() has not been successfully executed.
UNLOADED	Handle is valid, but no data has been loaded.
LOADED_FRESH	The data from the associated asset is successfully loaded.
LOADED_STALE	The data that is loaded does not match the information in the last Load() call, but data is loaded into this asset.

Constructor & Destructor Documentation

IYIGPUObject::IYIGPUObject ( )

inline

IYIGPUObject::~IYIGPUObject ( )

inlinevirtual

Member Function Documentation

virtual void IYIGPUObject::Free ( )

pure virtual

Deallocates the GPU memory associated with this object.

Implemented in CYIGLFramebufferObject, CYID3D11FramebufferObject, CYIGNMFramebufferObject, CYIGNMTextureObject, CYID3D11TextureObject, and CYIGLTextureObject.

virtual void IYIGPUObject::Generate ( )

pure virtual

Generates a valid handle. No GPU memory is allocated until Load() is called.

Implemented in CYIGLFramebufferObject, CYID3D11FramebufferObject, CYIGNMFramebufferObject, CYIGNMTextureObject, CYID3D11TextureObject, and CYIGLTextureObject.

IYIGPUObject::YI_GPU_OBJECT_STATUS IYIGPUObject::GetStatus ( ) const

inline

Returns the status of the object

virtual void IYIGPUObject::InvalidateHandle ( )

pure virtual

This function can be called to invalidate the buffer handle without freeing the associated memory.

This can be used if the GL context is lost and GPU memory is freed implicitly. Calling Free() on this object will result in a crash if the handle is no longer pointing to valid memory, and a new handle may not be created with Generate() if the current handle is valid. This function allows you to inform the buffer object that the GL data has been freed externally and that the handle should be disconnected.

Warning: Calling this function without being sure that the handle has been freed in GPU memory will result in a memory leak. Use at your own risk.

Implemented in CYIGLFramebufferObject, CYID3D11FramebufferObject, CYIGNMFramebufferObject, CYIGNMTextureObject, CYID3D11TextureObject, and CYIGLTextureObject.

virtual void IYIGPUObject::Load ( const std::shared_ptr< CYIAssetHardware > & pHWAsset )

pure virtual

Loads the software data from the associated CYIAsset into graphics memory. If the YI_GPU_OBJECT_STATUS is LOADED_FRESH upon a call to load, meaning that data was previously successfully loaded, the status may become LOADED_STALE in the case where this load failed. See the YI_GPU_OBJECT_STATUS documentation for more details.

Implemented in CYIGNMTextureObject, CYID3D11FramebufferObject, CYIGLFramebufferObject, CYID3D11TextureObject, CYIGLTextureObject, and CYIGNMFramebufferObject.
