Detailed Description

A class used to hold node-specific layout configuration (such as, for example, Margin).

Subclasses of CYILayout will also subclass CYILayoutConfig (or one of its subclasses) if they use custom node-specific layout configuration values.

See also: CYILayout

#include <layout/YiLayoutConfig.h>

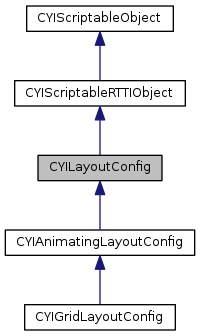

Inheritance diagram for CYILayoutConfig:

[legend]

Classes
class	CubeOffset
	A class used to hold a 3D 'cube offset'. More...

class	SizeConstraint
	A class used to hold a size constraint for a specific dimension. More...

class	SizeConstraints
	A class used to hold the size constraint for each of the 3 dimensions. A flag that indicates if the width/height aspect ratio should be maintained is also contained in this class. More...

Public Types
enum	GRAVITY { GRAVITY_NONE, GRAVITY_CENTER, GRAVITY_LEFT, GRAVITY_RIGHT, GRAVITY_TOP, GRAVITY_BOTTOM, GRAVITY_FRONT, GRAVITY_BACK, GRAVITY_TOP_LEFT, GRAVITY_TOP_RIGHT, GRAVITY_BOTTOM_LEFT, GRAVITY_BOTTOM_RIGHT }

typedef CubeOffset	Margin

Public Member Functions
	CYILayoutConfig ()

virtual	~CYILayoutConfig ()

virtual void	ConfigureFrom (const IYIPropertiesSource *pSource)

void	SetSizeConstraints (const SizeConstraints &sizeConstraints)

const SizeConstraints &	GetSizeConstraints () const

void	SetMargin (const Margin &margin)

const Margin &	GetMargin () const

void	SetLayoutable (bool bLayoutable)

bool	IsLayoutable () const

void	SetItemGravity (const glm::vec3 &vItemGravity)

void	SetItemGravity (GRAVITY eItemGravity)

const glm::vec3 &	GetItemGravity () const

void	SetIsBackground (bool bBackground)

bool	IsBackground () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Static Public Member Functions
static void	RemoveSuffixFromNumber (CYIString &inOutNumber, CYIString &outSuffix)

static bool	ParseBooleanValue (const CYIString &value)

static float	ParseFloatValue (const CYIString &value)

static uint32_t	ParseTimeValue (const CYIString &value)

static float	ParseLengthValue (const CYIString &length)

static glm::vec3	ReadGravityFrom (const CYIString &key, const IYIPropertiesSource *pSource, const glm::vec3 &vDefault)

static glm::vec3	GetGravityVectorFor (GRAVITY eGravity)

Additional Inherited Members
Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Member Typedef Documentation

typedef CubeOffset CYILayoutConfig::Margin

Member Enumeration Documentation

enum CYILayoutConfig::GRAVITY

An enum listing often-used gravity values. Note that not all possible gravity values are represented here. Also note that all presets (except BACK and NONE) will use a 'depth' gravity of 'FRONT'.

See also: SetGravity

Enumerator
GRAVITY_NONE	Indicates that the existing position of the child will be retained.
GRAVITY_CENTER	Centers the child in the container.
GRAVITY_LEFT	Aligns the left edge of the child with the left edge of the container.
GRAVITY_RIGHT	Aligns the right edge of the child with the right edge of the container.
GRAVITY_TOP	Aligns the top edge of the child with the top edge of the container.
GRAVITY_BOTTOM	Aligns the bottom edge of the child with the bottom edge of the container.
GRAVITY_FRONT	Aligns the front edge of the child with the front edge of the container.
GRAVITY_BACK	Aligns the back edge of the child with the back edge of the container.
GRAVITY_TOP_LEFT	Aligns the top-left corner of the child with the top-left corner of the container.
GRAVITY_TOP_RIGHT	Aligns the top-right corner of the child with the top-right corner of the container.
GRAVITY_BOTTOM_LEFT	Aligns the bottom-left corner of the child with the bottom-left corner of the container.
GRAVITY_BOTTOM_RIGHT	Aligns the bottom-right corner of the child with the bottom-right corner of the container.

Constructor & Destructor Documentation

CYILayoutConfig::CYILayoutConfig ( )

virtual CYILayoutConfig::~CYILayoutConfig ( )

virtual

Member Function Documentation

virtual void CYILayoutConfig::ConfigureFrom ( const IYIPropertiesSource * pSource )

virtual

Extracts configuration properties from properties source pSource (typically a scene node) and assigns them to this object.

Note: Subclasses should override this method. Remember to call the parent ConfigureFrom function.

Reimplemented in CYIGridLayoutConfig, and CYIAnimatingLayoutConfig.

static glm::vec3 CYILayoutConfig::GetGravityVectorFor ( GRAVITY eGravity )

static

Returns the gravity vector equivalent to the gravity enum eGravity.

const glm::vec3 & CYILayoutConfig::GetItemGravity ( ) const

inline

const CYILayoutConfig::Margin & CYILayoutConfig::GetMargin ( ) const

inline

const CYILayoutConfig::SizeConstraints & CYILayoutConfig::GetSizeConstraints ( ) const

inline

bool CYILayoutConfig::IsBackground ( ) const

inline

bool CYILayoutConfig::IsLayoutable ( ) const

inline

static bool CYILayoutConfig::ParseBooleanValue ( const CYIString & value )

static

Parses a String value as a boolean.

Any of these values will be considered true: 1, yes, true, on, enabled, enable, active. Any other value will be considered false.

Note: The value parameter must be in lowercase.

static float CYILayoutConfig::ParseFloatValue ( const CYIString & value )

static

Parses a String value as a float.

Note: An empty or invalid String will result in a value of 0.0f being returned, and a warning message being logged.

static float CYILayoutConfig::ParseLengthValue ( const CYIString & length )

static

Parses a String as a length value.

Note: This function is used to facilitate eventually supporting multiple length 'units'.

See also: ParseFloatValue

static uint32_t CYILayoutConfig::ParseTimeValue ( const CYIString & value )

static

Parses a String value as a time, in milliseconds.

Note: An empty or invalid String will result in a value of 0 being returned, and a warning message being logged.; The following suffixes are supported: ms (millisecond), s (second), m (minute) and h (hour). If no suffix is present, the value is assumed to be in milliseconds.

static glm::vec3 CYILayoutConfig::ReadGravityFrom	(	const CYIString &	key,
		const IYIPropertiesSource *	pSource,
		const glm::vec3 &	vDefault
	)

static

Extracts gravity values from pSource using the property key key. If no value is specified (or only partial values are specified), then the values from vDefault are used.

static void CYILayoutConfig::RemoveSuffixFromNumber	(	CYIString &	inOutNumber,
		CYIString &	outSuffix
	)

static

An utility function that removes the 'suffix' from inOutNumber, and stores it in outSuffix.

This function removes a text suffix from a number, and stores it in a separate CYIString. For example, if called with "54.2 ms" for inOutNumber, the inOutNumber string will be set to "54.2" and the outSuffix string will be set to "ms". Spaces between the number and the suffix are removed.

The suffix is considered to start at the first character encountered that is no within this group: '0123456789 .-' For example, if called with "54.2+ suffix" for inOutNumber, the inOutNumber string will be set to "54.2" and the outSuffix string will be set to "+ suffix".

Note: The referenced strings inOutNumber and outSuffix may be modified by this function.; If no suffix is found, inOutNumber and outSuffix will be unchanged.

void CYILayoutConfig::SetIsBackground ( bool bBackground )

Sets whether the associated node should be laid out as a 'background' to its container.

Background nodes will be laid out to completely fill the container. The padding values configured in the container will be ignored, but the margin values configured in the node will be respected.

Note: Setting bBackground to true does not modify the draw order of the children, and thus the 'background' node may actually be rendered on top if it's last in the childrens list.

void CYILayoutConfig::SetItemGravity ( const glm::vec3 & vItemGravity )

Sets the item gravity to vGravity.

Each component of the provided vector specifies a gravity value for the given dimension. A value of 0.0 means 'align to the start of the container', a value of 1.0 means 'align to the end of the container', and a value of 0.5 means 'center on the container'. The special value -1.0 means 'use the gravity value of the associated layout'.

Note: Some layouts will ignore one or more of the gravity components specified in a scene node. For example, a horizontal layout would ignore the x component of the gravity vector, since that layout's job is to horizontally-align scene nodes. In that case, the role of horizontal gravity is fulfilled by the 'alignment' property.; The item gravity values 'override' the gravity values of the associated layout.

Warning: Component values other than 0.0, 0.5, 1.0 and -1.0 are not supported.

See also: CYILayout::SetGravity(const glm::vec3 &vGravity)

void CYILayoutConfig::SetItemGravity ( GRAVITY eItemGravity )

Sets the item gravity to one of the pre-defined gravity values.

See also: SetItemGravity(const glm::vec3 &vItemGravity); Gravity

void CYILayoutConfig::SetLayoutable ( bool bLayoutable )

Sets the layoutable flag to bLayoutable.

By default, all scene nodes are layoutable. However, if this function is called with bLayoutable = false, then the scene node that has this configuration object will be considered non-layoutable. Non-layoutable scene nodes will still be measured and have the ApplyMeasurements function called on them, but layouts that attempt to layout those scene nodes will not set their position, will not change their size, and will not consider the scene node's size in their layout calculations.

void CYILayoutConfig::SetMargin ( const Margin & margin )

Sets the margin to margin.

The margin of an object is a blank area left around the object when the object is laid out. The margin effectively increases the size of an object when it is laid out (but without affecting the content or children of the object).

void CYILayoutConfig::SetSizeConstraints ( const SizeConstraints & sizeConstraints )

Sets the size constraints to sizeConstraints.

See also: SizeConstraints; SizeConstraint

The documentation for this class was generated from the following file:

layout/YiLayoutConfig.h
