CYIScrollingTextView Class Reference
Scene Views

Detailed Description

A class that implements a scrolling text block. Each paragraph of text is split into a separate view that is dynamically streamed in and out as needed to improve performance.

Before text can be set in this view, the SetListItemTemplateName() function must be called with a template name. That template will be used to build each paragraph of text, and the template's composition must include a text node named 'Placeholder-Text'.

The scrolling text view supports resizing: when the view is resized, its list item views are also resized such that their width matches the scrolling text view's width. The box width of the text nodes in those list item views is also resized proportionally.

View Template Specification

As this class extends the yi::deprecated::CYIListView class, it requires that a 'ListRoot' null object be present on the view's composition.

Type Labels Property Description
Node Placeholder-Text Required must be CYITextSceneNode class

Notes

Ideally, the list item should contain a single text scene node layer, aligned to the top-left portion of the composition. The composition should be high enough to accommodate the largest paragraph that could be added to this text view. The text layer should be paragraph text with the same width and height as the composition. Note that if the composition or text layer height is too low, paragraphs may get rendered incorrectly.

This view must be focusable (and have a FocusIn timeline) in order for it to be scrollable using arrow keys or trackpad gestures.

#include <view/YiScrollingTextView.h>

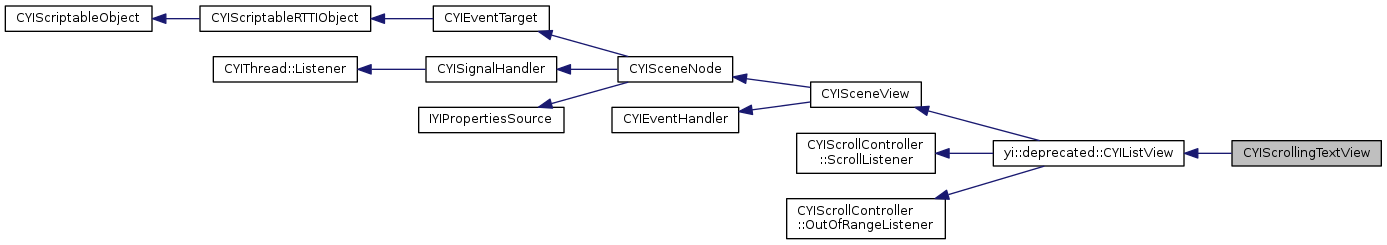

Inheritance diagram for CYIScrollingTextView:
Inheritance graph
[legend]

Public Member Functions

 CYIScrollingTextView ()

virtual ~CYIScrollingTextView ()

virtual bool Init () override

bool SetListItemTemplateName (const CYIString &templateName)

void SetText (const CYIString &text)

const CYIString & GetText () const

void SetMarkedUpText (const CYIString &rMarkedUpText, CYITextMarkupParser *pMarkupParser=nullptr, const CYICustomMarkupTagsProvider *pExternalTagsProvider=nullptr)

const CYIString & GetMarkedUpText () const

virtual bool HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

virtual bool HandlesFocusInDescendants () const override

virtual bool RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) override

- Public Member Functions inherited from yi::deprecated::CYIListView
 CYIListView ()

virtual ~CYIListView ()

void SetListLayout (std::unique_ptr< CYIListLayout > pListLayout)

CYIListLayout * GetListLayout () const

virtual void SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true) override

void UpdateListSize (float fSize)

int32_t GetListItemCount () const

CYIListItem * GetHighlightedListItem () const

void SetPageSize (float fPageSize, bool bAlwaysCenterOnPage=false, bool bSwipeToNextPage=false)

float GetPageSize ()

bool GetAlwaysCenterOnPage () const

int32_t GetCurPage ()

void ShowPage (int32_t nPage, bool bAnim, SCROLL_DIRECTION eDirection, int32_t nDuration=500)

void ShowNextPage (bool bAnim)

void ShowPrevPage (bool bAnim)

void Center ()

int32_t GetItemPage (int32_t nItemIndex) const

int32_t GetPageCount () const

int32_t FindNextHighlightedListItem (SELECTION_DIRECTION eDir) const

void HighlightItem (int32_t nIndex)

void SetType (TYPE eType, bool bIsCarousel=false)

TYPE GetType () const

bool GetIsCarousel () const

void SetMaxOutOfRange (float fOutOfRangeStart, float fOutOfRangeEnd)

float GetMaxOutOfRangeStart () const

float GetMaxOutOfRangeEnd () const

int32_t GetMouseWheelScrollSpeed () const

void SetMouseWheelScrollSpeed (int32_t nSpeed)

int32_t GetScrollThreshold () const

void SetScrollThreshold (int32_t nThreshold)

void SetScrollMaxVelocityCoeff (float fMaxVelocityCoeff)

CYISceneNode * GetRootNode () const

yi::deprecated::CYIStreamer * GetStreamer () const

glm::vec3 GetRootStartPosition () const

void Add (std::unique_ptr< CYIListItem > pItem, bool bAnimate)

void Add (std::vector< std::unique_ptr< CYIListItem >> &itemsToAdd, bool bAnimate)

void Insert (std::unique_ptr< CYIListItem > pItem, int32_t nInsertIndex, bool bAnimate)

void Remove (uint32_t nIndex, bool bAnimate)

void Clear (bool bDeleteItemsLater=false)

CYIListItem * GetFirstListItem () const

CYIListItem * GetFirstVisibleItem () const

CYIListItem * GetListItem (int32_t nIndex) const

CYIListItem * GetLastListItem () const

CYIListItem * GetListItemWithFocus () const

float GetContentSize () const

virtual void Layout (bool bAnimate)

void Cells2SizeAndPos (const YI_RECT_REL *pCellsRect, YI_POINT2D *pSize, YI_POINT2D *pPos) const

void SetOutOfRangeListener (OutOfRangeListener *pListener)

void SetScrollListener (ScrollListener *pListener)

float GetCurrentPercentage () const

void SetCurrentPercentage (float fPercentageScrolled, uint64_t uDuration=0, CYITimeInterpolator *pInterpolator=nullptr)

void ScrollToItem (CYIListItem *pItem, SCROLL_HINT eScrollHint=LEFT, int32_t nDuration=0, SCROLL_DIRECTION eDirection=CLOSEST, CYITimeInterpolator *pInterpolator=nullptr)

void SetVisibleRangeEnabled ()

void SetVisibleRangeDisabled ()

bool GetVisibleRangeEnabled ()

CYITimelineGroup * GetInTimelineGroup () const

CYITimelineGroup * GetOutTimelineGroup () const

void EnableTimelineGroupsAsInOutTimelines ()

void RemapTimeline (const CYIString &markerName)

- Public Member Functions inherited from CYISceneView
 CYISceneView ()

virtual ~CYISceneView ()

bool BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

bool IsInitialized () const

void SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void EnableDefaultHitZone ()

bool IsResponsiveLayoutEnabled () const

void EnableResponsiveLayout ()

void DisableResponsiveLayout ()

void AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA GetAnchor (YI_ANCHOR_TYPE anchorType) const

virtual const CYISceneView::AssetRequirement * GetAssetRequirements (uint32_t *pRequirementCount)

CYIAbstractTimeline * GetInTimeline () const

CYIAbstractTimeline * GetOutTimeline () const

CYIAbstractTimeline * GetFocusInTimeline () const

CYIAbstractTimeline * GetFocusOutTimeline () const

bool HasFocus () const

void SetFocusable (bool bFocusable)

bool IsFocusable () const

bool CanBeFocused () const

void SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView * GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView * GetInitiallyFocusedView () const

CYISceneView * FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView * FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode * GetFocusRoot () const

CYISceneView * GetFocusHandler () const

virtual void OnFocusGained ()

virtual void FocusGained ()

virtual void OnFocusLost ()

virtual void FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > & GetViewTemplate () const

const std::vector< CYIString > & GetChildTemplateNames ()

virtual CYIAbstractTimeline * GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline * GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * > GetTimelines () const

bool FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup * GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup > BuildTimelineGroup (const CYIString &markerName)

void BuildAnchorList ()

virtual void Reset ()

void SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout * GetLayout () const

CYILayout * GetLayout ()

virtual void Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void ApplyMeasurements () override

virtual void BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

- Public Member Functions inherited from CYISceneNode
 CYISceneNode ()

virtual ~CYISceneNode ()

void ForceDirty ()

void ClearDirtyFlag ()

void SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag GetDirtyFlag () const

DirtyFlag GetPreviousDirtyFlag () const

const CYIString & GetName () const

CYIString GetUniqueName () const

void SetSceneManager (CYISceneManager *pSceneManager)

void SetName (const CYIString &name)

int32_t GetID () const

void SetID (int32_t nID)

uint64_t GetUniqueID () const

bool AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode > RemoveChild (CYISceneNode *pSceneNode)

bool ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode * GetParent () const

bool ChangeParent (CYISceneNode *pParent)

CYISceneNode * GetDrawParent () const

bool IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager * GetSceneManager () const

uint32_t GetChildCount () const

uint32_t GetChildCountRecursive () const

CYISceneNode * GetChild (uint32_t nIndex) const

Iterator begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode * GetChild (const CYIString &sName) const

uint32_t GetDrawChildCount () const

CYISceneNode * GetDrawChild (uint32_t uIndex) const

CYISceneNode * GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS * GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * > GetChildren () const

int32_t GetIndexOfChild (const CYISceneNode *pSceneNode) const

void Show ()

void Hide ()

void SetVisibility (bool bVisible)

void SetOpacity (float fOpacity)

float GetCompositeOpacity () const

float GetLocalOpacity () const

bool IsVisible () const

bool IsTrulyVisible () const

CYISceneNode * GetNode (const CYIString &name)

CYISceneNode * GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode * GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode * GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS * GetNode (const CYIString &name)

CYISceneNode * GetNode (const int32_t nID)

CYISceneNode * GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * > GetNodes (const CYIString &name)

std::list< CYISceneNode * > GetNodes (int32_t nID)

std::list< CYISceneNode * > GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS * GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS * GetNode (uint32_t uTargetMatchedNodeCount=1)

void SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t GetEffectCount () const

std::shared_ptr< CYIEffect > GetEffect (uint32_t uIndex) const

void ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask > RemoveMask (const CYIMask *pMask)

uint32_t GetMaskCount () const

const CYIMask * GetMask (uint32_t uIndex) const

CYIMask * GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > & GetMesh () const

uint32_t GetMaterialCount () const

const std::shared_ptr< CYIMaterial > GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > & GetShaderUniforms () const

void SetMeshTransform (const glm::mat4 &rTransform)

void DestroyChildren ()

const glm::mat4 & GetLocalTransform () const

const glm::mat4 & GetEffectTransform () const

const glm::mat4 & GetWorldTransform () const

bool Intersects (const CYISceneNode *pNode) const

void SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget > GetRenderTarget () const

const CYIAABB & GetWorldAABB () const

const CYIAABB & GetLocalAABB () const

void SetAnchorPoint (const glm::vec3 &ref)

void SetAnchorPoint (float fX, float fY, float fZ)

void SetAnchorPointX (float fX)

void SetAnchorPointY (float fY)

void SetAnchorPointZ (float fZ)

void SetPosition (const glm::vec3 &ref)

void SetPosition (float fX, float fY, float fZ)

void SetPositionX (float fX)

void SetPositionY (float fY)

void SetPositionZ (float fZ)

void SetRotation (const glm::vec3 &fEulerDegrees)

void SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void SetRotationX (float fPitchDegrees)

void SetRotationY (float fYawDegrees)

void SetRotationZ (float fRollDegrees)

void SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void SetOrientation (const glm::quat &orient)

void SetScale (const glm::vec3 &fScaleFactors)

void SetScale (float fFactorX, float fFactorY, float fFactorZ)

void SetScaleX (float fFactor)

void SetScaleY (float fFactor)

void SetScaleZ (float fFactor)

const glm::vec3 & GetPosition () const

const glm::vec3 & GetScale () const

const glm::vec3 & GetWorldScale () const

const glm::vec3 & GetWorldSurfaceScale () const

const glm::vec3 & GetRotation () const

const glm::quat & GetOrientation () const

const glm::vec3 & GetAnchorPoint () const

const glm::vec3 & GetSize () const

const glm::vec3 & GetInitialSize () const

void SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 & GetMeasuredSize () const

void SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void SetClippingOn ()

void SetClippingOff ()

bool GetClipping () const

void SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB & GetClippingBox () const

void StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool IsMeshHit (const CYIRay &rWorldSpaceRay) const

void DumpTree () const

void StartCaptureKeyboardEvents ()

void StopCaptureKeyboardEvents ()

void StartCaptureTrackpadEvents ()

void StopCaptureTrackpadEvents ()

void StartCapturePointerEvents (uint8_t uPointerID)

void StopCapturePointerEvents (uint8_t uPointerID)

bool DrawBehindChildren (CYISceneNode *pSceneNode)

bool DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool DrawBehind (CYISceneNode *pSceneNode)

bool DrawInFront (CYISceneNode *pSceneNode)

bool IsFocusRoot () const

void SetIsFocusRoot (bool bIsFocusRoot)

virtual void OnFocusGainedInDescendants ()

virtual void OnFocusLostInDescendants ()

virtual void FocusLostInDescendants ()

virtual void OnFocusChangedInDescendants ()

void ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > & GetProperties () const override

void SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > & GetSceneNodeProxy () const

void SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig * GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig * GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState * GetLayoutState () const

CYILayoutState * GetLayoutState ()

void RequestLayout ()

LayoutDirtyFlag GetLayoutDirtyFlag () const

virtual void SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode * FindActiveCamera () const

template<typename T >
bool CanCastTo () const

- Public Member Functions inherited from CYIEventTarget
 CYIEventTarget ()

virtual ~CYIEventTarget ()

bool AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE GetSpecialTypes () const

- Public Member Functions inherited from CYIScriptableRTTIObject
 CYIScriptableRTTIObject ()

virtual ~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo * GetRuntimeTypeInfoForScriptObject () const override

- Public Member Functions inherited from CYIScriptableObject
 CYIScriptableObject ()

 CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject & operator= (const CYIScriptableObject &other)

virtual ~CYIScriptableObject ()

CYIBindingImplementation * GetBindingImplementation () const

void SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

- Public Member Functions inherited from CYISignalHandler
 CYISignalHandler ()

 CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual ~CYISignalHandler ()

CYISignalHandler & operator= (const CYISignalHandler &rSignalHandler)

void MoveToThread (CYIThread *pThread)
 This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle GetThreadAffinity () const

void SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool IsConnected () const

virtual bool IsConnected (const CYISignalBase &rSignal) const

void Disconnect (CYISignalBase &rSignal)

void DisconnectFromAllSignals ()

- Public Member Functions inherited from CYIThread::Listener
 Listener ()

virtual ~Listener ()

virtual void OnThreadStarted (CYIThread *)

virtual void OnThreadTerminated (CYIThread *)

virtual void OnThreadFinished (CYIThread *)

- Public Member Functions inherited from IYIPropertiesSource
virtual ~IYIPropertiesSource ()

- Public Member Functions inherited from CYIEventHandler
 CYIEventHandler ()

 CYIEventHandler (const CYIEventHandler &)

virtual ~CYIEventHandler ()

CYIEventHandler & operator= (const CYIEventHandler &)

bool RegisterEventFilter (CYIEventFilter *pFilter)

bool UnregisterEventFilter (CYIEventFilter *pFilter)

bool PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool AreEventsEnabled () const

void EnableEvents (bool bEnable)

- Public Member Functions inherited from CYIScrollController::ScrollListener
virtual ~ScrollListener ()

virtual void OnScrollAuto (CYIScrollController *)

- Public Member Functions inherited from CYIScrollController::OutOfRangeListener
virtual ~OutOfRangeListener ()


Additional Inherited Members

- Public Types inherited from yi::deprecated::CYIListView
enum  TYPE {
  VERTICAL,
  HORIZONTAL
}

enum  SELECTION_DIRECTION {
  NONE = 0,
  NORTH,
  EAST,
  SOUTH,
  WEST
}

enum  STATE {
  DEFAULT,
  SCROLLING
}
 Used by HandleEvent() to track when the list is scrolling. More...

enum  SCROLL_HINT {
  TOP,
  LEFT = TOP,
  BOTTOM,
  RIGHT = BOTTOM,
  CENTER
}
 Used by ScrollToItem() to position the item in the list. More...

enum  SCROLL_DIRECTION {
  CLOSEST,
  FORWARD,
  REVERSE
}

- Public Types inherited from CYISceneView
enum  ASSET_REQUIREMENT_TYPE {
  REQUIRES_NODE,
  REQUIRES_TIMELINE
}

enum  TIMELINE_GET_MODE {
  GET_DEFAULT,
  GET_TIMELINE,
  GET_TIMELINE_GROUP,
  GET_COMPONENT_OF_TIMELINE_GROUP
}

- Public Types inherited from CYISceneNode
enum  DirtyFlag {
  DirtyClean = 0x0000,
  DirtySceneGraph = 0x0001,
  DirtyVisibility = 0x0002,
  DirtyOpacity = 0x0004,
  DirtyLocalTransform = 0x0008,
  DirtyWorldTransform = 0x0010,
  DirtyUniform = 0x0020,
  DirtyWorldBoundingBox = 0x0040,
  DirtyMesh = 0x0080,
  DirtyWorldSurfaceScale = 0x0100,
  DirtyWorldScale = 0x0200,
  DirtyLocalBoundingBox = 0x0400,
  DirtyEverything = (DirtySceneGraph | DirtyVisibility | DirtyOpacity | DirtyLocalTransform | DirtyWorldTransform | DirtyUniform | DirtyWorldBoundingBox | DirtyWorldSurfaceScale | DirtyWorldScale | DirtyLocalBoundingBox)
}

enum  LayoutDirtyFlag {
  LayoutClean,
  LayoutChildDirty,
  LayoutDirty
}

enum  LayoutConfigFetchMode {
  LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0,
  LAYOUT_CONFIG_LAZY_INSTANTIATE
}

enum  MeasureMode {
  MEASURE_UNSPECIFIED,
  MEASURE_UP_TO,
  MEASURE_EXACTLY
}

enum  FETCH_TYPE {
  FETCH_OPTIONAL = 0,
  FETCH_MANDATORY
}

typedef std::reverse_iterator< Iterator > ReverseIterator

- Public Types inherited from CYIEventTarget
enum  EVENT_PHASE {
  BUBBLE,
  CAPTURE
}

- Static Public Member Functions inherited from CYISceneView
static void RegisterAllViews ()

- Static Public Member Functions inherited from CYISceneNode
static void RegisterAllSceneNodes ()

- Public Attributes inherited from yi::deprecated::CYIListView
CYISignal< CYIListItem * > ItemHighlighted

CYISignal< int32_t, int32_t > PageChanged
 Emitted when the page is changed when using pages with the list. The first parameter is the index of the new page. The second parameter is the index of the previous page. More...

CYISignal< float > ContentSizeChanged
 Emitted when the content size changes. More...

- Public Attributes inherited from CYISceneView
CYISignal< CYISceneView * > GainedFocus
 Emitted when focus has entered this view. More...

CYISignal< CYISceneView * > LostFocus
 Emitted when focus has left this view. More...

- Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE > PropertyAnimationComplete

CYISignal DescendantGainedFocus
 Emitted when focus has entered this tree. More...

CYISignal DescendantLostFocus
 Emitted when focus has left this tree. More...

CYISignal DescendantsChangedFocus
 Emitted when focus has changed within this tree. More...

- Static Public Attributes inherited from CYISceneNode
static const float OPACITY_NOT_VISIBLE_EPSILON

- Protected Member Functions inherited from yi::deprecated::CYIListView
virtual void ViewReflowed (const glm::vec3 &worldScale) override

virtual void OnScrollStarted (CYIScrollController *pControl) override

virtual void OnScrollEnded (CYIScrollController *pControl) override

virtual void OnScrolled (CYIScrollController *pControl, YI_SCROLLED_INFO scrolledInfo) override

void SetContentsNeedUpdate ()

virtual void UpdateEnd () override

void InitScrollBar ()

void UpdateScrollBar ()

void ChangePage (int32_t nPageDelta, bool bAnim)

void SetState (STATE nNewState)

void ContentsSizeUpdated (float fNewContentSize, bool bAnimate=true)

void UpdateContents ()

void UpdateItemIndicies (int32_t nAfter)

bool ShouldActAsCarousel () const

void UpdateCarouselStatus ()

void AdjustListBoundaries ()

void ForceCarouselUpdate ()

void UpdateRootStartPos ()

virtual void OnOutOfRangeAtStart (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtEnd (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtStartDirectionChanged (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtEndDirectionChanged (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtStartSnapBack (CYIScrollController *pControl, float fOutOfRange) override

virtual void OnOutOfRangeAtEndSnapBack (CYIScrollController *pControl, float fOutOfRange) override

virtual void OnOutOfRangeAtStartBegan (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtEndBegan (CYIScrollController *pControl, float fOutOfRange, float fDelta) override

virtual void OnOutOfRangeAtStartFinished (CYIScrollController *pControl) override

virtual void OnOutOfRangeAtEndFinished (CYIScrollController *pControl) override

virtual CYISceneView * FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const override

virtual void FocusChangedInDescendants () override

virtual void FocusGainedInDescendants () override

virtual bool ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const override

virtual void RevealItem (CYIListItem *pItem, uint32_t uDuration, CYITimeInterpolator *pInterpolator=nullptr)

CYIListItem * GetItemForView (const CYISceneView *pView) const

- Protected Member Functions inherited from CYISceneView
void UpdateClipping ()

virtual void WorldScaleUpdated () override

virtual void WorldBoundingBoxUpdated () override

virtual void OnViewReflowed (const glm::vec3 &worldScale)

virtual bool ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void UpdateResponsiveLayoutAnchors ()

virtual void ChildNeedsLayout () override

virtual void LayoutDirtied () override

virtual void ChildAdded (CYISceneNode *pChild) override

virtual void ChildRemoved (CYISceneNode *pChild) override

virtual void ChildVisibilityChanged (CYISceneNode *pChild) override

void OnViewIsInAnimatedPosition ()

void OnViewIsGoingOutOfAnimatedPosition ()

void SetInTimeline (CYIAbstractTimeline *pTimeline)

void SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void OnInit ()

bool TryRequestFocusOnInitiallyFocusedView ()

- Protected Member Functions inherited from CYISceneNode
void Update (bool bForceDirty=false)

virtual void OnUpdateBegin ()

virtual void UpdateBegin ()

virtual void OnUpdateEnd ()

virtual void OnDirtyFlagChanged ()

virtual void DirtyFlagChanged ()

virtual void OnTransformUpdated ()

virtual void TransformUpdated ()

virtual void OnWorldScaleUpdated ()

virtual void OnWorldSurfaceScaleUpdated ()

virtual void OnVisibilityUpdated ()

virtual void VisibilityUpdated ()

virtual void OnCompositeOpacityUpdated ()

virtual void CompositeOpacityUpdated ()

virtual void OnWorldBoundingBoxUpdated ()

virtual void OnLocalBoundingBoxUpdated ()

virtual void LocalBoundingBoxUpdated ()

virtual void OnChildAdded (CYISceneNode *pChild)

virtual void OnChildRemoved (CYISceneNode *pChild)

virtual void OnSizeChanged ()

virtual void CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag GetCurrentLayoutDirtyFlag () const

virtual CYIString GetDumpTreeString () const

void DumpTree (int32_t nIndentLevel) const

void SetShaderUniforms ()

virtual void SetCustomUniforms ()

template<class T >
void SetNodeType ()

virtual CYISceneNode * GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode * GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode * GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode * GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool *pbTargetReached, CYISceneNode *pStartAfterTarget)

- Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo *, const void * > GetRuntimeTypeInfoWithObject () const =0

- Protected Attributes inherited from yi::deprecated::CYIListView
TYPE m_eType

float m_fCurrentSize

bool m_bIsCarousel

bool m_bEnoughDataForCarousel

bool m_bIsEnabled

float m_fOutOfRangeStart

float m_fOutOfRangeEnd

CYISceneNode * m_pRootNode

glm::vec3 m_vRootStartPos

glm::vec3 m_vRootStartPosRef

STATE m_nCurrentState

float m_fScrollDownPos

uint64_t m_uScrollDownTime

float m_fLastScrollEventPos

int32_t m_nMouseWheelScrollSpeed

int32_t m_nScrollThreshold

int32_t m_nFocusScrollDuration

bool m_bDown

float m_fScrollBarOriginalScale

glm::vec3 m_vScrollBarStart

glm::vec3 m_vScrollBarEnd

CYISceneNode * m_pScrollBarNode

std::unique_ptr< CYIListLayout > m_pListLayout

OutOfRangeListener * m_pOutOfRangeListener

ScrollListener * m_pScrollListener

std::unique_ptr< yi::deprecated::CYIStreamer > m_pItems

CYIScrollController * m_pScrollController

CYITimelineGroup * m_pInTimelineGroup

CYITimelineGroup * m_pOutTimelineGroup

bool m_bVisibleRangeEnabled

bool m_bContentsNeedUpdate

- Protected Attributes inherited from CYISceneView
bool m_bStopEventPropagation

bool m_bResponsiveLayoutEnabled

bool m_bSceneTreeBuilt

bool m_bInAnimatedPosition

CYISceneNode * m_pClippingNode

CYIAbstractTimeline * m_pFocusInTimeline

CYIAbstractTimeline * m_pFocusOutTimeline

std::unique_ptr< CYILayout > m_pLayout

std::shared_ptr< CYIAssetViewTemplate > m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy > m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA > m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > > m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > > m_timelineGroups

- Protected Attributes inherited from CYISceneNode
CYIString m_name

CYISceneNode * m_pParent

CYISceneNode * m_pDrawParent

CYISceneManager * m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > > m_children

std::vector< CYISceneNode * > m_drawChildren

std::map< CYIString, CYIString > m_Properties

std::vector< std::shared_ptr< CYIMaterial > > m_pMaterials

std::vector< std::unique_ptr< CYIMask > > m_Masks

std::vector< std::shared_ptr< CYIEffect > > m_Effects

std::vector< PropertyAnimation * > m_propertyAnimations

float m_fLocalOpacity

CYIAABB m_WSClipBox

glm::mat4 m_EffectTransform

glm::quat m_Orientation

glm::vec3 m_Rotate

glm::vec3 m_AnchorPoint

glm::vec3 m_Position

glm::vec3 m_Scale

glm::vec3 m_vSize

glm::vec3 m_vInitialSize

glm::vec3 m_vMeasuredSize

glm::vec3 m_vlsLastCollision

bool m_bClip

bool m_bIsRotated

bool m_bIsOriented

bool m_bLocalVisibility

int32_t m_nID

uint64_t m_uGUID

std::shared_ptr< CYIRenderTarget > m_pRenderTarget

std::shared_ptr< CYIMesh > m_pMesh

std::shared_ptr< IYIUniformBufferObject > m_pShaderUniforms

- Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE m_eSpecialTypes

std::vector< EventListenerEntry > m_listeners

- Protected Attributes inherited from CYIEventHandler
bool m_bEnableEvents


Constructor & Destructor Documentation

CYIScrollingTextView::CYIScrollingTextView ( )
virtual CYIScrollingTextView::~CYIScrollingTextView ( )
virtual

Member Function Documentation

const CYIString& CYIScrollingTextView::GetMarkedUpText ( ) const

Returns the marked up text. This is the unparsed text that was originally passed to the SetMarkedUpText function. If SetText was used instead of SetMarkedUpText , this function returns the same value as GetText .

const CYIString& CYIScrollingTextView::GetText ( ) const

Returns the text displayed in this scrolling view.

Note
If marked up text was assigned using the SetMarkedUpText function, this function will return the text with the markup tags removed.
virtual bool CYIScrollingTextView::HandleEvent ( const std::shared_ptr< CYIEventDispatcher > &  pDispatcher,
CYIEvent *  pEvent
)
overridevirtual

Pure virtual for the child to implement according to how they wish the events to be handled.

The method is to return true if the event was processed and false otherwise.

Reimplemented from yi::deprecated::CYIListView.

virtual bool CYIScrollingTextView::HandlesFocusInDescendants ( ) const
overridevirtual

Returns true to indicate that this view handles focus in its descendants.

Reimplemented from yi::deprecated::CYIListView.

virtual bool CYIScrollingTextView::Init ( )
overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note
This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from yi::deprecated::CYIListView.

virtual bool CYIScrollingTextView::RequestFocus ( CYIFocus::FOCUS_DIRECTION  eDirection = CYIFocus::FOCUS_FORWARD,
CYIFocus::FOCUS_ROOT_RULE  eFocusRootRule = CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT,
const CYIAABB &  previousFocusRect = CYIAABB(),
const CYIFocusSearchOptions &  options = CYIFocusSearchOptions()
)
overridevirtual

Assign initial focus within the view. This will initiate a focus search within this view.

Reimplemented from yi::deprecated::CYIListView.

bool CYIScrollingTextView::SetListItemTemplateName ( const CYIString &  templateName)

Sets the name of the template to be used for creating the paragraph list items. The asset template will be loaded, if needed, from templateName. Returns false if the template named templateName cannot be located.

void CYIScrollingTextView::SetMarkedUpText ( const CYIString &  rMarkedUpText,
CYITextMarkupParser *  pMarkupParser = nullptr,
const CYICustomMarkupTagsProvider *  pExternalTagsProvider = nullptr
)

Sets the text to be displayed in this scrolling view to rMarkedUpText. The text will be parsed for markup. Any existing text is cleared.

If pMarkupParser is null, the default You.i Engine text markup parser is used. An 'external tags' provider can optionally be supplied through the pExternalTagsProvider pointer.

Warning
If an external tags provider is supplied, it must be compatible with the provided markup parser (or be compatible with the defualt markup parser if no markup parser is provided).
See also
SetText
void CYIScrollingTextView::SetText ( const CYIString &  text)

Sets the text to be displayed in this scrolling text view to text. Any existing text is cleared.

Warning
The SetListItemTemplateName function must have been called successfully prior to calling this function.
See also
SetMarkedUpText
The documentation for this class was generated from the following file:
