Detailed Description

A simple view which downloads and renders images.

Overview

SetImage may be provided with a locally-sourced or pre-downloaded image in the form of a CYIAssetTextureBase, or using a CYIUrl indicating a remote resource from which to download and display the image. If downloading the image success is indicated by the emission of ImageAssigned, and failure by ImageAssignmentFailed. When a valid image is available and ready for display it will be displayed according to the SCALE_MODE specified in SetScaleMode or via the "scale-mode" property in the view template. By default the scale mode is SCALE_FILL, meaning that the image will retain its aspect ratio and resize such that it entirely fills the CYIImageView with the excess being cropped.

The initial state of the ImageNode will serve as a placeholder until the first image is applied to it, and again if Reset is called.

When using CYIImageView in a layout it will need to support being re-sized, this usually means that a layout must be applied on the CYIImageView as well in order to make sure that the ImageNode and its decorations are laid out gracefully in response to size changes. For instance, the ImageNode should be marked as a 'background' so that it re-sizes along with the image view enabling the CYIImageView's scaling options to take effect. Note that marking the ImageNode as a background limits the types of animations that can be applied to it, for more information refer to the Animation section.

Note: Image views implement their own scaling logic. As a result, using alignment options with a CYILayout is not supported in image views. The image will always be center-aligned in the CYIImageView.

Animation

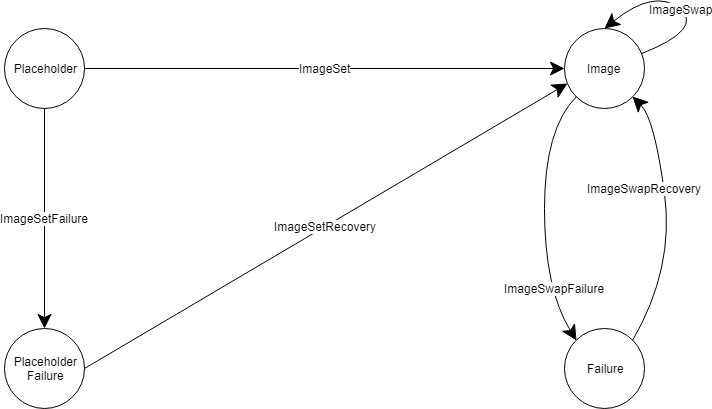

CYIImageView can be in one of four visual states and has a series of (optional) timelines representing transitions between those states. These are illustrated below:

If the view has the "ImageSet" timeline, representing a transition out of the "Placeholder" state and into the "Image" state, then it will begin in the "Placeholder" state; otherwise it will begin in the "Image" state.

Placeholder and Placeholder Failure States

The "Placeholder" state is the initial state of the view if the view contains the "ImageSet" timeline.

The timelines: "ImageSet," "ImageSetFailure," and "ImageSetRecovery" represent the possible transitions in these states.

The "Placeholder" state represents the initial state of the view template, as it appears immediately after CYISceneView::BuildFromTemplate. If an image download fails while the view is in this state, it will transition to the "Placeholder Failure" state using the "ImageSetFailure" timeline. If no "ImageSetFailure" timeline is specified the error will not be represented visually but the ImageAssignmentFailed signal will still be emitted.

If an image is successfully set while the view is in the "Placeholder" state, it will transition to the "Image" state using the "ImageSet" timeline.

If the view is in the "Placeholder Failure" state when the image is set it will transition to the "Image" state using the "ImageSetRecovery" timeline if present, or the "ImageSetFailure" timeline in reverse if present, or finally the "ImageSet" timeline.

If the view is in the "Placeholder Failure" state, subsequent failures will not be visually represented but will still cause the emission of ImageAssignmentFailed.

Once an image has been set on the view successfully the only way to return to these states is via CYIImageView::Reset.

Image and Failure States

Once an image has been set on the view, or if there is no "ImageSet" timeline present, the view is be in the "Image" state.

The timelines: "ImageSwapFailure," "ImageSwapRecovery," and "ImageSwap" represent the possible transitions in these states.

The "Image" state represents the state of the view after CYISceneView::BuildFromTemplate and completion of the "ImageSet" timeline, if present. If an image download fails while the view is in this state, it will transition to the "Failure" state using the "ImageSwapFailure" timeline. If no "ImageSwapFailure" timeline is specified the error will not be represented visually but the ImageAssignmentFailed signal will still be emitted.

If an image is successfully set while the view is in the "Image" state, it will play the "ImageSwap" timeline and remain in the "Image" state. The "ImageSwap" timeline should animate the ImageNode as the incoming image, e.g. fading it in or sliding it into position. If a more complex image swapping animation is required, the optional node 'ImageNode-Outgoing' can be used to represent the image being replaced.

If the view is in the "Failure" state when the image is set it will transition to the "Image" state using the "ImageSwapRecovery" timeline if present, or the "ImageSwapFailure" timeline in reverse if present, or finally the "ImageSwap" timeline.

If the view is in the "Failure" state, subsequent failures will not be visually represented but will still cause the emission of ImageAssignmentFailed.

Important Animation Considerations

If using CYIImageView in a layout it's desirable to ensure proper sizing and placement of sub-components by applying a layout to the CYIImageView itself. Usually, 'ImageNode' is marked as a background in these cases, which prohibits the use of position and anchor point animations as they'll be overwritten immediately by layout.

If animating items into and out of the view's bounds it may be desirable to enable clipping on CYIImageView via CYISceneNode::SetClippingOn or the "clip" property of the view template.

View Template Specification

Type	Labels	Property	Description
Node	ImageNode	Required	The node that will be used to render the image. When using the 'ImageSwap' timeline, represents the incoming image. See Animation for more details.
Node	ImageNode-Outgoing	Optional	When using the 'ImageSwap' timeline, represents the outgoing image. See Animation for more details.
Marker	ImageSet	Optional	Played when switching from the default image (as it appears in the view template, or after calling Reset()). See Animation for more details.
Marker	ImageSetFailure	Optional	Played when switching from the default image (as it appears in the view template, or after calling Reset())image fails. See Animation for more details.
Marker	ImageSetRecovery	Optional	Played when recovering from a placeholder to image transition failure. See Animation for more details.
Marker	ImageSwap	Optional	Played when swapping between images, except when switching from the default image (as it appears in the view template, or after calling Reset()) image. See Animation for more details.
Marker	ImageSwapFailure	Optional	Played when swapping between images fails. See Animation for more details.
Marker	ImageSwapRecovery	Optional	Played when recovering from an image swapping failure. See Animation for more details.
Comment	mipmapping	Optional	Values can be true or false. By default, the value is false.
Comment	scale-mode	Optional	The scaling mode which will be applied to the image node. Valid values are stretch, fill, fill-with-overflow, fit, actual-size, and actual-size-with-overflow. Defaults to fit. See also SCALE_MODE
Comment	repeat-mode	Optional	The repeat mode which will be applied when the image is smaller than the 'ImageNode' size. Valid values are none, tile, mirror, clamp. The default value is 'none'. See also REPEAT_MODE

#include <view/YiImageView.h>

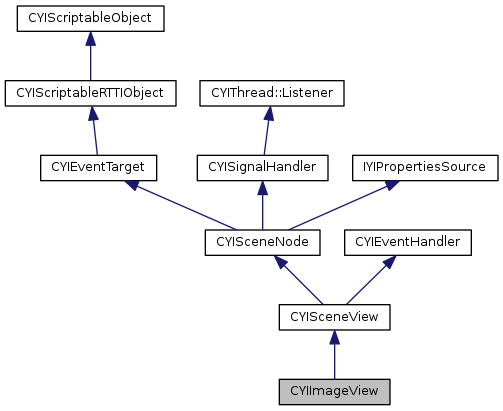

Inheritance diagram for CYIImageView:

[legend]

Public Types
enum	SCALE_MODE { SCALE_STRETCH = 0, SCALE_FILL, SCALE_FILL_WITH_OVERFLOW, SCALE_FIT, SCALE_ACTUAL_SIZE, SCALE_ACTUAL_SIZE_WITH_OVERFLOW }

enum	REPEAT_MODE { REPEAT_NONE, REPEAT_TILE, REPEAT_MIRROR, REPEAT_CLAMP_TO_EDGE }

Public Types inherited from CYISceneView
enum	ASSET_REQUIREMENT_TYPE { REQUIRES_NODE, REQUIRES_TIMELINE }

enum	TIMELINE_GET_MODE { GET_DEFAULT, GET_TIMELINE, GET_TIMELINE_GROUP, GET_COMPONENT_OF_TIMELINE_GROUP }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYIImageView ()

virtual	~CYIImageView ()

virtual bool	Init () override

void	SetScaleMode (SCALE_MODE eScaleMode)

SCALE_MODE	GetScaleMode () const

void	SetRepeatMode (REPEAT_MODE eRepeatMode)

REPEAT_MODE	GetRepeatMode () const

void	SetMipmappingEnabled (bool bEnable)

bool	IsMipmappingEnabled () const

void	SetImage (const std::shared_ptr< CYIAssetTextureBase > &pTexture)

void	SetImage (const CYIUrl &url)

virtual void	Reset () override

void	SetOverlayTextColor (const CYIColor &color)

void	SetOverlayTextSize (const uint32_t &nFontSize)

void	SetOverlayTextFontID (const ssize_t &nFontID)

void	SetOverlayText (const CYIString &text)

virtual void	OnImageHasChanged ()

CYISceneNode *	GetImageNode () const

void	SetImageUrl (const CYIUrl &url)

const CYIUrl &	GetImageUrl () const

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void	ApplyMeasurements () override

Public Member Functions inherited from CYISceneView
	CYISceneView ()

virtual	~CYISceneView ()

bool	BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

bool	IsInitialized () const

void	SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool	GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void	EnableDefaultHitZone ()

bool	IsResponsiveLayoutEnabled () const

void	EnableResponsiveLayout ()

void	DisableResponsiveLayout ()

void	AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA	GetAnchor (YI_ANCHOR_TYPE anchorType) const

virtual const CYISceneView::AssetRequirement *	GetAssetRequirements (uint32_t *pRequirementCount)

CYIAbstractTimeline *	GetInTimeline () const

CYIAbstractTimeline *	GetOutTimeline () const

CYIAbstractTimeline *	GetFocusInTimeline () const

CYIAbstractTimeline *	GetFocusOutTimeline () const

virtual bool	HandlesFocusInDescendants () const

virtual bool	RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions())

bool	HasFocus () const

void	SetFocusable (bool bFocusable)

bool	IsFocusable () const

bool	CanBeFocused () const

void	SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView *	GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void	SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView *	GetInitiallyFocusedView () const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

virtual CYISceneView *	FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode *	GetFocusRoot () const

CYISceneView *	GetFocusHandler () const

virtual void	OnFocusGained ()

virtual void	FocusGained ()

virtual void	OnFocusLost ()

virtual void	FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > &	GetViewTemplate () const

const std::vector< CYIString > &	GetChildTemplateNames ()

virtual CYIAbstractTimeline *	GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline *	GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * >	GetTimelines () const

bool	FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup *	GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup >	BuildTimelineGroup (const CYIString &markerName)

void	BuildAnchorList ()

void	SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout *	GetLayout () const

CYILayout *	GetLayout ()

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Public Member Functions inherited from CYIEventHandler
	CYIEventHandler ()

	CYIEventHandler (const CYIEventHandler &)

virtual	~CYIEventHandler ()

CYIEventHandler &	operator= (const CYIEventHandler &)

bool	RegisterEventFilter (CYIEventFilter *pFilter)

bool	UnregisterEventFilter (CYIEventFilter *pFilter)

bool	PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	AreEventsEnabled () const

void	EnableEvents (bool bEnable)

Public Attributes
CYISignal	ImageAssigned

CYISignal< const CYIString & >	ImageAssignmentFailed

Public Attributes inherited from CYISceneView
CYISignal< CYISceneView * >	GainedFocus
	Emitted when focus has entered this view. More...

CYISignal< CYISceneView * >	LostFocus
	Emitted when focus has left this view. More...

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Protected Attributes
float	m_fImagePlaceholderWidth

float	m_fImagePlaceholderHeight

float	m_fImagePlaceholderAspectRatio

glm::vec3	m_imagePlaceholderAnchorPoint

CYISceneNode *	m_pImageNode

CYITextSceneNode *	m_pDefaultTextNode

CYIString	m_sDefaultText

CYIColor	m_DefaultTextColor

int32_t	m_nDefaultFontSize

ssize_t	m_nDefaultFontID

SCALE_MODE	m_eScaleMode

REPEAT_MODE	m_eRepeatMode

bool	m_bUseMipmapping

CYIUrl	m_ImageUrl

std::shared_ptr< CYIAssetTexture >	m_pTextAsset

std::shared_ptr< CYIMesh >	m_pImagePlaceholderMesh

std::shared_ptr< CYIMaterial >	m_pImagePlaceholderMaterial

Protected Attributes inherited from CYISceneView
bool	m_bStopEventPropagation

bool	m_bResponsiveLayoutEnabled

bool	m_bSceneTreeBuilt

bool	m_bInAnimatedPosition

CYISceneNode *	m_pClippingNode

CYIAbstractTimeline *	m_pFocusInTimeline

CYIAbstractTimeline *	m_pFocusOutTimeline

std::unique_ptr< CYILayout >	m_pLayout

std::shared_ptr< CYIAssetViewTemplate >	m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy >	m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA >	m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > >	m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > >	m_timelineGroups

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Protected Attributes inherited from CYIEventHandler
bool	m_bEnableEvents

Additional Inherited Members
Static Public Member Functions inherited from CYISceneView
static void	RegisterAllViews ()

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Protected Member Functions inherited from CYISceneView
void	UpdateClipping ()

virtual void	WorldScaleUpdated () override

virtual void	WorldBoundingBoxUpdated () override

virtual void	OnViewReflowed (const glm::vec3 &worldScale)

virtual void	ViewReflowed (const glm::vec3 &worldScale)

virtual bool	HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void	UpdateResponsiveLayoutAnchors ()

virtual void	SizeChanged () override

virtual void	ChildNeedsLayout () override

virtual void	LayoutDirtied () override

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	OnViewIsInAnimatedPosition ()

void	OnViewIsGoingOutOfAnimatedPosition ()

void	SetInTimeline (CYIAbstractTimeline *pTimeline)

void	SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void	OnInit ()

bool	TryRequestFocusOnInitiallyFocusedView ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Member Enumeration Documentation

enum CYIImageView::REPEAT_MODE

The repeat mode determines how the image will repeat within the 'ImageNode'. The repeat mode will only have a visual effect when there is empty space after scaling in the 'ImageNode'.

Warning: Not all devices support the use of REPEAT_TILE or REPEAT_MIRROR with non-power-of-two texture sizes. A power-of-two texture size is a texture which has a height and width that are a power-of-two, for example a 256x128 texture. If a device does not support this and the image has a non-power-of-two texture size the image will not be rendered. It is recommended when using these modes that the image texture width and height are power-of-two.

See also: SetRepeatMode

Enumerator
REPEAT_NONE	The image will not repeat.
REPEAT_TILE	The image will be tiled within empty space of the 'ImageNode'.
REPEAT_MIRROR	Similar tiling to REPEAT_TILE except the tiles adjacent to the image will be the mirror image of the image.
REPEAT_CLAMP_TO_EDGE	The edge pixels of the image are stretched to the size of 'ImageNode'.

enum CYIImageView::SCALE_MODE

The scale mode determines how the image will be scaled to fit within the 'ImageNode'.

See also: SetScaleMode

Enumerator
SCALE_STRETCH	Will stretch the image to fill the 'ImageNode'. The aspect ratio of the image is not retained.
SCALE_FILL	Will proportionally scale the image to fill the 'ImageNode', with the excess being cropped.
SCALE_FILL_WITH_OVERFLOW	Will proportionally scale the image to fill the 'ImageNode', with the excess overflowing beyond the bounds of the image view.
SCALE_FIT	Will proportionally scale the image to fit within the bounds of the 'ImageNode'. There may be negative space in the form of letterboxing or pillarboxing.
SCALE_ACTUAL_SIZE	The original size and aspect ratio of the image will be retained, and it will be centered in the middle of the 'ImageNode' with its overflow cropped.
SCALE_ACTUAL_SIZE_WITH_OVERFLOW	The original size and aspect ratio of the image will be retained, and it will overflow the bounds of the 'ImageNode'.

Constructor & Destructor Documentation

CYIImageView::CYIImageView ( )

virtual CYIImageView::~CYIImageView ( )

virtual

Member Function Documentation

virtual void CYIImageView::ApplyMeasurements ( )

overridevirtual

Applies the measured sizes of this node's children.

Note: Typically, if ApplyMeasurements is overridden then Measure must also be overridden.; Measurements should be applied before calculating position for layout.

Warning: Subclasses that override this function must ensure that the ApplyMeasurements function of ALL children of this scene node is called.

Note: Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented from CYISceneView.

CYISceneNode* CYIImageView::GetImageNode ( ) const

Returns the node containing the image that's being displayed.

const CYIUrl& CYIImageView::GetImageUrl ( ) const

Returns the last set image URL associated with this view.

Note: The returned URL maybe not be from the last image set on the view. SetImageUrl() sets the URL but does not initiate a download.

See also: SetImage; SetImageUrl

REPEAT_MODE CYIImageView::GetRepeatMode ( ) const

Returns the current repeat mode applied to the image view.

See also: REPEAT_MODE; SetRepeatMode

SCALE_MODE CYIImageView::GetScaleMode ( ) const

Returns the scale mode of the image view.

See also: SetScaleMode

virtual bool CYIImageView::Init ( )

overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note: This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from CYISceneView.

bool CYIImageView::IsMipmappingEnabled ( ) const

See also: SetMipmappingEnabled

virtual void CYIImageView::Measure	(	const MeasureSpec &	widthSpec,
		const MeasureSpec &	heightSpec,
		const MeasureSpec &	depthSpec
	)

overridevirtual

Measures this scene node, considering the layout configuration constraints (if available) and the provided measure specifications. The Measure function is used by the layout system to determine the 'desired' size of elements in a container. The result of calls to this function can be accessed through the GetMeasuredSize() function.

Note: The Measure function may be called multiple times on a single scene node during a layout pass.; The measure specs passed in must take in consideration the node's scale. For example, if a node is calling the Measure function on one of its children and that child has a scale of glm::vec3(1, 3, 1), then the fSize of heightSpec must be divided by 3.; The measured values may exceed the provided measure specifications if the specifications cannot be met given the constraints placed on this scene node. In other words, the constraints placed on this node have a higher priority than the provided measure specifications.

Warning: Subclasses that override this function must ensure that the Measure function of ALL children of this scene node is called at least once, even if those children are hidden.

Note: Typically, if Measure is overridden then ApplyMeasurements must also be overridden.; Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented from CYISceneView.

virtual void CYIImageView::OnImageHasChanged ( )

virtual

Called when a new image has been set, before ImageAssigned is emitted. This implementation does nothing.

virtual void CYIImageView::Reset ( )

overridevirtual

Resets the image back to its original placeholder image, and clears the optional overlay text node if available.

Reimplemented from CYISceneView.

void CYIImageView::SetImage ( const std::shared_ptr< CYIAssetTextureBase > & pTexture )

Sets an image on the view from the supplied texture. ImageAssigned will be emitted on a successful assignment.

See also: ImageAssigned

void CYIImageView::SetImage ( const CYIUrl & url )

Downloads an image from the specified url and sets it on the view. ImageAssignmentFailed will be emitted in the case of asset download failure.

See also: ImageAssigned; ImageAssignmentFailed

void CYIImageView::SetImageUrl ( const CYIUrl & url )

Sets the image URL associated with this view.

Note: Does not initiate a download and set it on the view.

void CYIImageView::SetMipmappingEnabled ( bool bEnable )

Configures the underlying texture to use mipmapping. Mipmapping is disabled by default.

See also: CYIAssetTextureBase::SetMipmappingEnabled

void CYIImageView::SetOverlayText ( const CYIString & text )

Sets the overlay text. By default, no overlay text is shown.

void CYIImageView::SetOverlayTextColor ( const CYIColor & color )

Sets the text color; the default text color is white.

void CYIImageView::SetOverlayTextFontID ( const ssize_t & nFontID )

Sets the text nFontID; the default font ID is 0.

void CYIImageView::SetOverlayTextSize ( const uint32_t & nFontSize )

Sets the text nFontSize; the default font size is 20 pixels.

void CYIImageView::SetRepeatMode ( REPEAT_MODE eRepeatMode )

Sets the repeat mode for the image view to eRepeatMode. The repeat mode will be applied to the image when this method is called if an image has already been set. If an image has not yet been set on the view the mode will apply when the image has been set.

Default: REPEAT_NONE

See also: REPEAT_MODE; SetImage

void CYIImageView::SetScaleMode ( SCALE_MODE eScaleMode )

Sets the scale mode of the image view. When an image is set using CYIImageView::SetImage the image will be scaled using eScaleMode.

Default: SCALE_FILL

Member Data Documentation

CYISignal CYIImageView::ImageAssigned

Signals that the image was assigned correctly.

CYISignal<const CYIString &> CYIImageView::ImageAssignmentFailed

Signals that the asset download has failed and provides an error message for why the asset download failure occured.

bool CYIImageView::m_bUseMipmapping

protected

CYIColor CYIImageView::m_DefaultTextColor

protected

REPEAT_MODE CYIImageView::m_eRepeatMode

protected

SCALE_MODE CYIImageView::m_eScaleMode

protected

float CYIImageView::m_fImagePlaceholderAspectRatio

protected

float CYIImageView::m_fImagePlaceholderHeight

protected

float CYIImageView::m_fImagePlaceholderWidth

protected

glm::vec3 CYIImageView::m_imagePlaceholderAnchorPoint

protected

CYIUrl CYIImageView::m_ImageUrl

protected

ssize_t CYIImageView::m_nDefaultFontID

protected

int32_t CYIImageView::m_nDefaultFontSize

protected

CYITextSceneNode* CYIImageView::m_pDefaultTextNode

protected

CYISceneNode* CYIImageView::m_pImageNode

protected

std::shared_ptr<CYIMaterial> CYIImageView::m_pImagePlaceholderMaterial

protected

std::shared_ptr<CYIMesh> CYIImageView::m_pImagePlaceholderMesh

protected

std::shared_ptr<CYIAssetTexture> CYIImageView::m_pTextAsset

protected

CYIString CYIImageView::m_sDefaultText

protected

The documentation for this class was generated from the following file:

view/YiImageView.h

Detailed Description

Overview

Animation

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
