Detailed Description

The CYIDrawerView can be placed around the edges of a view, making it possible for the user to swipe to open and close.

The CYIDrawerView can contain arbitrary content in a "drawer" that can be opened or closed. This is accomplished internally by moving the CYIDrawerView in its parent's local space.

When the user starts dragging the drawer, it will track the finger or pointer. Once it has gone beyond a configurable threshold and the user releases the drawer, it will continue to animate to the fully opened or closed state.

The drawer's DIRECTION is automatically detected during Init() based on the drawer's position in its parent's local space. If the automatic detection is not desirable the open direction can also be set using SetDrawerOpenDirection().

The CYIDrawerView is self-animated, and the animation interpolators are configurable. The duration and threshold for opening/closing animation are also configurable.

Note: If the parent of a CYIDrawerView is not full-screen, it may be desirable to enable clipping on the parent.

Warning: Some mobile operating system use a bezel-swipe feature on some edges that may interfere with the CYIDrawerView.

#include <view/YiDrawerView.h>

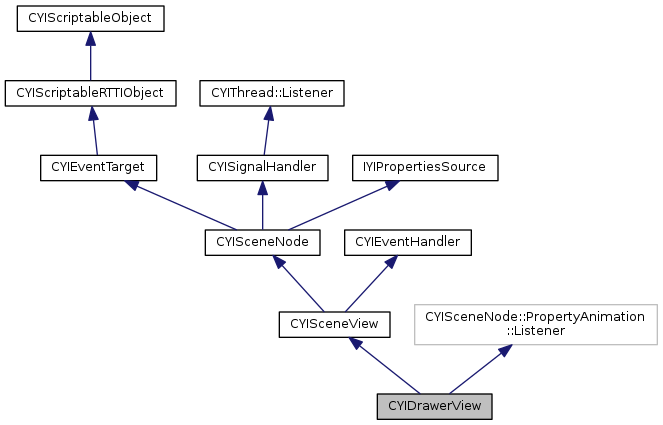

Inheritance diagram for CYIDrawerView:

[legend]

Public Types
enum	DIRECTION { DIRECTION_BOTTOM_TO_TOP = 0x01, DIRECTION_TOP_TO_BOTTOM = 0x02, DIRECTION_LEFT_TO_RIGHT = 0x04, DIRECTION_RIGHT_TO_LEFT = 0x08 }
	The direction the drawer will open. The direction is relative to the parent's local space. More...

enum	STATE { STATE_CLOSED = 0x01, STATE_OPENED = 0x02, STATE_OPENING = 0x04, STATE_CLOSING = 0x08, STATE_CLOSED_HIDDEN = 0x10, STATE_OPENED_HIDDEN = 0x20 }
	Possible states the drawer can be in. More...

Public Types inherited from CYISceneView
enum	ASSET_REQUIREMENT_TYPE { REQUIRES_NODE, REQUIRES_TIMELINE }

enum	TIMELINE_GET_MODE { GET_DEFAULT, GET_TIMELINE, GET_TIMELINE_GROUP, GET_COMPONENT_OF_TIMELINE_GROUP }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYIDrawerView ()

virtual bool	Init () override

virtual bool	HandleEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

virtual void	OnPropertyAnimationComplete (CYISceneNode *pNode, YI_NODE_PROPERTY_TYPE ePropType)

virtual void	Open ()

virtual void	Close ()

virtual void	ShowDrawer ()

virtual void	HideDrawer ()

DIRECTION	GetDrawerOpenDirection () const

void	SetDrawerOpenDirection (DIRECTION eDirection, float fDrawerLength)

STATE	GetDrawerState () const

float	GetDrawerThreshold () const

void	SetDrawerThreshold (float fDrawerThresholdPercentage)

uint32_t	GetDrawerDelay () const

void	SetDrawerDelay (uint32_t fDrawerDelayMs)

void	SetDrawerOpenInterpolator (CYITimeInterpolator *pInterpolator)

void	SetDrawerCloseInterpolator (CYITimeInterpolator *pInterpolator)

Public Member Functions inherited from CYISceneView
	CYISceneView ()

virtual	~CYISceneView ()

bool	BuildFromTemplate (CYISceneManager *pSceneManager, const std::shared_ptr< CYIAssetViewTemplate > &pAssetViewTemplate, CYISceneManager::MISSING_CLASS_HANDLING_MODE eMissingHandlingMode=CYISceneManager::ABORT)

bool	IsInitialized () const

void	SetClippingAreaNode (CYISceneNode *pClippingNode)

virtual bool	GetProperty (const CYIString &propertyName, CYIString *pValue) const override

void	EnableDefaultHitZone ()

bool	IsResponsiveLayoutEnabled () const

void	EnableResponsiveLayout ()

void	DisableResponsiveLayout ()

void	AddAnchor (YI_ANCHOR_TYPE anchorType)

YI_ANCHOR_DATA	GetAnchor (YI_ANCHOR_TYPE anchorType) const

virtual const CYISceneView::AssetRequirement *	GetAssetRequirements (uint32_t *pRequirementCount)

CYIAbstractTimeline *	GetInTimeline () const

CYIAbstractTimeline *	GetOutTimeline () const

CYIAbstractTimeline *	GetFocusInTimeline () const

CYIAbstractTimeline *	GetFocusOutTimeline () const

virtual bool	HandlesFocusInDescendants () const

virtual bool	RequestFocus (CYIFocus::FOCUS_DIRECTION eDirection=CYIFocus::FOCUS_FORWARD, CYIFocus::FOCUS_ROOT_RULE eFocusRootRule=CYIFocus::FOCUS_ROOT_DESCENDANTS_UPDATE_CONTEXT, const CYIAABB &previousFocusRect=CYIAABB(), const CYIFocusSearchOptions &options=CYIFocusSearchOptions())

bool	HasFocus () const

void	SetFocusable (bool bFocusable)

bool	IsFocusable () const

bool	CanBeFocused () const

void	SetNextFocus (CYISceneView *pView, CYIFocus::FOCUS_DIRECTION eDirection)

CYISceneView *	GetNextFocus (CYIFocus::FOCUS_DIRECTION eDirection) const

void	SetInitiallyFocusedView (CYISceneView *pView)

CYISceneView *	GetInitiallyFocusedView () const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

CYISceneView *	FindNextFocus (CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

virtual CYISceneView *	FindNextFocusInDescendants (const CYISceneView *pCurrentFocusView, CYIFocus::FOCUS_DIRECTION eDirection, CYIAABB &screenSpaceFocusRegion, const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

const CYISceneNode *	GetFocusRoot () const

CYISceneView *	GetFocusHandler () const

virtual void	OnFocusGained ()

virtual void	FocusGained ()

virtual void	OnFocusLost ()

virtual void	FocusLost ()

const std::shared_ptr< CYIAssetViewTemplate > &	GetViewTemplate () const

const std::vector< CYIString > &	GetChildTemplateNames ()

virtual CYIAbstractTimeline *	GetTimeline (const CYIString &rMarkerName, TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYIAbstractTimeline *	GetTimeline (CYIMarkerData::MARKER_ID eID, TIMELINE_GET_MODE eMode=GET_DEFAULT)

std::map< CYIString, CYITimeline * >	GetTimelines () const

bool	FindTimeline (CYIAbstractTimeline *&pTimeline, const CYIString &markerName, FETCH_TYPE eType, const CYIString &tag="", TIMELINE_GET_MODE eMode=GET_DEFAULT)

CYITimelineGroup *	GetTimelineGroup (const CYIString &markerName)

std::unique_ptr< CYITimelineGroup >	BuildTimelineGroup (const CYIString &markerName)

void	BuildAnchorList ()

virtual void	Reset ()

void	SetLayout (std::unique_ptr< CYILayout > pLayout)

const CYILayout *	GetLayout () const

CYILayout *	GetLayout ()

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

virtual void	ApplyMeasurements () override

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &children, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Public Member Functions inherited from CYIEventHandler
	CYIEventHandler ()

	CYIEventHandler (const CYIEventHandler &)

virtual	~CYIEventHandler ()

CYIEventHandler &	operator= (const CYIEventHandler &)

bool	RegisterEventFilter (CYIEventFilter *pFilter)

bool	UnregisterEventFilter (CYIEventFilter *pFilter)

bool	PreFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	PostFilter (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

bool	AreEventsEnabled () const

void	EnableEvents (bool bEnable)

Public Attributes
CYISignal< float >	OpenedPercentage

CYISignal	Opened

CYISignal	Closed

CYISignal< STATE >	DrawerStateChanged

Public Attributes inherited from CYISceneView
CYISignal< CYISceneView * >	GainedFocus
	Emitted when focus has entered this view. More...

CYISignal< CYISceneView * >	LostFocus
	Emitted when focus has left this view. More...

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Protected Member Functions
void	SetDrawerState (STATE state)

YI_NODE_PROPERTY_TYPE	GetDrawerPropertyType () const

float	GetDrawerPosition () const

bool	IsInversed () const

bool	IsHorizontal () const

Protected Member Functions inherited from CYISceneView
void	UpdateClipping ()

virtual void	WorldScaleUpdated () override

virtual void	WorldBoundingBoxUpdated () override

virtual void	OnViewReflowed (const glm::vec3 &worldScale)

virtual void	ViewReflowed (const glm::vec3 &worldScale)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

void	UpdateResponsiveLayoutAnchors ()

virtual void	SizeChanged () override

virtual void	ChildNeedsLayout () override

virtual void	LayoutDirtied () override

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	OnViewIsInAnimatedPosition ()

void	OnViewIsGoingOutOfAnimatedPosition ()

void	SetInTimeline (CYIAbstractTimeline *pTimeline)

void	SetOutTimeline (CYIAbstractTimeline *pTimeline)

virtual void	OnInit ()

bool	TryRequestFocusOnInitiallyFocusedView ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
DIRECTION	m_eDrawerOpenDirection

STATE	m_eDrawerState

float	m_fPointerStartPos

float	m_fDrawerStartPos

float	m_fDrawerClosePos

float	m_fDrawerOpenPos

float	m_fDrawerHiddenPos

float	m_fDrawerThreshold

uint32_t	m_nDrawerDelayMs

CYITimeInterpolator *	m_pDrawerOpenInterpolator

CYITimeInterpolator *	m_pDrawerCloseInterpolator

Protected Attributes inherited from CYISceneView
bool	m_bStopEventPropagation

bool	m_bResponsiveLayoutEnabled

bool	m_bSceneTreeBuilt

bool	m_bInAnimatedPosition

CYISceneNode *	m_pClippingNode

CYIAbstractTimeline *	m_pFocusInTimeline

CYIAbstractTimeline *	m_pFocusOutTimeline

std::unique_ptr< CYILayout >	m_pLayout

std::shared_ptr< CYIAssetViewTemplate >	m_pAssetViewTemplate

std::shared_ptr< CYISceneNodeProxy >	m_pInitiallyFocusedView

std::multimap< YI_ANCHOR_TYPE, YI_ANCHOR_DATA >	m_anchors

std::map< CYIString, std::unique_ptr< CYITimeline > >	m_timelines

std::map< CYIString, std::unique_ptr< CYIParallelTimelineGroup > >	m_timelineGroups

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Protected Attributes inherited from CYIEventHandler
bool	m_bEnableEvents

Additional Inherited Members
Static Public Member Functions inherited from CYISceneView
static void	RegisterAllViews ()

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Member Enumeration Documentation

enum CYIDrawerView::DIRECTION

The direction the drawer will open. The direction is relative to the parent's local space.

Enumerator
DIRECTION_BOTTOM_TO_TOP	Direction used for bottom edge drawers that will open from bottom to top.
DIRECTION_TOP_TO_BOTTOM	Direction used for top edge drawers that will open from top to bottom.
DIRECTION_LEFT_TO_RIGHT	Direction used for left edge drawers that will open from left to right.
DIRECTION_RIGHT_TO_LEFT	Direction used for right edge drawers that will open from right to left.

enum CYIDrawerView::STATE

Possible states the drawer can be in.

Enumerator
STATE_CLOSED	The drawer is closed but still visible, a "handle" to open the drawer may be visible.
STATE_OPENED	The drawer is open and visible.
STATE_OPENING	The drawer is transitioning to STATE_OPENED.
STATE_CLOSING	The drawer is transitioning to STATE_CLOSED.
STATE_CLOSED_HIDDEN	The drawer is logically closed but is hidden.
STATE_OPENED_HIDDEN	The drawer is logically open but is hidden.

Constructor & Destructor Documentation

CYIDrawerView::CYIDrawerView ( )

Member Function Documentation

virtual void CYIDrawerView::Close ( )

virtual

Closes the drawer using a CYISceneNode::PropertyAnimation. The animation can be configured using SetDrawerCloseInterpolator and SetDrawerDelay. This function has no effect if the drawer is already 'fully' closed.

uint32_t CYIDrawerView::GetDrawerDelay ( ) const

inline

See also: SetDrawerDelay

CYIDrawerView::DIRECTION CYIDrawerView::GetDrawerOpenDirection ( ) const

inline

See also: SetDrawerOpenDirection

float CYIDrawerView::GetDrawerPosition ( ) const

protected

Returns the right axis position based on the DIRECTION.

YI_NODE_PROPERTY_TYPE CYIDrawerView::GetDrawerPropertyType ( ) const

protected

Returns the CYISceneNode::YI_NODE_PROPERTY_TYPE based on the DIRECTION.

CYIDrawerView::STATE CYIDrawerView::GetDrawerState ( ) const

inline

Returns the current drawer state.

See also: DrawerStateChanged

float CYIDrawerView::GetDrawerThreshold ( ) const

inline

See also: SetDrawerThreshold

virtual bool CYIDrawerView::HandleEvent	(	const std::shared_ptr< CYIEventDispatcher > &	pDispatcher,
		CYIEvent *	pEvent
	)

overridevirtual

Pure virtual for the child to implement according to how they wish the events to be handled.

The method is to return true if the event was processed and false otherwise.

Reimplemented from CYISceneView.

virtual void CYIDrawerView::HideDrawer ( )

virtual

Hides the drawer if it was revealed. If the drawer was already hidden, this function will have no effect. The drawer will simply move outside of the edge of the screen in the opposed direction of their opening direction, and will use the closing interpolator.

See also: SetDrawerOpenInterpolator

virtual bool CYIDrawerView::Init ( )

overridevirtual

Initializes the view and all of its content. Subclasses must call CYISceneView::Init().

Note: This must be called after CYISceneView::BuildFromTemplate()

Reimplemented from CYISceneView.

bool CYIDrawerView::IsHorizontal ( ) const

protected

Returns true when DIRECTION is either DIRECTION_LEFT_TO_RIGHT or DIRECTION_RIGHT_TO_LEFT.

bool CYIDrawerView::IsInversed ( ) const

protected

Returns true if DIRECTION is either DIRECTION_BOTTOM_TO_TOP or DIRECTION_RIGHT_TO_LEFT.

virtual void CYIDrawerView::OnPropertyAnimationComplete	(	CYISceneNode *	pNode,
		YI_NODE_PROPERTY_TYPE	ePropType
	)

virtual

virtual void CYIDrawerView::Open ( )

virtual

Opens the drawer using a CYISceneNode::PropertyAnimation. The animation can be configured using SetDrawerOpenInterpolator and SetDrawerDelay. This function has no effect if the drawer is already 'fully' opened.

void CYIDrawerView::SetDrawerCloseInterpolator ( CYITimeInterpolator * pInterpolator )

inline

Sets the closing animation interpolator of this drawer. The default value is CYIInterpolateQuadEaseOut.

The caller retains ownership of pInterpolator.

void CYIDrawerView::SetDrawerDelay ( uint32_t fDrawerDelayMs )

inline

Sets the opening/closing animation duration of the drawer in milliseconds. This duration is used when the drawer is programatically opened or closed, and when the drawer is released and must animate to the closed or opened position.

The default value is 500ms.

void CYIDrawerView::SetDrawerOpenDirection	(	DIRECTION	eDirection,
		float	fDrawerLength
	)

Sets the drawer opening direction and opening distance. The default direction is automatically selected depening on where the center point of the drawer is located from the edges of the screen. The default drawer distance will be either the width or the height of the view depending on the edge that was selected during the init.

void CYIDrawerView::SetDrawerOpenInterpolator ( CYITimeInterpolator * pInterpolator )

inline

Sets the opening animation interpolator of this drawer. The default value is CYIInterpolateQuadEaseOut.

The caller retains ownership of pInterpolator.

void CYIDrawerView::SetDrawerState ( STATE state )

protected

Updates the state and emits the DrawerStateChanged signal.

void CYIDrawerView::SetDrawerThreshold ( float fDrawerThresholdPercentage )

inline

Sets the opening/closing threshold as a percentage.

The drawer threshold specifies how far the drawer must be pulled to continue opening/closing when the drawer is released. If the drawer is not pulled past this threshold, the direction will reverse when the drawer is released.

Values are expressed as a percentage of the drawer length, in the range from 0.0 to 1.0 although values outside this range can be specified.

The default value is 0.25.

virtual void CYIDrawerView::ShowDrawer ( )

virtual

Reveals the drawer if it was hidden. If the drawer was already revealed, this function will have no effect. The drawer will simply back inside of the edge of the screen in the same direction of their opening direction, and will use the opening interpolator. If the drawer state was set to be opened, the drawer will be revealed opened and vice-versa.

See also: SetDrawerCloseInterpolator

Member Data Documentation

CYISignal CYIDrawerView::Closed

Emitted when the drawer is fully closed.

See also: Opened

CYISignal<STATE> CYIDrawerView::DrawerStateChanged

Emitted when the drawer state has changed.

See also: GetDrawerState

DIRECTION CYIDrawerView::m_eDrawerOpenDirection

protected

STATE CYIDrawerView::m_eDrawerState

protected

float CYIDrawerView::m_fDrawerClosePos

protected

float CYIDrawerView::m_fDrawerHiddenPos

protected

float CYIDrawerView::m_fDrawerOpenPos

protected

float CYIDrawerView::m_fDrawerStartPos

protected

float CYIDrawerView::m_fDrawerThreshold

protected

float CYIDrawerView::m_fPointerStartPos

protected

uint32_t CYIDrawerView::m_nDrawerDelayMs

protected

CYITimeInterpolator* CYIDrawerView::m_pDrawerCloseInterpolator

protected

CYITimeInterpolator* CYIDrawerView::m_pDrawerOpenInterpolator

protected

CYISignal CYIDrawerView::Opened

Emitted when the drawer is fully opened.

See also: Closed

CYISignal<float> CYIDrawerView::OpenedPercentage

Indicates how far a user has pulled the drawer open. Values are in the range of 0.0 to 1.0 range, where 0.0 indicates fully closed and 1.0 indicates fully open.

Note: Use Opened and Closed to be notified when the drawer becomes fully open or fully closed, respectively.

The documentation for this class was generated from the following file:

view/YiDrawerView.h

Detailed Description

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
