Detailed Description

In 3D rendering, a camera is something that defines a view and a projection using a pair of matrices. This class provides the APIs and behaviours describing the projection component of a camera. See the base class CYIAbstractCameraSceneNode for the definition of the "view" component of a camera.

An orthographic transformation is a 2D projection in which parallel lines remain parallel and there is no vanishing point. The camera's viewing volume is a rectangular prism and objects are rendered the same size regardless of distance to the camera.

      _______
     |       |

[]o | | |_______|

A standard way of defining an orthographic projection is by specifying the top, left, bottom, and right of a viewing volume.

#include <scenetree/YiOrthographicCameraSceneNode.h>

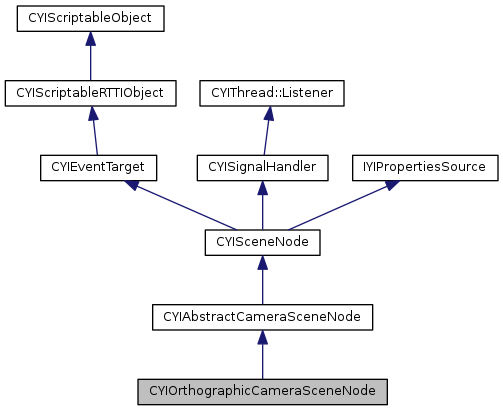

Inheritance diagram for CYIOrthographicCameraSceneNode:

[legend]

Public Member Functions
	CYIOrthographicCameraSceneNode ()

virtual	~CYIOrthographicCameraSceneNode ()

void	SetLeft (float fLeft)

void	SetRight (float fRight)

void	SetBottom (float fBottom)

void	SetTop (float fTop)

Public Member Functions inherited from CYIAbstractCameraSceneNode
void	SetUpVector (const glm::vec3 &fCamUp)

const glm::vec3 &	GetUpVector () const

void	SetTarget (CYISceneNode *pTargetNode)

CYISceneNode *	GetTarget () const

void	RemoveTarget ()

const glm::mat4 &	GetCameraMatrix () const

void	SetViewport (const CYIViewport &viewport)

const CYIViewport &	GetViewport () const

const glm::mat4 &	GetViewMatrix () const

const glm::mat4 &	GetProjectionMatrix () const

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

virtual bool	Init ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &drawList, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr)

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true)

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual bool	GetProperty (const CYIString &rPropertyName, CYIString *pValue) const override

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec)

virtual void	ApplyMeasurements ()

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Protected Member Functions
virtual glm::mat4	CalculateProjectionMatrix () const override

virtual CYIString	GetDumpTreeString () const override

Protected Member Functions inherited from CYIAbstractCameraSceneNode
	CYIAbstractCameraSceneNode ()

void	DirtyProjectionMatrix ()

glm::mat4	CalculateViewMatrix () const

glm::mat4	CalculateViewportMatrix () const

const glm::mat4 &	GetViewportWorldMatrix () const

virtual void	UpdateEnd () override

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	WorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	WorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	ChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	ChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	SizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	ChildNeedsLayout ()

virtual void	LayoutDirtied ()

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

virtual void	ChildVisibilityChanged (CYISceneNode *pChild)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Constructor & Destructor Documentation

CYIOrthographicCameraSceneNode::CYIOrthographicCameraSceneNode ( )

virtual CYIOrthographicCameraSceneNode::~CYIOrthographicCameraSceneNode ( )

virtual

Member Function Documentation

virtual glm::mat4 CYIOrthographicCameraSceneNode::CalculateProjectionMatrix ( ) const

overrideprotectedvirtual

Subclasses must implement this function to return their calculated projection matrix. This function will be called if the result of IsProjectionDirty() is true on a given frame.

Implements CYIAbstractCameraSceneNode.

virtual CYIString CYIOrthographicCameraSceneNode::GetDumpTreeString ( ) const

overrideprotectedvirtual

Returns a string containing useful information about this node, displayed by DumpTree

Subclasses can implement this method to specify different or additional information. Appending to the default string is recommended.

See also: DumpTree()

Reimplemented from CYIAbstractCameraSceneNode.

void CYIOrthographicCameraSceneNode::SetBottom ( float fBottom )

Set the bottom bound of the orthographic projection

The environment viewed by the camera will be mapped to a rectangular region bounded by the left, right, bottom, and top of the camera.

An orthographic projection is a projection in which parallel sides remain parallel regardless of the position or orientation of the objects depicted.

void CYIOrthographicCameraSceneNode::SetLeft ( float fLeft )

Set the left bound of the orthographic projection.

The environment viewed by the camera will be mapped to a rectangular region bounded by the left, right, bottom, and top of the camera.

An orthographic projection is a projection in which parallel sides remain parallel regardless of the position or orientation of the objects depicted.

void CYIOrthographicCameraSceneNode::SetRight ( float fRight )

Set the right bound of the orthographic projection

The environment viewed by the camera will be mapped to a rectangular region bounded by the left, right, bottom, and top of the camera.

An orthographic projection is a projection in which parallel sides remain parallel regardless of the position or orientation of the objects depicted.

void CYIOrthographicCameraSceneNode::SetTop ( float fTop )

Set the top bound of the orthographic projection

The environment viewed by the camera will be mapped to a rectangular region bounded by the left, right, bottom, and top of the camera.

An orthographic projection is a projection in which parallel sides remain parallel regardless of the position or orientation of the objects depicted.

The documentation for this class was generated from the following file:

scenetree/YiOrthographicCameraSceneNode.h

Detailed Description

Public Member Functions

Protected Member Functions

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation
