Detailed Description

Provides special resize behaviour typically useful for images.

Image layers in AE are imported as CYIImageSceneNode.

The following properties are supported by the CYIImageSceneNode:

Label	Default value	Accepted values	Description
size-mode	stretch	stretch, fill, fit, original-size	The sizing mode which will be applied when the image node size is larger than the original image texture size. See also SIZE_MODE
repeat-mode	none	none, tile, mirror, clamp	The repeat mode which will be applied when the image node size is larger than the original image texture size. See also REPEAT_MODE
mipmapping	false	true, false	Toggles whether the underlying texture will use mipmapping.

#include <scenetree/YiImageSceneNode.h>

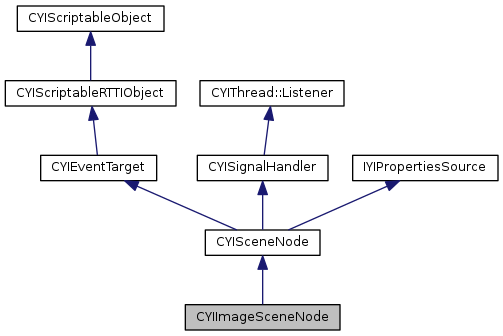

Inheritance diagram for CYIImageSceneNode:

[legend]

Public Types
enum	SIZE_MODE { SIZE_STRETCH = 0, SIZE_FILL, SIZE_FIT, SIZE_ORIGINAL_SIZE }

enum	REPEAT_MODE { REPEAT_NONE, REPEAT_TILE, REPEAT_MIRROR, REPEAT_CLAMP_TO_EDGE }

Public Types inherited from CYISceneNode
enum	DirtyFlag { DirtyClean = 0x0000, DirtySceneGraph = 0x0001, DirtyVisibility = 0x0002, DirtyOpacity = 0x0004, DirtyLocalTransform = 0x0008, DirtyWorldTransform = 0x0010, DirtyUniform = 0x0020, DirtyWorldBoundingBox = 0x0040, DirtyMesh = 0x0080, DirtyWorldSurfaceScale = 0x0100, DirtyWorldScale = 0x0200, DirtyLocalBoundingBox = 0x0400, DirtyEverything = (DirtySceneGraph \| DirtyVisibility \| DirtyOpacity \| DirtyLocalTransform \| DirtyWorldTransform \| DirtyUniform \| DirtyWorldBoundingBox \| DirtyWorldSurfaceScale \| DirtyWorldScale \| DirtyLocalBoundingBox) }

enum	LayoutDirtyFlag { LayoutClean, LayoutChildDirty, LayoutDirty }

enum	LayoutConfigFetchMode { LAYOUT_CONFIG_DO_NOT_LAZY_INSTANTIATE = 0, LAYOUT_CONFIG_LAZY_INSTANTIATE }

enum	MeasureMode { MEASURE_UNSPECIFIED, MEASURE_UP_TO, MEASURE_EXACTLY }

enum	FETCH_TYPE { FETCH_OPTIONAL = 0, FETCH_MANDATORY }

typedef std::reverse_iterator< Iterator >	ReverseIterator

Public Types inherited from CYIEventTarget
enum	EVENT_PHASE { BUBBLE, CAPTURE }

Public Member Functions
	CYIImageSceneNode ()

virtual	~CYIImageSceneNode ()

virtual bool	Init () override

virtual void	SetSize (const glm::vec3 &vSize, bool bDirtyLayout=true) override

void	SetSizeMode (SIZE_MODE eScaleMode)

SIZE_MODE	GetSizeMode () const

void	SetRepeatMode (REPEAT_MODE eRepeatMode)

REPEAT_MODE	GetRepeatMode () const

void	SetImageScale (const glm::vec2 &vImageScale)

const glm::vec2 &	GetImageScale () const

void	SetImageAlignment (const glm::vec2 &vImageAlignment)

const glm::vec2 &	GetImageAlignment () const

void	SetMipmappingEnabled (bool bEnable)

bool	IsMipmappingEnabled () const

virtual void	Measure (const MeasureSpec &widthSpec, const MeasureSpec &heightSpec, const MeasureSpec &depthSpec) override

Public Member Functions inherited from CYISceneNode
	CYISceneNode ()

virtual	~CYISceneNode ()

void	ForceDirty ()

void	ClearDirtyFlag ()

void	SetDirtyFlag (DirtyFlag eDirtyFlag)

DirtyFlag	GetDirtyFlag () const

DirtyFlag	GetPreviousDirtyFlag () const

const CYIString &	GetName () const

CYIString	GetUniqueName () const

void	SetSceneManager (CYISceneManager *pSceneManager)

void	SetName (const CYIString &name)

int32_t	GetID () const

void	SetID (int32_t nID)

uint64_t	GetUniqueID () const

bool	AddChild (std::unique_ptr< CYISceneNode > pSceneNode)

bool	AddChild (std::unique_ptr< CYISceneNode >, int32_t nIndex)

bool	InsertChildAfter (CYISceneNode *pRefNode, std::unique_ptr< CYISceneNode > pSceneNode)

std::unique_ptr< CYISceneNode >	RemoveChild (CYISceneNode *pSceneNode)

bool	ReorderChild (uint32_t uFromIndex, uint32_t uToIndex)

CYISceneNode *	GetParent () const

bool	ChangeParent (CYISceneNode *pParent)

CYISceneNode *	GetDrawParent () const

bool	IsAncestorOf (const CYISceneNode *pNode) const

CYISceneManager *	GetSceneManager () const

uint32_t	GetChildCount () const

uint32_t	GetChildCountRecursive () const

CYISceneNode *	GetChild (uint32_t nIndex) const

Iterator	begin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

Iterator	end (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rbegin (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

ReverseIterator	rend (Iterator::ITERATION_MODE eMode=Iterator::IMMEDIATE_CHILDREN) const

CYISceneNode *	GetChild (const CYIString &sName) const

uint32_t	GetDrawChildCount () const

CYISceneNode *	GetDrawChild (uint32_t uIndex) const

CYISceneNode *	GetDrawChildByID (int32_t nID) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetChild (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
std::list< YI_SCENE_NODE_SUBCLASS * >	GetChildren () const

int32_t	GetIndexOfChild (const CYISceneNode *pSceneNode) const

void	Show ()

void	Hide ()

void	SetVisibility (bool bVisible)

void	SetOpacity (float fOpacity)

float	GetCompositeOpacity () const

float	GetLocalOpacity () const

bool	IsVisible () const

bool	IsTrulyVisible () const

CYISceneNode *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const CYIString &name, const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNode (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, CYISceneNode *pStartAfterTarget)

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (const CYIString &name)

CYISceneNode *	GetNode (const int32_t nID)

CYISceneNode *	GetNode (const int32_t nID, const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
bool	FindNode (YI_SCENE_NODE_SUBCLASS *&pNode, const CYIString &nodeName, FETCH_TYPE eType, const CYIString &tag)

std::list< CYISceneNode * >	GetNodes (const CYIString &name)

std::list< CYISceneNode * >	GetNodes (int32_t nID)

std::list< CYISceneNode * >	GetNodes (const CYIRuntimeTypeInfo &enforceClassType)

template<class YI_SCENE_NODE_SUBCLASS >
const YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1) const

template<class YI_SCENE_NODE_SUBCLASS >
YI_SCENE_NODE_SUBCLASS *	GetNode (uint32_t uTargetMatchedNodeCount=1)

void	SetMesh (const std::shared_ptr< CYIMesh > &pMesh)

void	SetMaterial (const std::shared_ptr< CYIMaterial > &pMaterial, uint32_t nIndex=0)

void	AddEffect (const std::shared_ptr< CYIEffect > &pEffect)

void	RemoveEffect (const std::shared_ptr< CYIEffect > &pEffect)

uint32_t	GetEffectCount () const

std::shared_ptr< CYIEffect >	GetEffect (uint32_t uIndex) const

void	ConnectEffectsToTimelines (const CYITimelineTrack *pTrack)

void	AddMask (std::unique_ptr< CYIMask > pMask)

std::unique_ptr< CYIMask >	RemoveMask (const CYIMask *pMask)

uint32_t	GetMaskCount () const

const CYIMask *	GetMask (uint32_t uIndex) const

CYIMask *	GetMask (uint32_t uIndex)

const std::shared_ptr< CYIMesh > &	GetMesh () const

uint32_t	GetMaterialCount () const

const std::shared_ptr< CYIMaterial >	GetMaterial (uint32_t nIndex=0) const

const std::shared_ptr< IYIUniformBufferObject > &	GetShaderUniforms () const

void	SetMeshTransform (const glm::mat4 &rTransform)

void	DestroyChildren ()

const glm::mat4 &	GetLocalTransform () const

const glm::mat4 &	GetEffectTransform () const

const glm::mat4 &	GetWorldTransform () const

bool	Intersects (const CYISceneNode *pNode) const

void	SetRenderTarget (const std::shared_ptr< CYIRenderTarget > &pRenderTarget)

const std::shared_ptr< CYIRenderTarget >	GetRenderTarget () const

virtual void	BuildDrawList (std::vector< IYIRenderer::Command > &drawList, CYIAbstractCameraSceneNode *pCameraToDrawWith=nullptr)

const CYIAABB &	GetWorldAABB () const

const CYIAABB &	GetLocalAABB () const

void	SetAnchorPoint (const glm::vec3 &ref)

void	SetAnchorPoint (float fX, float fY, float fZ)

void	SetAnchorPointX (float fX)

void	SetAnchorPointY (float fY)

void	SetAnchorPointZ (float fZ)

void	SetPosition (const glm::vec3 &ref)

void	SetPosition (float fX, float fY, float fZ)

void	SetPositionX (float fX)

void	SetPositionY (float fY)

void	SetPositionZ (float fZ)

void	SetRotation (const glm::vec3 &fEulerDegrees)

void	SetRotation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetRotationX (float fPitchDegrees)

void	SetRotationY (float fYawDegrees)

void	SetRotationZ (float fRollDegrees)

void	SetOrientation (float fPitchDegrees, float fYawDegrees, float fRollDegrees)

void	SetOrientation (const glm::quat &orient)

void	SetScale (const glm::vec3 &fScaleFactors)

void	SetScale (float fFactorX, float fFactorY, float fFactorZ)

void	SetScaleX (float fFactor)

void	SetScaleY (float fFactor)

void	SetScaleZ (float fFactor)

const glm::vec3 &	GetPosition () const

const glm::vec3 &	GetScale () const

const glm::vec3 &	GetWorldScale () const

const glm::vec3 &	GetWorldSurfaceScale () const

const glm::vec3 &	GetRotation () const

const glm::quat &	GetOrientation () const

const glm::vec3 &	GetAnchorPoint () const

const glm::vec3 &	GetSize () const

const glm::vec3 &	GetInitialSize () const

void	SetMeasuredSize (const glm::vec3 &vMeasuredSize)

const glm::vec3 &	GetMeasuredSize () const

void	SetInternalCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

virtual void	SetCustomTimelineValue (uint32_t nTrackID, const CYIVariant &value)

void	SetClippingOn ()

void	SetClippingOff ()

bool	GetClipping () const

void	SetClippingBox (const CYIAABB &rWorldBox)

const CYIAABB &	GetClippingBox () const

void	StartPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType, float fFrom, float fTo, uint32_t nDurMs, CYITimeInterpolator *pTimeInterpolator=nullptr, bool bDirtyLayout=true)

void	StopPropertyAnimation (YI_NODE_PROPERTY_TYPE ePropType)

void	UpdateLocalSpaceCollision (CYIActionEvent *pActionEvent)

virtual bool	BroadcastEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent)

void	UpdateEventForLocalSpace (CYIActionEvent *pActionEvent, glm::vec3 &rayOrigin, glm::vec3 &rayNonOriginPoint) const

bool	IsBoundingBoxHit (const CYIRay &rWorldSpaceRay) const

bool	IsMeshHit (const CYIRay &rWorldSpaceRay) const

void	DumpTree () const

void	StartCaptureKeyboardEvents ()

void	StopCaptureKeyboardEvents ()

void	StartCaptureTrackpadEvents ()

void	StopCaptureTrackpadEvents ()

void	StartCapturePointerEvents (uint8_t uPointerID)

void	StopCapturePointerEvents (uint8_t uPointerID)

bool	DrawBehindChildren (CYISceneNode *pSceneNode)

bool	DrawInFrontOfChildren (CYISceneNode *pSceneNode)

bool	DrawBehind (CYISceneNode *pSceneNode)

bool	DrawInFront (CYISceneNode *pSceneNode)

bool	IsFocusRoot () const

void	SetIsFocusRoot (bool bIsFocusRoot)

virtual void	OnFocusGainedInDescendants ()

virtual void	FocusGainedInDescendants ()

virtual void	OnFocusLostInDescendants ()

virtual void	FocusLostInDescendants ()

virtual void	OnFocusChangedInDescendants ()

virtual void	FocusChangedInDescendants ()

virtual bool	ContainsFocusableDescendant (const CYIFocusSearchOptions &options=CYIFocusSearchOptions()) const

void	ShowPointerDebugNode (CYIActionEvent *pActionEvent)

void	SetUseLocalTransformAndAlpha (bool bUse)

virtual bool	GetProperty (const CYIString &rPropertyName, CYIString *pValue) const override

virtual const std::map< CYIString, CYIString > &	GetProperties () const override

void	SetProperty (const CYIString &rPropertyName, const CYIString &rPropertyValue)

const std::shared_ptr< CYISceneNodeProxy > &	GetSceneNodeProxy () const

void	SetLayoutConfig (std::unique_ptr< CYILayoutConfig > pLayoutConfig)

const CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE) const

CYILayoutConfig *	GetLayoutConfig (LayoutConfigFetchMode eFetchMode=LAYOUT_CONFIG_LAZY_INSTANTIATE)

void	SetLayoutState (std::unique_ptr< CYILayoutState > pLayoutState)

const CYILayoutState *	GetLayoutState () const

CYILayoutState *	GetLayoutState ()

void	RequestLayout ()

LayoutDirtyFlag	GetLayoutDirtyFlag () const

virtual void	SetLayoutDirtyFlag (LayoutDirtyFlag eFlag)

virtual void	ApplyMeasurements ()

CYIAbstractCameraSceneNode *	FindActiveCamera () const

template<typename T >
bool	CanCastTo () const

Public Member Functions inherited from CYIEventTarget
	CYIEventTarget ()

virtual	~CYIEventTarget ()

bool	AddEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

bool	RemoveEventListener (YI_EVENT_TYPE eEventType, CYIEventHandler *pListener, EVENT_PHASE ePhase=BUBBLE)

void	SetSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

void	ClearSpecialTypeFlag (YI_SPECIAL_EVENT_TARGET_TYPE eType)

YI_SPECIAL_EVENT_TARGET_TYPE	GetSpecialTypes () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Public Member Functions inherited from CYISignalHandler
	CYISignalHandler ()

	CYISignalHandler (const CYISignalHandler &rSignalHandler)

virtual	~CYISignalHandler ()

CYISignalHandler &	operator= (const CYISignalHandler &rSignalHandler)

void	MoveToThread (CYIThread *pThread)
	This function allows the user to override the default thread affinity to any CYIThread that may or may not be running. More...

CYIThreadHandle	GetThreadAffinity () const

void	SetThreadAffinity (const CYIThreadHandle &rThreadAffinity)

virtual bool	IsConnected () const

virtual bool	IsConnected (const CYISignalBase &rSignal) const

void	Disconnect (CYISignalBase &rSignal)

void	DisconnectFromAllSignals ()

Public Member Functions inherited from CYIThread::Listener
	Listener ()

virtual	~Listener ()

virtual void	OnThreadStarted (CYIThread *)

virtual void	OnThreadTerminated (CYIThread *)

virtual void	OnThreadFinished (CYIThread *)

Public Member Functions inherited from IYIPropertiesSource
virtual	~IYIPropertiesSource ()

Protected Member Functions
void	RecalculateMesh ()

Protected Member Functions inherited from CYISceneNode
void	Update (bool bForceDirty=false)

virtual void	OnUpdateBegin ()

virtual void	UpdateBegin ()

virtual void	OnUpdateEnd ()

virtual void	UpdateEnd ()

virtual void	OnDirtyFlagChanged ()

virtual void	DirtyFlagChanged ()

virtual void	OnTransformUpdated ()

virtual void	TransformUpdated ()

virtual void	OnWorldScaleUpdated ()

virtual void	WorldScaleUpdated ()

virtual void	OnWorldSurfaceScaleUpdated ()

virtual void	WorldSurfaceScaleUpdated ()

virtual void	OnVisibilityUpdated ()

virtual void	VisibilityUpdated ()

virtual void	OnCompositeOpacityUpdated ()

virtual void	CompositeOpacityUpdated ()

virtual void	OnWorldBoundingBoxUpdated ()

virtual void	WorldBoundingBoxUpdated ()

virtual void	OnLocalBoundingBoxUpdated ()

virtual void	LocalBoundingBoxUpdated ()

virtual void	OnChildAdded (CYISceneNode *pChild)

virtual void	ChildAdded (CYISceneNode *pChild)

virtual void	OnChildRemoved (CYISceneNode *pChild)

virtual void	ChildRemoved (CYISceneNode *pChild)

virtual void	OnSizeChanged ()

virtual void	SizeChanged ()

virtual void	CalculateLocalTransform (glm::mat4 *pTransform) const

virtual void	ChildNeedsLayout ()

virtual void	LayoutDirtied ()

virtual void	OnChildVisibilityChanged (CYISceneNode *pChild)

virtual void	ChildVisibilityChanged (CYISceneNode *pChild)

virtual bool	ProcessEvent (const std::shared_ptr< CYIEventDispatcher > &pDispatcher, CYIEvent *pEvent) override

LayoutDirtyFlag	GetCurrentLayoutDirtyFlag () const

virtual CYIString	GetDumpTreeString () const

void	DumpTree (int32_t nIndentLevel) const

void	SetShaderUniforms ()

virtual void	SetCustomUniforms ()

template<class T >
void	SetNodeType ()

virtual CYISceneNode *	GetNodeFromChildren (const CYIString &name)

virtual CYISceneNode *	GetNodeFromChildren (const int32_t nID)

virtual CYISceneNode *	GetNodeFromChildren (const CYIRuntimeTypeInfo &enforceClassType)

CYISceneNode *	GetNodeFromChildrenAfterTarget (const CYIRuntimeTypeInfo &enforceClassType, bool pbTargetReached, CYISceneNode pStartAfterTarget)

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Protected Attributes
SIZE_MODE	m_eSizeMode

REPEAT_MODE	m_eRepeatMode

glm::vec2	m_vImageScale

glm::vec2	m_vImageAlignment

bool	m_bUseMipmapping

Protected Attributes inherited from CYISceneNode
CYIString	m_name

CYISceneNode *	m_pParent

CYISceneNode *	m_pDrawParent

CYISceneManager *	m_pSceneManager

std::vector< std::unique_ptr< CYISceneNode > >	m_children

std::vector< CYISceneNode * >	m_drawChildren

std::map< CYIString, CYIString >	m_Properties

std::vector< std::shared_ptr< CYIMaterial > >	m_pMaterials

std::vector< std::unique_ptr< CYIMask > >	m_Masks

std::vector< std::shared_ptr< CYIEffect > >	m_Effects

std::vector< PropertyAnimation * >	m_propertyAnimations

float	m_fLocalOpacity

CYIAABB	m_WSClipBox

glm::mat4	m_EffectTransform

glm::quat	m_Orientation

glm::vec3	m_Rotate

glm::vec3	m_AnchorPoint

glm::vec3	m_Position

glm::vec3	m_Scale

glm::vec3	m_vSize

glm::vec3	m_vInitialSize

glm::vec3	m_vMeasuredSize

glm::vec3	m_vlsLastCollision

bool	m_bClip

bool	m_bIsRotated

bool	m_bIsOriented

bool	m_bLocalVisibility

int32_t	m_nID

uint64_t	m_uGUID

std::shared_ptr< CYIRenderTarget >	m_pRenderTarget

std::shared_ptr< CYIMesh >	m_pMesh

std::shared_ptr< IYIUniformBufferObject >	m_pShaderUniforms

Protected Attributes inherited from CYIEventTarget
YI_SPECIAL_EVENT_TARGET_TYPE	m_eSpecialTypes

std::vector< EventListenerEntry >	m_listeners

Additional Inherited Members
Static Public Member Functions inherited from CYISceneNode
static void	RegisterAllSceneNodes ()

Public Attributes inherited from CYISceneNode
CYISignal< CYISceneNode *, YI_NODE_PROPERTY_TYPE >	PropertyAnimationComplete

CYISignal	DescendantGainedFocus
	Emitted when focus has entered this tree. More...

CYISignal	DescendantLostFocus
	Emitted when focus has left this tree. More...

CYISignal	DescendantsChangedFocus
	Emitted when focus has changed within this tree. More...

Static Public Attributes inherited from CYISceneNode
static const float	OPACITY_NOT_VISIBLE_EPSILON

Member Enumeration Documentation

enum CYIImageSceneNode::REPEAT_MODE

When the node is resized, the selected repeat mode dictates how 'empty' space is used.

Note: When the scene node is measured and its repeat mode is not REPEAT_NONE, the reported measured size will always be the incoming measure specs (rather than be based on the image's size and size mode). This differs from the normal behaviour where the measured size would be calculated from the size mode, the incoming measure spec, and the original image size.; The repeat mode has no effect when the size mode is SIZE_STRETCH or SIZE_FILL.; To have a visible effect the CYIImageSceneNode size must be greater than the original image texture size as the CYIImageSceneNode size will be initialized to the size of the image texture. This can be accomplished by placing the CYIImageSceneNode in a layout which modifies the contents size. For example placing the CYIImageSceneNode in a CYIStackLayout with the fill-parent property enabled. Programatically setting the CYIImageSceneNode size via SetSize() outside of a layout will also work.

Warning: Not all devices support the use of REPEAT_TILE or REPEAT_MIRROR with non-power-of-two texture sizes. A power-of-two texture size is a texture which has a height and width that are a power-of-two, for example a 256x128 texture. If a device does not support this and the image has a non-power-of-two texture size the image will not be rendered. It is recommended when using these modes that the image texture width and height are power-of-two.

Default: REPEAT_NONE

Enumerator
REPEAT_NONE	No repeat.
REPEAT_TILE	The image is tiled to fill the node's size.
REPEAT_MIRROR	The image is tiled to fill the node's size, but adjacent tiles are mirrored.
REPEAT_CLAMP_TO_EDGE	The edge pixels of the image are 'stretched' to fill the node's size.

enum CYIImageSceneNode::SIZE_MODE

When the node is resized, the selected resize mode dictates how the image appears.

Default: SIZE_STRETCH

Enumerator
SIZE_STRETCH	Will resize the image to the size of the node. The aspect ratio will not be retained.
SIZE_FILL	Will resize on either the width or the height, whichever is larger. The image may be larger than the node size. The aspect ratio of the image will be retained.
SIZE_FIT	Will resize on either the width or the height, whichever is smaller. The image may be smaller than the node size. The aspect ratio of the image will be retained.
SIZE_ORIGINAL_SIZE	The original size and aspect ratio of the image will be retained and the image will be centered in the CYIImageSceneNode. The image may be smaller or larger than the node size.

Constructor & Destructor Documentation

CYIImageSceneNode::CYIImageSceneNode ( )

virtual CYIImageSceneNode::~CYIImageSceneNode ( )

virtual

Member Function Documentation

const glm::vec2& CYIImageSceneNode::GetImageAlignment ( ) const

const glm::vec2& CYIImageSceneNode::GetImageScale ( ) const

REPEAT_MODE CYIImageSceneNode::GetRepeatMode ( ) const

See also: REPEAT_MODE

SIZE_MODE CYIImageSceneNode::GetSizeMode ( ) const

See also: SetSizeMode

virtual bool CYIImageSceneNode::Init ( )

overridevirtual

Initializes the scene node. Children of the scene node are also recursively initialized.

Subclasses must call CYISceneNode::Init.

Note: A CYISceneManager must be set on the node using SetSceneManager before the node can be initialized.

See also: SetSceneManager

Reimplemented from CYISceneNode.

bool CYIImageSceneNode::IsMipmappingEnabled ( ) const

See also: SetMipmappingEnabled

virtual void CYIImageSceneNode::Measure	(	const MeasureSpec &	widthSpec,
		const MeasureSpec &	heightSpec,
		const MeasureSpec &	depthSpec
	)

overridevirtual

Measures this scene node, considering the layout configuration constraints (if available) and the provided measure specifications. The Measure function is used by the layout system to determine the 'desired' size of elements in a container. The result of calls to this function can be accessed through the GetMeasuredSize() function.

Note: The Measure function may be called multiple times on a single scene node during a layout pass.; The measure specs passed in must take in consideration the node's scale. For example, if a node is calling the Measure function on one of its children and that child has a scale of glm::vec3(1, 3, 1), then the fSize of heightSpec must be divided by 3.; The measured values may exceed the provided measure specifications if the specifications cannot be met given the constraints placed on this scene node. In other words, the constraints placed on this node have a higher priority than the provided measure specifications.

Warning: Subclasses that override this function must ensure that the Measure function of ALL children of this scene node is called at least once, even if those children are hidden.

Note: Typically, if Measure is overridden then ApplyMeasurements must also be overridden.; Subclasses that override this function should make use of the GetCurrentLayoutDirtyFlag() function (rather than GetLayoutDirtyFlag() ).

Reimplemented from CYISceneNode.

void CYIImageSceneNode::RecalculateMesh ( )

protected

void CYIImageSceneNode::SetImageAlignment ( const glm::vec2 & vImageAlignment )

Sets how the image should be aligned when a sizing mode is applied.

For the x component of the alignment, a value of 0.0f will align the left edge of the image to the left side of the size, a value of 1.0f will align the right edge of the image to the right side of the size, and a value of 0.5f will center the image horizontally. For the y component of the alignment, a value of 0.0f will align the top edge of the image to the top side of the size, a value of 1.0f will align the bottom edge of the image to the bottom side of the size, and a value of 0.5f will center the image vertically. Values outside of the 0.0f to 1.0f range are accepted and will behave as one might expect.

By default, the image is centered (using an image alignment of glm::vec2(0.5f, 0.5f)).

void CYIImageSceneNode::SetImageScale ( const glm::vec2 & vImageScale )

Sets an image scale for this image node. The image scale is an extra scale that is applied on top of the calculated image size for a given sizing mode. By default, the image scale is 1.0.

Note: Setting an image scale when the repeat mode is REPEAT_NONE will result in undefined behaviour.

void CYIImageSceneNode::SetMipmappingEnabled ( bool bEnable )

Configures the underlying texture to use mipmapping. Mipmapping is disabled by default.

See also: CYIAssetTextureBase::SetMipmappingEnabled

void CYIImageSceneNode::SetRepeatMode ( REPEAT_MODE eRepeatMode )

Sets and applies the repeat mode of this node.

See also: REPEAT_MODE

virtual void CYIImageSceneNode::SetSize	(	const glm::vec3 &	vSize,
		bool	bDirtyLayout = `true`
	)

overridevirtual

Applies the current resize mode.

Reimplemented from CYISceneNode.

void CYIImageSceneNode::SetSizeMode ( SIZE_MODE eScaleMode )

Sets and applies the resize mode of this node.

See also: SIZE_MODE

Member Data Documentation

bool CYIImageSceneNode::m_bUseMipmapping

protected

REPEAT_MODE CYIImageSceneNode::m_eRepeatMode

protected

SIZE_MODE CYIImageSceneNode::m_eSizeMode

protected

glm::vec2 CYIImageSceneNode::m_vImageAlignment

protected

glm::vec2 CYIImageSceneNode::m_vImageScale

protected

The documentation for this class was generated from the following file:

scenetree/YiImageSceneNode.h

Detailed Description

Public Types

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
