Detailed Description

A layout that positions all of its children in a 'stack'.

By default, children will be aligned to the top-left corner of their parent container and will be stacked on top of one another. The alignment can be changed with the 'gravity' or 'item-gravity' properties.

This layout respects the padding layout configuration option and the margin per-node layout configuration option.

Container View Template Comments Specification

This class has no configurable layout-specific properties, except for those in the parent class.

See also: CYIAnimatingLayout

Children View Template Comments Specification

This class has no configurable per-child properties, except for those in the parent class.

See also: CYIAnimatingLayout

#include <layout/YiStackLayout.h>

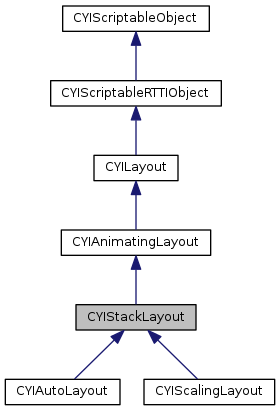

Inheritance diagram for CYIStackLayout:

[legend]

Public Member Functions
	CYIStackLayout ()

virtual	~CYIStackLayout ()

Public Member Functions inherited from CYIAnimatingLayout
	CYIAnimatingLayout ()

virtual	~CYIAnimatingLayout ()

void	DisableAnimationsOnNextLayout (bool bDisable=true)

void	DisableAnimationsOnNextLayoutFor (CYISceneNode *pChild, bool bDisable=true)

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	SetMovingTime (uint32_t uMovingTimeMs)

uint32_t	GetMovingTimeMs () const

void	SetSizingTime (uint32_t uSizingTimeMs)

uint32_t	GetSizingTimeMs () const

void	SetTimeInterpolator (std::unique_ptr< CYITimeInterpolator > pInterpolator)

CYITimeInterpolator *	GetTimeInterpolator ()

const CYITimeInterpolator *	GetTimeInterpolator () const

Public Member Functions inherited from CYILayout
	CYILayout ()

virtual	~CYILayout ()

void	AttachTo (CYISceneView *pView)

void	ConfigureFromAttachedNode ()

void	DetachFromNode ()

CYISceneNode *	GetAssociatedSceneNode () const

void	Measure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

void	ApplyMeasurements ()

void	SetPositioningMode (POSITIONING_MODE ePositioningMode)

POSITIONING_MODE	GetPositioningMode () const

void	SetPadding (const Padding &padding)

const Padding &	GetPadding () const

void	SetUseReverseChildrenOrder (bool bUseReverseChildrenOrder)

bool	IsUsingReverseChildrenOrder () const

void	SetGravity (const glm::vec3 &vLayoutGravity)

void	SetGravity (CYILayoutConfig::GRAVITY eGravity)

const glm::vec3 &	GetGravity () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	OnMeasure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec) override

virtual void	OnApplyMeasurements () override

Protected Member Functions inherited from CYIAnimatingLayout
virtual void	Configure () override

virtual void	OnMeasurementsApplied () override

virtual const CYIRuntimeTypeInfo &	GetLayoutConfigType () const override

virtual void	ApplyPosition (CYISceneNode *pChild, const glm::vec3 &vPosition) override

virtual void	ApplySize (CYISceneNode *pChild, const glm::vec3 &vSize) override

Protected Member Functions inherited from CYILayout
virtual void	OnSceneViewAttached ()

virtual void	OnMeasurementsCalculated (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

virtual std::unique_ptr< CYILayoutState >	CreateLayoutStateInstance () const

void	CreateLayoutObjectsFor (CYISceneNode *pNode) const

CYISceneNode *	GetChild (uint32_t uIndex) const

void	ApplyMeasurementsToBackgroundChildren ()

const Padding &	GetPaddingForChild (const CYISceneNode *pChild) const

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Public Types inherited from CYILayout
enum	POSITIONING_MODE { SET_POSITION_DIRECTLY, DO_NOT_SET_POSITION_DIRECTLY }

typedef CYILayoutConfig::CubeOffset	Padding

Static Public Member Functions inherited from CYILayout
static void	RegisterAllLayouts ()

static bool	IsLayoutable (const CYISceneNode *pNode)

static glm::vec3	GetDefaultSize (const CYISceneNode *pNode, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UpdateMeasuredSizeForFitContent (const CYISceneNode pNode, glm::vec3 pMeasuredSize, const glm::vec3 &contentSize, const Padding &padding, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UnscaleMeasureSpecs (const glm::vec3 &vScale, CYISceneNode::MeasureSpec pWidthSpec, CYISceneNode::MeasureSpec pHeightSpec, CYISceneNode::MeasureSpec *pDepthSpec)

static float	CalculateDimension (const CYISceneNode::MeasureSpec &spec, const CYILayoutConfig::SizeConstraint &constraint, float fCurrentValue)

Protected Types inherited from CYILayout
enum	DIMENSIONS { DIMENSIONS_NONE = 0x0, DIMENSIONS_X = 0x1, DIMENSIONS_Y = 0x2, DIMENSIONS_Z = 0x4, DIMENSIONS_ALL_BUT_X = DIMENSIONS_Y \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Y = DIMENSIONS_X \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Z = DIMENSIONS_X \| DIMENSIONS_Y, DIMENSIONS_ALL = DIMENSIONS_X \| DIMENSIONS_Y \| DIMENSIONS_Z }

Static Protected Member Functions inherited from CYILayout
static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding)

static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding, const glm::vec3 &vChildScale)

static CYISceneNode::MeasureSpec	CalculateChildMeasureSpec (const CYISceneNode::MeasureSpec &parentMeasureSpec, float fPadding, const CYILayoutConfig::SizeConstraint &childConstraint, float fChildScale)

static bool	UpdateMeasureSpecsForFitContent (const CYISceneNode pNode, CYISceneNode::MeasureSpec widthSpec, CYISceneNode::MeasureSpec heightSpec, CYISceneNode::MeasureSpec depthSpec)

static void	RemeasureChildrenForFillParent (const CYISceneNode *pNode, const glm::vec3 &vParentMeasuredSize, const Padding &padding, DIMENSIONS eDimensionsToRemeasure)

static glm::vec3	GetAdjustedPosition (const glm::vec3 &vDesiredTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetUnadjustedPosition (const glm::vec3 &vCurrentTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetAdjustedMeasuredSize (const CYISceneNode *pChild)

static glm::vec3	GetTopLeftPositionWithGravity (const glm::vec3 &vLayoutGravity, const glm::vec3 &vChildGravity, const glm::vec3 &vContainerTopLeft, const glm::vec3 &vContainerSize, const CYILayout::Padding &padding, const glm::vec3 &vChildSize, const CYILayoutConfig::Margin &margin, const glm::vec3 &vCurrentChildPosition)

static void	MeasureBackgroundChildren (CYISceneNode *pNode, const glm::vec3 &vSize)

Protected Attributes inherited from CYILayout
CYISceneView *	m_pNode
	In most cases, this variable is used as a node (thus the name m_pNode ) More...

Padding	m_padding

bool	m_bReverseChildrenOrder

glm::vec3	m_vGravity

POSITIONING_MODE	m_ePositioningMode

Constructor & Destructor Documentation

CYIStackLayout::CYIStackLayout ( )

virtual CYIStackLayout::~CYIStackLayout ( )

virtual

Member Function Documentation

virtual void CYIStackLayout::OnApplyMeasurements ( )

overrideprotectedvirtual

Applies the measured sizes of the associate scene node's children.

Warning: Implementations of this function are required to ensure that the ApplyMeasurements function of each child node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnApplyMeasurements is overridden then OnMeasure must also be overridden.

See also: CYILayout::ApplyMeasurements

Implements CYILayout.

Reimplemented in CYIScalingLayout.

virtual void CYIStackLayout::OnMeasure	(	const CYISceneNode::MeasureSpec &	widthSpec,
		const CYISceneNode::MeasureSpec &	heightSpec,
		const CYISceneNode::MeasureSpec &	depthSpec
	)

overrideprotectedvirtual

Measures the associated scene node, considering its layout configuration constraints (if available) and the provided measure specifications.

Warning: Implementations of this function are required to ensure that the Measure function of each child scene node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnMeasure is overridden then OnApplyMeasurements must also be overridden.

See also: CYILayout::Measure

Implements CYILayout.

Reimplemented in CYIScalingLayout.

The documentation for this class was generated from the following file:

layout/YiStackLayout.h
