Detailed Description

A layout that scales its children to fill their container.

This layout behaves like a CYIStackLayout, but with one major difference: after the children have been measured, this layout sets, on the children, a scaling factor that would cause the children to 'fill' their container. The 'scale mode' property can be used to specify how the children are scaled.

It is not necessary to set 'fill parent' on the children of this layout in order for the children to be scaled. However, setting 'fill parent' on the children modifies the behaviour of the scaling layout. If 'fill parent' is set on both the horizontal and vertical dimensions of a child, then no scaling is applied to that child. If 'fill parent' is applied to either of the horizontal or vertical dimensions of a child, then the child is resized to fill the parent in that dimension and the scaling layout will scale that calculated size. As a result, the 'fit' and 'fill' scaling modes have no effect when 'fill parent' is specified on a single dimension of a child.

The 'fit content' property can be specified on the layout. When 'fit content' is specified on both the horizontal and vertical dimensions, it results in a minimally-sized container. When used on a single dimension, the container is expanded to reduce the 'empty spaces' after scaling the children.

Container View Template Comments Specification

These values are applied to the comment field of the container composition. All properties are optional.

Label	Default value	Accepted values	Description
scale-mode	stretch	stretch, fit, fill, none	The scaling mode for the children. See also CYIScalingLayout::SCALE_MODE

The parent layout class may define more properties that can be used.

See also: CYIStackLayout

Children View Template Comments Specification

Note: Margins specified on children are in composition units, and thus do not get scaled along with the children.; Children marked as 'background' get measured normally and do not get scaled.

This class has no configurable per-child properties, except for those of the parent class.

See also: CYIStackLayout

#include <layout/YiScalingLayout.h>

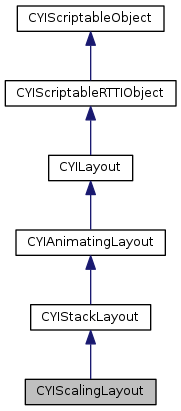

Inheritance diagram for CYIScalingLayout:

[legend]

Public Types
enum	SCALE_MODE { SCALE_STRETCH, SCALE_FIT, SCALE_FILL, SCALE_NONE }

Public Types inherited from CYILayout
enum	POSITIONING_MODE { SET_POSITION_DIRECTLY, DO_NOT_SET_POSITION_DIRECTLY }

typedef CYILayoutConfig::CubeOffset	Padding

Public Member Functions
	CYIScalingLayout ()

virtual	~CYIScalingLayout ()

void	SetScalingMode (SCALE_MODE eMode)

SCALE_MODE	GetScalingMode () const

Public Member Functions inherited from CYIStackLayout
	CYIStackLayout ()

virtual	~CYIStackLayout ()

Public Member Functions inherited from CYIAnimatingLayout
	CYIAnimatingLayout ()

virtual	~CYIAnimatingLayout ()

void	DisableAnimationsOnNextLayout (bool bDisable=true)

void	DisableAnimationsOnNextLayoutFor (CYISceneNode *pChild, bool bDisable=true)

virtual void	ChildAdded (CYISceneNode *pChild) override

virtual void	ChildRemoved (CYISceneNode *pChild) override

virtual void	ChildVisibilityChanged (CYISceneNode *pChild) override

void	SetMovingTime (uint32_t uMovingTimeMs)

uint32_t	GetMovingTimeMs () const

void	SetSizingTime (uint32_t uSizingTimeMs)

uint32_t	GetSizingTimeMs () const

void	SetTimeInterpolator (std::unique_ptr< CYITimeInterpolator > pInterpolator)

CYITimeInterpolator *	GetTimeInterpolator ()

const CYITimeInterpolator *	GetTimeInterpolator () const

Public Member Functions inherited from CYILayout
	CYILayout ()

virtual	~CYILayout ()

void	AttachTo (CYISceneView *pView)

void	ConfigureFromAttachedNode ()

void	DetachFromNode ()

CYISceneNode *	GetAssociatedSceneNode () const

void	Measure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

void	ApplyMeasurements ()

void	SetPositioningMode (POSITIONING_MODE ePositioningMode)

POSITIONING_MODE	GetPositioningMode () const

void	SetPadding (const Padding &padding)

const Padding &	GetPadding () const

void	SetUseReverseChildrenOrder (bool bUseReverseChildrenOrder)

bool	IsUsingReverseChildrenOrder () const

void	SetGravity (const glm::vec3 &vLayoutGravity)

void	SetGravity (CYILayoutConfig::GRAVITY eGravity)

const glm::vec3 &	GetGravity () const

Public Member Functions inherited from CYIScriptableRTTIObject
	CYIScriptableRTTIObject ()

virtual	~CYIScriptableRTTIObject ()

virtual const CYIRuntimeTypeInfo *	GetRuntimeTypeInfoForScriptObject () const override

Public Member Functions inherited from CYIScriptableObject
	CYIScriptableObject ()

	CYIScriptableObject (const CYIScriptableObject &other)

CYIScriptableObject &	operator= (const CYIScriptableObject &other)

virtual	~CYIScriptableObject ()

CYIBindingImplementation *	GetBindingImplementation () const

void	SetBindingImplementation (CYIBindingImplementation *pBindingImplementation)

Protected Member Functions
virtual void	Configure () override

virtual void	OnMeasure (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec) override

virtual void	OnApplyMeasurements () override

virtual void	ApplyScale (CYISceneNode *pChild, const glm::vec3 &vScale)

Protected Member Functions inherited from CYIAnimatingLayout
virtual void	OnMeasurementsApplied () override

virtual const CYIRuntimeTypeInfo &	GetLayoutConfigType () const override

virtual void	ApplyPosition (CYISceneNode *pChild, const glm::vec3 &vPosition) override

virtual void	ApplySize (CYISceneNode *pChild, const glm::vec3 &vSize) override

Protected Member Functions inherited from CYILayout
virtual void	OnSceneViewAttached ()

virtual void	OnMeasurementsCalculated (const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

virtual std::unique_ptr< CYILayoutState >	CreateLayoutStateInstance () const

void	CreateLayoutObjectsFor (CYISceneNode *pNode) const

CYISceneNode *	GetChild (uint32_t uIndex) const

void	ApplyMeasurementsToBackgroundChildren ()

const Padding &	GetPaddingForChild (const CYISceneNode *pChild) const

Protected Member Functions inherited from CYIScriptableRTTIObject
virtual std::pair< const CYIRuntimeTypeInfo , const void >	GetRuntimeTypeInfoWithObject () const =0

Additional Inherited Members
Static Public Member Functions inherited from CYILayout
static void	RegisterAllLayouts ()

static bool	IsLayoutable (const CYISceneNode *pNode)

static glm::vec3	GetDefaultSize (const CYISceneNode *pNode, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UpdateMeasuredSizeForFitContent (const CYISceneNode pNode, glm::vec3 pMeasuredSize, const glm::vec3 &contentSize, const Padding &padding, const CYISceneNode::MeasureSpec &widthSpec, const CYISceneNode::MeasureSpec &heightSpec, const CYISceneNode::MeasureSpec &depthSpec)

static void	UnscaleMeasureSpecs (const glm::vec3 &vScale, CYISceneNode::MeasureSpec pWidthSpec, CYISceneNode::MeasureSpec pHeightSpec, CYISceneNode::MeasureSpec *pDepthSpec)

static float	CalculateDimension (const CYISceneNode::MeasureSpec &spec, const CYILayoutConfig::SizeConstraint &constraint, float fCurrentValue)

Protected Types inherited from CYILayout
enum	DIMENSIONS { DIMENSIONS_NONE = 0x0, DIMENSIONS_X = 0x1, DIMENSIONS_Y = 0x2, DIMENSIONS_Z = 0x4, DIMENSIONS_ALL_BUT_X = DIMENSIONS_Y \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Y = DIMENSIONS_X \| DIMENSIONS_Z, DIMENSIONS_ALL_BUT_Z = DIMENSIONS_X \| DIMENSIONS_Y, DIMENSIONS_ALL = DIMENSIONS_X \| DIMENSIONS_Y \| DIMENSIONS_Z }

Static Protected Member Functions inherited from CYILayout
static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding)

static void	MeasureChildWithMargins (CYISceneNode *pChild, const CYISceneNode::MeasureSpec &parentWidthSpec, const CYISceneNode::MeasureSpec &parentHeightSpec, const CYISceneNode::MeasureSpec &parentDepthSpec, const Padding &padding, const glm::vec3 &vChildScale)

static CYISceneNode::MeasureSpec	CalculateChildMeasureSpec (const CYISceneNode::MeasureSpec &parentMeasureSpec, float fPadding, const CYILayoutConfig::SizeConstraint &childConstraint, float fChildScale)

static bool	UpdateMeasureSpecsForFitContent (const CYISceneNode pNode, CYISceneNode::MeasureSpec widthSpec, CYISceneNode::MeasureSpec heightSpec, CYISceneNode::MeasureSpec depthSpec)

static void	RemeasureChildrenForFillParent (const CYISceneNode *pNode, const glm::vec3 &vParentMeasuredSize, const Padding &padding, DIMENSIONS eDimensionsToRemeasure)

static glm::vec3	GetAdjustedPosition (const glm::vec3 &vDesiredTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetUnadjustedPosition (const glm::vec3 &vCurrentTopLeftPosition, const CYISceneNode *pChild)

static glm::vec3	GetAdjustedMeasuredSize (const CYISceneNode *pChild)

static glm::vec3	GetTopLeftPositionWithGravity (const glm::vec3 &vLayoutGravity, const glm::vec3 &vChildGravity, const glm::vec3 &vContainerTopLeft, const glm::vec3 &vContainerSize, const CYILayout::Padding &padding, const glm::vec3 &vChildSize, const CYILayoutConfig::Margin &margin, const glm::vec3 &vCurrentChildPosition)

static void	MeasureBackgroundChildren (CYISceneNode *pNode, const glm::vec3 &vSize)

Protected Attributes inherited from CYILayout
CYISceneView *	m_pNode
	In most cases, this variable is used as a node (thus the name m_pNode ) More...

Padding	m_padding

bool	m_bReverseChildrenOrder

glm::vec3	m_vGravity

POSITIONING_MODE	m_ePositioningMode

Member Enumeration Documentation

enum CYIScalingLayout::SCALE_MODE

The various possible scaling modes for this layout.

Enumerator
SCALE_STRETCH	Causes the children to stretch to fill the container.
SCALE_FIT	Causes the children to proportionally scale to fit the container. The aspect ratio of the children is preserved. Empty space may be left on the edges of the container.
SCALE_FILL	Causes the children to proportionally scale to fill the container. The children may overflow out of the container in order to preserve their aspect ratio.
SCALE_NONE	Causes the children to be given a scale of 1.0.

Constructor & Destructor Documentation

CYIScalingLayout::CYIScalingLayout ( )

virtual CYIScalingLayout::~CYIScalingLayout ( )

virtual

Member Function Documentation

virtual void CYIScalingLayout::ApplyScale	(	CYISceneNode *	pChild,
		const glm::vec3 &	vScale
	)

protectedvirtual

Applies the scale vScale to the scene node pChild. This function, by default, simply calls CYISceneNode::SetScale. It can be overridden in subclasses to support animating scale changes for child scene nodes.

virtual void CYIScalingLayout::Configure ( )

overrideprotectedvirtual

Extracts relevant properties the associated scene node and configures this layout with said properties.

Note: Subclasses should override this method if they have custom configuration values. Remember to call the parent Configure function.

Reimplemented from CYIAnimatingLayout.

SCALE_MODE CYIScalingLayout::GetScalingMode ( ) const

virtual void CYIScalingLayout::OnApplyMeasurements ( )

overrideprotectedvirtual

Applies the measured sizes of the associate scene node's children.

Warning: Implementations of this function are required to ensure that the ApplyMeasurements function of each child node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnApplyMeasurements is overridden then OnMeasure must also be overridden.

See also: CYILayout::ApplyMeasurements

Reimplemented from CYIStackLayout.

virtual void CYIScalingLayout::OnMeasure	(	const CYISceneNode::MeasureSpec &	widthSpec,
		const CYISceneNode::MeasureSpec &	heightSpec,
		const CYISceneNode::MeasureSpec &	depthSpec
	)

overrideprotectedvirtual

Measures the associated scene node, considering its layout configuration constraints (if available) and the provided measure specifications.

Warning: Implementations of this function are required to ensure that the Measure function of each child scene node is called at least once, even if those children are hidden or are non-laid-out.

Note: Typically, if OnMeasure is overridden then OnApplyMeasurements must also be overridden.

See also: CYILayout::Measure

Reimplemented from CYIStackLayout.

void CYIScalingLayout::SetScalingMode ( SCALE_MODE eMode )

Sets the scaling mode to eMode.

The documentation for this class was generated from the following file:

layout/YiScalingLayout.h
