Feature Debugging is a tool that allows individual features to be inspected during a translation. It differs from inspecting data at a particular location in that it inspects features one at a time, and allows the author to trace that feature's progress through a workspace.
This is most useful when a problem has been identified as being during transformation, but the point of failure is unknown.

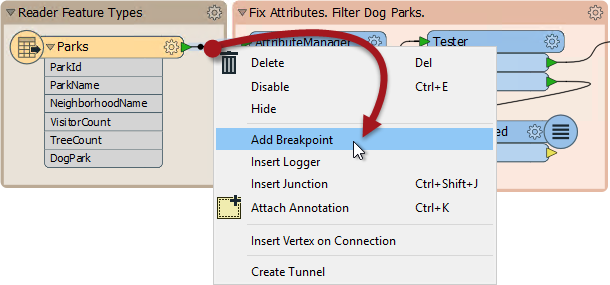

Feature Debugging is triggered by "breakpoints"; workspace connections that are flagged by the user as a location where features should be inspected:
The connection is highlighted in a darker black color with a red "stop" sign, to denote its new status:
Now the workspace is run with the “Run with Breakpoints” option turned on:

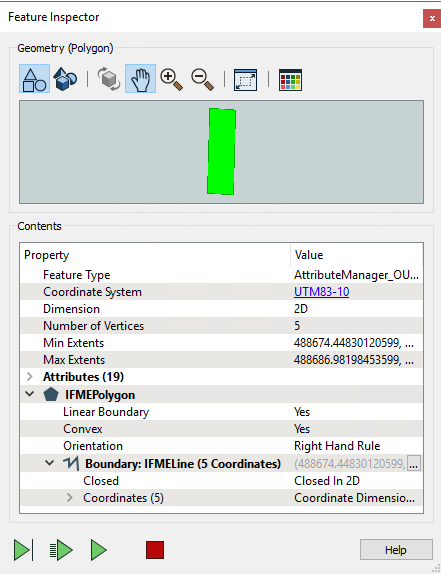

When the first feature arrives at the breakpoint, the translation is temporarily paused and information about the feature displayed in a Feature Inspector window.
The upper part of the window shows a graphic representation of the feature; the lower part lists properties such as Feature Type and Coordinate System; plus attribute and geometry information.
There are four buttons at the foot of the Feature Inspector window:
|Step to Next Connection||This tool steps through the workspace one transformer at a time, showing the status of a feature as it is processed.|
|Step to Next Breakpoint||This tool re-starts the translation, stopping the next time a feature reaches an inspection point.|
|Continue Translation||This tool re-starts the translation, ignoring all further breakpoints.|
|Stop Translation||This tool stops the translation.|
The currently active connection is highlighted red to show it is the location where the translation is currently paused.
