Data Inspector Display Control

The FME Data Inspector has a number of controls to assist in showing the data in an orderly manner.

Display Control Window

Management of feature display order is carried out in the Display Control window.

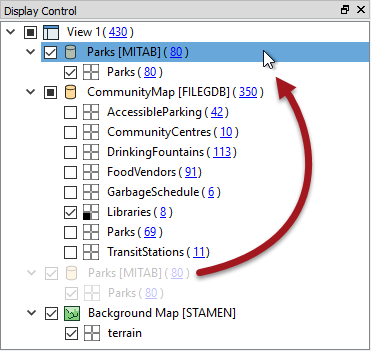

Each dataset and feature type can be dragged above any other to promote its display order in the View window:

Feature Types can only be ordered within their container dataset.

For example, "Libraries" can be promoted above "GarbageSchedule" in the display, but they cannot by themselves be promoted above the separate Parks dataset.

Display Status

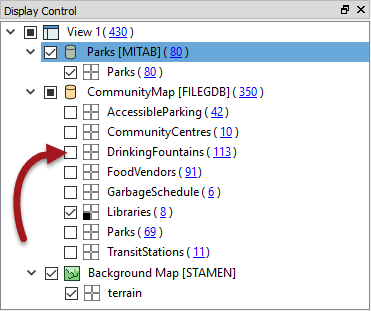

Each level of the Display Control window has a checkbox to turn data on and off at that level:

You can choose to turn off individual layers or an entire dataset at once.

Feature Counts

Each Feature Type in the Display Control window is tagged with the number of features it contains, in parentheses after the feature type name. So in the previous image, we can see that there are 113 drinking fountains (or 113 features called DrinkingFountains) in the city of Vancouver.

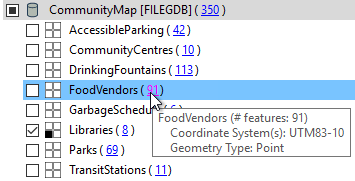

Clicking a feature count selects all of those features for display in the Feature Information and Table View windows, and also activates the tool File > Save Selected Data As:


Each feature type can be assigned a different color or style that applies to its geometries. To access this functionality click on the style icon for that feature type in the Display Control window:

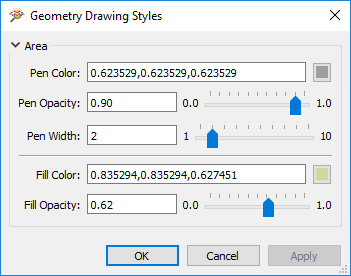

The Drawing Style dialog allows you to set all manner of symbology for a feature. That includes feature color (and degree of transparency), point icon/symbol, point size, line thickness, etc.:

Notice that the dialog only displays symbology options for the type of geometry available. Here it is for a polygon feature. Other geometry types display different options.
