Exercise 5 Grounds Maintenance Project - Neighborhood Averages
Data City Parks (MapInfo TAB)
Overall Goal Calculate the size and average size of each park in the city, to use in Grounds Maintenance estimates for grass cutting, hedge trimming, etc.
Demonstrates Group-By Processing
Start Workspace C:\FMEData2018\Workspaces\DesktopBasic\Transformation-Ex5-Begin.fmw
End Workspace C:\FMEData2018\Workspaces\DesktopBasic\Transformation-Ex5-Complete.fmw

Let's continue your work on the grounds maintenance project.

The parks team has decided that they do not want the average area of parks for the city as a whole. Instead they want the average size of parks in each neighborhood; so let's do that for them.

1) Start Workbench
Start Workbench (if necessary) and open the workspace from Exercise 4. Alternatively you can open C:\FMEData2018\Workspaces\DesktopBasic\Transformation-Ex5-Begin.fmw

2) Set Group-By in StatisticsCalculator

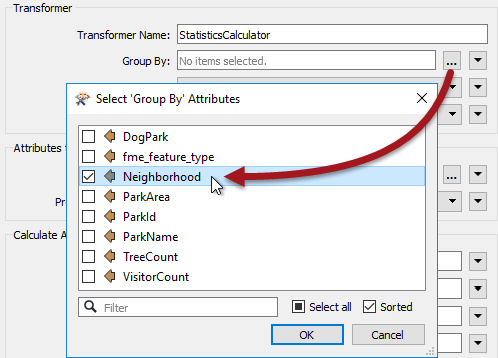

This is a really simple task to do. View the parameters for the StatisticsCalculator transformer and click the 'browse' button next to the Group By parameter. Select the attribute called Neighborhood:

Click OK/Apply to apply the changes to the transformer.

3) Run the Workspace
Save and then run the workspace.

Inspect the output data in the Table View window of the FME Data Inspector.

You should see that each neighborhood now has its own value for AverageParkArea:

By completing this exercise you have learned how to:
  • Use the group-by parameter in FME transformers
