Creating and Setting Attributes

Creating attributes and setting a value are probably the primary attribute functions used within FME. When an attribute is created, its value can be set in a number of ways.

The transformers capable of creating an attribute - and setting its value - are:

  • AttributeCreator
  • AttributeManager

NB: The AttributeCopier and AttributeRenamer transformers can set an attribute value, but only where the attribute doesn't already exist.

The AttributeManager

For most operations we'll concentrate on the AttributeManager, so here is a quick overview of that transformer.

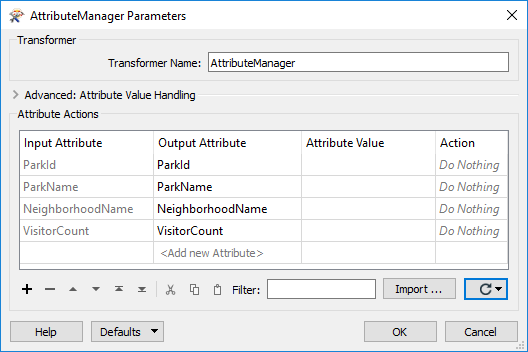

The AttributeManager parameters dialog has a number of fields: Input Attribute, Output Attribute, Attribute Value, and Action. Uniquely among attribute-handling transformers, it is automatically filled in with the details of the attributes connected to it:

The action field can be set by the user but is also set automatically when a change is made to the other fields.

The AttributeManager has new options in FME2018 to cut/copy/paste/duplicate individual rows in the dialog.

Manually Create an Attribute

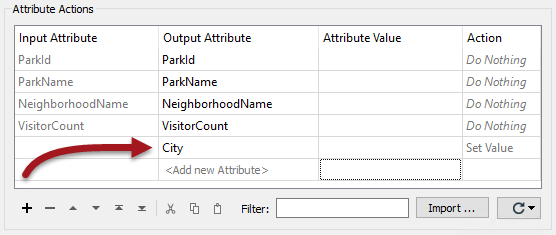

By entering a new attribute name into the Output Attribute field, it will be created in the output.

The text <Add new Attribute> highlights where a new attribute can be created. By default, when the Attribute Value field is empty, a new attribute has no value.

Set a Fixed Attribute Value

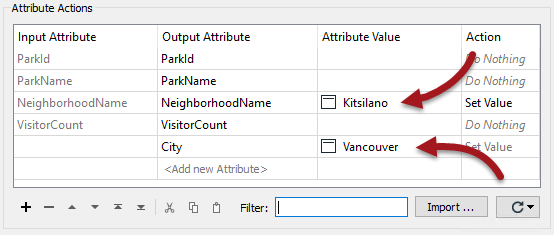

A fixed (or constant) value for an attribute can be created by simply entering a value into the Attribute Value field:

Here, for example, a new attribute called City is being given a fixed value of Vancouver.

However, also note that the existing attribute NeighborhoodName is also being assigned a fixed value. It is being given the value "Kitsilano." Notice how by entering a value into that field, the Action field has automatically changed from "Do Nothing" to "Set Value."

Besides entering set values like this, it's possible to construct an attribute value in a number of different ways...
