Wall Cabinets
D12
Peninsula Wall Corner Cabinets
Peninsula Wall
Corner Cabinets
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
Available
Material dimensions may vary slightly based on
lumber industry standards.
Specifications subject to change without notice.
PE Plywood Ends
APC All Plywood Construction
PWA 24 30 L
code
width height
rear door
placement

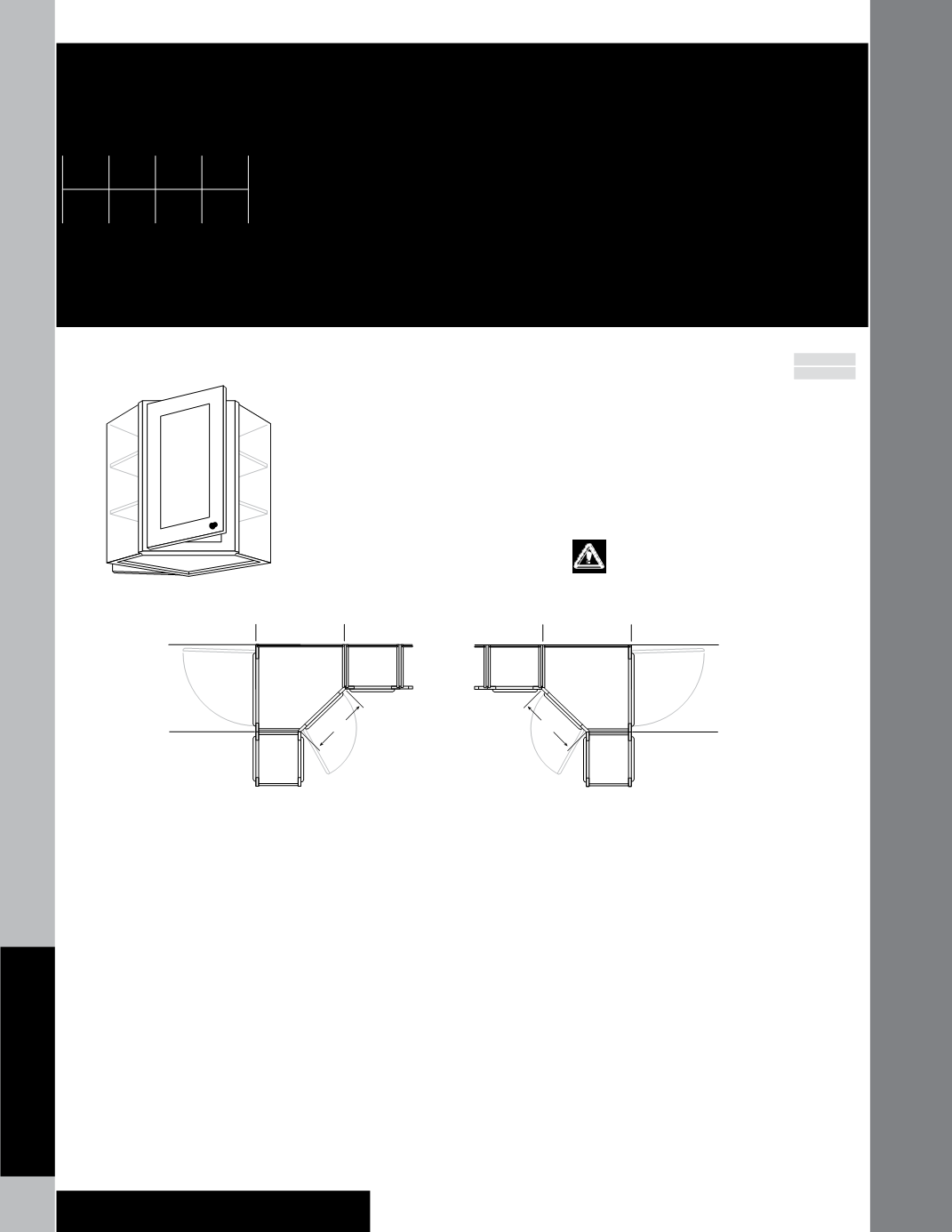

Peninsula Wall Angle
Specify R or L
PWA2430 R or L
• Two adjustable shelves
• R or L designates dining room side door hinging
• Stile on dining room frame is extra wide to clear
window or door molding
• Full and 1/2” overlay diagonal door widths are similar to
avoid interference with adjacent cabinet doors
• Adjacent cabinets can be installed directly without
fillers
• Requires 24 1/16” of wall space excluding dining room
side cabinet door
Peninsula Wall Cabinets
must
be installed
against a soffit, ceiling or supported by a
countertop. See Cabinet installation guide for
specific instructions
l
PE
l
APC
30˝
Left hand shown
Left Hand shown
17˝
12˝
24˝
24 / ˝
Kitchen
Side
Dining
Room Side
*12 / ˝
Wall
Cabinet
Left-Hand
Peninsula
Wall Angle
Cabinet
Peninsula
Wall
Cabinet
17˝
12˝
Right Hand shown
24˝
24 / ˝
Kitchen
Side
Dining
Room Side
*12 / ˝
Wall
Cabinet
Right-Hand
Peninsula
Wall Angle
Cabinet
Peninsula
Wall
Cabinet
*Excluding doors
