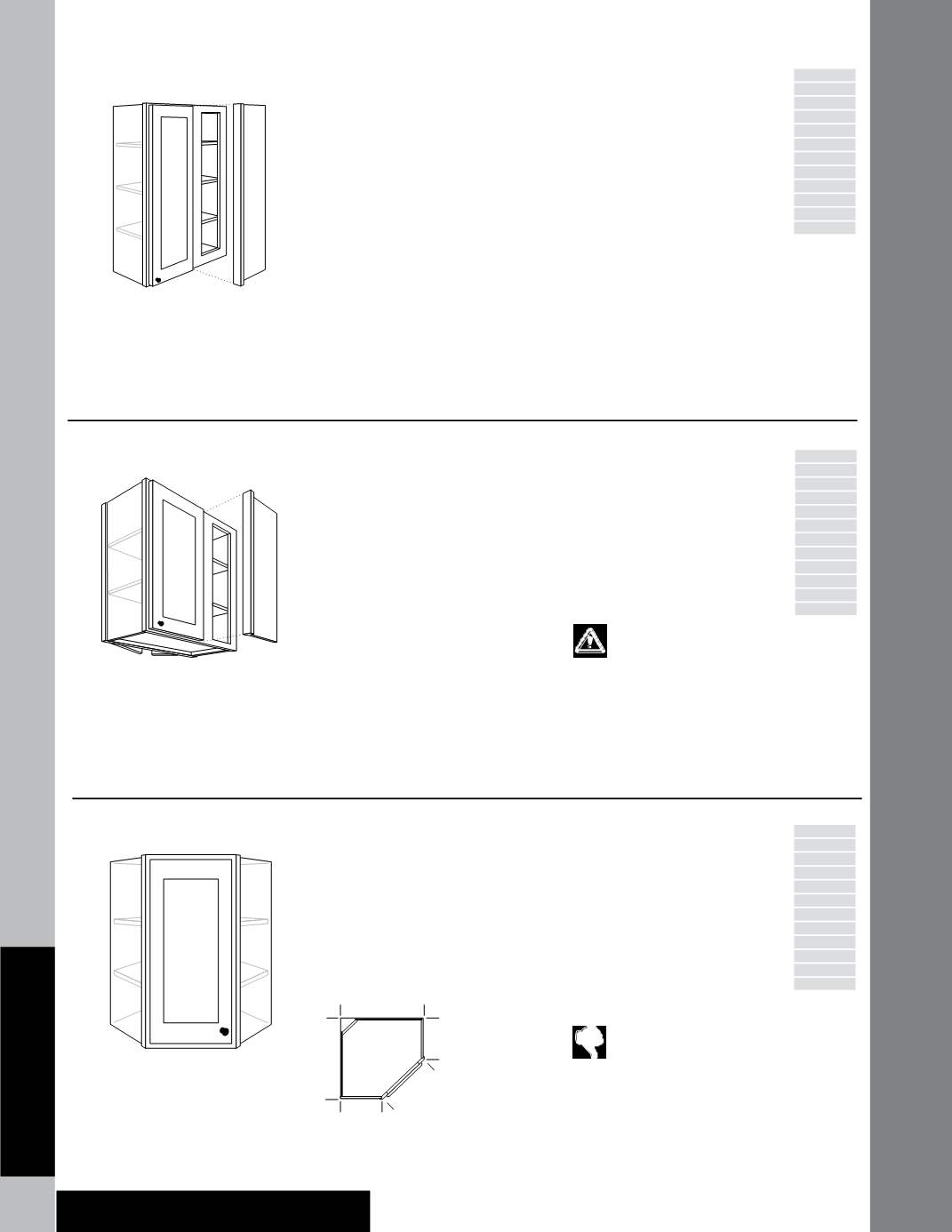

Wall Cabinets
D10
Wall Corner Cabinets
Wall Blind Corner Single Door 39” and 42” H
Specify R or L
39” High
WBC2739 R or L
WBC3039 R or L
WBC3339 R or L
WBC3939 R or L
42” High
WBC2742 R or L
WBC3042 R or L
WBC3342 R or L
WBC3942 R or L
• R or L indicates blind
• Three adjustable shelves
• Door hinged to center stile
• Any wall cabinet over 24˝ wide or 30˝
high with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or
supported from below
• Do
not
pull cabinet more than 2 7/8” from
corner
• Blind Panel with 3” filler included, shipped unattached
l
PE
l
APC
l
RD9
l
ID15
l
ID18
l
ID21
l
ID24
BIS
MD
SV
MI
l
CFO
39˝
42˝
12˝
Peninsula Wall Blind Corner 30” H
Specify R or L
PWBC2730 R or L
• R or L indicates blind
• Two adjustable shelves
• Door hinged to center stile
• Single door on kitchen side; double doors
on peninsula side
• Do
not
pull cabinet more than 2 7/8” from
corner
• Blind Panel with 3” filler included, shipped
unattached
Peninsula Wall Cabinets
must
be installed
against a soffit, ceiling or supported by a
countertop. See Cabinet installation guide for
specific instructions
l
PE
l
APC
RD9
ID15
ID18
ID21
ID24
BIS
MD
SV
MI
CFO
12 / ˝
30˝
(excluding doors)
• Adjustable shelves
• Back corner removed for easy installation
• Full and 1/2” overlay door widths are
similar to avoid interference with adjacent
cabinet doors
• Adjacent cabinets can be installed directly
without fillers
I
Glass doors (BIS, DRS.PREP, MD, MD.PREP,
SV, SV.PREP) with Matching Interior (MI)
are available on select door styles. See
Construction Options for specifics
Do
not
design a corner cabinet adjacent to an
object deeper than the end panel. The door
of the corner cabinet may
not
function
properly.
l
PE
l
APC
RD9
ID15
ID18
ID21
ID24
I
BIS
I
MD
I
SV
I
MI
l
CFO
30˝
36˝
39˝
42˝
17"
24"
24"
12"
12"
Wall Angle 12” Deep
Specify R or L
Two shelves
WA2430 R or L
Three shelves
WA2436 R or L
WA2439 R or L
WA2442 R or L
