Wall Cabinets
D18
Wall Hoods
Wall Hoods
Construction Options and
Modifications
I
Available with exceptions
l
Available with an upcharge
v
Included as standard
(Blank)
Not
Available
Consult your local building code for rules and
regulations that may apply to the installation of this
product.
Specifications subject to change without notice.
APC All Plywood Construction
WHCC 36 24 42
code
width
depth
height

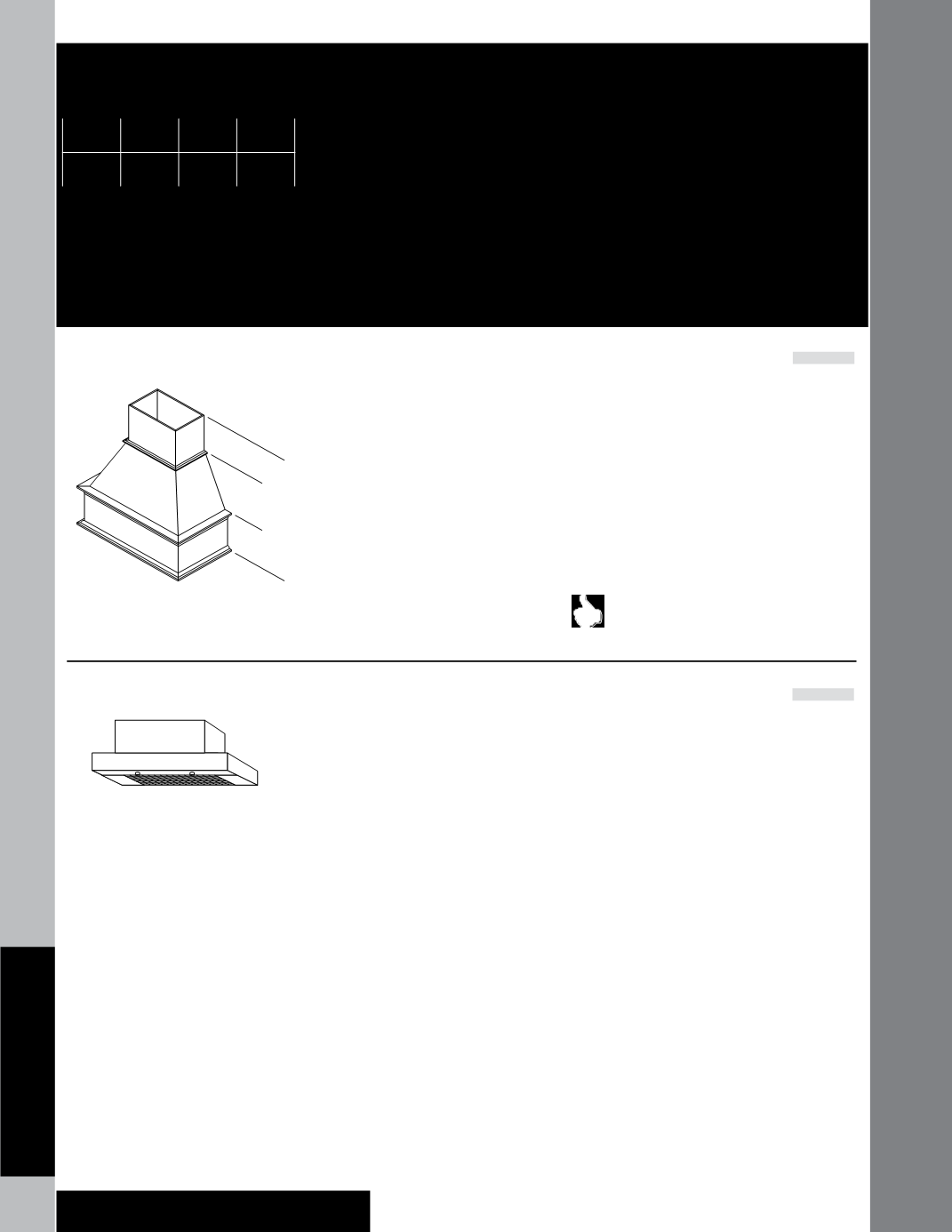

Wall Hood Classic Chimney
WHCC362442P
• Solid wood/wood veneer construction
• For installations with exterior ductwork
• A 3” space is recommended on both sides of hood for
adjacent cabinet runs
• Can accommodate ceilings up to 9’ high with
installation of the chimney or 8’ without the chimney
•
Not
designed to be used with a soffit
• 12” tall chimney is shipped unattached for easier
installation
• Requires a metal liner and blower. See Wall Hood Liner
(WHL36) and Wall Hood Blower (WHB36)
•
Note
: Cabinetry and appliances located below these
Wall Hoods
must
be pulled to a minimum of 27˝deep
and a maximum of 30˝ deep for improved function
Mount hood a minimum of 24” above range
cooking surface. Consult building codes prior
to installation. Hood
must
be securely
anchored to wall
v
APC
21˝
38¾˝
12 ½˝
12˝
17 ½˝
42˝
20˝
11¾˝
Wall Hood Front Blower
RHB
• Double squirrel cage blower unit (360 CFM maximum)
with a solid state, variable speed control, on/off switch,
and two 40 watt tubular light fixtures with lens diffuser
and dimming switch. Tubular bulbs
not
included
• For installations with exterior ductwork
• 3 1/4” x 10” top exhaust with built-in back draft
damper unit; duct
not
included
• Pre-wired for electrical connection
• AC 120 volt required
• Washable aluminum mesh grease filter included
• UL and CSA approved
• For use with Wall Hood Front (RHF)
• Almond colored painted finish
APC
