Cnc Beam Drill Line

Even if you are programming the CNC Drill Line manually, it is easy to program. Peddimat machine programming software can be used and most operators will learn how to program most of the parts in under an hour. Of course practice makes perfect. It is best to program the machine by importing parts directly from a 3-D modeling program such as ProSteel 3D, StruMis, Tekla Structures, SDS/2 or StruMis. These files are imported directly into your machine. Once you have selected the part, hit the Cycle Start button.

Voortman makes machines for GSS Machinery in order to meet our exact specifications. GSS Machinery targets small- to medium-sized fabricators, while Voortman targets larger fabricators. Voortman has been designing machines for GSS Machinery since more than 10 years. GSS Machinery is Voortman's largest customer globally.

Voortman is the only manufacturer of the CNC Drill Line for GSS Machinery. Voortman takes care of all aspects of the CNC Drill Line's installation, warranty, maintenance and repair. Voortman provides the service, but GSS Machinery can always be reached if required.

Programming of the CNC Drill Line is very simple even when done manually. The machine programming software is Peddimat and most operators can learn how to program most parts in less than an hour. Of course practice makes perfect. However the best way to program the machine is to import parts directly from a CAD drawing preferably done in some 3-D modeling software such as Tekla Structures, SDS/2, ProSteel 3D, StruMis etc. These files import directly into the machine and the operator merely selects the part to be processed and hits the Cycle Start button.

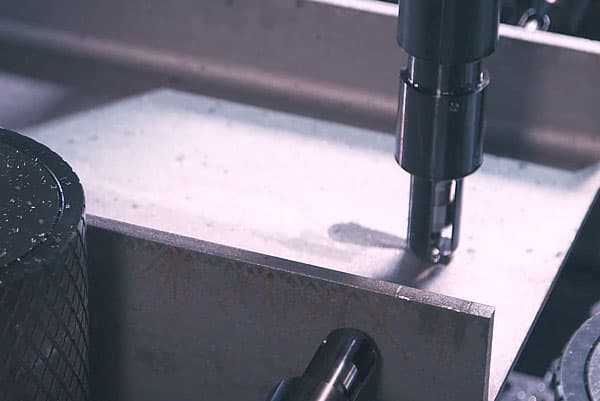

Advantage-2 carbide drills use electronic ball screw drive spindle motion and automatic tool change technology. The combination of Voortman's legendary build quality and mechanical design gives the best combination of strength, agility, and strength.

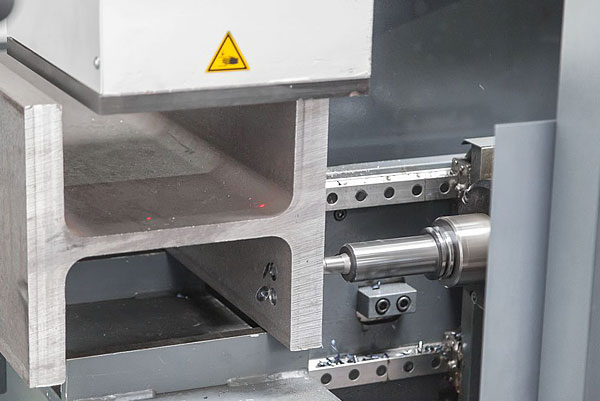

Continuous production? Check. The fabricator's edge does not come from the ability to just handle processes, but in the time it takes to complete them and simultaneously exceed industry standards for quality. Triple axis drilling and milling leads to processing a complete profile in record time. Powered by high-speed 25 horsepower Siemens spindle motors, this strength captures industry-leading hole penetration times and each drilling axis utilizes ball screw feed positioning. With all that power under the hood this drill line wields an advanced clamping system designed specifically to bring vibrations to the bare minimum. Extreme accuracy? Check.

".. Although the machine is targeted at structural fabricators, I found it to be very useful for drilling truck frames. This machine is very accurate and repeatable, which has made it easy to put together a truck frame. Avenger drills a series of channels for one truck within two hours. It takes 16 hours to do the same thing manually. This machine has dramatically increased our productivity, profitability, and efficiency !.."

GSS Machinery staff and personnel have been a tremendous support to me. Without them, I believe we wouldn't be in the position we find ourselves in in the steel fabricating markets.
