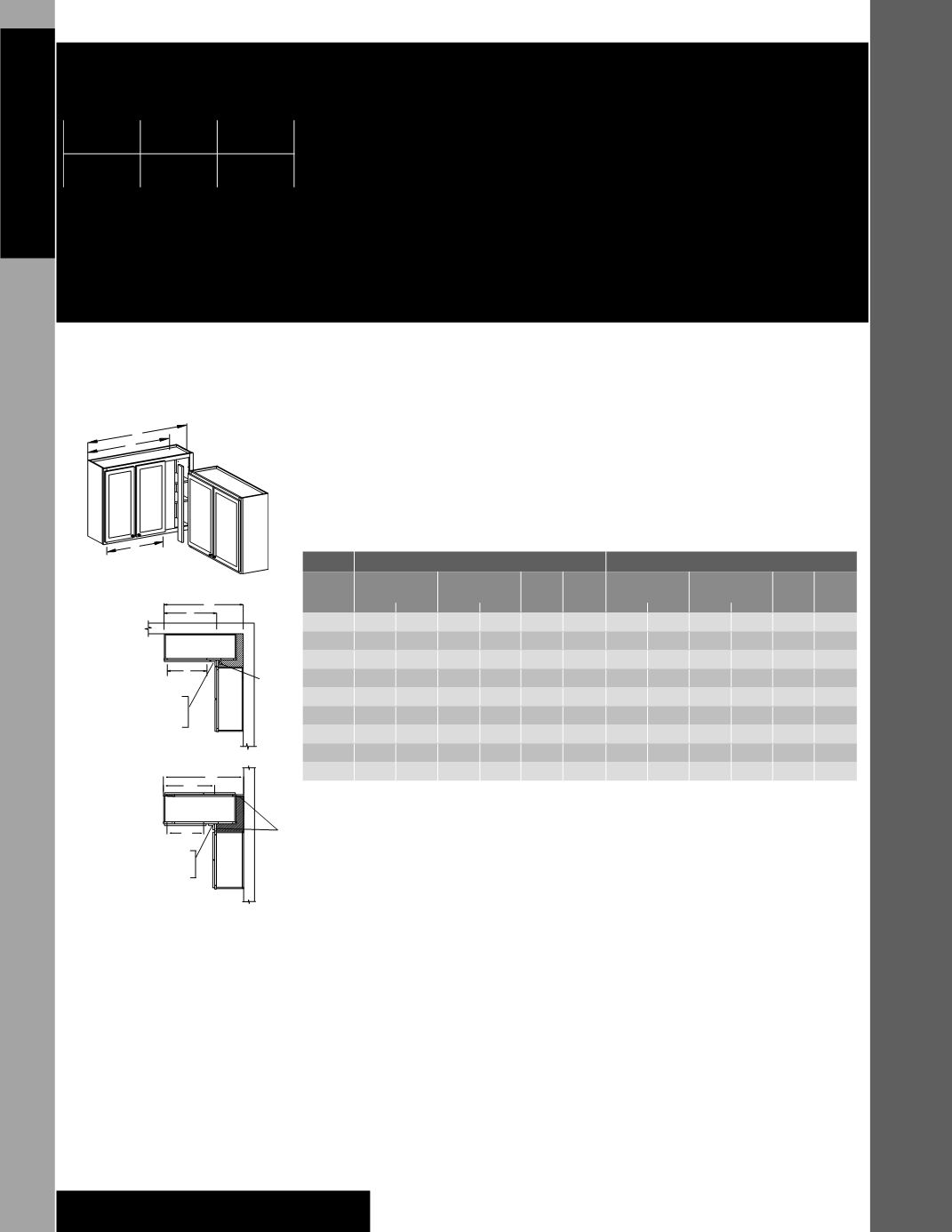

D8
Wall Corner Cabinets
Wall Cabinets
Wall Corner
Cabinets
Construction Options and
Modifications
v
Included as standard
l
Available with an upcharge
I
Available with exceptions
(Blank)
Not
available
PE
Plywood Ends
APC All Plywood Construction
APFC All Plywood Furniture Construction
FPEB Furniture Plywood Ends
MI
Matching Interior
DE Integrated Decorative End
OE Operational End
RD Reduced Depth
ID Increased Depth
TWR Top Wide Rail
XS
Extended Stile
XSG Integrated Extended Stile
GD Glass Doors
Material dimensions listed may vary slightly from actual dimensions of the product.
Specifications subject to change without notice.
PWBC 27
24
code
width
height
Wall Blind Corner Cabinet Information
• All WBC24 and PWBC24 doors are square except full overlay arch door styles. Edgemont Cathedral door styles
will be square. Huntley, Scarbourough and Veranda door styles will have a solid, recessed flat panel.
• All Wall Blind Corner cabinets
must
be pulled. Consult chart for pull dimensions and minimum wall space
requirements.
• R or L indicates blind
• Door hinged on same side as blind on single door cabinets
•
Note:
A 3˝ Wall Filler (WF) is supplied and shipped separately with each Wall Blind Cabinet (WBC) ordered.
A Wall Cabinet adjacent to WBC may be ordered with an extended stile in lieu of installing the supplied filler.
Two 3˝ Wall Fillers are supplied with each Peninsula Wall Blind Corner (PWBC) ordered. Overlay Panel for Wall
Blind Corner Cabinets (OPWBC) is recommended for full overlay door styles; see Wall Accessories section in
this book.
1/2˝ Overlay
Full Overlay
Wall Space “A” Exposed Front “B”
Door
Open Cab.
Wall Space “A” Exposed Front “B”
Door
Open Cab.
Cabinet Min Max Min.
Max “C” Width Min.
Max.
Min.
Max “C” Width
P/WBC24 21 ¼˝ 24 ¾˝
9 ¼˝
12 ¾˝
6˝
21˝
22˝
24 ¾˝
10˝
12 ¾˝
6˝
21˝
P/WBC27 24 ¼˝ 27 ¾˝ 12 ¼˝ 15 ¾˝
9˝
24˝
25˝
27 ¾˝
13˝
16 ¾˝
9˝
24˝
P/WBC30 27 ¼˝ 30 ¾˝ 15 ¼˝ 18 ¾˝
12˝
27˝
28˝
30 ¾˝
16˝
19 ¾˝
12˝
27˝
P/WBC33 30 ¼˝ 33 ¾˝ 18 ¼˝ 21 ¾˝
15˝
30˝
31˝
33 ¾˝
19˝
21 ¾˝
15˝
30˝
P/WBC36 33 ¼˝ 36 ¾˝ 21 ¼˝ 24 ¾˝
18˝
33˝
34˝
36 ¾˝
22˝
24 ¾˝
18˝
33˝
WBC39 36 ¼˝ 39 ¾˝ 24 ¼˝ 27 ¾˝
21˝
36˝
37˝
39 ¾˝
25˝
27 ¾˝
21˝
36˝
WBC42 39 ¼˝ 42 ¾˝ 27 ¼˝ 30 ¾˝
24˝
39˝
40˝
42 ¾˝
28˝
30 ¾˝
24˝
39˝
WBC45 42 ¼˝ 45 ¾˝ 30 ¼˝ 33 ¾˝ (2) 12˝
42˝
43˝
45 ¾˝
31˝
33 ¾˝
42˝
WBC48 45 ¼˝ 48 ¾˝ 33 ¼˝ 36 ¾˝ (2)13 ½˝ 45˝
46˝
48 ¾˝
34˝
36 ¾˝ (2)13 ½˝ 45˝
(2) 12˝
Right blind shown
R or L indicates blind
A
B
C
A
B
C
WBC 24-48
Optional Blind
Corner Overlay
3˝
Filler
Wall
Cabinet
A
B
C
Optional Blind
Corner Overlay
3˝
Filler
PWBC 24-36
Wall
Cabinet
Peninsula
Wall Blind
Cabinet
Wall Blind
Cabinet
