164 / 601
• Two vertical compartments
with fixed rail and floor
• Bottom shelves are adjustable
• Shelves shipped separately
• Bottom door is always square
•
Not
available with Mullion
Strip Wall (MSW)
I
Integrated Decorative End
(DE) option is available in full
overlay door styles only
I
Glass doors available for top doors only
I
To get glass on bottom door, order
appropriate replacement door with glass
option
I
Maximum Increased Depth (ID) is 15˝
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth
(RD) options
When using 48”–54” high cabinets
or tall stacked cabinet
combinations, remember to supply
the best height Tall End Panel (TEP) for your
design needs. Both 108” and 120” panels
can be field cut to height requirements of
your design
Any wall cabinet over 24˝ wide or
30˝ high or higher with a depth
greater than 12˝ and/or with butt
doors
must
be installed between two (2)
cabinets, a cabinet and a wall or supported
from below
D5
Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.
Wall Cabinets

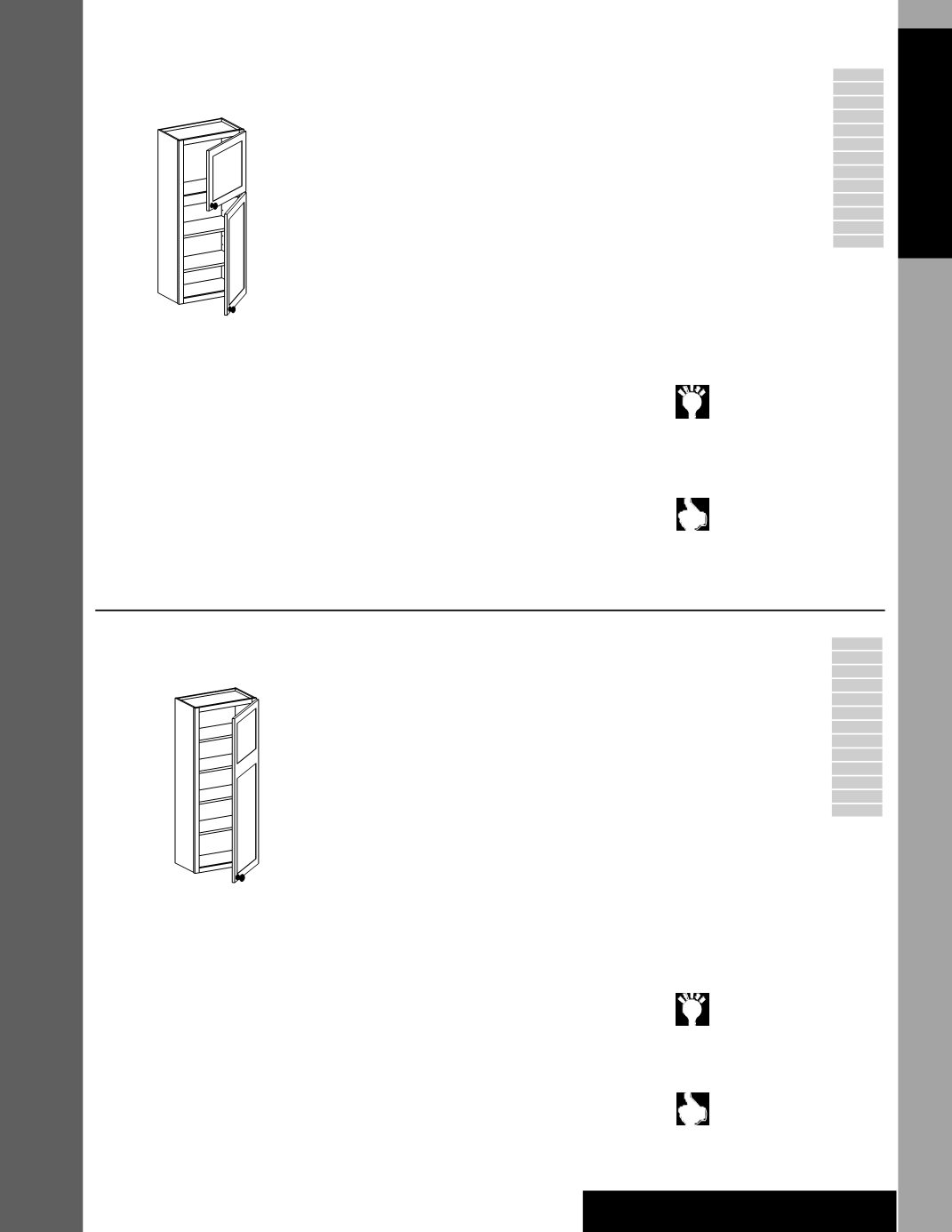

Wall Stack Cabinet 48”, 51” and 54” H
l
PE
l
APC
l
APFC
l
FPEB
l
MI
I
DE
I
OE
I
RD
I
ID
TWR
l
XS
l
XSG
I
GD
48˝
51˝
54˝
30˝
33˝
36˝
12˝
18˝
Wall Double Panel 54˝ H
Specify R or L
i;
WDP954 R or L
WDP1254 R or L
WDP1554 R or L
WDP1854 R or L
WDP2154 R or L
WDP2454 R or L
WDP2454 BUTT
WDP2754 (Butt)
WDP3054
WDP3054 BUTT
WDP3354
WDP3354 BUTT
WDP3654
WDP3654 BUTT
• Four adjustable shelves
• Shelves shipped separately
• Available in full overlay door
styles only
•
Not
available in High-Gloss
Laminate or Woodgrain
Laminate door styles
•
Not
available in mitered door
styles
•
Not
available in slab door
styles
I
Maximum Increased Depth
(ID) is 15˝
I
Glass doors available for top
section only
I
A solid raised center panel machined to
match the veneer raised center panel will
be supplied when glass doors are selected
on full overlay veneer raised panel door
styles.
I
Not
available with Mullion glass doors
(GD) option
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth
(RD) options
When using 48”–54” high
cabinets or tall stacked cabinet
combinations, remember to
supply the best height Tall End Panel (TEP)
for your design needs. Both 108” and 120”
panels can be field cut to height
requirements of your design
Any wall cabinet over 24˝ wide or
30˝ high or higher with a depth
greater than 12˝ and/or with
butt doors
must
be installed between two
(2) cabinets, a cabinet and a wall or
supported from below
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
I
RD
I
ID
TWR
l
XS
l
XSG
I
GD
54˝
12˝
i
Doors are square except full overlay arch door
styles. Laminate door styles will always be
square. Huntley, Scarbourough and Veranda
doors will have a solid, recessed flat panel.
;
Glass door option
not
available
Specify R or L
Two shelves
48” High
i;
WST948 R or L
WST1248 R or L
WST1548 R or L
WST1848 R or L
WST2148 R or L
WST2448 R or L
WST2448 BUTT
WST2748 (Butt)
WST3048
WST3048 BUTT
WST3348
WST3348 BUTT
WST3648
WST3648 BUTT
Two shelves
51” High
i;
WST951 R or L
WST1251 R or L
WST1551 R or L
WST1851 R or L
WST2151 R or L
WST2451 R or L
WST2451 BUTT
WST2751 (Butt)
WST3051
WST3051 BUTT
WST3351
WST3351 BUTT
WST3651
WST3651 BUTT
Three shelves
54” High
i;
WST954 R or L
WST1254 R or L
WST1554 R or L
WST1854 R or L
WST2154 R or L
WST2454 R or L
WST2454 BUTT
WST2754 (Butt)
WST3054
WST3054 BUTT
WST3354
WST3354 BUTT
WST3654
WST3654 BUTT
i
Doors are square except full overlay arch door
styles. Laminate door styles will always be
square. Huntley, Scarbourough and Veranda
doors will have a solid, recessed flat panel.
;
Glass door option
not
available
