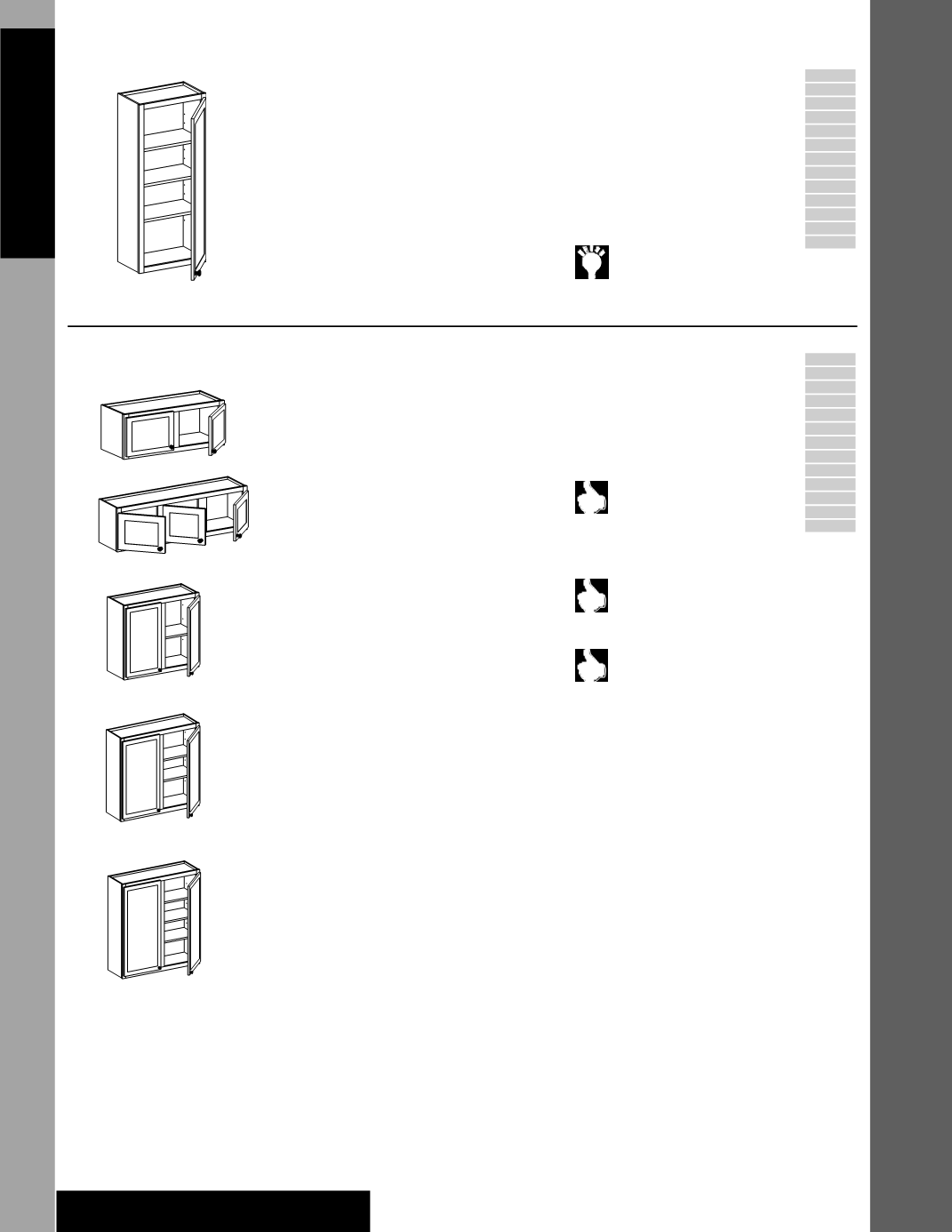

161 / 601
• Adjustable shelves
• Shelves shipped separately
• Available in full overlay door styles only
I
Not
available with Camed glass door (GD)
option
I
Not
available with Mullion glass doors (GD)
option
I
Not
available with Prepared for Glass (GD)
option
I
Modern Frosted (MRT) and Moire (MOI)
Glass Inserts
not
available on 54˝ H cabinets
I
Maximum Increased Depth (ID) is 15˝
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth
(RD) options
When using 48”–54” high cabinets
or tall stacked cabinet combinations,
remember to supply the best height Tall
End Panel (TEP) for your design needs.
Both 108” and 120” panels can be field cut to
height requirements of your design
D2
Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.
Wall Cabinets
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
I
RD
I
ID
TWR
l
XS
l
XSG
I
GD
Wall Double Door 12˝-42 H
• Adjustable shelves
I
Integrated Extended Stile (XSG) only
available on cabinets 30” high or higher
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth
(RD) options
Remember, a cabinet designated
BUTT or (Butt) has no center stile.
When you see the word BUTT in
all capitals, it
must
be included as part of
your ordering nomenclature, a (Butt) in parentheses is
for your information and isn’t required on an order
form
Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or supported
from below
Tip: When mounting a 6” Spice Drawer
(SD—) or Organizer (O—) underneath a 23
1/2” cabinet next to a 30” high wall cabinet,
the overall height will be 29 1/2”. To correct this, you
can place a piece of Stack Molding (STM8) or a 1/2”
filler between the 23 1/2” cabinet and the 6” cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
I
RD
I
ID
I
TWR
l
XS
I
XSG
I
GD
12˝
15˝
18˝
12˝
15˝
18˝
12˝
W2412BUTT-W4318
W4512-W4818
12˝
12˝
W2721(Butt)-
W3727 BUTT
21˝
23 ½˝
27˝
30˝
33˝
12˝
W2430BUTT-
W4833
36˝
39˝
42˝
12˝
W2436 BUTT-
W4842
I
Not
available in Increased Depth (ID)
s
Top Wide Rail (TWR) option
not
available
Gray color coding indicates new product, size or code.
Wall Single Door 48˝ and 54˝ H
Specify R or L
Three shelves
48” High
i;
W948 R or L
W1248 R or L
W1548 R or L
W1848 R or L
W2148 R or L
W2448 R or L
Four shelves
54” High
i;
W954 R or L
W1254 R or L
W1554 R or L
W1854 R or L
W2154 R or L
W2454 R or L
12˝
48˝
54˝
No shelf
12” High
W2412 BUTT
W2712 (Butt)
W3012
W3012 BUTT
W3312
W3312 BUTT
W3412 BUTT
W3612
W3612 BUTT
I
W3712 BUTT
I
W3912
I
W4212
I
W4312
I
W4512
I
W4812
15” High
W2415 BUTT
W2715 (Butt)
W3015
W3015 BUTT
W3315
W3315 BUTT
W3415 BUTT
W3615
W3615 BUTT
I
W3715 BUTT
I
W3915
W4215
I
W4315
I
W4515
I
W4815
18” High
W2418 BUTT
W2718 (Butt)
W3018
W3018 BUTT
W3318
W3318 BUTT
W3418 BUTT
W3618
W3618 BUTT
I
W3718 BUTT
I
W3918
I
W4218
I
W4318
I
W4518
I
W4818
One shelf
21” High
W2721 (Butt)
W3021
W3021 BUTT
W3321
W3321 BUTT
W3421 BUTT
W3621
W3621 BUTT
I
W3721 BUTT
W3921
I
W4221
23 1/2” High
W2424 BUTT
W2724 (Butt)
W3024
W3024 BUTT
W3324
W3324 BUTT
W3424 BUTT
W3624
W3624 BUTT
I
W3724 BUTT
I
W3924
I
W4224
I
W4524
I
W4824
27” High
s
W2427 BUTT
s
W2727 (butt)
s
W3027
s
W3027 BUTT
s
W3327
s
W3327 BUTT
s
W3427 BUTT
s
W3627
s
W3627 BUTT
Is
W3727 BUTT
Two Shelves
30” High
W2430 BUTT
W2730 (Butt)
W3030
W3030 BUTT
W3330
W3330 BUTT
W3430 BUTT
W3630
W3630 BUTT
I
W3730 BUTT
I
W3930
I
W4230
I
W4530
I
W4830
Two Shelves
33” High
W2433 BUTT
W2733 (Butt)
W3033
W3033 BUTT
W3333
W3333 BUTT
W3633
W3633 BUTT
I
W3933
I
W4233
I
W4533
I
W4833
Three shelves
36” High
W2436 BUTT
W2736 (Butt)
W3036
W3036 BUTT
W3336
W3336 BUTT
W3636
W3636 BUTT
I
W3936
I
W4236
I
W4536
I
W4836
39” High
s
W2439 BUTT
s
W2739 (Butt)
s
W3039
s
W3039 BUTT
s
W3339
s
W3339 BUTT
s
W3639
s
W3639 BUTT
Is
W3939
Is
W4239
Is
W4539
Is
W4839
42” High
s
W2442 BUTT
s
W2742 (Butt)
s
W3042
s
W3042 BUTT
s
W3342
s
W3342 BUTT
s
W3642
s
W3642 BUTT
Is
W3942
Is
W4242
Is
W4542
Is
W4842
