162 / 601
D3
Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.

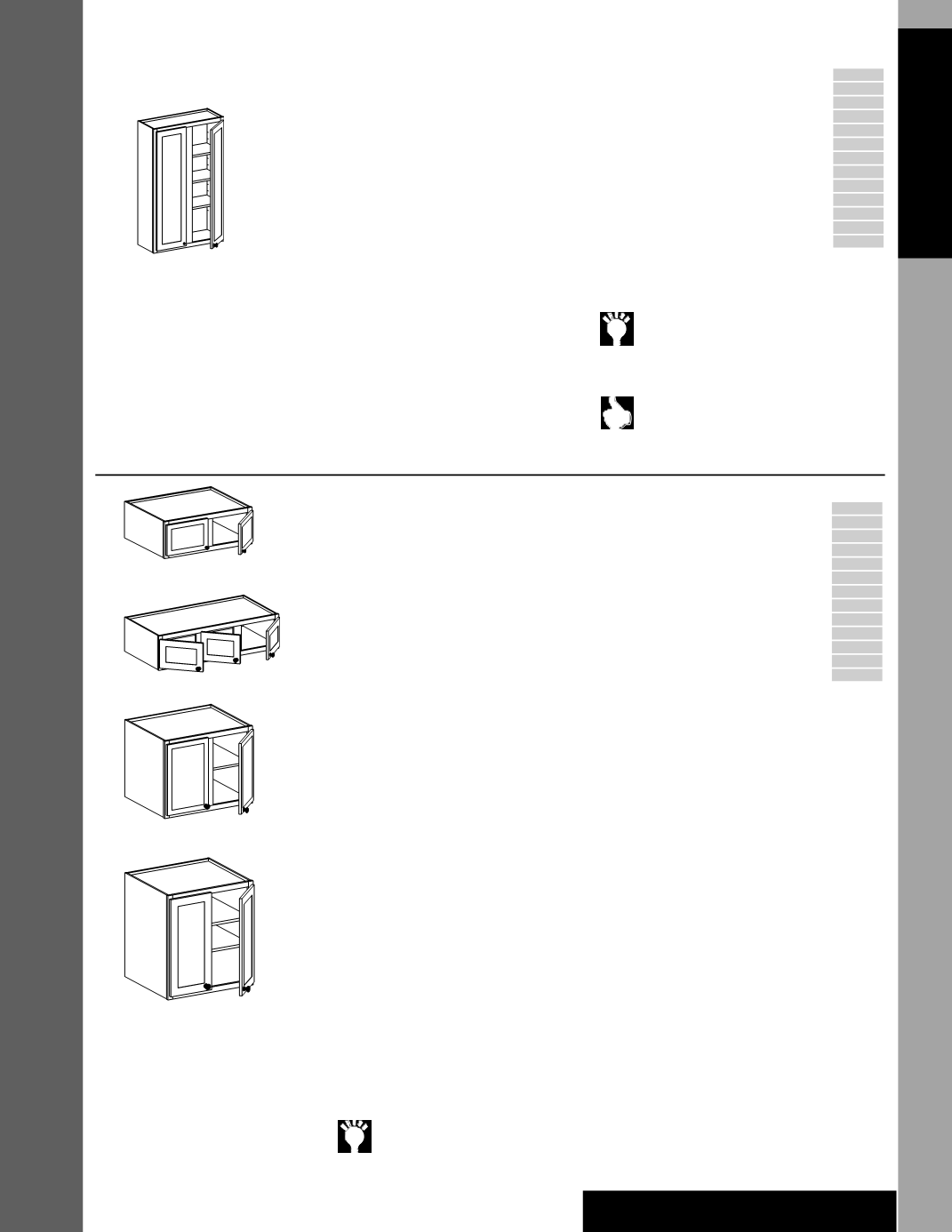

Wall Cabinets
Wall Double Door 48˝ and 54˝ H
Three shelves
48” High
i
W2448 BUTT
W2748 (Butt)
W3048
W3048 BUTT
W3348
W3348 BUTT
W3648
W3648 BUTT
Four shelves
54” High
i
W2454 BUTT
W2754 (Butt)
W3054
W3054 BUTT
W3354
W3354 BUTT
W3654
W3654 BUTT
• Adjustable shelves
• Shelves shipped separately
• Available in full overlay door styles only
•
Not
available with Mullion Strip Wall (MSW)
I
Not
available with Camed glass door (GD)
option
I
Not
available with Mullion glass doors (GD)
option
I
Not
available with Prepared for Glass (GD)
option
I
Modern Frosted (MRT) and Moire (MOI)
Glass Inserts
not
available on 54˝ H cabinets
I
Maximum Increased Depth (ID) is 15˝
I
Operational End (OE) is
not
available with Increased
Depth (ID) or Reduced Depth (RD) options
When using 48”–54” high cabinets or tall
stacked cabinet combinations, remember to
supply the best height Tall End Panel (TEP)
for your design needs. Both 108” and 120” panels can
be field cut to height requirements of your design
Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or supported
from below
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
I
OE
I
RD
I
ID
TWR
l
XS
l
XSG
I
GD
48˝
54˝
12˝
i
Doors are square except full overlay arch door
styles. Laminate door styles will always be
square. Huntley, Scarbourough and Veranda
doors will have a solid, recessed flat panel.
Wall Refrigerator 24˝ Deep
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
l
RD
ID
I
TWR
l
XS
I
XSG
l
GD
24˝
24˝
12˝
15˝
18˝
12˝
15˝
18˝
WR2412 BUTT-
WR4318
WR4512-WR4818
21˝
23 ½˝
27˝
24˝
WR3021-
WR3727 BUTT
WR2430 BUTT-
WR3633 BUTT
24˝
30˝
33˝
No shelf
12” High
WR2412 BUTT
WR2712 (Butt)
WR3012
WR3012 BUTT
WR3312
WR3312 BUTT
WR3412 BUTT
WR3612
WR3612 BUTT
WR3712 BUTT
WR3912
WR4212
WR4312
WR4512
WR4812
15” High
WR2415 BUTT
WR2715 (Butt)
WR3015
WR3015 BUTT
WR3315
WR3315 BUTT
WR3415 BUTT
WR3615
WR3615 BUTT
WR3715 BUTT
WR3915
WR4215
WR4315
WR4515
WR4815
No shelf
18” High
WR2418 BUTT
WR2718 (Butt)
WR3018
WR3018 BUTT
WR3318
WR3318 BUTT
WR3418 BUTT
WR3618
WR3618 BUTT
WR3718 BUTT
WR3918
WR4218
WR4318
WR4518
WR4818
One shelf
21” High
WR3021
WR3021 BUTT
WR3321
WR3321 BUTT
WR3421 BUTT
WR3621
WR3621 BUTT
WR3721 BUTT
WR3921
WR4221
One shelf
23 1/2” High
WR2424 BUTT
WR2724 (Butt)
WR3024
WR3024 BUTT
WR3324
WR3324 BUTT
WR3424 BUTT
WR3624
WR3624 BUTT
WR3724 BUTT
WR3924
27” High
s
WR3027
s
WR3027 BUTT
s
WR3327
s
WR3327 BUTT
s
WR3427 BUTT
s
WR3627
s
WR3627 BUTT
s
WR3727 BUTT
Two shelves
30” High
WR2430 BUTT
WR2730 (Butt)
WR3030
WR3030 BUTT
WR3330
WR3330 BUTT
WR3430 BUTT
WR3630
WR3630 BUTT
WR3730 BUTT
33” High
WR2433 BUTT
WR2733 (Butt)
WR3033
WR3033 BUTT
WR3333
WR3333 BUTT
WR3633
WR3633 BUTT
• Additional support required
I
Integrated Extended Stile (XSG) only available on cabinets 30” high or higher
When designing a built-in refrigerator area, remember that many side by side refrigerators
measure up to 36” wide. If you have the extra space, it is recommended to use a 37” wide Wall
Refrigerator (WR) cabinet to assure clearance for the appliance. Also, verify the height of the
appliance to make sure you are using the correct Wall Refrigerator cabinet.
s
Top Wide Rail (TWR) option
not
available
Gray color coding indicates new product, size or code.
