• Adjustable shelves
• Additional support is required
• With the Auto-open Kit (AO), pressing lower
corners of cabinet door triggers auto-open.
Pressing a button on activator switch triggers
auto-close. Doors can be operated manually if
desired. Multiple units can also be synced to
open and close simultaneously with the push of
one button
• Auto-open Kit (AO) requires 110V power source,
preferably above cabinet
• 30–36” wide wall cabinets have wood veneer
plywood shelves
• Permaset bumpers are
not
included on doors ordered
with the Auto-open Kit (AO)
I
Antiquity Glass Insert (ATQ)
not
available on 36˝ wide
cabinet.
I
Prep for Glass (DRS•PREP)
not
available
I
Not
available with Crossroads (CRO), Modern Textured
(MRT) and Moire (MOI) Glass Inserts
I
Not
available with Mullion glass doors (GD) option
I
Not
available with Camed glass door (GD) option
I
Minimum Reduced Depth (RD) is 12˝
• Installation instructions supplied with Auto-open Kit
(AO); read thoroughly
•
Note:
Auto-open Kit (AO) requires field installation
•
Note:
Square doors will be supplied when ordered in
arched door styles
• Adjustable shelves
• Additional support is required
• Adjustable Soft-Close lift mechanism standard
• With the Auto-open Kit (AO), pressing lower
corners of cabinet door triggers auto-open.
Pressing a button on activator switch triggers
auto-close. Doors can be operated manually if
desired. Multiple units can also be synced to open
and close simultaneously with the push of one
button
• Auto-open Kit (AO) requires 110V power source,
preferably above cabinet
• Permaset bumpers are
not
included on doors
ordered with the Auto-open Kit (AO)
• 30–36” wide wall cabinets have wood veneer plywood
shelves
I
Antiquity Glass Insert (ATQ)
not
available on 36˝ wide
cabinet.
I
Not
available with Crossroads (CRO), Modern Textured
(MRT) and Moire (MOI) Glass Inserts
I
Prep for Glass (DRS•PREP)
not
available
I
Not
available with Mullion glass doors (GD) option
I
Not
available with Camed glass door (GD) option
• Installation instructions supplied with Auto-open Kit
(AO); read thoroughly
•
Note:
Auto-open Kit (AO) requires field installation
•
Note:
Square doors will be supplied when ordered in
arched door styles
Tip: When mounting a 6” Spice Drawer (SD—)
or Organizer (O—) underneath a 23 1/2” cabinet
next to a 30” high wall cabinet, the overall
height will be 29 1/2”. To correct this, you can
place a piece of Stack Molding (STM8) or a 1/2” filler
between the 23 1/2” cabinet and the 6” cabinet.
Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between two
(2) cabinets, a cabinet and a wall or supported
from below
D4
Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.

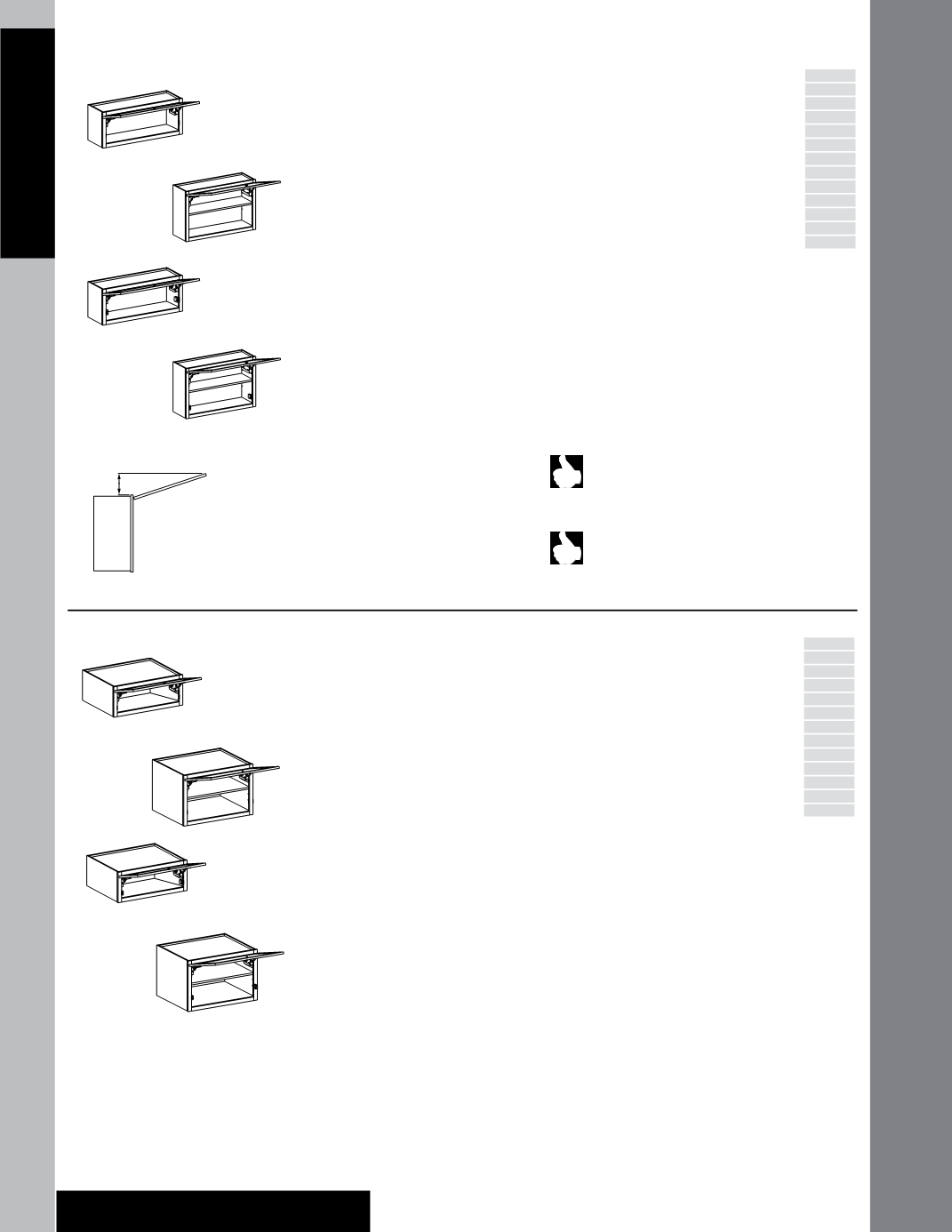

Wall Cabinets
Wall Top Hinge Cabinet 12” Deep
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
RD
l
ID
TWR
l
XS
XSG
I
GD
12˝
15˝
18˝
12˝
WRTHG3012-
WRTHG3618
WRTHG3021-
WRTHG3624
21˝
23 ½˝
12˝
12˝
15˝
18˝
12˝
WRTHG3012•AO-
WRTHG3618•AO
WRTHG3021•AO-
WRTHG3624•AO
21˝
23 ½˝
12˝
12˝= 3¼˝
15˝= 4 / ˝
18˝ = 5˝
24˝ = 6 / ˝
Wall Refrigerator Top Hinge 24” Deep
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
I
RD
ID
TWR
l
XS
XSG
I
GD
24˝
12˝
15˝
18˝
WRTHG3012-
WRTHG3618
WRTHG3021-
WRTHG3624
21˝
23 ½˝
24˝
24˝
12˝
15˝
18˝
WRTHG3012•AO-
WRTHG3618•AO
WRTHG3021•AO-
WRTHG3624•AO
21˝
23 ½˝
24˝
No shelf
12” High
WTHG1512
WTHG2412
WTHG3012
WTHG3612
15” High
WTHG1515
WTHG2415
WTHG3015
WTHG3615
18” High
WTHG1518
WTHG2418
WTHG3018
WTHG3618
One Shelf
21” High
WTHG3021
WTHG3621
23 1/2” High
WTHG1524
WTHG2424
WTHG3024
WTHG3624
With Auto-open Kit
No shelf
12” High
WTHG1512 •AO
WTHG2412 •AO
WTHG3012 •AO
WTHG3612 •AO
15” High
WTHG1515 •AO
WTHG2415 •AO
WTHG3015 •AO
WTHG3615 •AO
18” High
WTHG1518 •AO
WTHG2418 •AO
WTHG3018 •AO
WTHG3618 •AO
One Shelf
21” High
WTHG3021 •AO
WTHG3621 •AO
23 1/2” High
WTHG1524 •AO
WTHG2424 •AO
WTHG3024 •AO
WTHG3624 •AO
No shelf
12” High
WRTHG3012
WRTHG3612
15” High
WRTHG3015
WRTHG3615
18” High
WRTHG3018
WRTHG3618
One Shelf
21” High
WRTHG3021
WRTHG3621
23 1/2” High
WRTHG3024
WRTHG3624
With Auto-open Kit
No shelf
12” High
WRTHG3012 •AO
WRTHG3612 •AO
15” High
WRTHG3015 •AO
WRTHG3615 •AO
18” High
WRTHG3018 •AO
WRTHG3618 •AO
One Shelf
21” High
WRTHG3021 •AO
WRTHG3621 •AO
23 1/2” High
WRTHG3024 •AO
WRTHG3624 •AO
