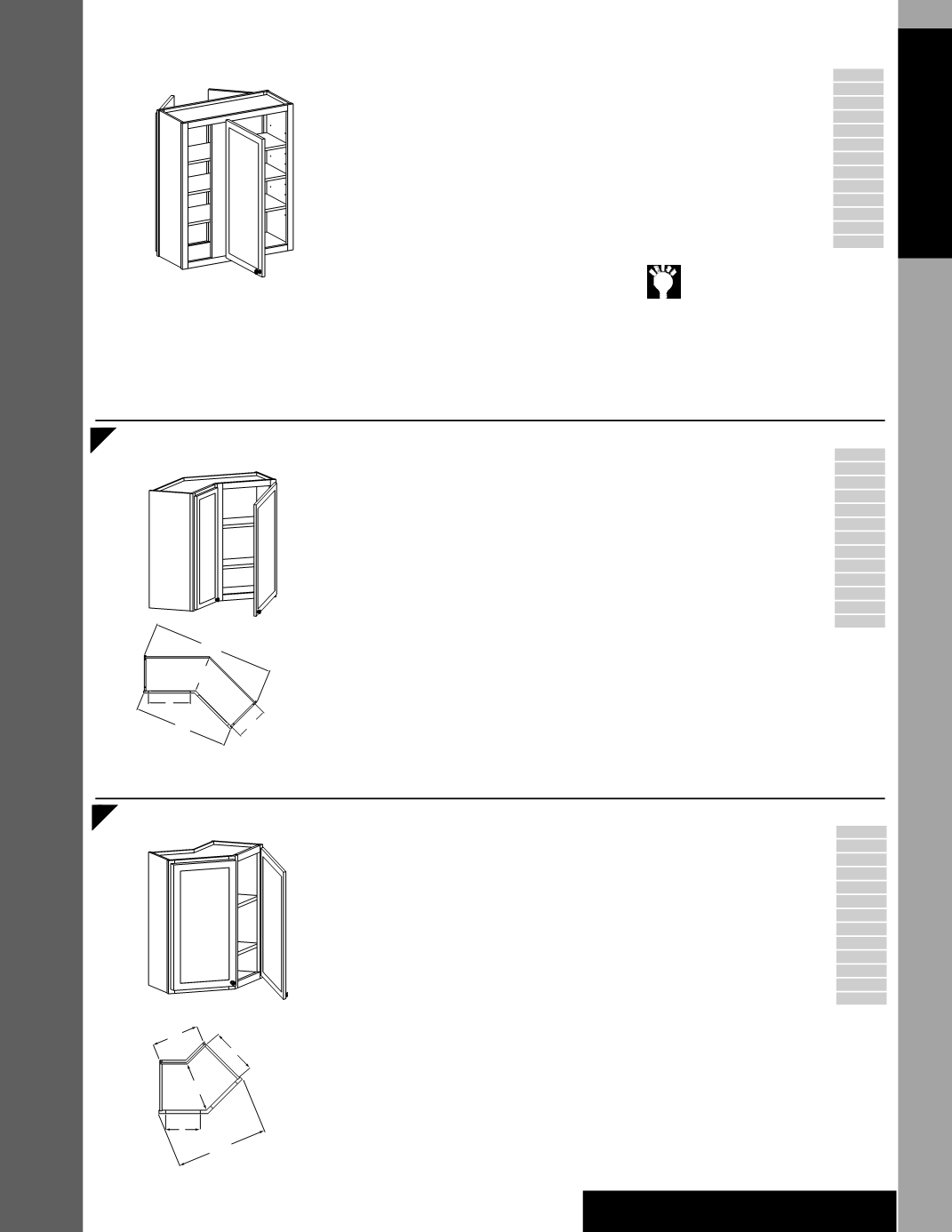

Wall Corner Cabinets
Wall Cabinets
Peninsula Wall Blind Corner
Specify R or L for Blind
One shelf
23 1/2” High
i
PWBC2724 R or L
i
PWBC3024 R or L
PWBC3324 R or L
PWBC3624 R or L
Two shelves
30” High
Is;
PWBC2430 R or L
i
PWBC2730 R or L
i
PWBC3030 R or L
PWBC3330 R or L
PWBC3630 R or L
33” High
Is;
PWBC2433 R or L
i
PWBC3033 R or L
PWBC3633 R or L
Three shelves
36” High
Is;
PWBC2436 R or L
i
PWBC3036 R or L
PWBC3636 R or L
39” High
Is;
PWBC2439 R or L
PWBC3039 R or L
PWBC3639 R or L
42” High
Is;
PWBC2442 R or L
i
PWBC3042 R or L
PWBC3642 R or L
• R or L indicates blind
• Left shown
• Adjustable shelves
• Frame backs are
not
finished
• See Wall Blind Corner (WBC)
cabinet chart for cabinet
specifications
•
Note:
Two 3˝ fillers included.
Overlay Panel for Wall Blind
Corner Cabinets (OPWBC)
must
be ordered separately; see Wall
Accessories section of this book
We recommend using Under
Cabinet Panels (UCP) on all wall
cabinet runs. This will give the
kitchen an elegant finished look. Unless
ordered with a matching wood veneer interior
option, the under side of wall cabinets are a
natural birch material.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
l
RD
l
ID
TWR
l
XS
XSG
I
GD
23
1
/
2
˝
30˝
33˝
36˝
39˝
42˝
12˝
8˝
i
Butt doors on peninsula side
I
Single door both sides
s
Kitchen side door is square except full overlay arched
door styles. Laminate door styles are always square.
Huntley, Scarbourough and Veranda doors will have a
solid, recessed flat panel.
;
Glass door option
not
available
135º Wall Inside Angle Corner Cabinet
Two shelves
WIAC2130
WIAC2133
Three shelves
WIAC2136
WIAC2139
WIAC2142
• Adjustable shelves
• Backs of cabinets are slightly
recessed to allow for wall
imperfections
• Shimming is required
•
Must
allow 21” of wall space
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
RD
ID
l
TWR
l
XS
XSG
l
GD
38 / ˝
29 / ˝
10 / ˝
11 / ˝
13 / ˝
30˝
33˝
36˝
39˝
42˝
New
Gray color coding indicates new product, size or code.
135º Wall Outside Angle Corner Cabinet
Two shelves
WOAC630
WOAC633
Three shelves
WOAC636
WOAC639
WOAC642
• Adjustable shelves
• Backs of cabinets are slightly
recessed to allow for wall
imperfections
• Shimming is required
•
Must
allow 6” of wall space
l
PE
l
APC
l
APFC
l
FPEB
l
MI
DE
OE
RD
ID
l
TWR
l
XS
XSG
GD
10
¾˝
10 / ˝
11 ¼˝
7 / ˝
20
¼˝
30˝
33˝
36˝
39˝
42˝
New
Gray color coding indicates new product, size or code.
