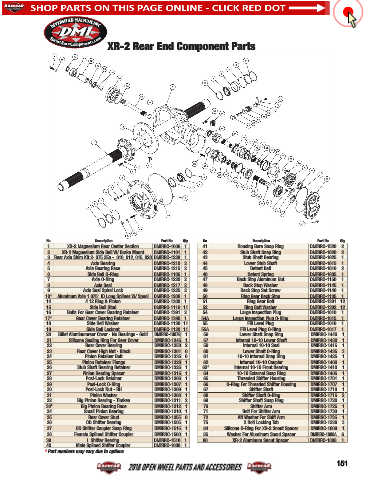

XR-2 Rear End Component Parts

No. Description Part No. Qty. No. Description Part No. Qty.
1 XR-2 Magnesium Rear Center Section DMIRRC-1006 1 41 Housing Bore Snap Ring DMIRRC-1520 2
2 XR-2 Magnesium Side Bell W/ Brake Mount DMIRRC-1101 1 42 Stub Shaft Snap Ring DMIRRC-1620 2
3 Rear Axle Shim Kit 2-.075 3Ea - .010,.012,.015,.020 DMIRRC-1229 1 43 Stub Shaft Bearing DMIRRC-1625 1
4 Axle Bearing DMIRRC-1210 2 44 Lower Stub Shaft DMIRRC-1615 1
5 Axle Bearing Race DMIRRC-1215 2 45 Detent Ball DMIRRC-1610 2
6 Side Bell O-Ring DMIRRC-1105 1 46 Detent Spring DMIRRC-1605 1
7 Axle O-Ring DMIRRC-1220 2 47 Back Stop Aluminum Nut DMIRRC-1150 1
8 Axle Seal DMIRRC-1217 2 48 Back Stop Washer DMIRRC-1145 1
9 Axle Seal Spiral Lock DMIRRC-1225 2 49 Back Stop Set Screw DMIRRC-1140 1
10* Aluminum Axle 1.875" ID Long Splines W/ Spool DMIRRC-1208 1 50 Ring Gear Back Stop DMIRRC-1135 1
14 4.12 Ring & Pinion DMIRRC-1300 1 51 Ring Gear Bolt DMIRRC-1301 12
15 Side Bell Stud DMIRRC-1110 11 52 Ring Bolt Washer DMIRRC-1302 12
16 Bolts For Gear Cover Bearing Retainer DMIRRC-1391 2 54 Large Inspection Plug DMIRRC-1010 1
17* Gear Cover Bearing Retainer DMIRRC-1390 1 54A Large Inspection Plug O-Ring DMIRRC-1015 1
18 Side Bell Washer DMIRRC-1130 11 55 Fill Level Plug DMIRRC-1016 1
19 Side Bell Locknut DMIRRC-1120 11 55A Fill Level Plug O-Ring DMIRRC-1017 1
20 Billet Aluminumrear Cover - No Bearings - Gold DMIRRC-1387G 1 56 Lower Shaft Snap Ring DMIRRC-1440 1
21 Silicone Sealing Ring For Gear Cover DMIRRC-1345 1 57 Internal 10-10 Lower Shaft DMIRRC-1430 1
22 Rear Cover Bearing DMIRRC-1350 2 59 Internal 10-10 Seal DMIRRC-1415 1
23 Rear Cover High Nut - Black DMIRRC-1361 6 60 Lower Shaft O-Ring DMIRRC-1435 3
24 Pinion Retainer Bolt DMIRRC-1335 6 61 10-10 Internal Snap Ring DMIRRC-1425 1
25 Pinion Retainer Flange DMIRRC-1320 1 62 Internal 10-10 Coupler DMIRRC-1400 1
26 Stub Shaft Bearing Retainer DMIRRC-1325 1 63* Internal 10-10 Front Bearing DMIRRC-1410 1
27 Pinion Bearing Spacer DMIRRC-1315 1 64 10-10 External Snap Ring DMIRRC-1405 1
28 Posi-Lock Retainer DMIRRC-1366 1 65 Threaded Shifter Housing DMIRRC-1701 1
29 Posi-Lock O-Ring DMIRRC-1367 1 66 O-Ring For Threaded Shifter Housing DMIRRC-1707 1
30 Posi-Lock Nut - RH DMIRRC-1369 1 67 Shifter Shaft DMIRRC-1710 1
31 Pinion Washer DMIRRC-1368 1 68 Shifter Shaft O-Ring DMIRRC-1715 2
32 Big Pinion Bearing - Timken DMIRRC-1311 2 69 Shifter Shaft Snap Ring DMIRRC-1720 1
33* Big Pinion Bearing Race DMIRRC-1312 1 70 Shifter Arm DMIRRC-1725 1
34 Small Pinion Bearing DMIRRC-1310 1 71 Bolt For Shifter Arm DMIRRC-1730 1
35 Rear Cover Stud DMIRRC-1355 6 72 AN Washer For Shift Arm DMIRRC-1735 1
36 OD Shifter Bearing DMIRRC-1505 1 75 2 Bolt Locking Tab DMIRRC-1330 3
37 OD Shifter Coupler Snap Ring DMIRRC-1515 1 84 Silicone O-Ring For XR-2 Snout Spacer DMIRRC-1009 1
38 Female Splined Shifter Coupler DMIRRC-1500 1 85 Washer For Aluminum Snout Spacer DMIRRC-1008A 6
39 I. Shifter Bearing DMIRRC-1510 1 86 XR-2 Aluminum Snout Spacer DMIRRC-1008 1
40 Male Splined Shifter Coupler DMIRRC-1600 1
* Part numbers may vary due to options
