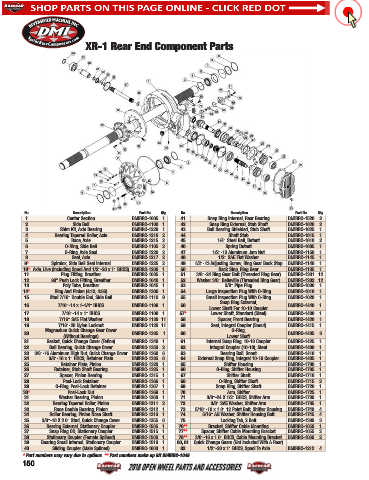

Page 151 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

XR-1 Rear End Component Parts

No. Description Part No. Qty. No. Description Part No. Qty.
1 Center Section DMIRRC-1005 1 41 Snap Ring Internal, Rear Bearing DMIRRC-1520 2
2 Side Bell DMIRRC-1100 1 42 Snap Ring External, Stub Shaft DMIRRC-1620 2
3 Shim Kit, Axle Bearing DMIRRC-1229 1 43 Ball Bearing Shielded, Stub Shaft DMIRRC-1625 1
4 Bearing Tapered Roller, Axle DMIRRC-1210 2 44 Shaft Stub DMIRRC-1615 1
5 Race, Axle DMIRRC-1215 2 45 1/4" Steel Ball, Detent DMIRRC-1610 2
6 O-Ring, Side Bell DMIRRC-1105 2 46 Spring Detent DMIRRC-1605 1
7 O-Ring, Axle Seal DMIRRC-1220 2 47 1/2"-13 Aluminum Jam Nut DMIRRC-1150 1
8 Seal, Axle DMIRRC-1217 2 48 1/2" SAE Flat Washer DMIRRC-1145 1
9* Spiralox, Side Bell Seal Internal DMIRRC-1225 2 49 1/2"-13 Adjusting Screw, Ring Gear Back Stop DMIRRC-1140 1
10* Axle, Live (Including Spool And 1/2"-20 x 1" BHCS) DMIRRC-1200 1 50 Back Stop, Ring Gear DMIRRC-1135 1
11 Plug Fitting, Breather DMIRRC-1035 1 51 3/8"-24 Ring Gear Bolt (Threaded Ring Gear) DMIRRC-1301 12
12 90° Push Lock Fitting, Breather DMIRRC-1040 1 52 Washer 3/8" Belleville (Threaded Ring Gear) DMIRRC-1302 12
13 Poly Tube, Breather DMIRRC-1045 1 53 3/8" Pipe Plug DMIRRC-1030 1
14* Ring And Pinion (4:12, 4:86) DMIRRC-1300 1 54 Large Inspection Plug With O-Ring DMIRRC-1010 1
15 Stud 7/16" Double End, Side Bell DMIRRC-1110 9 55 Small Inspection Plug With O-Ring DMIRRC-1020 1
Snap Ring External,
16 7/16"-14 x 1-1/4" HHCS DMIRRC-1109 1 56 DMIRRC-1440 1
Lower Shaft For 10-10 Coupler
17 7/16"-14 x 1" HHCS DMIRRC-1109 1 57* Lower Shaft, Standard (Steel) DMIRRC-1430 1
18 7/16" SAE Flat Washer DMIRRC-1130 11 58 Spacer, Front Bearing DMIRRC-1420 1
19 7/16"-20 Nylon Locknut DMIRRC-1120 11 59 Seal, Integral Coupler (Snout) DMIRRC-1415 1
Magnesium Quick Change Gear Cover O-Ring,
20 DMIRRC-1385 1 60 DMIRRC-1435 3
(Without Bearings) Lower Shaft
21 Gasket, Quick Change Cover (Teflon) DMIRRC-1340 1 61 Internal Snap Ring, 10-10 Coupler DMIRRC-1425 1
22 Ball Bearing, Quick Change Cover DMIRRC-1350 2 62 Integral Coupler (10-10), Steel DMIRRC-1400 1
23 3/8"-16 Aluminum High Nut, Quick Change Cover DMIRRC-1360 6 63 Bearing Ball, Snout DMIRRC-1410 1
24 3/8"-16 x 1" HHCS, Retainer Plate DMIRRC-1335 6 64 External Snap Ring, Integral 10-10 Coupler DMIRRC-1405 1
25 Retainer Plate, Pinion DMIRRC-1320 1 65 Shifter Housing DMIRRC-1700 1
26 Retainer, Stub Shaft Bearing DMIRRC-1325 1 66 O-Ring, Shifter Housing DMIRRC-1705 1
27 Spacer, Pinion Bearing DMIRRC-1315 1 67 Shifter Shaft DMIRRC-1710 1
28 Posi-Lock Retainer DMIRRC-1366 1 68 O-Ring, Shifter Shaft DMIRRC-1715 2
29 O-Ring, Posi-Lock Retainer DMIRRC-1367 1 69 Snap Ring, Shifter Shaft DMIRRC-1720 1
30* Posi-Lock Nut DMIRRC-1369 1 70 Arm, Shifter DMIRRC-1725 1
31 Washer Bearing, Pinion DMIRRC-1368 1 71 3/8"-24 X 1/2" BHCS, Shifter Arm DMIRRC-1730 1
32 Bearing Tapered Roller, Pinion DMIRRC-1311 2 72 3/8" SAE Washer, Shifter Arm DMIRRC-1735 1
33 Race Double Bearing, Pinion DMIRRC-1312 1 73 5/16"-18 x 1.0" 12 Point Bolt, Shifter Housing DMIRRC-1740 4
34 Roller Bearing, Pinion Nose Shaft DMIRRC-1310 1 74 5/16" AN Washer, Shifter Housing Bolt DMIRRC-1745 4
35 3/8"-16 X 2.0" Stud, Quick Change Cover DMIRRC-1355 6 75 Locking Tab, 2 Bolt DMIRRC-1330 3
36 Bearing External, Stationary Coupler DMIRRC-1505 1 76** Bracket, Shifter Cable Mounting DMIRRC-1050 1
37 Snap Ring OD, Stationary Coupler DMIRRC-1515 1 77** Spacer, Shifter Cable Mounting Bracket DMIRRC-1055 2
38 Stationary Coupler (Female Splined) DMIRRC-1500 1 78** 3/8"-16 x 1.0" BHCS, Cable Mounting Bracket DMIRRC-1060 2
39 Bearing Small Internal, Stationary Coupler DMIRRC-1510 1 80, 81 Quick Change Gears (Not Included With A Rear)
40 Sliding Coupler (Male Splined) DMIRRC-1600 1 82 1/2"-20 x 1" BHCS, Spool To Axle DMIRRC-1212 4
* Part numbers may vary due to options ** Part numbers make up kit DMIRRC-1049
