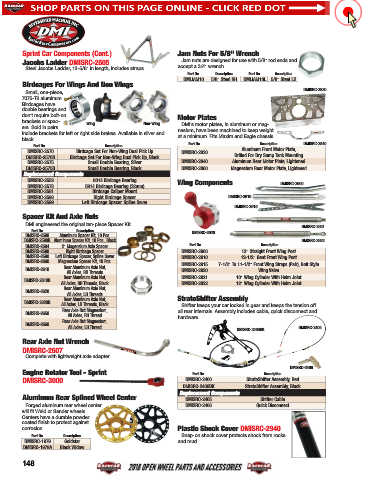

Page 149 - 2018 Racecar Engineering Open Wheel Parts and Accessories Catalog

Sprint Car Components (Cont.) Jam Nuts For 5/8" Wrench
Jacobs Ladder DMISRC-2505 Jam nuts are designed for use with 5/8" rod ends and
accept a 3/4" wrench.
Steel Jacobs Ladder, 13-5/8" in length, includes straps.
Part No. Description Part No. Description
DMIJAM10 5/8" Steel RH DMIJAM10L 5/8" Steel LH
Birdcages For Wings And Non Wings
Small, one-piece, DMISRC-2830
7075-T6 aluminum
Birdcages have
double bearings and
don’t require bolt-on Motor Plates
brackets or spac- Wing Non-Wing
ers. Sold in pairs. DMI’s motor plates, in aluminum or mag-
Include brackets for left or right side brakes. Available in silver and nesium, have been machined to keep weight
black. at a minimum. Fits Maxim and Eagle chassis.
Part No. Description DMISRC-2840
Part No. Description
DMISRC-2570 Birdcage Set For Non-Wing Dual Pick Up DMISRC-2830 Aluminum Front Motor Plate,
DMISRC-2570B Birdcage Set For Non-Wing Dual Pick Up, Black Drilled For Dry Sump Tank Mounting
DMISRC-2575 Small Double Bearing, Silver DMISRC-2840 Aluminum Rear Motor Plate, Lightened
DMISRC-2575B Small Double Bearing, Black DMISRC-2860 Magnesium Rear Motor Plate, Lightened
Replacement Components
DMISRC-2553 6014 Birdcage Bearing Wing Components
DMISRC-2578 5914 Birdcage Bearing (32mm) DMISRC-2900
DMISRC-2581 Birdcage Caliper Mount
DMISRC-2598 Right Birdcage Spacer DMISRC-2910
DMISRC-2599 Left Birdcage Spacer, Spline Saver
DMISRC-2915
Spacer Kit And Axle Nuts
DMI engineered the original ten-piece Spacer Kit.
DMISRC-2921
Part No. Description DMISRC-2920
DMISRC-2590 Aluminum Spacer Kit, 10 Pcs.
DMISRC-2590B Aluminum Spacer Kit, 10 Pcs., Black DMISRC-2922
DMISRC-2594 2" Magensium Axle Spacer Part No. Description
DMISRC-2598 Right Birdcage Spacer DMISRC-2900 13" Straight Front Wing Post
DMISRC-2599 Left Birdcage Spacer, Spline Saver DMISRC-2910 12-1/2" Bent Front Wing Post
DMISRC-2600 Magnesium Spacer Kit, 10 Pcs. DMISRC-2915 7-1/2" To 11-1/2" Front Wing Straps (Pair), Bolt Style
Rear Aluminum Axle Nut,
DMISRC-2610 DMISRC-2920 Wing Valve
All Axles, RH Threads
Rear Aluminum Axle Nut, DMISRC-2921 10" Wing Cylinder With Heim Joint
DMISRC-2610B
All Axles, RH Threads, Black DMISRC-2922 12" Wing Cylinder With Heim Joint
Rear Aluminum Axle Nut,
DMISRC-2620
All Axles, LH Threads
Rear Aluminum Axle Nut, StratoShifter Assembly
DMISRC-2620B
All Axles, LH Threads, Black Shifter keeps your car locked in gear and keeps the tension off
Rear Axle Nut Magnesium,
DMISRC-2650 all rear internals. Assembly includes cable, quick disconnect and
All Axles, RH Thread hardware.
Rear Axle Nut Magnesium,
DMISRC-2660
All Axles, LH Thread DMISRC-2405
DMISRC-2400BK
Rear Axle Nut Wrench
DMISRC-2607
Complete with lightweight axle adapter.
DMISRC-2406
Engine Rotator Tool - Sprint Part No. Description
DMISRC-3000 DMISRC-2400 StratoShifter Assembly, Red
DMISRC-2400BK StratoShifter Assembly, Black
Replacement Components
Aluminum Rear Splined Wheel Center DMISRC-2405 Shifter Cable
Forged aluminum rear wheel center DMISRC-2406 Quick Disconnect
will fit Weld or Sander wheels.
Centers have a durable powder
coated finish to protect against
corrosion. Plastic Shock Cover DMISRC-2940
Part No. Description Snap-on shock cover protects shock from rocks
DMISRC-1979 Goldstar and mud.
DMISRC-1979A Black Widow

148
