All types of shapes and layout markings on all four sides can be done by the V808 robotic profile processor. It is capable of producing profiles up to 1.250mm (50") wide. Our Voortman V807 robot can handle profiles up to 1.050mm (42") if this width is not required. The V808 can thermally process rat holes, slotted web and "dogbone" cuts, copes at the beginning or end of products, block outs, holes of all sizes and shapes, weld preparations, marking on all four sides, and many other types of cuts.

The machine can be integrated to a fully-automatic MSI beamline by integrating it with full-automatic profile transport. Our/The VACAM software controls sensored drag-dogs, or liftables. Profiles are transported onto and from the infeed conveyor conveyor. The trading lengths will allow for the automatic production of selected products. Cross-transports have the ability to handle multiple profiles. This allows machines to operate autonomously for considerable amounts of time.

We created a live-processing demo product to prove that the Voortman H808 is the fastest robot thermal cutter on the market. See the video to see the Voortman 808 at speed. This product has 12 different actions. Each one is performed by one machine.

Manual coping requires that you perform every step manually, from reading the drawings to transferring dimensions, framing and cutting beams with a torch handheld. Manual coping requires a lot of grinding and chipping in order to get the desired result. There is also the possibility of human error in terms of angles, finish, dimensions and misalignment. These inefficiencies can increase operational costs and reduce profits.

Steel beams, pipes, and tubes must often be coping when they are used in steel fabrication. These assemblies have to be able to fit together parts with irregular shapes and angles, such handrails or car bumpers. Coping makes it possible for all parts, regardless their shape or size, to fit together perfectly in their surroundings.

The PCR41 plasma drilling machine was designed to combine as many fabrication functions into one machine as possible. The PCR41 can produce finished parts at very low manufacturing costs. The machine automates all common cutting operations and structural steel.

Rat holes, seismic structural connections (jay-allan, dog bone connections), copes on the lead or trail ends of products, block outs holes of all sizes and shapes, weld preparations for marking on all sides and more Voortman's V808 can handle all four sides of the material using one robot. This makes it the most versatile machine in the market. The software allows for all cuts and profiles, as shown in the video.

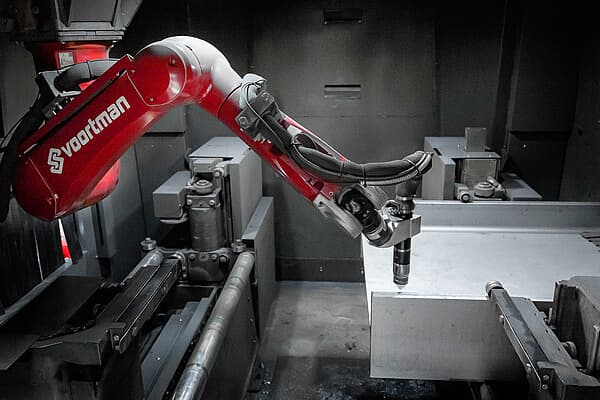

Voortman V808, the most versatile robotic thermal-cutting machine on market, has eight axes that allow for wide profile processing. This machine can operate up to 1.250mm (50") The robot's incredible flexibility combined with the machine structure allows it to cut all 3D shapes and mark all sides of your material. This system provides a great deal of freedom and allows for the creation and production of complex connections and cops. Voortman Vo808 handles all of your layout marking needs: copes, slots, bolt holes, bevels as well as weld preparation.
