After configuring an Automation in FME Server to process building footprint updates with both the Directory Watch and Email Triggers, your supervisor is wondering if they can receive an email whenever the corporate database is updated.

Using an external email server, you think that it is possible to configure the existing Automation in FME Server to satisfy this requirement. You also realize that you can use an Automations Writer in the workspace to include additional information about the updates made to the corporate database in the email that is sent.

1) Open Workspace in Workbench
If you don't already have the workspace from Exercise 2 open in Workbench, download it from FME Server using the File > Download from FME Server option in Workbench. From the download from FME Server dialog, choose the Training Repository and select RealTime-Ex2-Complete.fmw to open it in Workbench for editing.

2) Create Summary Information for Job

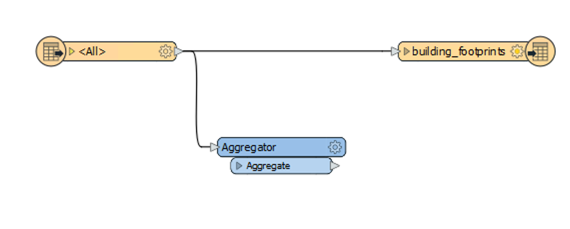

Now, you are going to update this workspace to generate a summary of the number of records that were updated from the incoming Shapefile. Add an Aggregator transformer and connect it in parallel to the Shapefile Reader like this:

Open the Aggregator parameters dialog and set the Count Attribute to a name: NumberOfUpdates

3) Add Automations Writer
Go to Writers > Add Writer and select the FME Server Automations format. Set the Feature Type Definition to Automatic... and add the writer to the canvas. When prompted, set the Feature Type Name to JobSummary and click OK.

Connect the Automations Writer feature type to the output port of the Aggregator transformer.

4)Clean up Automations Writer Attributes

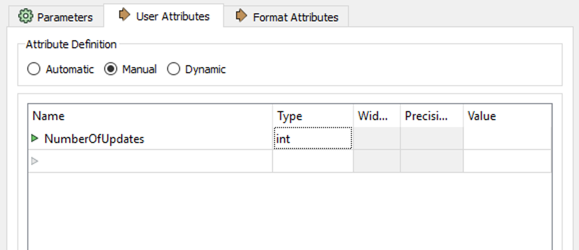

After connecting the Automations writer, you'll notice that all the attributes from the Shapefile data are included on the writer. We don't need all that information within the Automation. Open the Feature Type Properties on the writer, then go to User Attributes and select Manual under Attribute Definition.

Remove all the attributes except for the one we created earlier, NumberOfUpdates. Set the Type for NumberOfUpdates to int as this is a numeric value.

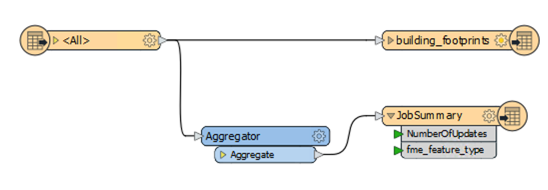

Click OK to apply that change. At this stage, there should be two attributes on the JobSummary Feature Type: NumberOfUpdates and fme_feature_type

5)Save and Republish Workspace
Save the workspace and Republish it to FME Server.

6)Update Workspace Action

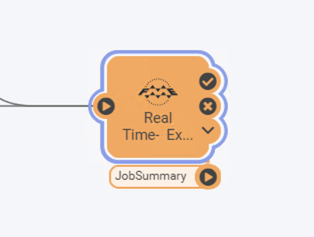

Open the FME Server web interface and navigate to the Automations:Manage page. Click the Incoming Building Footprints and stop the Automation to allow for editing. Click on the Workspace Action in the Automation to open its parameters. Click on the Refresh button in the top right of the Parameters window then click Apply to update the Workspace Action. A new output port should appear in the Automation.

7) Add External Action
The final step in the Automation is to add an email service External Action through which a response will be sent.

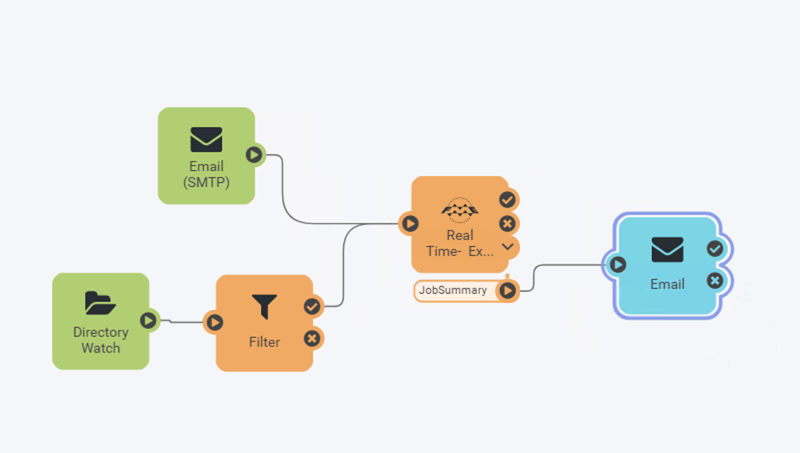

Select the plus icon in the bottom left and drag an External Action (blue) to the canvas. Connect this to the JobSummary output port of the Run Workspace node, which will now also act as a Trigger.

Double click on the node to configure it, set the action to send an email and set up your SMTP email server parameters.

In case it is of use, the server information for Gmail is as follows:

There is also the option to load a template for some other Email Servers, if you are unsure what port/host they use. Regardless of the email provider, you should set these parameters as follows:

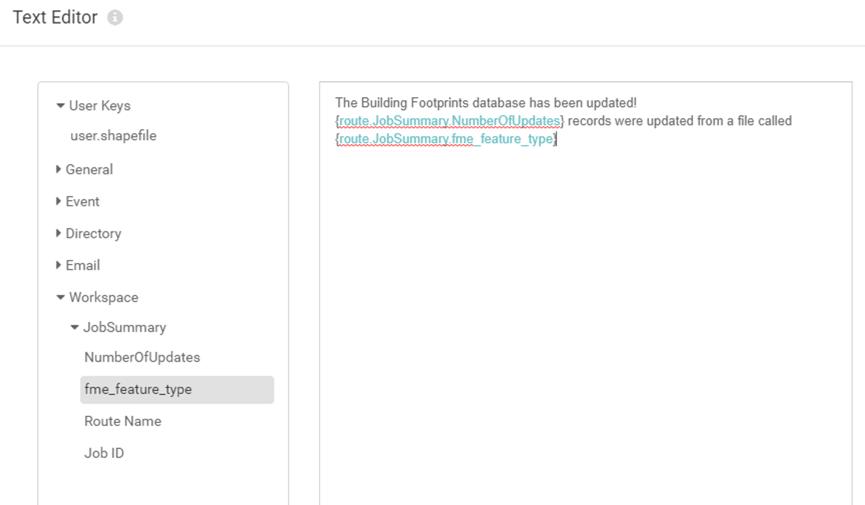

Next, set the Email Body. Click the drop-down arrow to the right of the value and select Text Editor. This will open a window that will allow you to add content that can also include values coming from elements within the Automation.

Set the Email Body to the following:

The Building Footprints database has been updated! {route.JobSummary.NumberOfUpdates} records were updated from a file called {route.JobSummary.fme_feature_type}

Note: To add the information coming from the Automations Writer, look at the panel on the left-hand side of the Text Editor and look under Workspace > JobSummary for the list of attributes available to use. Click on each one to add them to the text editor.

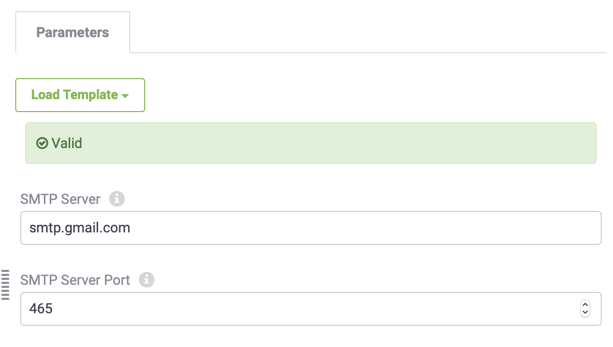

Before you Apply these parameters validate the Email Server configuration using the Validate button, if FME Server is unable to connect to the email server you can troubleshoot this before finding out after your automation is running.

Enable the Automation by selecting the Start Automation button.

8) Test Automation
Test the Automation by either sending an email with a zip file attachment of the Shapefile datasets (.dbf, .prj, .shp, .shx) from C:\FMEData2020\Data\Engineering\BuildingFootprints, or by adding this collection of files to the Directory Watch as in Exercise 1.

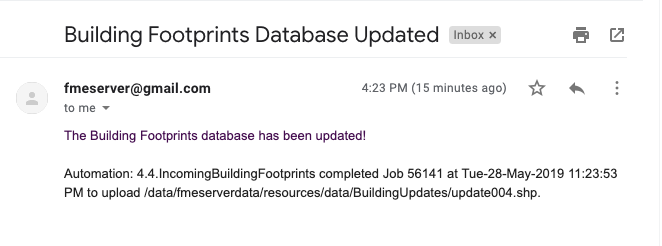

If the workflow was successful, you should receive an email back with a response!
