Zip File Handling

The Basic Desktop course covered how data can be read directly from a zip file. However, it is also possible to write data to a zip file.

Zip files are a convenient way to write output datasets that need to be handled as a single unit.

For example, a single Shape feature type consists of several files; shp, shx, dbf, prj, etc. A Shape dataset can consist of multiple feature types. So, in a scenario where the output data needs to be post-processed – uploaded to a web site, say – it’s more convenient to handle a single zip file than multiple data files.

Zip File Writing

The simplest way to create a zipped output is to simply change the file extension to .zip in the output dataset field:

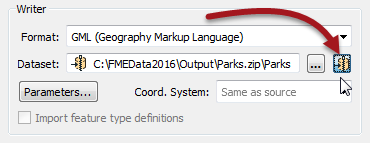

A shortcut button for setting a zip extention exists on most Writer dialogs:

Once set, a small icon in the dataset field indicates the zipped status:

When the workspace is run the log file reports the zip creation:

Finished updating output zip file `C:\FMEData2016\Output\'

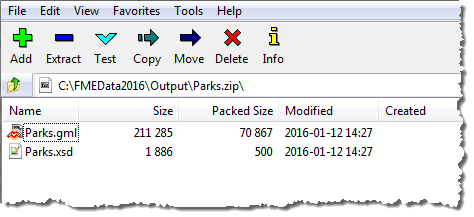

And the output is, indeed, a zipped dataset:

Sister Intuitive says…
I’m Sister Intuitive from the order of Perpetual Translations. I’ll provide you with spatial guidance throughout this chapter.

Some users may want to zip data in order to upload it to a different location as a single entity. A user parameter can be used in a TCL or Python script to find the name of the file just written, and the FeatureWriter transformer (new in FME2016) also provides the name of the dataset as an attribute.
