Exercise 1 Creating a Custom Transformer Data Neighborhoods (Google KML) Overall Goal Create a custom transformer out of a workspace Demonstrates Basic custom transformer creation Start Workspace C:\FMEData2016\Workspaces\DesktopAdvanced\CustomTransformers-Ex1-Begin.fmw End Workspace C:\FMEData2016\Workspaces\DesktopAdvanced\CustomTransformers-Ex1-Complete.fmw

A colleague - new to FME - has created a workspace that calculates the population density for neighborhoods in the city of Vancouver, and comments that this technique could be reused for other projects.

You mention custom transformers as a way of doing this and will now demonstrate to her how to turn this workspace into a general solution that calculates the average density of items in a known space.

1) Start Workbench

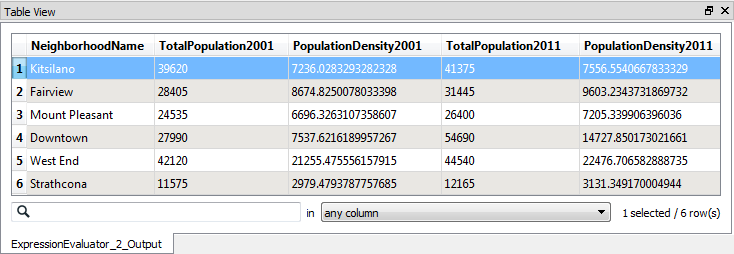

You may wish to run the workspace and examine the output to see what it does and how it works. Basically it calculates the population density (persons per square kilometre) for the years 2001 and 2011:

 .1 UPDATE The AreaCalculator transformer in this workspace gained a port in FME2016.1

2) Create Custom Transformer
The key components for the custom transformer are the AreaCalculator and ExpressionEvaluator transformers. If you examine the workspace you’ll see two ExpressionEvaluators (one for the year 2001, one for 2011) but we don’t need to include both in the custom transformer.

So select the AreaCalculator transformer and the first ExpressionEvaluator, right-click on them, and choose the context menu option 'Create Custom Transformer.'

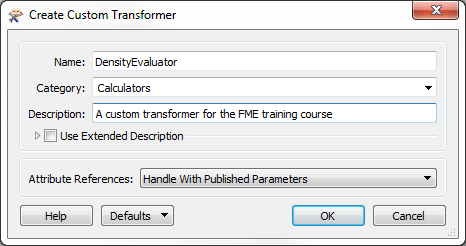

In the Create Custom Transformer dialog enter a name, category, and description for the new custom transformer. A good name for the transformer will be the DensityEvaluator.

 First Officer Transformer says… You can’t call it the DensityCalculator; FME already has one of those!

Be sure the Attribute References parameter is set to “Handle with Published Parameters” (more on that later) and click OK:

The custom transformer will now be created.

3) Inspect Custom Transformer
Flip back and forth between the DensityEvaluator tab and the Main tab to see how the custom transformer is constructed, and how it is placed in the workspace itself.

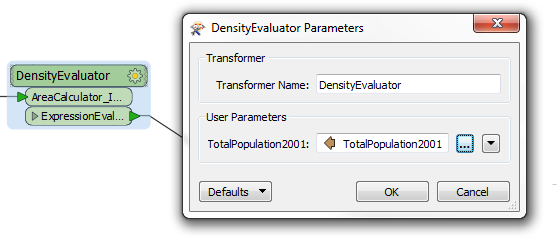

Back in the Main tab, click on the cog wheel icon on the custom transformer to open its parameters dialog.

The main parameter is one created automatically by FME to accept the attribute to be processed. You'll see it is automatically preset to the TotalPopulation2001 attribute.

4) Run Workspace
Save the workspace and then run the workspace, to ensure the output has not changed. However, note that this is just the start of this custom transformer, and we should tidy it up (make it more generic) before trying to reuse it in other scenarios.

 Miss Vector says… Why do you think that we left the CSMapReprojector transformer out of our custom transformer? Any ideas?

 CONGRATULATIONS By completing this exercise you have learned how to: Create a custom transformers from a sequence of existing transformers Handle attribute references automatically in a custom transformer
