Exercise 1 Parameterize a Metadata Writer
Data Parks (MapInfo TAB)
Overall Goal Allow user input to metadata fields
Demonstrates Use of FME parameters.
Creation and use of User Parameters
Start Workspace C:\FMEData2016\Workspaces\DesktopAdvanced\Parameters-Ex1-Begin.fmw
End Workspace C:\FMEData2016\Workspaces\DesktopAdvanced\Parameters-Ex1-Complete.fmw

In this example, imagine that you are a GIS technician working for a city planning department.

The team responsible for maintaining parks has a workspace that translates their data from the source MapInfo TAB format to Google KML. It also writes a file of XML metadata to show who translated the data and when.

At the moment there are a number of problems they face.

  • The XML output is not particularly well formatted
  • The date attribute is being rejected by an online XML validator
  • All of the XML metadata fields are hard-coded in an AttributeCreator transformer. This is quite inconvenient (especially when they want to run the workspace on FME Server!)

You have been assigned to help solve these problems. At least one of these requires you to create user parameters to take the place of hard-coded values.

1) Start Workbench
Start Workbench and open the workspace C:\FMEData2016\Workspaces\DesktopAdvanced\Parameters-Ex1-Begin.fmw

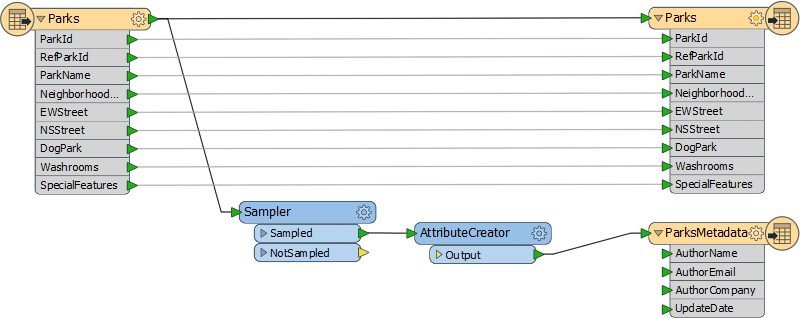

The metadata part of the translation consists of the two transformers and XML Writer feature type.

The Sampler transformer ensures that only one record is written to the output metadata, by discarding all but one feature, and the AttributeCreator creates a set of attributes to write to the metadata.

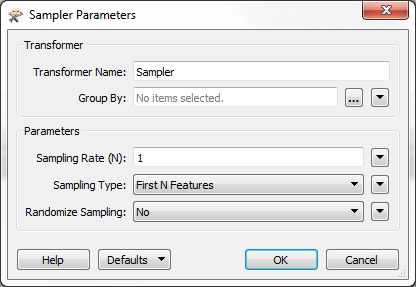

Open the parameters dialog for each transformer in turn. These are FME parameters, set by the workspace author and not available to the end-user. Here, for example, are the parameters for the Sampler transformer:

You can also find the same parameters in the Navigator window.

2) Change XML Writer Parameter

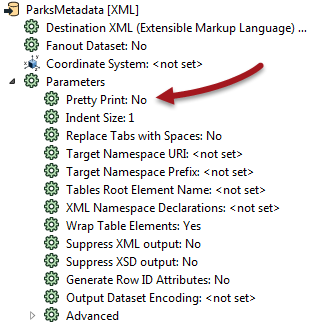

The style of the XML file being written is controlled by an FME parameter called Pretty Print:

To ensure the output is always well-formatted, we should set this parameter to Yes - but we won't create a user parameter from it, because we don't want the end-user to change it.

In the Navigator window locate the XML Writer, expand the parameters list, and locate the parameter labelled Pretty Print. Double-click on it.

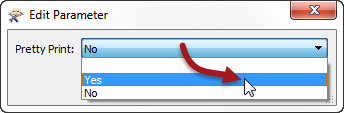

In the dialog that opens, change the value to Yes and then click OK to close the dialog.

We have now - as a workspace author - changed an FME parameter.

3) Create User Parameter
The output schema has three variable attributes: username, user company (organization), and user email. We should create a user parameter for each of these to allow the end-user to enter that information.

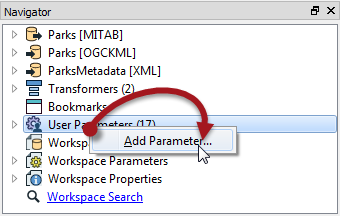

Firstly, locate the User Parameters section of the Navigator window, right-click on it, and choose the option to Add Parameter:

In the new dialog, select Text as the type of parameter to create (there will be more on parameter types in the next section). Each parameter needs a name, so call this one UserNameParam. Now enter a prompt, such as "Enter your name."

Click OK to close the dialog and create the parameter, which will now appear in the Navigator window.

4) Create Remaining User Parameters
Repeat the previous step twice more, this time creating parameters called UserEmailParam and UserCompanyParam.

The prompts should be “Enter your email address” and "Enter your company name."

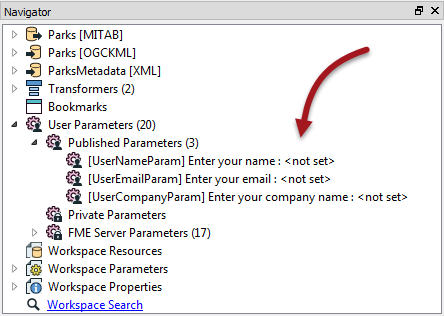

When done the Navigator window looks like this:

5) Use User Parameter – Method 1
Each of the user parameters we've just defined provide values that need to go into attributes in the Writer schema. There are a number of ways to extract the value for such a purpose and we’ll use a different way for each parameter, just to illustrate the different methods.

So, firstly open the parameters dialog for the AttributeCreator. This transformer is what currently creates the attributes for the output.

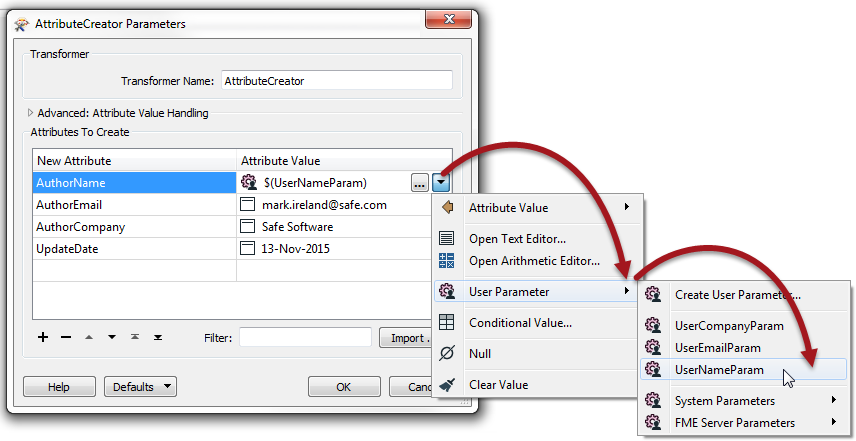

Click in the Value field for the AuthorName attribute. Click on the drop-down arrow, then select User Parameter > UserNameParam.

Once done the value field will change to a special icon and show the parameter that was chosen:

While in this dialog, click on the AuthorEmail and AuthorCompany fields, and press the minus button to delete them. That's just so we can demonstrate dealing with these a different way.

6) Fix Date Attribute
Looking at the AttributeCreator we can see that the date field is being entered as a fixed value. Although not a user parameter as such, it's obvious that the user must be setting this manually at run time.

Additionally, the date is not structured to an ISO standard, which is why the output fails XML validation.

Let's fix these issues. First click on the drop-down arrow next to the date attribute value, then choose Open Text Editor...

In the text editor remove any existing content and replace it with:


This uses an FME function to return a date value, the structure defined will match the ISO date standard.

Firefighter Mapp says...
An alternative method is to simply set the date value to "TODAY" and using the DateFormatter transformer to convert it to a real date in an ISO standard.

7) Use User Parameter – Method 2
A second way to extract the value from a user parameter is with a ParameterFetcher transformer.

Place a ParameterFetcher transformer (after the AttributeCreator is fine). Open the parameters dialog.

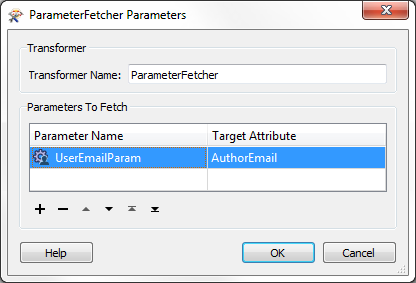

Select UserEmailParam as the parameter to fetch. Enter AuthorEmail as the name of the target attribute:

Ms. Analyst says…
Did you notice that the list of parameters available includes many FME-related system parameters? These are particularly useful for use on FME Server.

8) Use User Parameter – Method 3
The final method to extract the value from a user parameter is with a schema attribute value.

To achieve this, locate the metadata feature type on the canvas and right-click the AuthorCompany attribute. Then select the Edit Value option:

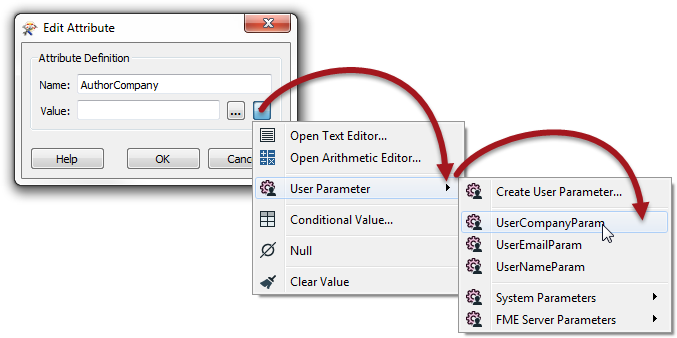

In the dialog that opens, you can enter a fixed (constant) value, but in our case we’ll click on the drop-down arrow, select User Parameters, and then select UserCompanyParam:

Click OK to close the dialog and the feature type should look like this. Notice how the attribute that has had its value set is now highlighted with a specific icon:

9) Save and Run Workspace
Save the workspace and then – as if you were the end-user – run it. Be sure to set the Prompt option on the toolbar first:

When prompted enter your details into the fields that have been newly created:

Locate and open the XML file to ensure the contents have been inserted as expected:

By completing this exercise you have learned how to:
  • Set an FME parameter (on the XML Writer)
  • Create a text type user parameter
  • Use a user parameter in a regular transformer
  • Use a user parameter in a ParameterFetcher transformer
  • Use a user parameter in a Edit Value dialog
  • Use the TimeStamp function in a text editor to create an XML-valid date
