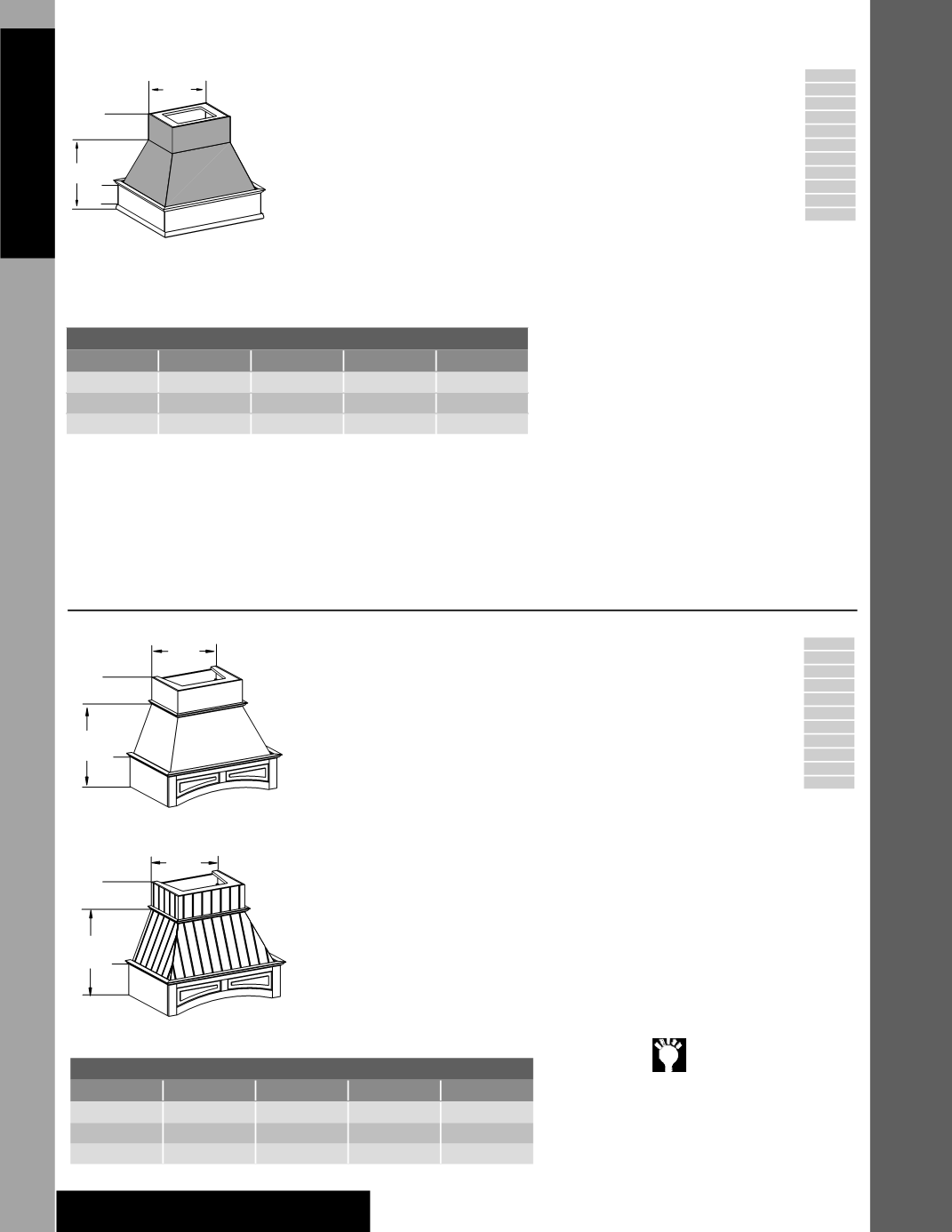

Peninsula Wall Hood Classic Artisan Chimney
30 5/8” High
PWHCC302830 •A
PWHCC363330 •A
PWHCC423330 •A
42 5/8” High
PWHCC302842 •A
PWHCC363342 •A
PWHCC423342 •A
54 5/8” High
PWHCC302854 •A
PWHCC363354 •A
PWHCC423354 •A
• Solid wood/wood veneer construction
• Check local building codes
for required clearances
between the Wall Hood and
cooking surface
• A 3˝ space is recommended
on the right and left side of
this unit before beginning the
adjacent cabinet runs
• 30 5/8˝ high hoods are
designed for use with 8 foot
ceilings
• 42 5/8˝ high hoods are
designed for use with 9 ft.
ceilings
• 54 5/8˝ high hoods are
designed for use with 10 ft.
ceilings
• Shaded areas are unfinished surfaces that
allow for field application of paint or other
decorative material
• Lower molding matches Beaded Panel
Molding (BPM8) profile, other molding
matches Soffit Crown Molding profile
(SCM8)
• Chimney section shipped separately
• This product will
not
be covered under
warranty once alterations of any kind have
been made
• Will accept optional onlays, ordered
separately; see Molding Accents section of
this book
•
Not
designed to be used with a soffit
• Painted hardwood supplied for EverCore™
and Laminate
• Painted or Stained hardwood supplied for
Woodgrain Laminate door styles
•
Not
available in Sturbridge; Hayward and
Manchester supplied plain sawn
• 30˝ wide requires Wall Hood Component
Package “K”, located before the Wall Hood
Designs in this section
• 36˝–42˝ wide requires Wall Hood
Component Package “H” or “O”, located
before the Wall Hood Designs in this
section
•
Note:
Cabinetry and appliances located
below these Wall Hoods
must
be pulled to
a minimum of 27˝deep and a maximum of
30˝ deep for improved function
•
Note:
Wall hood
must
be securely
anchored to ceiling
PE
v
APC
APFC
FPEB
MI
DE
RD
ID
XS
XSG
GD
Opening Sizes
Cabinet
Top Width
Top Depth BottomWidth Bottom Depth
PWHCC30•A
7 ⁄
˝
6 ⁄
˝
28 ½˝
24 ½˝
PWHCC36•A
14 ½˝
10 ½˝
34 ½˝
28 ⁄
˝
PWHCC42•A
20 ½˝
10 ½˝
40 ½˝
28 ⁄
˝
Unless indicated, measurements include molding.
Shaded areas are unfinished.
PWHCC•A
28
3
/
16
˝
32
7
/
16
˝
32
1
/
4
˝
38
1
/
4
˝
44
1
/
4
˝
11
3
/
4
˝
15
1
/
2
˝
14
15
/
16
˝
21
1
/
2
˝
27
1
/
2
˝
6
5
/
16
˝
8˝, 20˝, 32˝
22
5
/
8
˝
30
5
/
8
˝
42
5
/
8
˝
54
5
/
8
˝
Wall Hood Classic Chimney Raised Panel Valance
Plain
32” High
WHCCRPV301932 •P
WHCCRPV361932 •P
WHCCRPV362432 •P
WHCCRPV422432 •P
44” High
WHCCRPV301944 •P
WHCCRPV361944 •P
WHCCRPV362444 •P
WHCCRPV422444 •P
56” High
WHCCRPV301956 •P
WHCCRPV361956 •P
WHCCRPV362456 •P
WHCCRPV422456 •P
Beaded Panel
32” High
WHCCRPV301932 •BE
WHCCRPV361932 •BE
WHCCRPV362432 •BE
WHCCRPV422432 •BE
44” High
WHCCRPV301944 •BE
WHCCRPV361944 •BE
WHCCRPV362444 •BE
WHCCRPV422444 •BE
56” High
WHCCRPV301956 •BE
WHCCRPV361956 •BE
WHCCRPV362456 •BE
WHCCRPV422456 •BE
• Solid wood/wood veneer
construction
• A 3˝ space is recommended
on the right and left side of
this unit before beginning
the adjacent cabinet runs
• Decorative molding
matches Soffit Crown
Molding profile (SCM8)
• Chimney section shipped
separately
•
Not
designed to be used with a soffit
• Painted hardwood supplied for
EverCore™ and Laminate
•
Not
available in High-Gloss Laminate
or Woodgrain Laminate door styles
•
Not
available in Sturbridge; Hayward
and Manchester supplied plain sawn
• 19˝ deep requires Wall Hood
Component Package “J”, located before
the Wall Hood Designs in this section
• 24˝ deep requires Wall Hood
Component Package “G” or “P”, located
before the Wall Hood Designs in this
section
•
Note:
Cabinetry and appliances located
below these Wall Hoods
must
be
pulled to a minimum of 27˝deep and
a maximum of 30˝ deep for improved
function
•
Note:
Wall Hood
must
be securely
anchored to wall
The Wall Hood Classic
Chimney Raised Panel
Valance includes a
representative raised panel
profile that blends with most raised
panel door styles. It may
not
match
the chosen door style exactly. Consider
designing in a valance on the adjacent
wall of the cooking area to coordinate
with this style hood.
PE
v
APC
APFC
FPEB
MI
DE
RD
ID
XS
XSG
GD
Cabinet
Opening Sizes
Top Width
Top Depth Bottom Width Bottom Depth
WHCCRPV30
8˝
WHCCRPV36
10¾˝
WHCCRPV42
20 ½
˝
10¾˝
14 / ˝
18 / ˝
21 / ˝
21 / ˝
7 / ˝
28 / ˝
34 / ˝
40 / ˝
WHCCRPV•P
9
3
/
16
˝
24˝
8˝, 20˝, 32˝
32˝
44˝
56˝
14
15
/
16
˝
21
1
/
2
˝
27
1
/
2
˝
20
3
/
16
˝
23
7
/
16
˝
32
1
/
4
˝
38
1
/
4
˝
44
1
/
4
˝
11
3
/
4
˝, 15˝
9
3
/
16
˝
24˝
8˝, 20˝, 32˝
32˝
44˝
56˝
14
15
/
16
˝
21
1
/
2
˝
27
1
/
2
˝
20
3
/
16
˝
23
7
/
16
˝
32
7
/
32
˝
38
1
/
4
˝
44
1
/
4
˝
11
3
/
4
˝, 15˝
WHCCRPV•BE
Unless indicated, measurements include molding
