Wall Hoods
Wall Cabinets

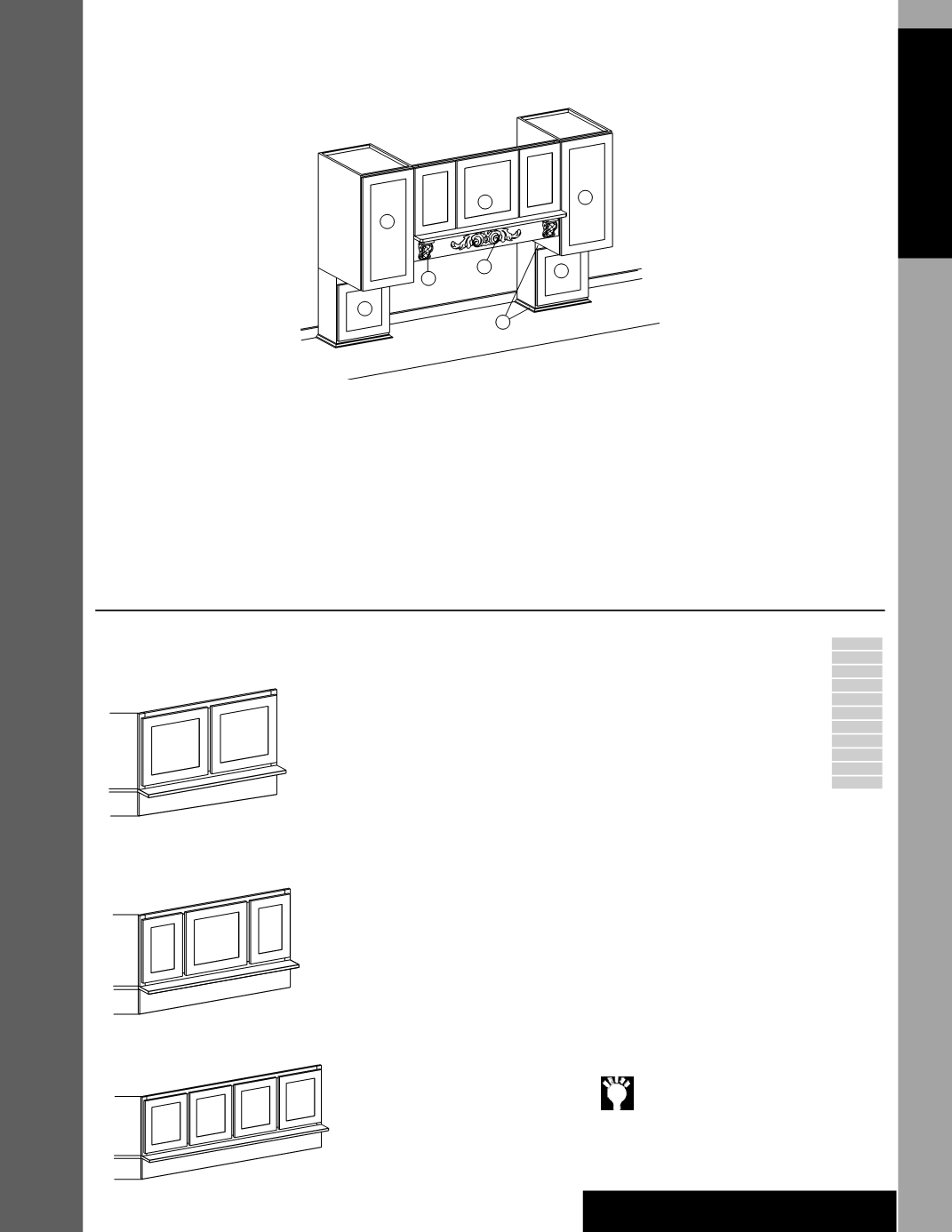

Wall Hood Mantle Matching Application
• Gain a ˝Mantle˝ style appearance in your kitchen design while maximizing your storage
• Personalize the design by incorporating molding and companion onlays to enhance the cooking focal point of the kitchen
• Wall Hood Mantle Cabinets
must
be used to support the hood. The increased overall depth makes a ˝bump-out˝ focal point that is easy to design.
• 18˝ deep Wall Hood Mantle Cabinets are to be used with 30˝–36˝ Wall Hood Mantle Matching (WHMM) units only. Larger units will
not
ventilate properly
• Add an LED Lighting Kit near the front, beneath the Wall Hood Mantle Cabinets (B) to highlight lower storage
• Create a hearth surround for the cooking area in your kitchen with components that work as a system for 84”, 87”, 90”, 93” and 96” high cabinetry designs
1.
Wall Hood Mantle Matching (WHMM)
2.
Wall Hood Mantle Cabinet (WHMC)
3.
Under Cabinet Door Storage (UCDS)
4.
Corbels
5.
Onlay
6.
3” rails allow for molding application at top or bottom of Under Cabinet Door Storage
2
2
1
3
3
4
5
6
Wall Hood Mantle Matching
19” High
WHMM3019
WHMM3619
WHMM4219
WHMM4819
WHMM5419
WHMM6019
22” High
WHMM3022
WHMM3622
WHMM4222
WHMM4822
WHMM5422
WHMM6022
25” High
WHMM3025
WHMM3625
WHMM4225
WHMM4825
WHMM5425
WHMM6025
28” High
WHMM3028
WHMM3628
WHMM4228
WHMM4828
WHMM5428
WHMM6028
30 1/2” High
WHMM3031
WHMM3631
WHMM4231
WHMM4831
WHMM5431
WHMM6031
• Solid wood/wood veneer construction
• No end panels,
must
be supported on each
side by Wall Hood Mantle Cabinet or Wall
Column
• 3/4˝ thick, 4 1/4˝ deep solid wood shelf
• 19˝ high hoods are designed to be set 29˝
above the cooking surface (84˝ ceiling)
• 22” high hoods are designed to be set 29”
above the cooking surface (87” ceiling)
• 25˝ high hoods are designed to be set 29˝
above the cooking surface (90˝ ceiling)
• 28˝ high hoods are designed to be set 29˝
above the cooking surface (93˝ ceiling)
• 30 1/2˝ high hoods are designed to be set 29 1/2˝ above
the cooking surface (96˝ ceiling)
• 30˝ and 36” wide used at 18˝ depth requires Wall Hood
Component Package “L”, located before the Wall Hood
Designs in this section. Component package “L” is
available for 18” deep hoods only
• 36˝–60” wide used at 21˝ deep will use Wall Hood
Component Package “I” or “Q”, located before the Wall
Hood Designs in this section
• Doors open to facilitate duct installation and wiring
• Will accept optional onlays, ordered separately; see
Molding Accents section of this book
• Laminates are painted hardwood
•
Not
available in Sturbridge; Hayward and Manchester
supplied plain sawn
•
Note:
Cabinetry and appliances located below these Wall
Hoods
must
be pulled to a minimum of 27˝deep and a
maximum of 30˝ deep for improved function
Choose the Wall Hood Mantel Matching when
you prefer a larger, wider focal point that
matches your chosen door style. Personalize
the front shelf area with an onlay or corbel. Personalize
the design by incorporating companion onlays to
enhance the cooking focal point of the kitchen
