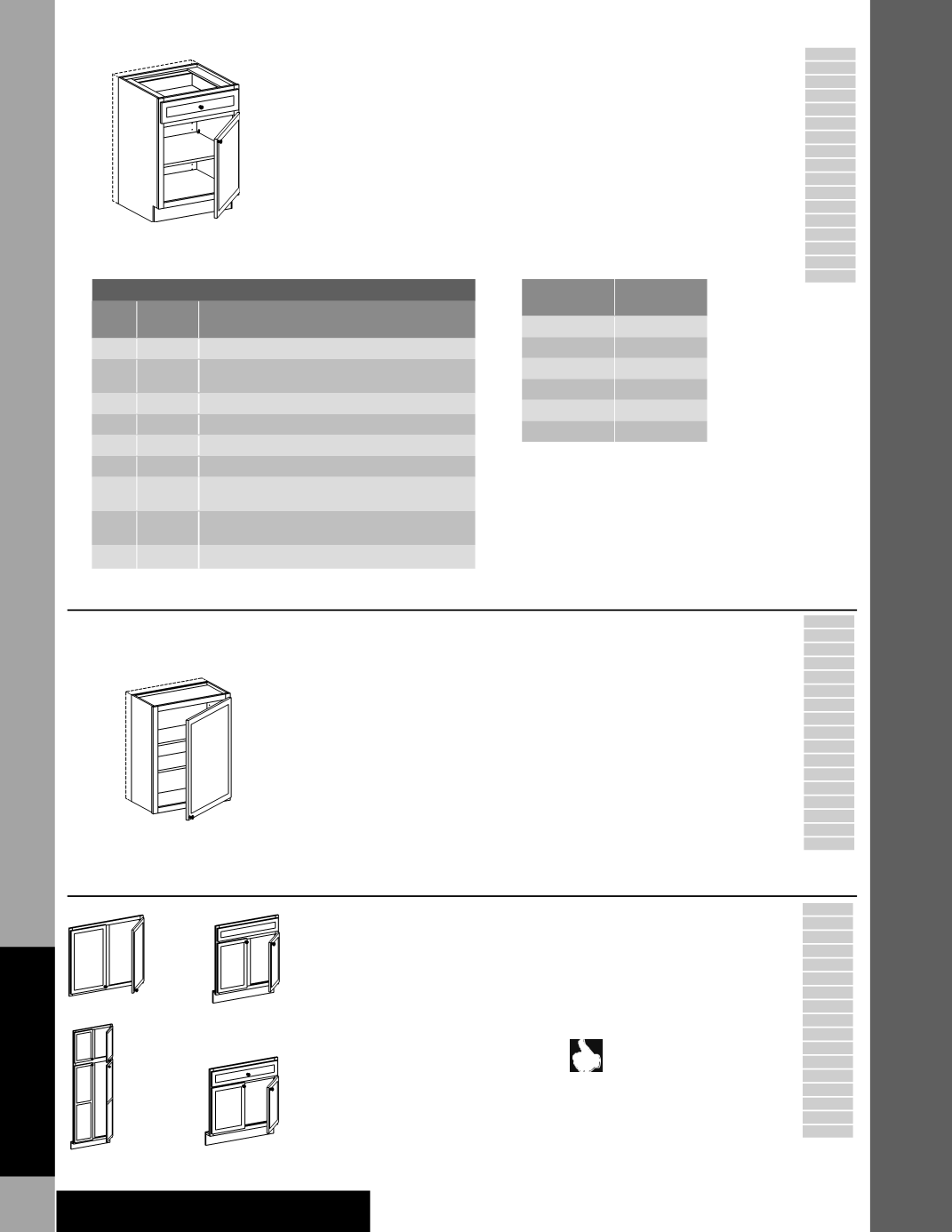

Specifications and Options
C22
Reduced Depth
One Dimension
RD
• Many cabinets can be reduced to your
desired depth in 1/16” increments. We do
have suggested minimums that control
function of cabinets. See chart
• Any cabinet reduced in depth to less than
4 5/8” will be shipped as a Cabinet Front
Only (CFO)
• Consult option availability chart for your
desired cabinet
• Example: B24R-RD reduced depth to 20 1/4”
PE
APC
APFC
FPEB
MI
DE
l
RD
ID
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
Sugg.
Min
Cabinets
Reason
4
⅝
˝
All
Minimum for shelf hole drilling
6˝
All except
walls
Minimum for toe kick notch Less than 6” WR is mandatory
9˝
PB
Minimum for toe kick notch Less than 9” WR is mandatory
10˝
WZA
Minimum allowed
10 ⅝˝
WZA
Minimum for shelf
12˝
BZA
Minimum allowed
12˝ All except
walls
18˝
BEA
WEA
Minimum allowed
12˝
WWH
Minimum for working drawer - less than 12” depth
will have false drawer
Wine Storage section always 12” deep
Reduced Depth
Cabinet
Drawer Box
Depth
24”
20 ⁄
”
21”
17 ⁄
”
18”
14 ⁄
”
15”
11 ⁄
”
12”
8 ⁄
”
less than 12”
No drawer
Increased Depth
One Dimension
ID
• Many wall cabinets can be increased to a 24”
depth, in 1/16” increments. Consult option
availability chart for your desired cabinet
• Any wall cabinet over 24˝ wide or 30˝ high or
higher with a depth greater than 12˝ and/or
with butt doors
must
be installed between
two (2) cabinets, a cabinet and a wall or
supported from below
• Example: W2430R-ID increased depth to
16 1/4”
• Maximum Increased Depth (ID) for
peninsula wall cabinets is 15˝
•
Note:
Maximum cabinet width for this
option is 36”
PE
APC
APFC
FPEB
MI
DE
RD
l
ID
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
15˝
Cabinet Front Only
CFO
• Front frame and appropriate doors and
drawer heads only
• Toe kick attached where applicable except
93” and 96” tall
• Extended stiles available
We recommend using this option
on cabinetry containing no factory
installed accessories, since all
cabinet components will be eliminated
except face frame, doors and drawer fonts.
For example, order EZR36L-CFO instead of
EZR36L.WSS-CFO or B18L-CFO instead of
B18L.FWT-CFO
PE
APC
APFC
FPEB
MI
DE
RD
ID
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VTK
B30-CFO
W3030-CFO
U302484-CFO
VSB242134-CFO
Construction Options
