Custom Appliance Panels

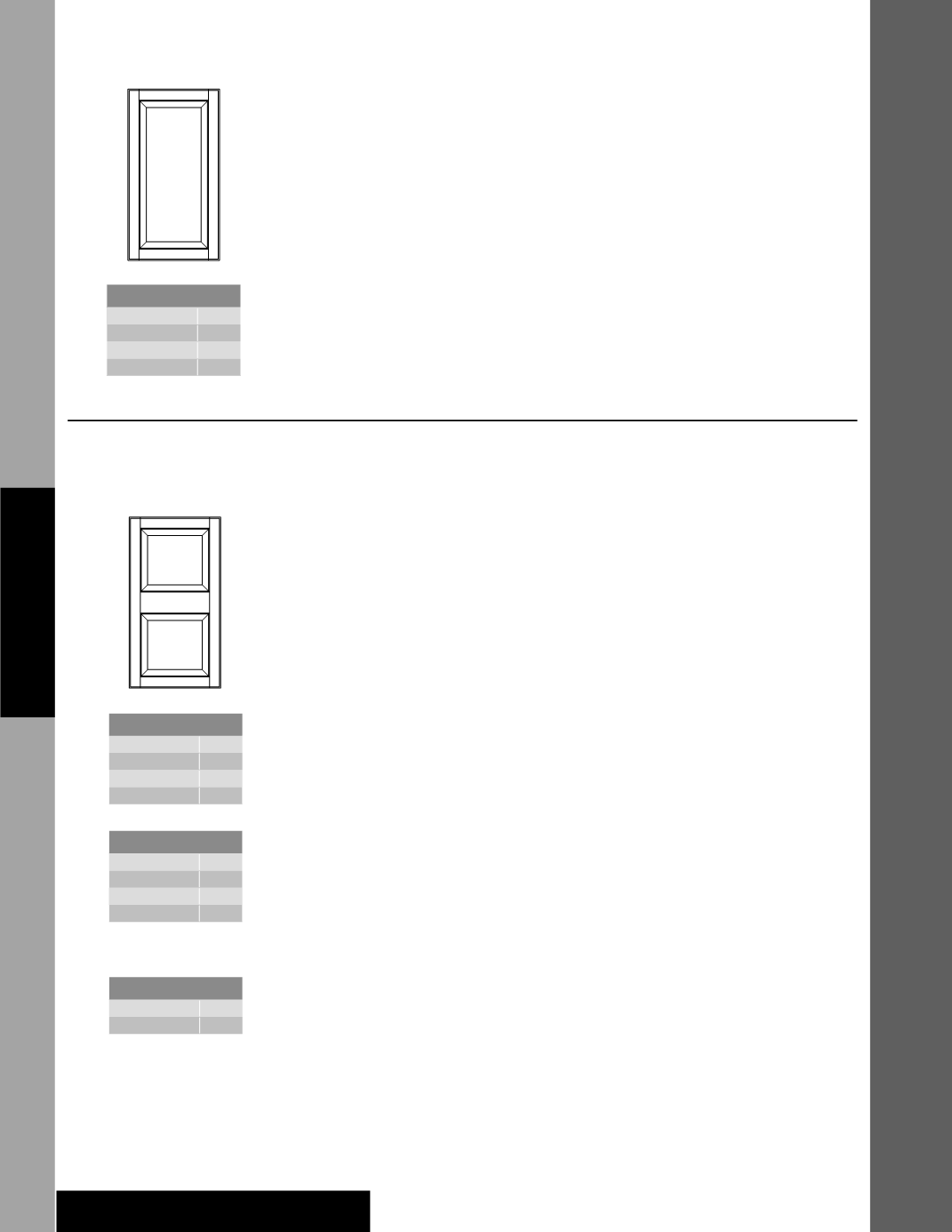

Custom Appliance Panel–Door Onlay Panel
CAPDR•B
CAPDR•W
• No center rail
• When an arched door style is selected, you
must
select Arched (•W) or Square (•B) to
determine the door and onlay panel’s top
profile
• When a square door style is selected, the
square profile will be supplied for all onlay
panels as standard. It is recommended to
use a square profile when ordering an onlay
panel for a dishwasher or trash compactor
application.
•
Not
available in EverCore™ or High-Gloss
Laminate door styles
• Multiple doors and panels of identical size
may be ordered by listing the quantity needed.
The quantity will default to one if a number is
not
given.
• Stiles and rails will be the same size and profile
as the selected door style
• Cutouts are
not
available
• Backs are finished
Onlay Panel
Minimum Width 8”
Maximum Width 36”
Minimum Height
10”
Maximum Height
80”
Custom Appliance Panel–Door Onlay Panel with Custom Center Rail
CAPDR•B•CR
CAPDR•W•CR
• Onlay panels ordered 30 1/16”-80” high will
have a center rail
• The center rail position can be customized
based on the distance specified from the top
of the top rail and the top of the center rail
• The center rail will be placed in the center
position and will match the top and bottom
rail height if customized dimensions are
not
supplied
• The center rail
cannot
be positioned or sized
so that the distance between the top and/or
bottom rail is less than 6” in height
• Due to varying dimensions and designs of
raised center panels, recessed center panels
may be supplied when the center panel width
or height is less than 3 1/4”
•
Not
available in EverCore™ or High-Gloss
Laminate door styles
•
Not
available in mitered door styles
• Optional center rail cutout (CUTOUT) is
available
• Multiple doors and panels of identical size
may be ordered by listing the quantity needed.
The quantity will default to one if a number is
not
given.
• Stiles and rails will be the same size and profile
as the selected door style
• Backs are finished
Center Rail Position
Minimum Width 2 3/4”
Maximum Width 36”
Minimum Height
11”
Maximum Height
80”
Center Rail Height
Minimum
1 1/2”
Maximum
18”
Onlay Panel
Minimum Width 8”
Maximum Width 36”
Minimum Height
24”
Maximum Height
80”
Distance from the top of the rail
to the top of the center rail
Distance from the top of the rail
to the bottom of the center rail
