Decorative Appliance Panels
Decorative Panel/Replacement Door and Drawer Front
• Decorative panels can be easily created using paneling and replacement door and drawer fronts.
Consult the Door and Drawer front Replacement Guide section of this book for sizes of doors and
drawer fronts available.

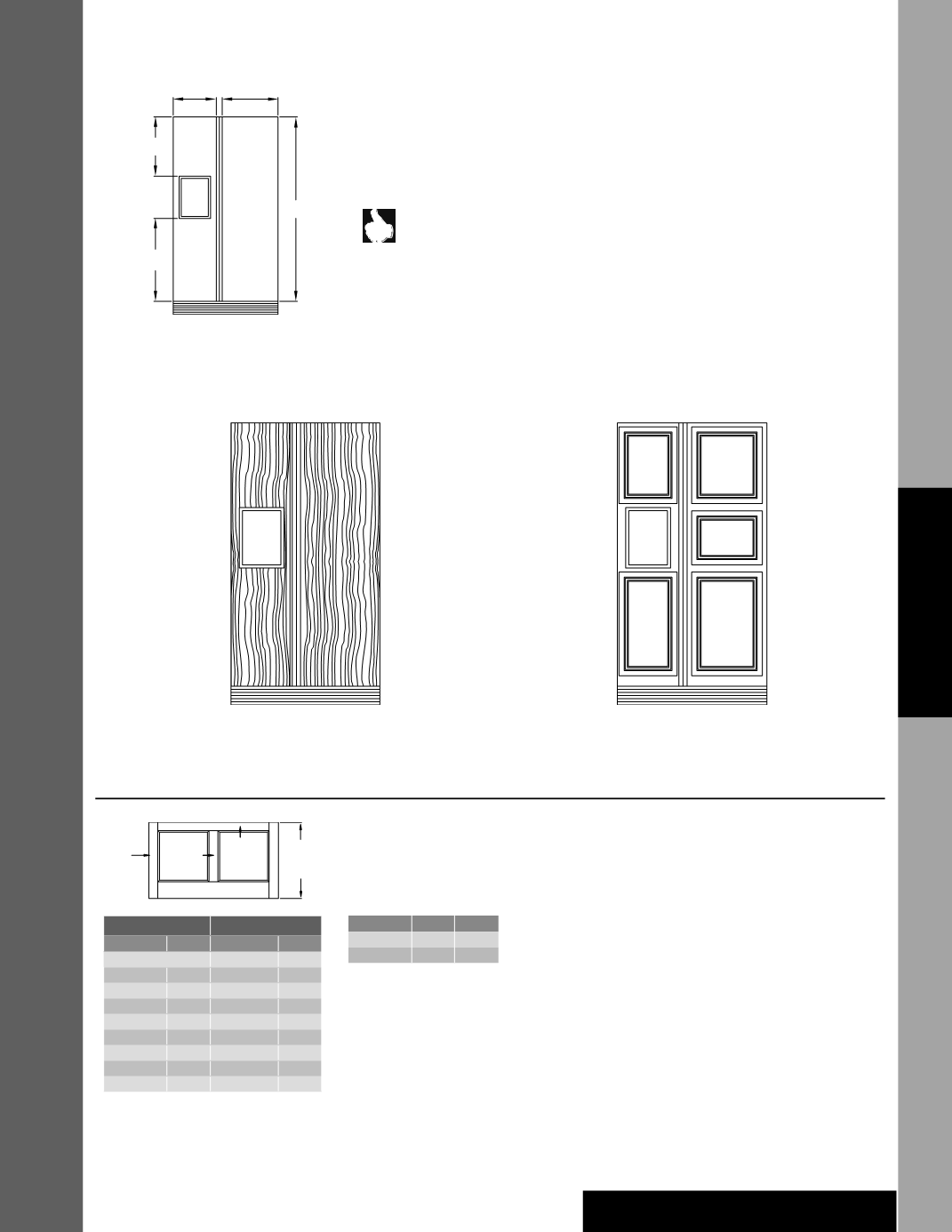

• Example: Create a decorative panel for this side by side refrigerator
•
Note
: In most cases, doors will be narrower than the refrigerator door and portions of the
refrigerator door paneling will be exposed. Advise your customers that this “reveal” will be present
and that cabinet doors will
not
completely overlay the refrigerator door.
When applying Replacement Doors to a WSK remember to allow enough room for access
to the appliance door handle
Ice and Water
20
3
/
8
˝
28
7
/
16
˝
14
13
/
16
˝ 19
9
/
16
˝
63
3
/
8
˝
A
C
D
B
E
Option 1:
Order and Install:
WSK3684
Option 2:
Order and Install:
1 - WSK3684
1 - RDB2418 (Door “A”)
1 - RDB2424 (Door ”B”)
1 - RD1818 (Door “C”)
1 - RD1815 (Door “D”)
1 - RD1824 (Door “E”)
Size of refrigerator may vary
and door sizes may need to be
changed
Decorative Panel–Wainscot
WAIN01
• Multiple doors and panels of identical size
may be ordered by listing the quantity needed.
The quantity will default to one if a number is
not
given.
• Veneer raised panel door styles will be
supplied with a solid wood center panel
machined to resemble the veneer center panel
•
Not
available in EverCore™ or High-Gloss
Laminate door styles
•
Not
available in mitered door styles
•
Not
available in slab door styles
• Shaker door styles are Abington and Amhurst
14
1
/
4
˝
to
40
1
/
2
˝
2 ¼˝
Outer-
Stiles
2 ½˝
Center
Stiles
6¾˝
2 ¼˝
Top Rail
Standard
Shaker
Panel Width # Panels Panel Width # Panels
8”-25”
1
8”-13”
1
25 ⁄
” - 48”
2
13 ⁄
” - 20”
2
48 ⁄
” - 72”
3
20 ⁄
” - 29”
3
72 ⁄
” - 96”
4
29 ⁄
” - 35”
4
35 ⁄
” - 48”
5
48 ⁄
” - 60”
6
60 ⁄
” - 72”
7
72 ⁄
” - 84”
8
84 ⁄
” - 96”
9
Panel
Min.
Max.
Width:
8”
96”
Height:
14 ¼”
40 ¼”
