Decorative Appliance Panels
Decorative Panel–Door Onlay Panel and Hinge Doors
APDRL •B or W
APDRR •B or W
APDRNH •B or W
• Doors and onlay panels ordered 10˝–42˝ high will
have a single center panel
• Doors and onlay panels ordered 55” – 80” will have
a double center panel (a horizontal center rail will
equally divide the onlay panel)
• Mitered door styles will have a single center panel,
regardless of height
• When an arched door style is selected, you
must
select Arched (•W) or Square (•B) to determine the
door and onlay panel’s top profile
• When a square door style is selected, the square
profile will be supplied for all onlay panels as
standard. It is recommended to use a square profile
when ordering an onlay panel for a dishwasher or
trash compactor application.
• Multiple doors and panels of identical size may be
ordered by listing the quantity needed. The quantity
will default to one if a number is
not
given.
• Veneer raised panel door styles will be supplied with
a solid wood center panel machined to resemble the
veneer center panel
• Due to varying dimensions and designs of raised
center panels, recessed center panels may be
supplied when the center panel width or height is
less than 3 1/4”
• Hinging for doors:
Doors 10” to 33” get two hinge holes
Doors 33 1/6” to 48” get three hinge holes
Doors 48 1/2” to 80” get four hinge holes
• Backs are finished
•
Note
: Check appliance manufacturer’s specs for any
additional material (shims, spacers, etc.) that may be
needed before placing any order. Appliance model
numbers are
not
sufficient, numeric dimensions
must
be used when ordering.

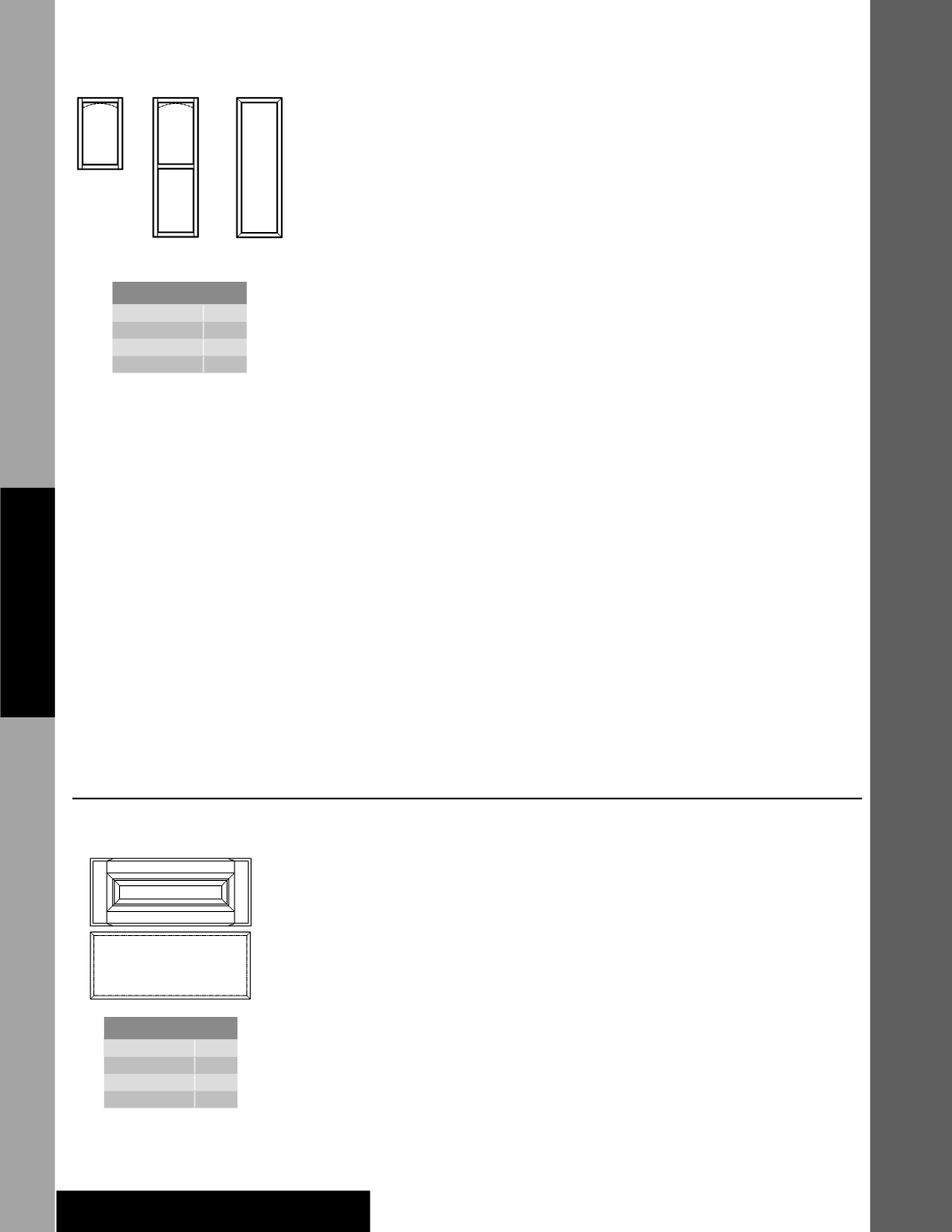

10˝- 42˝
High
Mitered
Onlay Panel
Minimum Width 8˝
Maximum Width 36˝
Minimum Height
10˝
Maximum Height
80˝
42 / ˝
80˝
High
Decorative Panel–Drawer Onlay Panel
APDW
• APDW will follow the selected door style’s drawer
front configuration
• Five-piece grill panels/drawer heads ordered in
heights less than 6 1/8˝ may be supplied as a solid
slab onlay panel. Some five-piece drawer fronts may
have a recessed center panel.
• Multiple doors and panels of identical size may be
ordered by listing the quantity needed. The quantity
will default to one if a number is
not
given.
• “Width” will be referred to as “Length” on your
faxed acknowledgments for APDW only
• If unit is installed at an angle, fillers should be used
to avoid interference with adjacent cabinet
• Veneer raised panel door styles will be supplied with
a solid wood center panel machined to resemble the
veneer center panel
• Backs are finished
•
Note
: Check appliance manufacturer’s specs for any
additional material (shims, spacers, etc.) that may be
needed before placing any order. Appliance model
numbers are
not
sufficient, numeric dimensions
must
be used when ordering.
Onlay Panel
Minimum Width 6”
Maximum Width 48”
Minimum Height
2 ¼”
Maximum Height
30”
