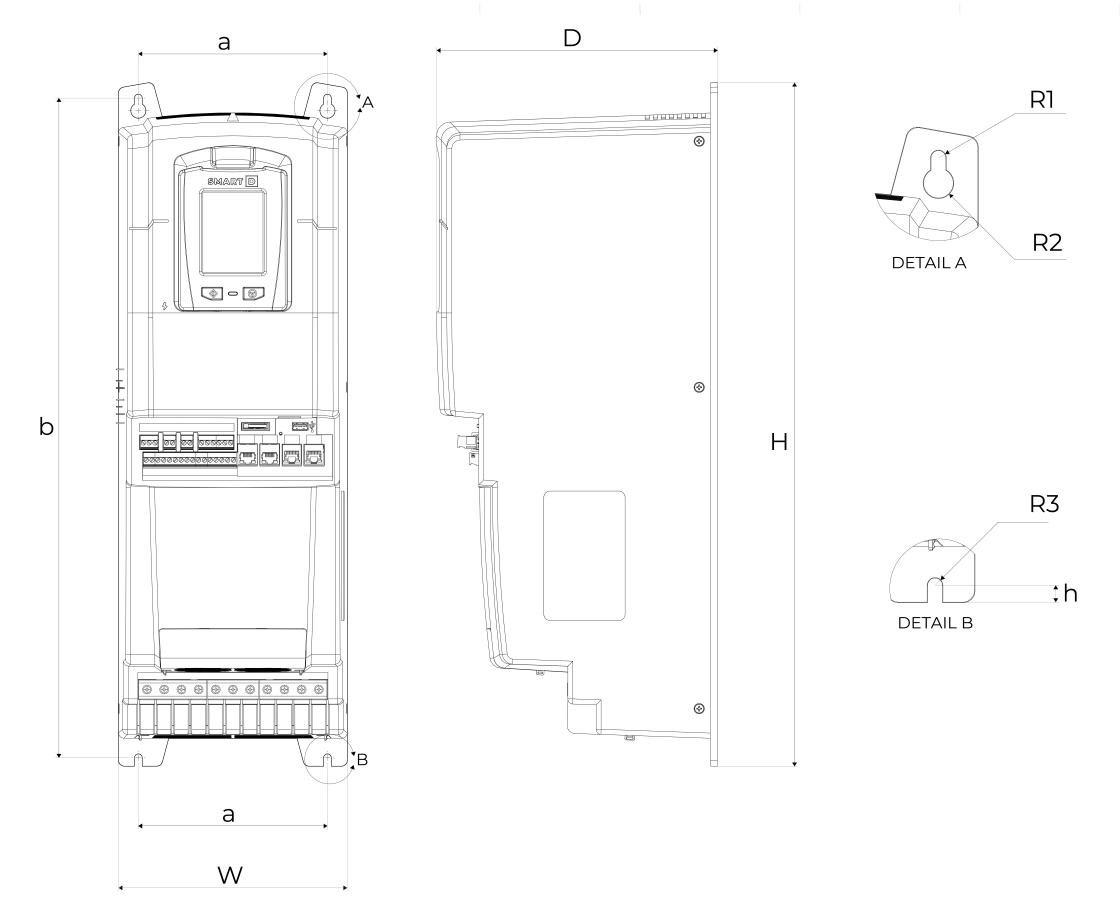

Dimensions

Clean Power VFD model	W	H	D	W	H	D	Weight
Clean Power VFD model	mm	mm	mm	inch	inch	inch	kg	lb
SDB 1 2 185	199.56	596.45	245.32	7.857	23.482	9.658	15	33.07

Clean Power VFD model	a	b	R1	R2	R3	h	Screw size
Clean Power VFD model	mm	mm	mm	mm	mm	mm	metric
SDB 1 2 185	165.10	575.55	3.47	6.72	3.47	7.28	M5

Clean Power VFD model	a	b	R1	R2	R3	h	Screw size
Clean Power VFD model	inch	inch	inch	inch	inch	inch	imperial
SDB 1 2 185	6.50	22.659	0.137	0.265	0.137	0.287	10
