Unboxing
Description of packaging content⚓
If any of the following items is missing, please contact your distributor or SmartD Technologies:
Clean Power VFD SDB 1 2 185 (According to model part number)
Quick Start Guide (including safety instructions)
Mounting template for the Clean Power VFD
Mounting template to mount the HMI remotely on a cabinet's door
Catalog part number and Nameplate Check⚓
The product name and specifications are detailed on the nameplate. Ensure that the model received is the correct one by checking the information on the nameplate.
If the model received is not the correct one, contact the supplier.
Check the product specification before installing the product and make sure that it is suitable for the intended use.
Always select the motor that fits your application first and then select the appropriate Clean Power VFD.
Verify that the motor you are using fits your application: check what kind of load is to be driven, calculate its moment of inertia, check that the motor capacity matches these criteria. If you have any doubt or need some support, do not hesitate to call your motor manufacturer or its local representative
To select a Clean Power VFD: check the operation requirements (acceleration time, deceleration time, and frequency in operation) of the load to be driven by the motor selected above. The Clean Power VFD capacity must be defined in regards to current and overload capacity, not power.
If you have some doubts about your selected Clean Power VFD vs your application, please check the guideline for selecting VFD on SmartD Technologies website.

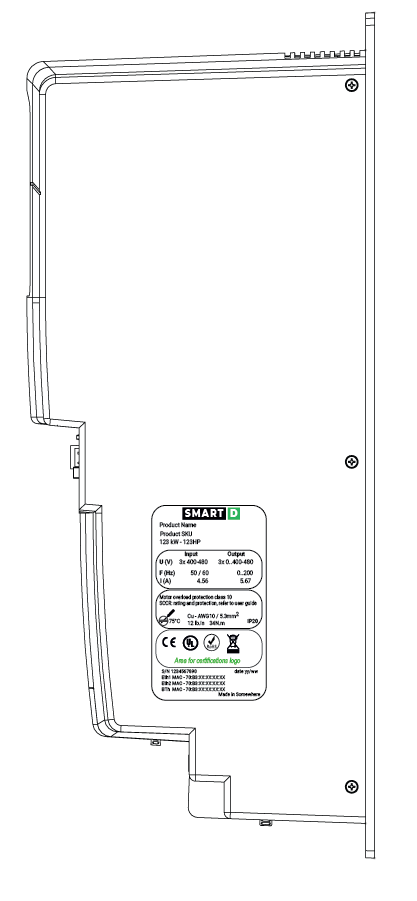

The Clean Power VFD nameplate is located on the right side of the device:
ScreenClean Power VFD name plate description⚓
for example, SDB 1 2 185. Refer to following section of this document for part number structure.
The motor power values are indicative. They vary with the motor type, technology and manufacturer.
The Clean Power VFD must not be selected from motor power rating
The Clean Power VFD must be selected by skilled and experienced personal.
The Clean Power VFD must be selecting according to motor FLA, the load's driving force and the movement cycle, and the operating environment.
These are the rated values of the Clean Power VFD's power input and power output.
Clean Power VFD key features and attributes.
Logos of applied certifications are printed in this area.
Product serial number
Production date code in the format of year and week number.
the 3 MAC addresses of the Clean Power VFD's connections.
Location of the main manufacturing process.
