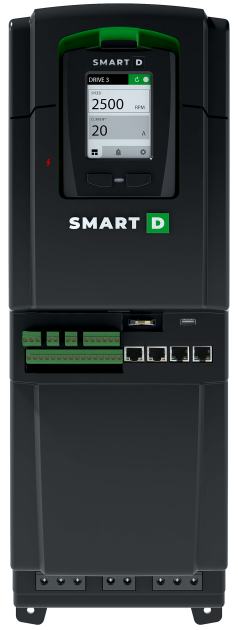

Clean Power VFD description

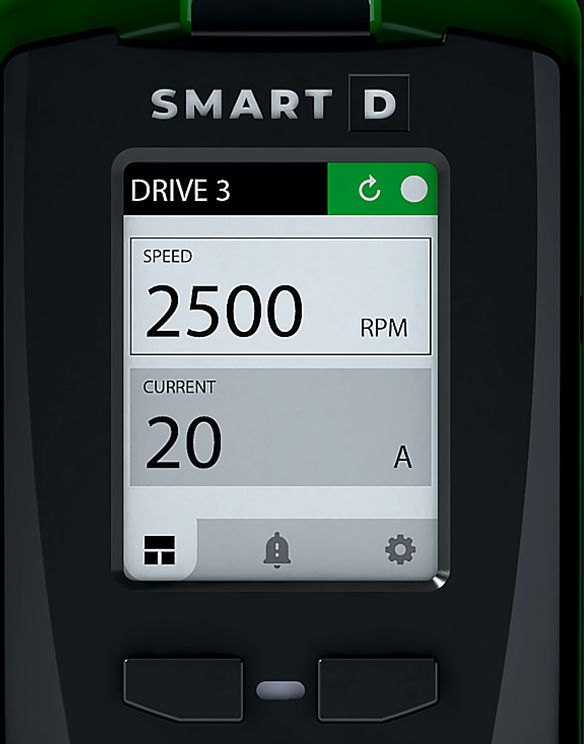

User interface.
Can be detached and mounted remotely.

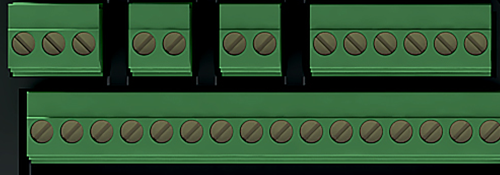

Control wires have to be wired into this terminal block.
Refer to the wiring section of this document for details.

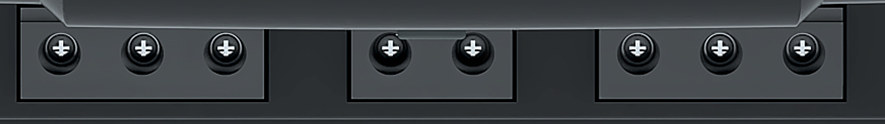

Power wires, input and output, grounding, have to be wired into this terminal block.
Refer to the wiring section of this document for details.
The Clean Power VFD provides user with 2 Ethernet ports.
Cable from the HMI must be plugged here.
The battery, used to save the real time clock, can be changed easily.
Refer to the maintenance section of this document for details
The USB port can be used to upload a drive configuration or update the SmartDrive firmware.
Do not plug anything in.
This is for future features.
