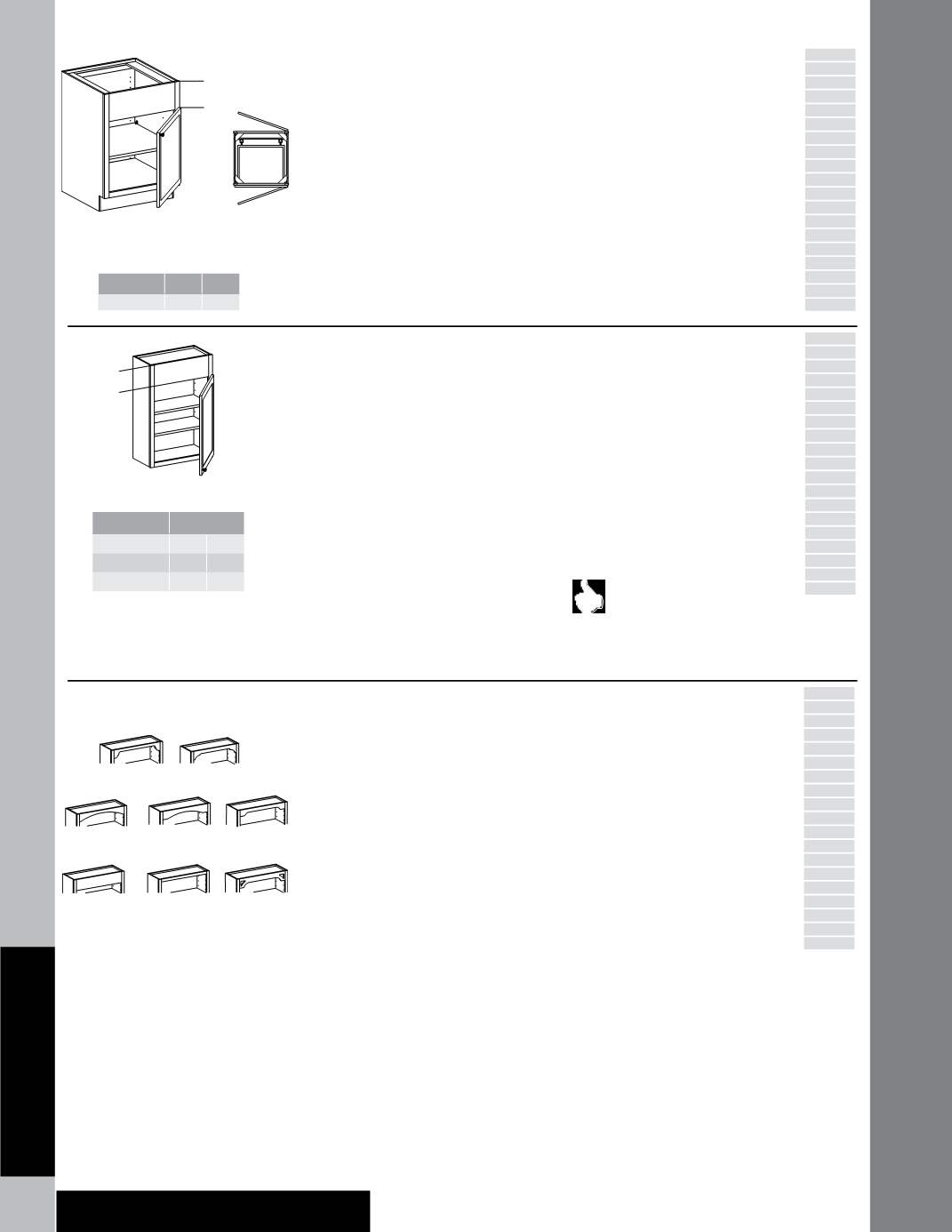

C30
Construction Options
Specifications and Options
Top Wide Rail
TWRB
Both Sides
TWRK
Kitchen Side
TWRP
Peninsula Side
• We offer many base and vanity cabinets
with a Top Wide Rail option. Consult option
availability chart for your desired cabinet
• When Both Sides are selected, the cabinet
will
not
have a drawer box or drawer fronts
• When Kitchen side is selected, the drawer
box will be three inches shallower than the
standard drawer box and will open to the
Peninsula side
• When Peninsula side is selected, the drawer
box will be three inches shallower than the
standard drawer box and will open to the
Kitchen side. See Illustration.
• Quartersawn door styles have quartersawn
top wide rail, cabinet frame is plain sawn
wood
• Painted hardwood supplied for EverCore™
PE
APC
APFC
FPEB
MI
DE
OE
CW
RD
ID
CH
IF
l
TWR
WR
XS
XSG
GD
RTK
RTKP
* e reveal on a cabinet with TWR varies
depending on the door overlay. See chart.
8˝*
Peninsula side
Kitchen side
Overlay 1/2˝ Full
Reveal
7 ½ ˝ 6 ⅞ ˝
Wall Top Wide Rail
WTWR
7 1/2”
• Many wall cabinets can be ordered with
a wide top rail. Consult option availability
chart for your desired cabinet.
• Wall Top Wide Rail (WTWR) available on
12˝–36˝ high cabinets only
•
Not
available on 27” high cabinets
• This option will add 6˝ to the interior and
exterior nominal height
• Quartersawn door styles have quartersawn
top wide rail, cabinet frame is plain sawn
wood
• Top rail on 18˝ high cabinets will be 7˝, on
24˝ high cabinets 8˝, all other heights 7 1/2˝
• Change Width (CW) option
not
available
• Change Height (CH) option
not
available
• Painted hardwood supplied for EverCore™
Remember, any replacement doors,
interior accessories or options,
including shelves, are based on the size of
original cabinet,
not
the height after WTWR is added
PE
APC
APFC
FPEB
MI
DE
OE
CW
RD
ID
CH
IF
l
TWR
WR
XS
XSG
GD
RTK
RTKP
7 ½˝*
* e reveal on a cabinet with WTWR varies
depending on the door overlay. See chart.
Overlay 1/2
˝
Full
18
˝
H 6 ½
˝
5 ⅞
˝
24
˝
H
7 ½
˝
6 ⅞
˝
All other walls
7
˝
6
˝
Cabinet Valance Options
Corbel Valance
VCB
5 1/2”
Crown Valance
VCR
5 1/2”
Cove Valance
VCV
4 1/2”
Furniture Valance
VF
3 1/2”
Shaker Arched Valance
VSH
5 1/2”
Straight Rail Valance
VST
1 1/2”
VTWR
6”
Victorian Valance
VVIC
5 1/2”
• On Furniture Cabinets and Wall Open
Cabinets (WOC), the top rail can be ordered
with an optional decorative valance
• Furniture cabinets are manufactured with a
Furniture Valance as standard
• WOC cabinets are manufactured with no
valance as standard
• Valance options available in cabinets 15˝ and
wider
• Painted hardwood supplied for EverCore™
and Laminate
• Morristown will be supplied in plainsawn oak
• Order Example: FBS181248-VST
• Order Example: WOC3030-VCR
PE
APC
APFC
FPEB
MI
DE
OE
CW
RD
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
VCB
VCR
VSH
VVIC
VST
VTWR
VF
VCV
