D3
Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.

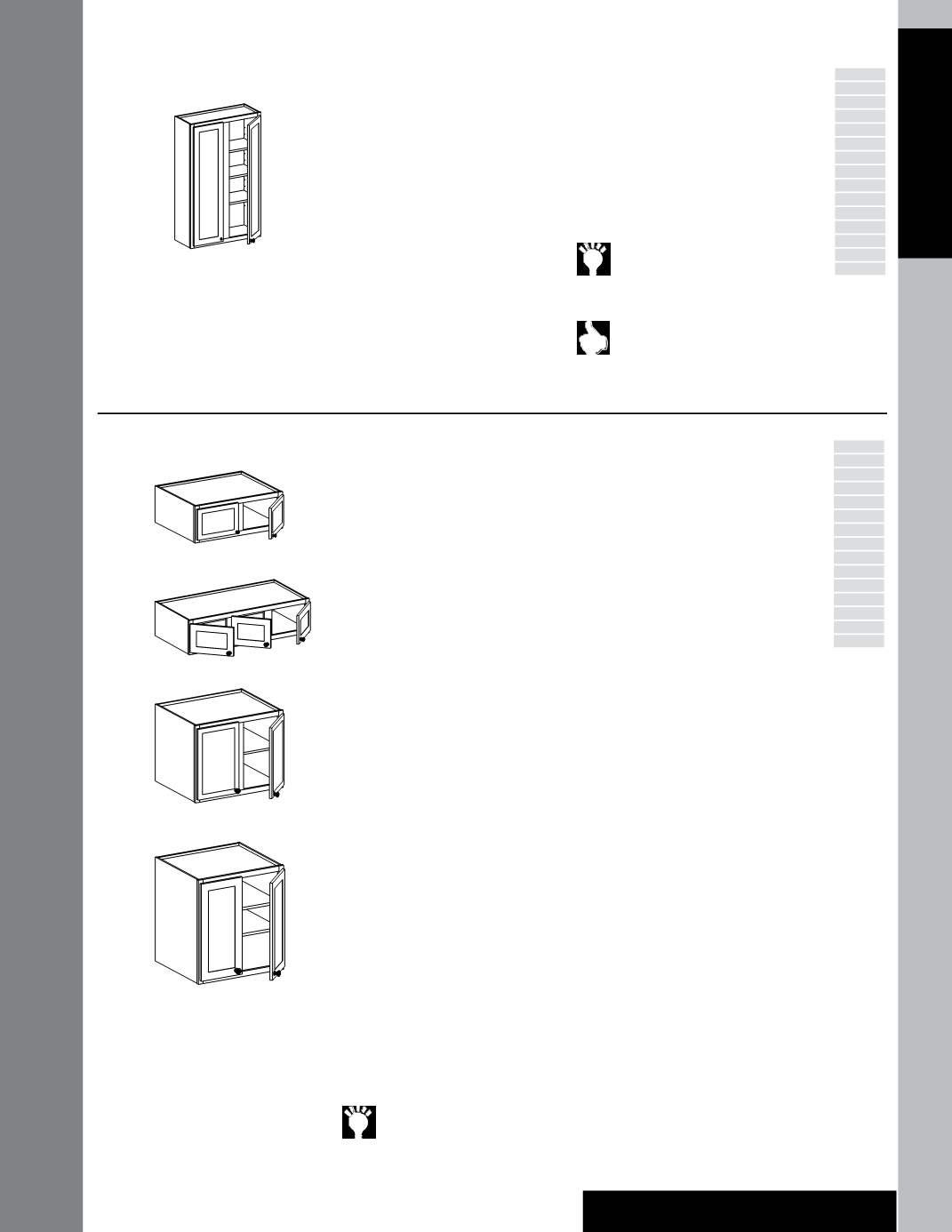

Wall Cabinets
Wall Double Door 48˝ and 54˝ H
Three shelves
48” High
im
W2448 BUTT
W2748 (Butt)
W3048
W3048 BUTT
W3348
W3348 BUTT
W3648
W3648 BUTT
Four shelves
54” High
im
W2454 BUTT
W2754 (Butt)
W3054
W3054 BUTT
W3354
W3354 BUTT
W3654
W3654 BUTT
• Adjustable shelves
• Shelves shipped separately
• Available in full overlay door styles only
•
Not
available with Mullion Strip Wall (MSW)
I
Not
available with Camed glass door (GD) option
I
Not
available with Mullion glass door (GD) option
I
Not
available with Prepared for Glass (GD) option
I
Modern Frosted (MRT) and Moire (MOI) Glass
Inserts
not
available on 54˝ H cabinets
I
Maximum Increased Depth (ID) is 15˝
I
Operational End (OE) is
not
available with
Increased Depth (ID) or Reduced Depth (RD)
options
When using 48”–54” high cabinets or tall
stacked cabinet combinations,
remember to supply the best height Tall
End Panel (TEP) for your design needs.
Both 108” and 120” panels can be field cut to height
requirements of your design
Any wall cabinet over 24˝ wide or 30˝ high or higher
with a depth greater than 12˝ and/or with butt doors
must
be installed between two (2) cabinets, a cabinet
and a wall or supported from below
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
CW
l
RD
I
ID
l
CH
TWR
l
XS
l
XSG
48˝
54˝
12˝
i
Doors are square except full overlay arch
door styles. Laminate door styles will always
be square. Harlowe, Smithton and Vanderbilt
doors will have a solid, recessed flat panel.
m
Change Width (CW) option
not
available
Wall Refrigerator 24˝ Deep
No shelf
12” High
rm
WR2412 BUTT
r
WR2712 (Butt)
r
WR3012
r
WR3012 BUTT
r
WR3312
r
WR3312 BUTT
rm
WR3412 BUTT
r
WR3612
r
WR3612 BUTT
rm
WR3712 BUTT
r
WR3912
r
WR4212
rm
WR4312
r
WR4512
r
WR4812
15” High
m
WR2415 BUTT
WR2715 (Butt)
WR3015
WR3015 BUTT
WR3315
WR3315 BUTT
mr
WR3415 BUTT
WR3615
WR3615 BUTT
mr
WR3715 BUTT
WR3915
WR4215
mr
WR4315
WR4515
WR4815
No shelf
18” High
m
WR2418 BUTT
WR2718 (Butt)
WR3018
WR3018 BUTT
WR3318
WR3318 BUTT
mr
WR3418 BUTT
WR3618
WR3618 BUTT
mr
WR3718 BUTT
WR3918
WR4218
mr
WR4318
WR4518
WR4818
One shelf
21” High
mr
WR3021
mr
WR3021 BUTT
mr
WR3321
mr
WR3321 BUTT
mr
WR3421 BUTT
mr
WR3621
mr
WR3621 BUTT
mr
WR3721 BUTT
mr
WR3921
WR4221
One shelf
23 1/2” High
m
WR2424 BUTT
WR2724 (Butt)
WR3024
WR3024 BUTT
WR3324
WR3324 BUTT
mr
WR3424 BUTT
WR3624
WR3624 BUTT
mr
WR3724 BUTT
WR3924
27” High
rms
WR3027
rms
WR3027 BUTT
rms
WR3327
rms
WR3327 BUTT
rms
WR3427 BUTT
rms
WR3627
rms
WR3627 BUTT
rms
WR3727 BUTT
Two shelves
30” High
m
WR2430 BUTT
WR2730 (Butt)
WR3030
WR3030 BUTT
WR3330
mr
WR3330 BUTT
mr
WR3430 BUTT
WR3630
WR3630 BUTT
mr
WR3730 BUTT
33” High
WR2433 BUTT
WR2733 (Butt)
WR3033
WR3033 BUTT
WR3333
WR3333 BUTT
WR3633
WR3633 BUTT
• Additional support required
I
Integrated Extended Stile (XSG) only available on cabinets 30” high or higher
When designing a built-in refrigerator area, remember that many side by side refrigerators measure
up to 36” wide. If you have the extra space, it is recommended to use a 37” wide Wall Refrigerator
(WR) cabinet to assure clearance for the appliance. Also, verify the height of the appliance to make
sure you are using the correct Wall Refrigerator cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
OE
I
CW
l
RD
ID
I
CH
I
TWR
l
XS
I
XSG
24˝
24˝
12˝
15˝
18˝
12˝
15˝
18˝
WR2412 BUTT-
WR4318
WR4512-WR4818
21˝
23 ½˝
27˝
24˝
WR3021-
WR3727 BUTT
WR2430 BUTT-
WR3633 BUTT
24˝
30˝
33˝
r
Change Height (CH) option
not
available
m
Change Width (CW) option
not
available
s
Top Wide Rail (TWR) option
not
available
Grey color coding indicates new product, size or code.
I
GD
l
GD
