Wall Cabinets
Caution
: Installation of a wall cabinet 30˝ or wider requires additional support,
such as attachment to a soffit, or support from below.
Wall Cabinets

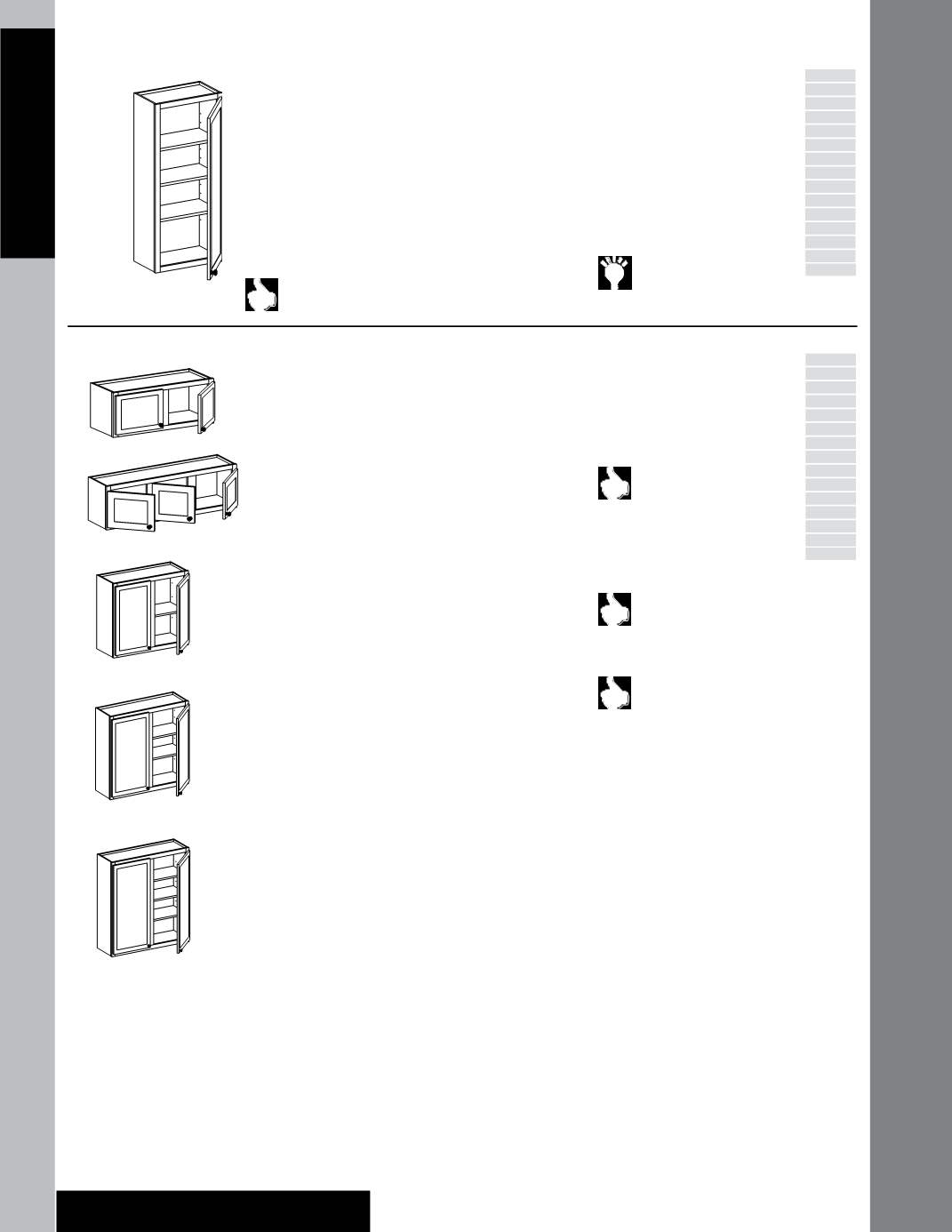

Wall Single Door 48˝ and 54˝ H
Specify R or L
Three shelves
48” High
im;
W948 R or L
W1248 R or L
W1548 R or L
W1848 R or L
W2148 R or L
W2448 R or L
Four shelves
54” High
im;
W954 R or L
W1254 R or L
W1554 R or L
W1854 R or L
W2154 R or L
W2454 R or L
• Adjustable shelves
• Shelves shipped separately
• Available in full overlay door styles only
I
Not
available with Camed glass door
(GD) option
I
Not
available with Mullion glass door
(GD) option
I
Not
available with Prepared for Glass
(GD) option
I
Modern Frosted (MRT) and Moire
(MOI) Glass Inserts
not
available on 54˝
H cabinets
I
Maximum Increased Depth (ID) is 15˝
I
Operational End (OE) is
not
available
with Increased Depth (ID) or Reduced
Depth (RD) options
When using 48”–54” high
cabinets or tall stacked cabinet
combinations, remember to supply the best
height Tall End Panel (TEP) for your design
needs. Both 108” and 120” panels can be field cut to
height requirements of your design
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
CW
l
RD
I
ID
l
CH
TWR
l
XS
l
XSG
12˝
48˝
54˝
i
Doors are square except full overlay arch door styles.
Laminate door styles will always be square. Harlowe,
Smithton and Vanderbilt doors will have a solid, recessed
flat panel.
m
Change Width (CW) option
not
available
;
Glass door option
not
available
Wall Double Door 12˝-42 H
No shelf
12” High
mr
W2412 BUTT
r
W2712 (Butt)
r
W3012
r
W3012 BUTT
r
W3312
r
W3312 BUTT
mr
W3412 BUTT
r
W3612
r
W3612 BUTT
Imr
W3712 BUTT
Ir
W3912
Ir
W4212
Imr
W4312
Ir
W4512
Ir
W4812
15” High
m
W2415 BUTT
W2715 (Butt)
W3015
W3015 BUTT
W3315
W3315 BUTT
mr
W3415 BUTT
W3615
W3615 BUTT
Imr
W3715 BUTT
I
W3915
W4215
Imr
W4315
I
W4515
I
W4815
18” High
m
W2418 BUTT
W2718 (Butt)
W3018
W3018 BUTT
W3318
W3318 BUTT
mr
W3418 BUTT
W3618
W3618 BUTT
Imr
W3718 BUTT
I
W3918
I
W4218
Imr
W4318
I
W4518
I
W4818
One shelf
21” High
mr
W2721 (Butt)
mr
W3021
mr
W3021 BUTT
mr
W3321
mr
W3321 BUTT
mr
W3421 BUTT
mr
W3621
mr
W3621 BUTT
Imr
W3721 BUTT
mr
W3921
Imr
W4221
23 1/2” High
m
W2424 BUTT
W2724 (Butt)
W3024
W3024 BUTT
W3324
W3324 BUTT
mr
W3424 BUTT
W3624
W3624 BUTT
Imr
W3724 BUTT
I
W3924
I
W4224
I
W4524
I
W4824
27” High
mrs
W2427 BUTT
mrs
W2727 (butt)
mrs
W3027
mrs
W3027 BUTT
mrs
W3327
mrs
W3327 BUTT
mrs
W3427 BUTT
mrs
W3627
mrs
W3627 BUTT
Imrs
W3727 BUTT
Two Shelves
30” High
m
W2430 BUTT
W2730 (Butt)
W3030
W3030 BUTT
W3330
W3330 BUTT
W3430 BUTT
W3630
W3630 BUTT
mrI
W3730 BUTT
I
W3930
I
W4230
I
W4530
I
W4830
Two Shelves
33” High
m
W2433 BUTT
W2733 (Butt)
W3033
W3033 BUTT
W3333
W3333 BUTT
W3633
W3633 BUTT
I
W3933
I
W4233
I
W4533
I
W4833
Three shelves
36” High
m
W2436 BUTT
W2736 (Butt)
W3036
W3036 BUTT
W3336
W3336 BUTT
W3636
W3636 BUTT
I
W3936
I
W4236
I
W4536
I
W4836
39” High
ms
W2439 BUTT
s
W2739 (Butt)
s
W3039
s
W3039 BUTT
s
W3339
s
W3339 BUTT
s
W3639
s
W3639 BUTT
Is
W3939
Is
W4239
Is
W4539
Is
W4839
42” High
ms
W2442 BUTT
s
W2742 (Butt)
s
W3042
s
W3042 BUTT
s
W3342
s
W3342 BUTT
s
W3642
s
W3642 BUTT
Is
W3942
Is
W4242
Is
W4542
Is
W4842
• Adjustable shelves
I
Integrated Extended Stile (XSG) only
available on cabinets 30” high or higher
I
Operational End (OE) is
not
available
with Increased Depth (ID) or Reduced
Depth (RD) options
Remember, a cabinet
designated BUTT or (Butt) has
no center stile. When you see
the word BUTT in all capitals, it
must
be included as part of your ordering
nomenclature, a (Butt) in parentheses is
for your information and isn’t required
on an order form
Any wall cabinet over 24˝ wide or 30˝ high
or higher with a depth greater than 12˝
and/or with butt doors
must
be installed
between two (2) cabinets, a cabinet and a wall or
supported from below
Tip: When mounting a 6” Spice Drawer
(SD—) or Organizer (O—) underneath a
23 1/2” cabinet next to a 30” high wall
cabinet, the overall height will be 29 1/2”. To correct
this, you can place a piece of Stack Molding (STM8)
or a 1/2” filler between the 23 1/2” cabinet and the
6” cabinet.
l
PE
l
APC
l
APFC
l
FPEB
l
MI
l
DE
l
OE
I
CW
l
RD
I
ID
I
CH
I
TWR
l
XS
I
XSG
12˝
15˝
18˝
12˝
15˝
18˝
12˝
W2412BUTT-W4318
W4512-W4818
12˝
12˝
W2721(Butt)-
W3727 BUTT
21˝
23 ½˝
27˝
30˝
33˝
12˝
W2430BUTT-
W4833
36˝
39˝
42˝
12˝
W2436 BUTT-
W4842
m
Change Width (CW) option
not
available
r
Change Height (CH) option
not
available
I
Not
available in Increased Depth (ID)
s
Top Wide Rail (TWR) option
not
available
Grey color coding indicates new product, size or code.
I
GD
Any wall cabinet over 24˝ wide or 30˝ high or higher
with a depth greater than 12˝ and/or with butt doors
must be installed between two (2) cabinets, a cabinet
and a wall or supported from below
I
GD
