WOE_1
BOE
VOE
TOE
WOE_2
C22
Construction Options
Specifications and Options

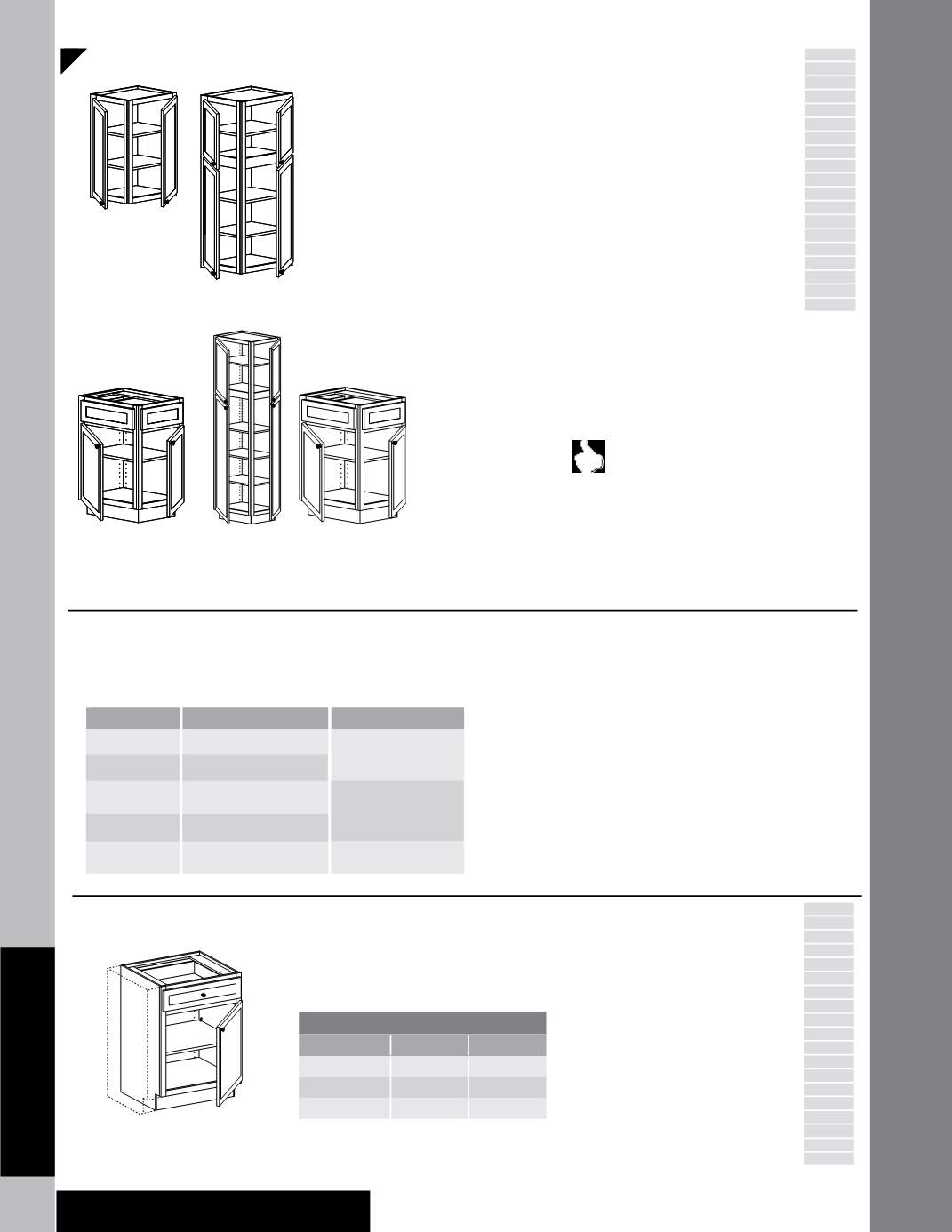

Operational End
• Operational End (OE) will be attached to
2 1/2” frame stiles
•
Not
available on both ends of Tall cabinets
• Stacking configuration of Operational End
(OE) will mimic the face of the selected
cabinet; BUTT doors are
not
provided, single
hinged door only
• Recessed Toe Kick (RTK) is standard on Base,
Tall and Vanity cabinets
• If Wide Rail (WR) is selected, the side and
front will have a wide rail
• Matching Interior (MI) is
not
standard but
can be added as an option
•
Not
available on Peninsula cabinets, Wine
Cabinets, Lattice Cabinets, Tambour
Cabinets, Appliance Cabinets with Appliance
Opening or Cabinets containing Rollout
Trays (ROT)
• Operational End (OE) is
not
available with Increased
Depth (ID) or Reduced Depth (RD) options
• Wall Operational End - Both (WOE.B) should only be
used on wall cabinets that are planned to be supported
from underneath, placed on a floor or placed on a
counter top. Wall cabinets are
not
intended to be
installed independently without additional support
Whisper Touch Angle Restrictor Clips
(WTHARC) are recommended for additional
decorative hardware clearance
PE
APC
APFC
FPEB
MI
DE
l
OE
CW
RD
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
New
Grey color coding indicates new product, size or code.
Cabinet Dimension Modification Information
• Cabinets can be modified in 1/16” increments; specify overall finished
dimensions to the nearest 1/16”. Doors, drawer fronts and cabinet
opening will be modified to coordinate with the new dimensions
• Height modifications will occur in the door portion of the cabinet
• Shelf quantities will remain consistent with original cabinet when
cabinet dimensions are increased or decreased
•
Note
: Modified Width (CW) and/or Height (CH) is
not
available on
Laminate or Veneer Raised Panel door styles. See specific door style for
availability
•
Note
: For information on replacement doors and made-to-order doors,
refer to the Decorative Appliance Panel section of this book
One Dimension
CW
(Change Width)
RD
(Reduce Depth)
ID
(Increase Depth)
CH
(Change Height)
Cabinet Dimension Modifications
Choose from the following and apply to cabinet code:
ree Dimensions
CW.RD.CH
(Change Width, Reduce Depth
& Change Height)
CW.ID.CH
(Change Width, Increase Depth
& Change Height)
Two Dimensions
CW.RD
(Change Width & Reduce Depth)
CW.ID
(Change Width & Increase Depth)
RD.CH
(Reduce Depth & Change Height)
ID.CH
(Increase Depth & Change Height)
CW.CH
(Change Width & Change Height)
Change Width
One Dimension
CW
• To order Change Width (CW) modifications,
start with a larger cabinet and reduce
down in 1/16” increments. Consult option
availability chart for your desired cabinet
• Specify overall finished width. Example 1:
W1830L-CW 17 1/2”; Example 2: B30BUTT-
CW 28 1/2” (Example of incorrect request:
W1830L-CW 19 1/2”)
• Double door cabinets cannot be modified to
less than 24” wide; single door cabinets
must
be used for this option
•
Not
available in High-Gloss Laminate or
Woodgrain Laminate door styles
• Select Decorative Doors and Inserts are
available with the Change Width (CW)
option; refer to the Decorative Doors and
Inserts section for specific availability
• Consult option availability chart for your
desired cabinet
•
Note
: Decorative Inserts are
not
available on
cabinets less than 12” wide
PE
APC
APFC
FPEB
MI
DE
OE
l
CW
RD
ID
CH
IF
TWR
WR
XS
XSG
GD
RTK
RTKP
Change Width
Cabinet
Wall and Base
9˝
48˝
Tall
9˝
36˝
Vanity Base
12˝
60˝
Max. Width
Min. Width
Base
BOE R or L
BOE B
Tall
TOE R or L
Vanity
VOE R or L
VOE B
Wall
12”-33” H
WOE R or L•1
WOE B•1
36-54” H
WOE R or L•2
WOE B•2
